Precision Rifle Gear AT-X Chassis on 16" barreled action

[eyekahn]

Is anyone running this? The shorter 13" railed AT-X chassis on a 16" rifle?

Also, is anyone running a full length bridge and top rail on a 13" model chassis? If so did you have to modify it?

Looking to swap my AX chassis for an AT-X but don't want to lose the continuous top rail or the capability to run my 16" barrel.

Thanks!



[CageFighter]

watching...



[sjbryan65]

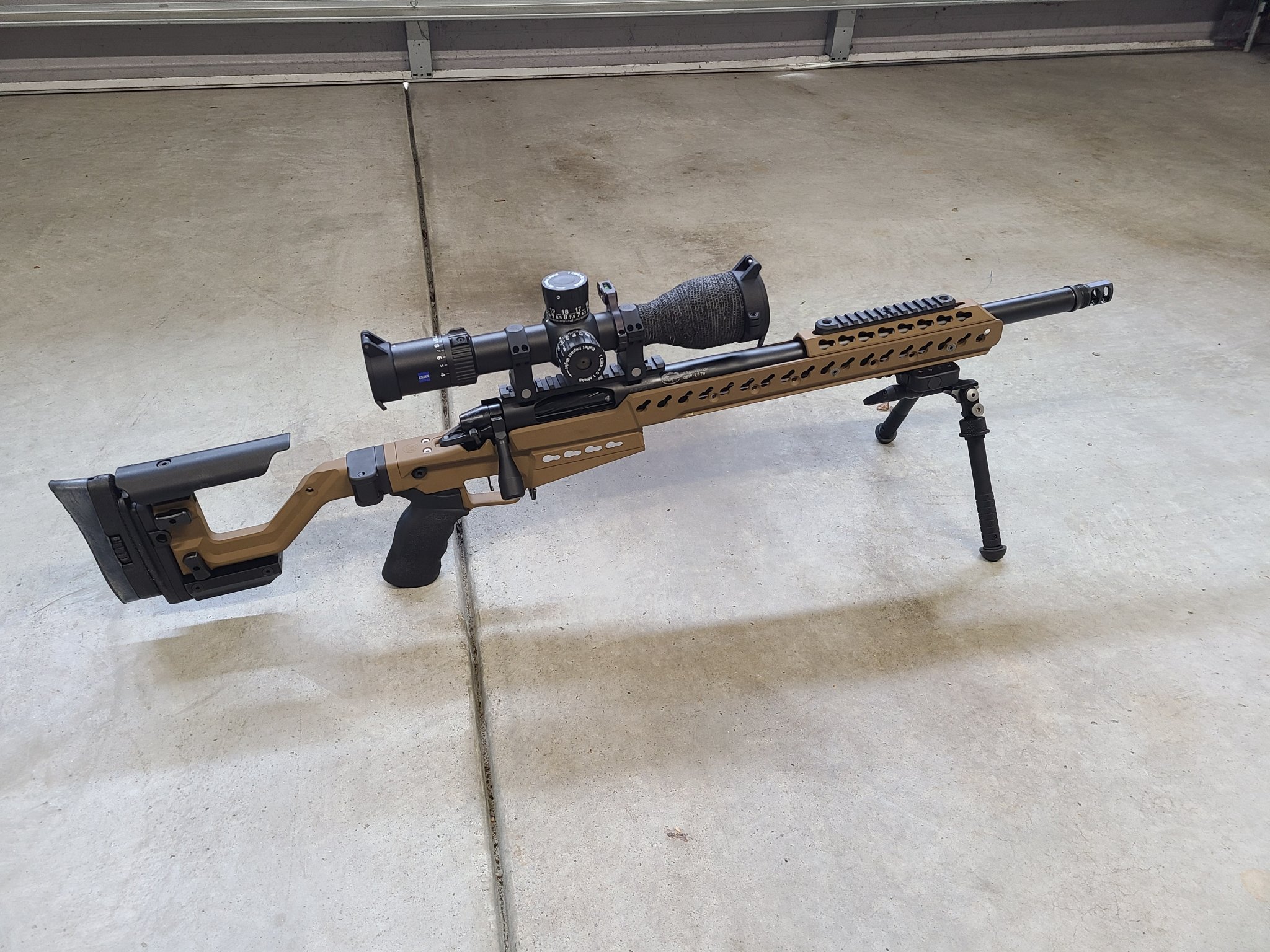

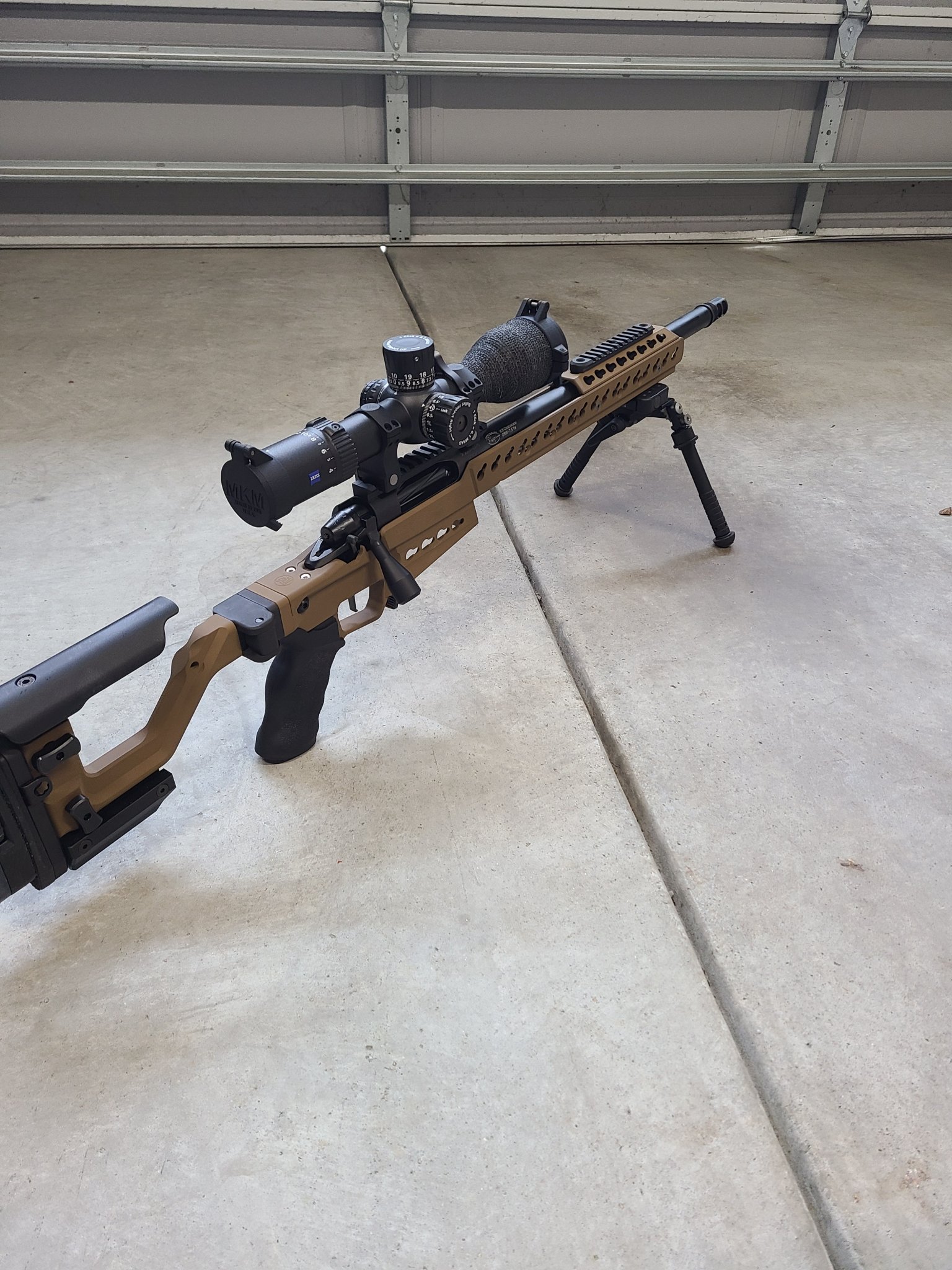

I am running the 13" with an 18" barrel to give you an idea...



[eyekahn]

I am running the 13" with an 18" barrel to give you an idea...View attachment 8416862View attachment 8416863

What's the measurement from your barrel shoulder behind the muzzle device to the front of the forend?



[sjbryan65]

What's the measurement from your barrel shoulder behind the muzzle device to the front of the forend?

3.25"



[eyekahn]

That helps a ton. Thank you.



[sjbryan65]

That helps a ton. Thank you.

Awesome. Yea plenty of room for a 16".



[eyekahn]

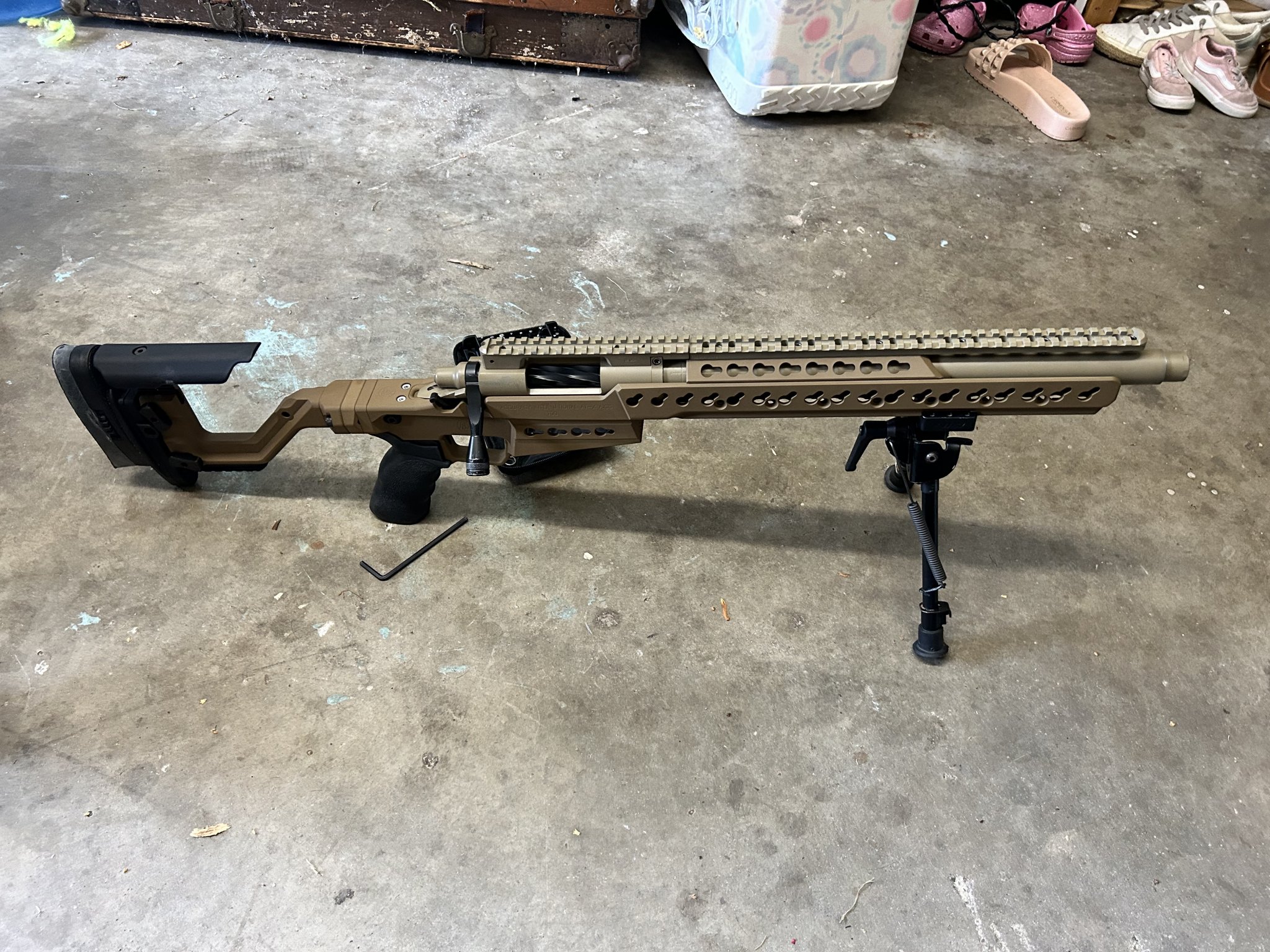

My buddy brought over his short chassis ATX for us to mock up some rail situations.

It seems there are no 20 moa top rails that will fit the 13" forend.

The top rail in the picture is off of my 13" AXSA AICS chassis. It would need to be slightly shortened and it also sits about 1/16" lower than the action rail.

Also, just realized they make a medium sized bridge to work with the 13" forend. The short is on there as we thought you would need to chop the long bridge to work.

16" barrel installed on a WTO switch Lug



[beetroot]

The 13" forend looks great, I personally don't tend to run a bipod too far out (cant reach of for adjustment) so don't see the point in the 16" version other than more real estate for weights.
