300NM or 7-300NM, standard or improved 30*?

18Echo

Sergeant
Supporter
Full Member
Minuteman
Jun 12, 2007
823
106
Maricopa Co., AZ

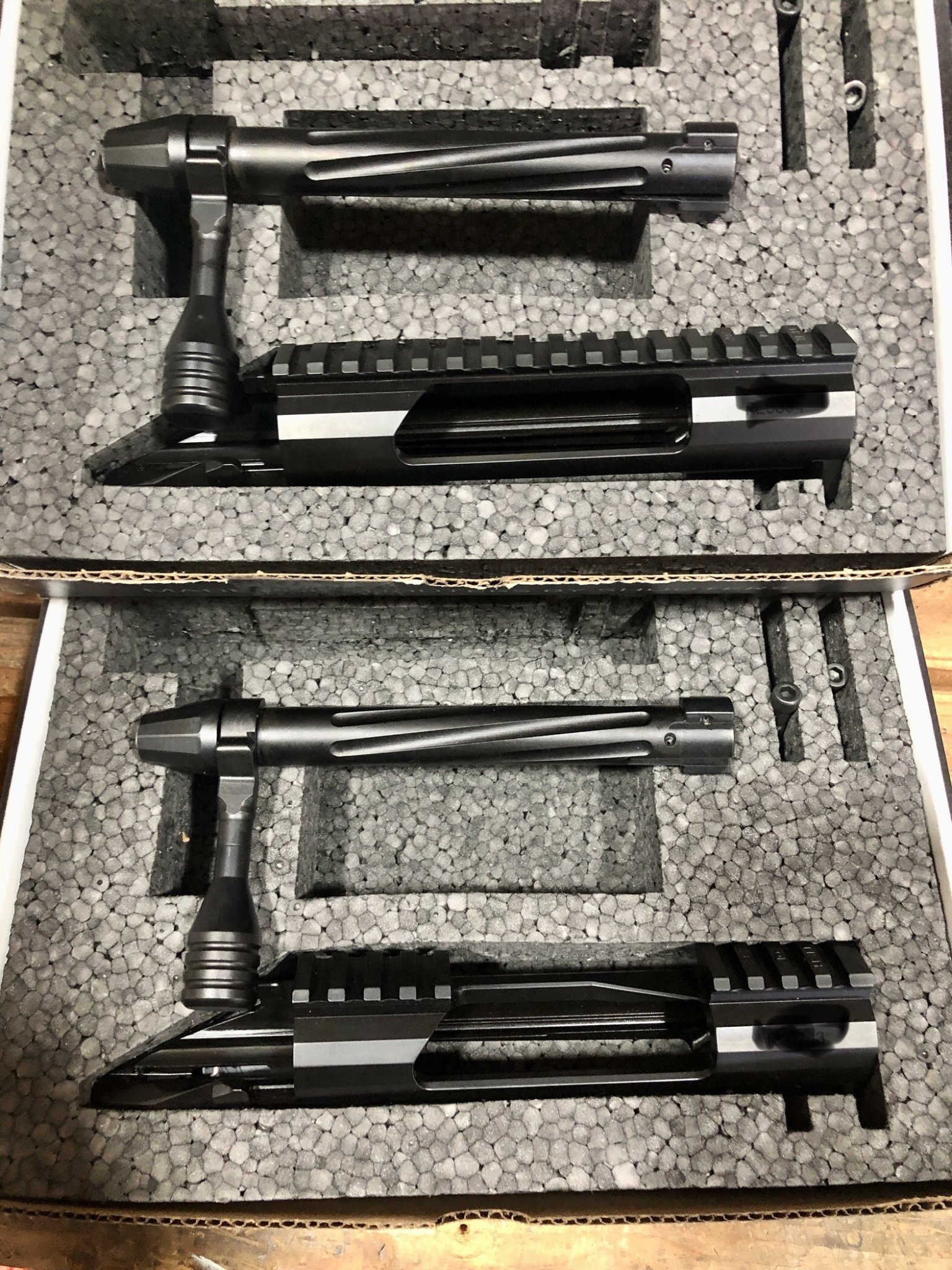

So I have two Long Action Impacts with magnum BF, and two additional bolts one standard and one Lapua. The Split rail is going going to be a 30-06 / 300 WM switch barrel. The full rail is going to be a 300PRC and some form of Norma Magnum.

I'm debating 300 Norma vs 7-300 Norma, and whichever one I decide on should I go standard case or Improve it 30 degrees? I'm assuming my 338 Norma dies will work with either flavor in a standard chamber and that I just need to pick the right bushing for the sizer and correct stem for the seater? For an improved version I suppose I would send some fired cases to Neil Jones for a FL sizer and seater.

What do you think the real world velocity increase from a standard to improved chamber will be for both? Is an improved version worth the extra hassle over a standard version when it comes to bang/flopping an animal?





Huskydriver

Not here for a long time but here for a good time
Full Member
Minuteman
Apr 17, 2018
6,519
12,212
SLC, Utah
300 Norma mag uses a 338 Lapua bolt face
300prc uses .532 bolt face


Bradu

Full Member
Full Member
Minuteman
Aug 24, 2011
3,492
1,705
IL
Standard version is pretty tough to beat. You will gain 100-150 fps with the improved but the wait time for dies to be made was what kept me from going that route. I have a 7-300 norma and run 195's at 3150. I pushed them to almost 3300 fps with minimal signs of pressure. You need the vld seating stem and the correct bushings for the 7mm version. I neck turned then necked down in 3 steps using bushing dies.


MountainHunter

Sergeant of the Hide
Full Member
Minuteman
Jan 22, 2018
234
102
Montana
For reference my standard 300 Norma pushes 245 EOL’s at 2925 with 86.5 grains of N570 in a 24” benchmark carbon on a lone peak ti fuzion. I tested up to 2975 without pressure.


kthomas

Sergeant
Supporter
Full Member
Minuteman
Supporter+
Jun 17, 2009
5,076
6,349
35
Tucson, AZ
I have a .300NM.

If I was to do it again, I would do a .300NMI (something like a 35* shoulder).

My current .300NM barrel (29") is pretty slow, running 230 hybrids at 2950 fps before finding pressure. For the amount of powder behind that 230, I certainly expected more velocity. An improved version would help with that ballistic efficiency, while reducing the need for trimming.

  • Like
Reactions: Huskydriver

18Echo

Sergeant
Supporter
Full Member
Minuteman
Jun 12, 2007
823
106
Maricopa Co., AZ
I have a .300NM.

If I was to do it again, I would do a .300NMI (something like a 35* shoulder).

My current .300NM barrel (29") is pretty slow, running 230 hybrids at 2950 fps before finding pressure. For the amount of powder behind that 230, I certainly expected more velocity. An improved version would help with that ballistic efficiency, while reducing the need for trimming.
That does seem pretty slow for a barrel that long, what powder are you using?


kthomas

Sergeant
Supporter
Full Member
Minuteman
Supporter+
Jun 17, 2009
5,076
6,349
35
Tucson, AZ
That does seem pretty slow for a barrel that long, what powder are you using?

Retumbo.

Could be a slow barrel. Some barrels are just faster or slower than others. This specific one is a benchmark.

I have a Hawkhill barrel to put on after I burn this one out, perhaps that one will be faster.

  • Like
Reactions: Huskydriver

MOUNTIC

Mountic Outdoors: Big Game Hunter
Supporter
Commercial Supporter
Full Member
Minuteman
Supporter+
  • Apr 29, 2017
    4,449
    3,112
    Colorado
    MounticOutdoors.com
    300 NM. 3005fps with Retumbo for me out of a 27" tube with the 230 Atips. 85.5 of retumbo in that load with Peterson Brass.

    300 PRC and 300 Norma are pretty close and almost redundant on the same rifle. I prefer the Norma if I could only pick one between those two. If you want to have some variety, go with the 7-300 Norma as you have 3 of the 30 cals already picked out. That 7-300norma is a bad machine with some of the new 7mm pill offerings.

    • Like
    Reactions: Huskydriver

    Huskydriver

    Not here for a long time but here for a good time
    Full Member
    Minuteman
    Apr 17, 2018
    6,519
    12,212
    SLC, Utah
    I also didn't get much better with retumbo with my 27" 300 Norma and concluded the juice wasn't worth the squeeze compared to 300 prc.

    • Like
    Reactions: st1650 and kthomas

    18Echo

    Sergeant
    Supporter
    Full Member
    Minuteman
    Jun 12, 2007
    823
    106
    Maricopa Co., AZ
    I suppose that is a good point, reference the 30 cals, and finding 215’s or 230’s seems to be pretty tough lately. 195EOL’s are pretty scarce too. I suppose I could put myself on a bunch of notifications and then just watch out for them while I get a reamer made by JGS for a 7-300 Norma improved throated for 195’s at Mag length, I’m assuming an 8 twist would work, Fireform some brass and then send some cases to Neil Jones for a full length sizer.


    dgheriani

    Private
    Full Member
    Minuteman
    Feb 10, 2017
    696
    392
    I think the 220gr LRHTs are the perfect compromise in a .300 NM. 215 speeds and 230 BC. I push them at 3190 out of a 29.5" Krieger with 90.4gr of N570. Thing is a laser beam. I'll echo that having a 300NM and 300PRC on the same action seems kinda redundant. I'd go 300NM over PRC but if you're deadset on the PRC for whatever reason then I'd either do a 7-300NM or a 338NM.


    Hennig

    Sergeant
    Full Member
    Minuteman
    Sep 28, 2011
    752
    1,194
    34
    QLD, Australia
    www.instagram.com
    Am I the only one looking at the plan and wondering why youre chambering so many similar performing .30s? 300NM/300PRC/300WM.

    I vote 7-300NM for the 4th barrel just for a bit of variety.

    • Like
    Reactions: kthomas

    18Echo

    Sergeant
    Supporter
    Full Member
    Minuteman
    Jun 12, 2007
    823
    106
    Maricopa Co., AZ
    Am I the only one looking at the plan and wondering why youre chambering so many similar performing .30s? 300NM/300PRC/300WM.

    I vote 7-300NM for the 4th barrel just for a bit of variety.
    The 30-06 and 300WM is because you can always find it at a Walmart or an ace hardware etc. when times get lean.

    Love 30’s , but like the 7’s too.


    18Echo

    Sergeant
    Supporter
    Full Member
    Minuteman
    Jun 12, 2007
    823
    106
    Maricopa Co., AZ
    Okay, after some thought I’m going to nix the 30-06 and go with a 6.5 x284 Norma and Berger 140’s or the 156 EOL.
