6.5 Creedmoor 147 Gr ELD-M. RL16, RL26, H4831SC, H4350 Test and Data

EDMJustin

Canadian Eh
Belligerents
Minuteman
Apr 24, 2017
62
108
Alberta, Canada
So I have been lurking for a while now, I have made a few posts here and there, but nothing with much contribution yet. Now it is time to put up some meaningful data for all of you. I have noticed it can be hard to find load data on the Hornady 147 Gr ELD-M for the 6.5 Creedmoor. So I did some research and bought a few powders that interested me for this. I chose 4 different powders, loaded up 50 rounds of each, took it to the range and here are the results for anyone who is interested.





The powders I tested were RL16, RL26, H4831 SC, H4350. After testing all four I had great results with all of the in different ways. I will let you all be the judge of what might work for you. This data will hopefully help anyone trying to choose a good powder for the 147 ELD-M.



Use Caution when using any of these loads, be sure start low and work your way up. All these loads below, start high and get over recommended charges. Don't be a fool and blow up your tool.

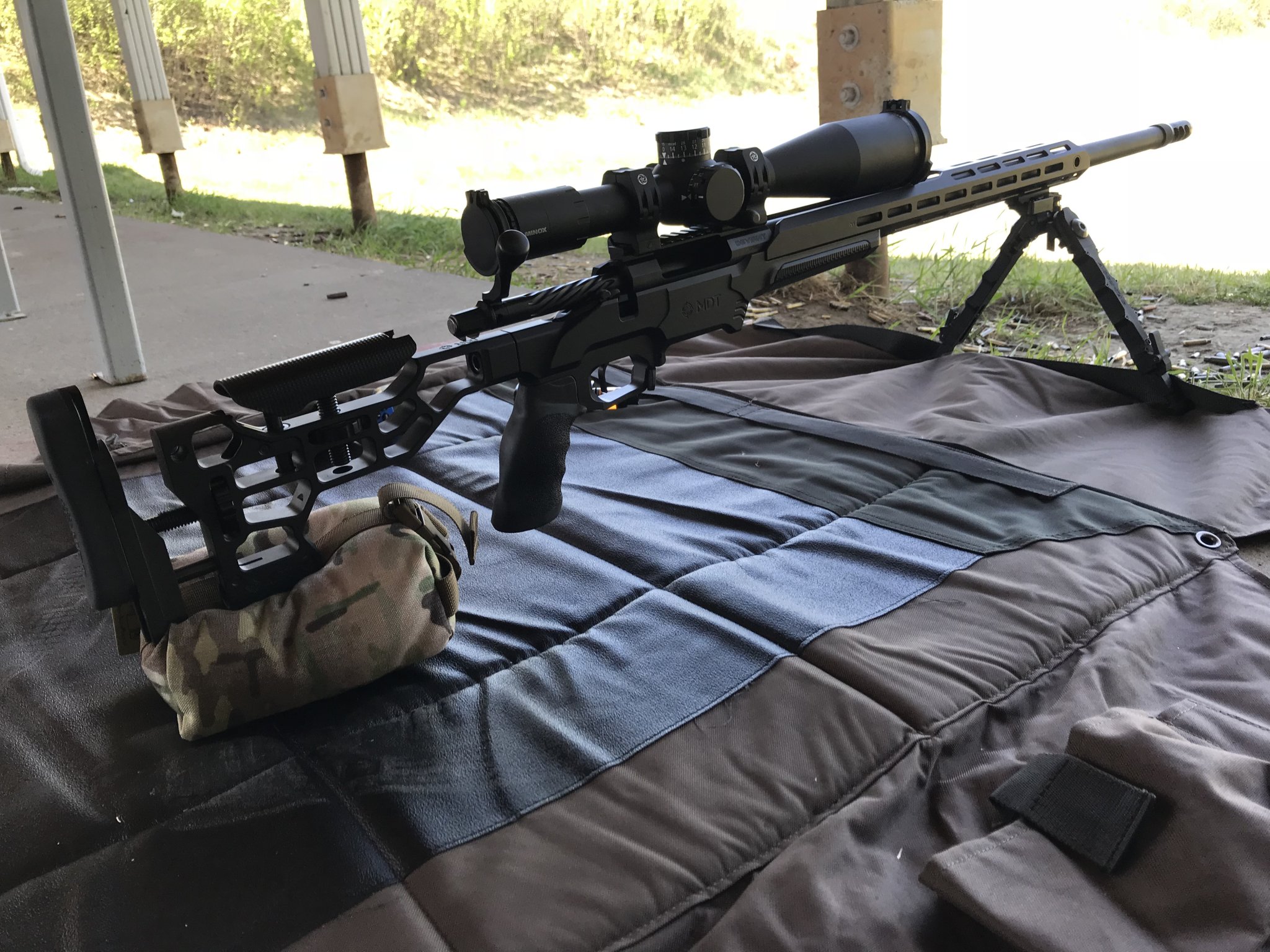

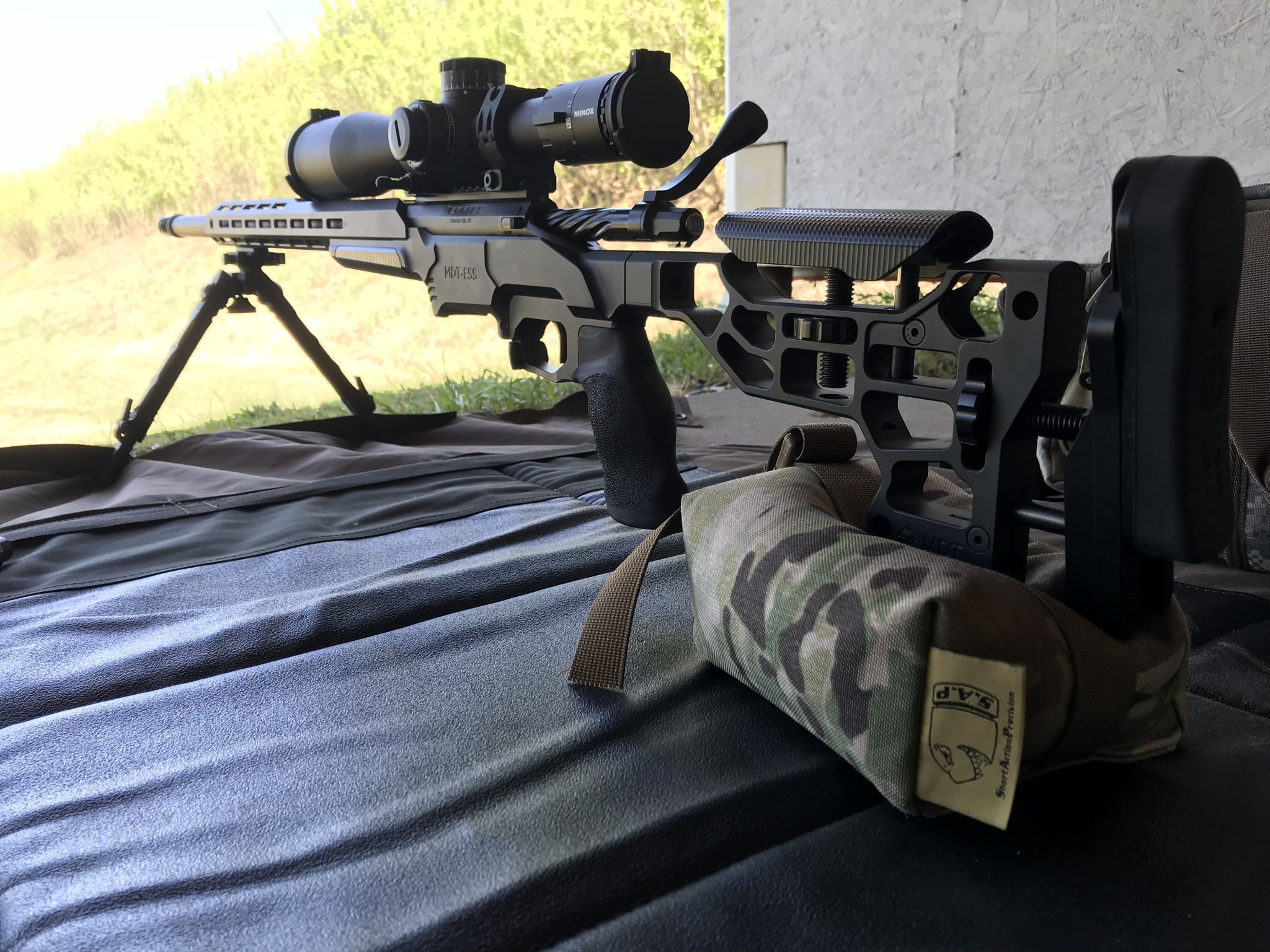

The Rifle
2018-05-19 14.11.48-1.jpg
2018-05-19 14.10.59 HDR.jpg


Action - Defiance Deviant

Barrel - 26" Krieger 1:8 MTU

Break - Area 419 Hellfire

Trigger- Timney Calvin Elite 2 Stage

Chassis - MDT ESS

Rings - ARC M10 Medium

Scope - Minox ZP5 5-25x56



The Ammo



Hornady 147 Gr ELD-M

Brass- Lapua Small Rifle 6.5 CM

Primer - CCI 450

OAL - 2.263

.0020 Off the lands



Testing was done at my local range at 100m. Temperature was 22c with 30km wind gusting to 60km. Altitude was 805m above sea level. Sorry but all you guys from the USA will have to convert that from Canadian on your own.



Test #1 - RL16

Charge Muzzle Vel. SD ES Group Size "



40.3 2658 9.8 26 1.637

40.6 2687 8.1 18 .998

40.9 2707 6.0 13 .495

41.2 2721 5.6 15 .926

41.5 2749 8.1 22 .754

41.8 2771 6.6 15 .852

42.1 2788 4.5 12 .802

42.4 2808 9.8 26 .735

42.7 2835 6.7 14 1.040

43.0 2851 6.3 14 .926

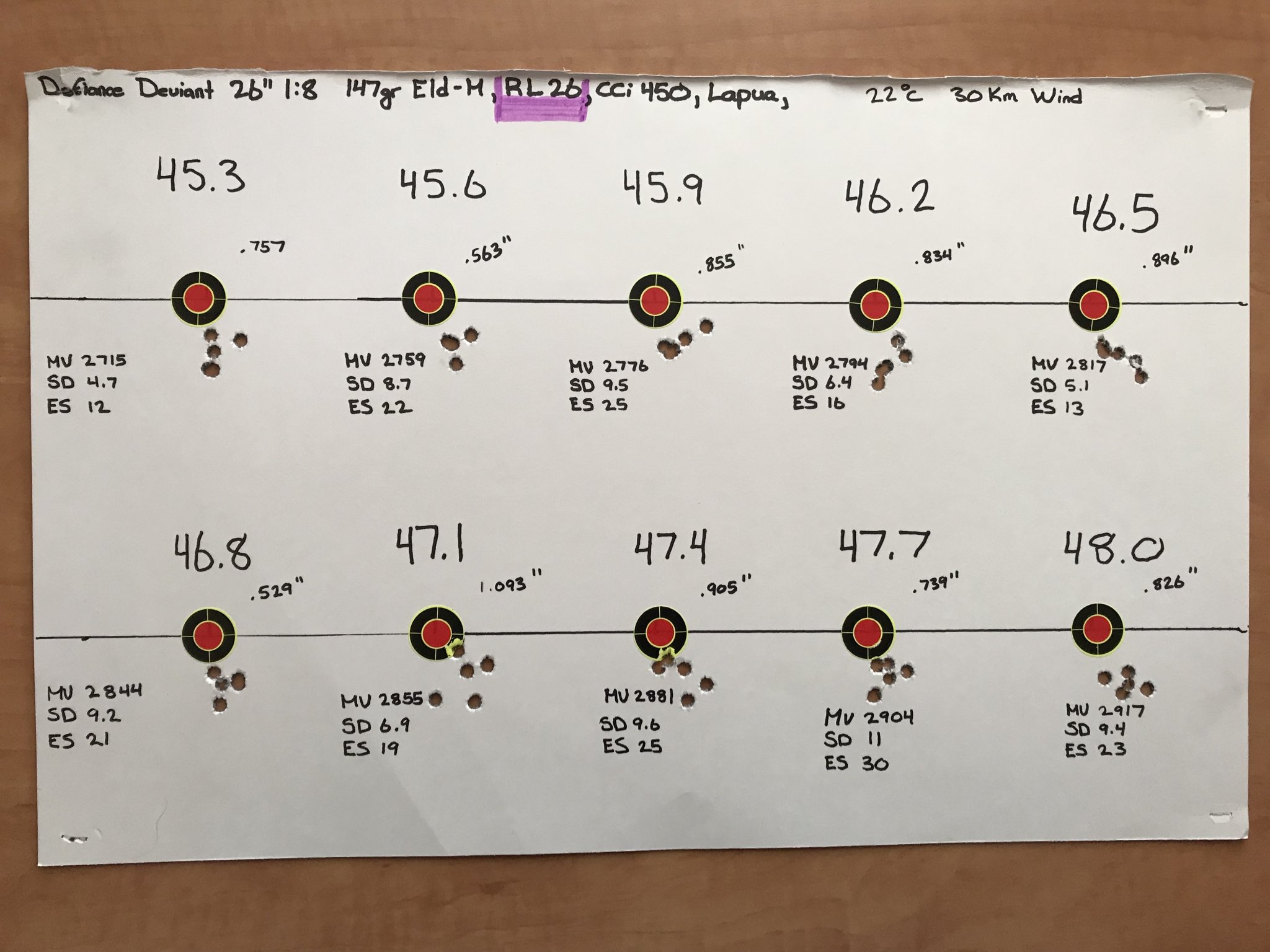

Test #2 - RL26

Charge Muzzle Vel. SD ES Group Size "



45.3 2715 4.7 12 .757

45.6 2759 8.7 22 .563

45.9 2776 9.5 25 .855

46.2 2794 6.4 16 .834

46.5 2817 5.1 13 .896

46.8 2844 9.2 21 .529

47.1 2855 6.9 19 1.093

47.4 2881 9.6 25 .905

47.7 2904 11 30 .739

48.0 2917 9.4 23 .826

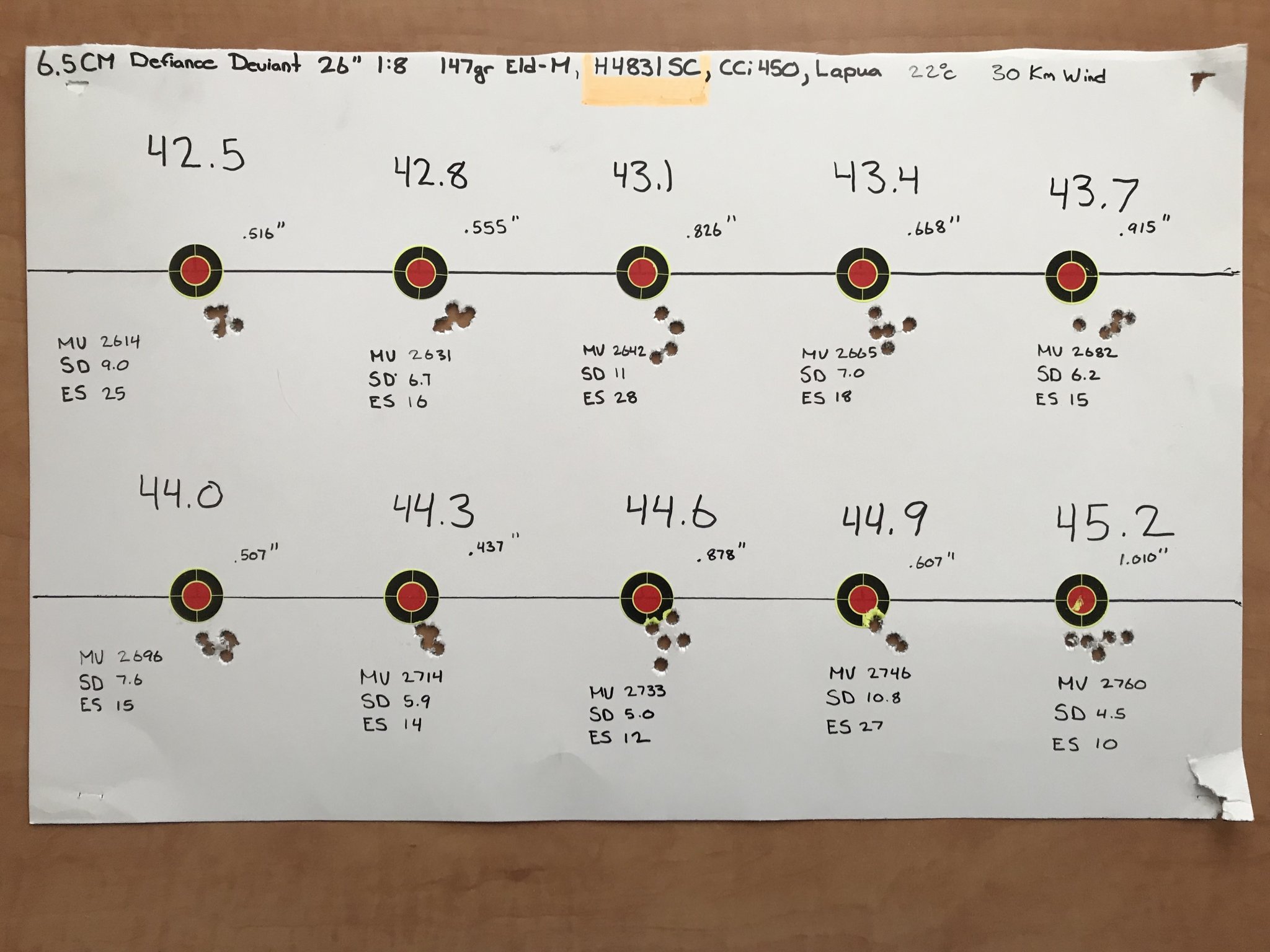

Test #3 - H4831 SC

Charge Muzzle Vel. SD ES Group Size "



42.5 2614 9.0 25 .516

42.8 2631 6.7 16 .555

43.1 2642 11 28 .826

43.4 2665 7.0 18 .668

43.7 2682 6.2 15 .915

44.0 2696 7.6 15 .507

44.3 2714 5.9 14 .437

44.6 2733 5.0 12 .878

44.9 2746 10.8 27 .607

45.2 2760 4.5 10 1.010

H4831 SC.jpg

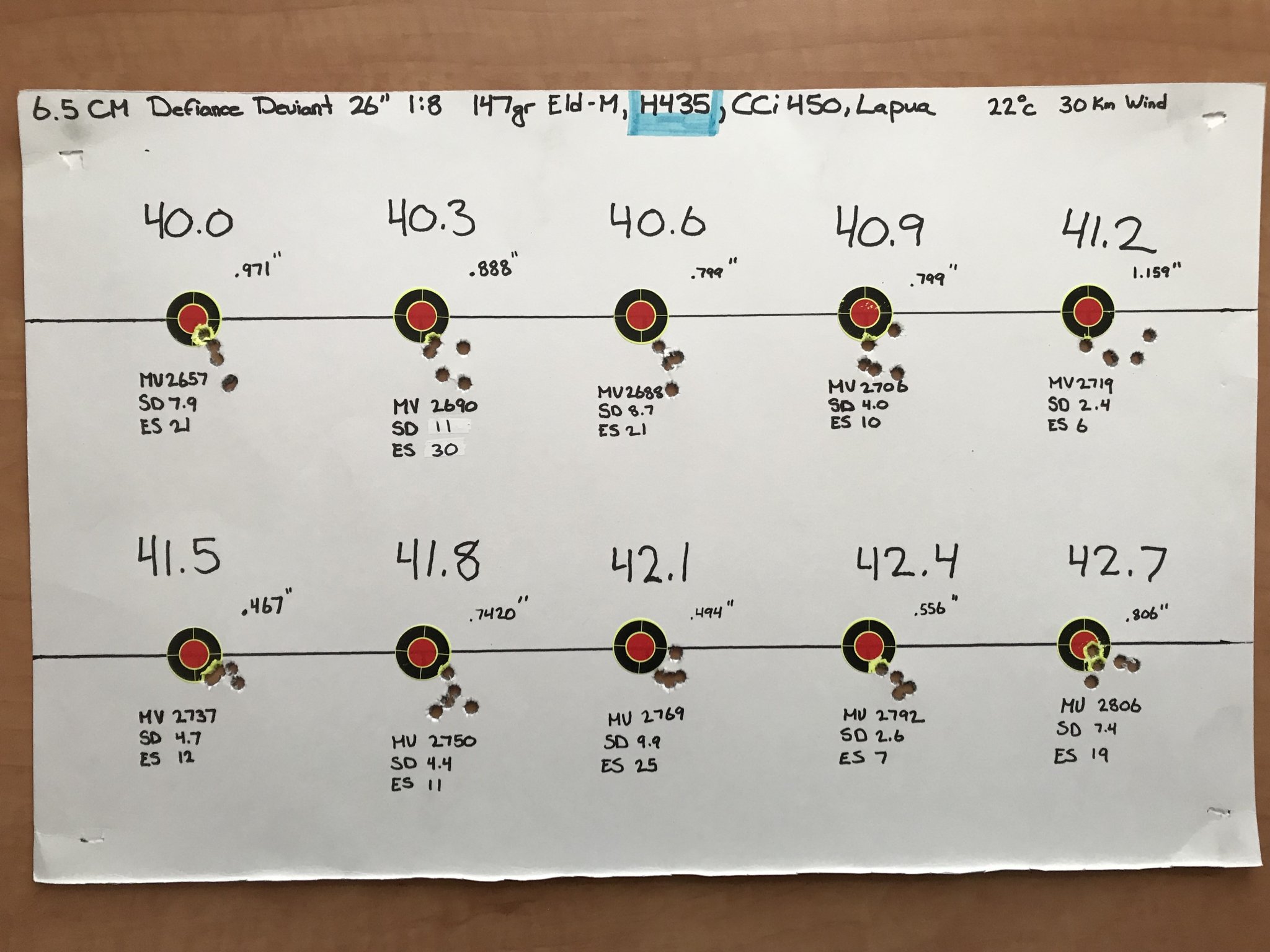

Test #4 - H4350

Charge Muzzle Vel. SD ES Group Size "



40.0 2657 7.9 21 .971

40.3 2690 11 30 .888

40.6 2688 8.7 21 .799

40.9 2706 4.0 10 .799

41.2 2719 2.4 6 1.159

41.5 2737 4.7 12 .467

41.8 2750 4.4 11 .742

42.1 2769 9.9 25 .494

42.4 2792 2.6 7 .556

42.7 2806 7.4 19 .806




After doing these tests I thought I would have a clear winner but now I just want to test these all more thoroughly. So this test has turned into phase 1 now. I will see what kind of fine tuning I can do to these in the future. I will keep you all posted when phase 2 is completed and I will post the results for you all.


Skookum

Jack Booted Thug...Crushing the American Dream
Belligerents
Minuteman
  • May 6, 2017
    2,650
    3,625
    There is a lot going on here:

    RL16 - You went about 1 grain over max, you had an major POI shift at 41.8g, that is the beginning of optimal pressure for this combo.

    RL26 - You went approximately 2 grains over with this powder, POI stayed consistent for all groups even though pressure was probably around 70,000+ PSI. This powder is a winner.

    H4831SC - For some reason you didn't get to max pressure with this load (46g according to Hodgdon), but again POI was consistent, another possible winner.

    H4350 - 1 grain over max, major POI shift at 41.5, this is where optimal pressure starts.

    When doing this type of testing, group sizes mean nothing. That can be adjusted with seating depth. What you are looking for is pressure and POI shifts.
    Hope this helps.


    EDMJustin

    Canadian Eh
    Belligerents
    Minuteman
    Apr 24, 2017
    62
    108
    Alberta, Canada
    There is a lot going on here:

    RL16 - You went about 1 grain over max, you had an major POI shift at 41.8g, that is the beginning of optimal pressure for this combo.

    RL26 - You went approximately 2 grains over with this powder, POI stayed consistent for all groups even though pressure was probably around 70,000+ PSI. This powder is a winner.

    H4831SC - For some reason you didn't get to max pressure with this load (46g according to Hodgdon), but again POI was consistent, another possible winner.

    H4350 - 1 grain over max, major POI shift at 41.5, this is where optimal pressure starts.

    When doing this type of testing, group sizes mean nothing. That can be adjusted with seating depth. What you are looking for is pressure and POI shifts.
    Hope this helps.
    I agree completely, I was very happy with the results of the text I think that 4831sc produced the best groups, but H4350 gave me the best SD and ES. By far the best velocity was from the RL26. I am going to be doing another test and I will be playing with seating dept. I would really love to find a group that shoots low ES with the RL26


    Brandon05_88

    Sergeant
    Belligerents
    Minuteman
    Jan 5, 2011
    563
    160
    33
    Charleston, WV
    I would really be interested in seeing how H4831SC does until you hit pressure versus H4350. The velocity and accuracy between these two powders always intrigues me.


    EscapeVelocity

    Sergeant
    Belligerents
    Minuteman
    Jan 24, 2010
    541
    111
    Zanesville, Ohio
    I'm glad you got some data with h4831sc, as that's what I'm toying with since I find it more often than h4350. I love it personally, and am currently testing in my savage with a Shilen. I would rather potentially sacrifice barrel life with this powder vs h4350.


    TX_Punisher

    Private
    Minuteman
    Apr 15, 2018
    85
    17
    Thanks for the info. Just loaded up some rl 26 as well. Been using 4350 and hope to find a good load by switching. Like the speed from rl26.

    • Like
    Reactions: EDMJustin

    FOHA1

    Private
    Belligerents
    Minuteman
    Aug 5, 2014
    62
    26

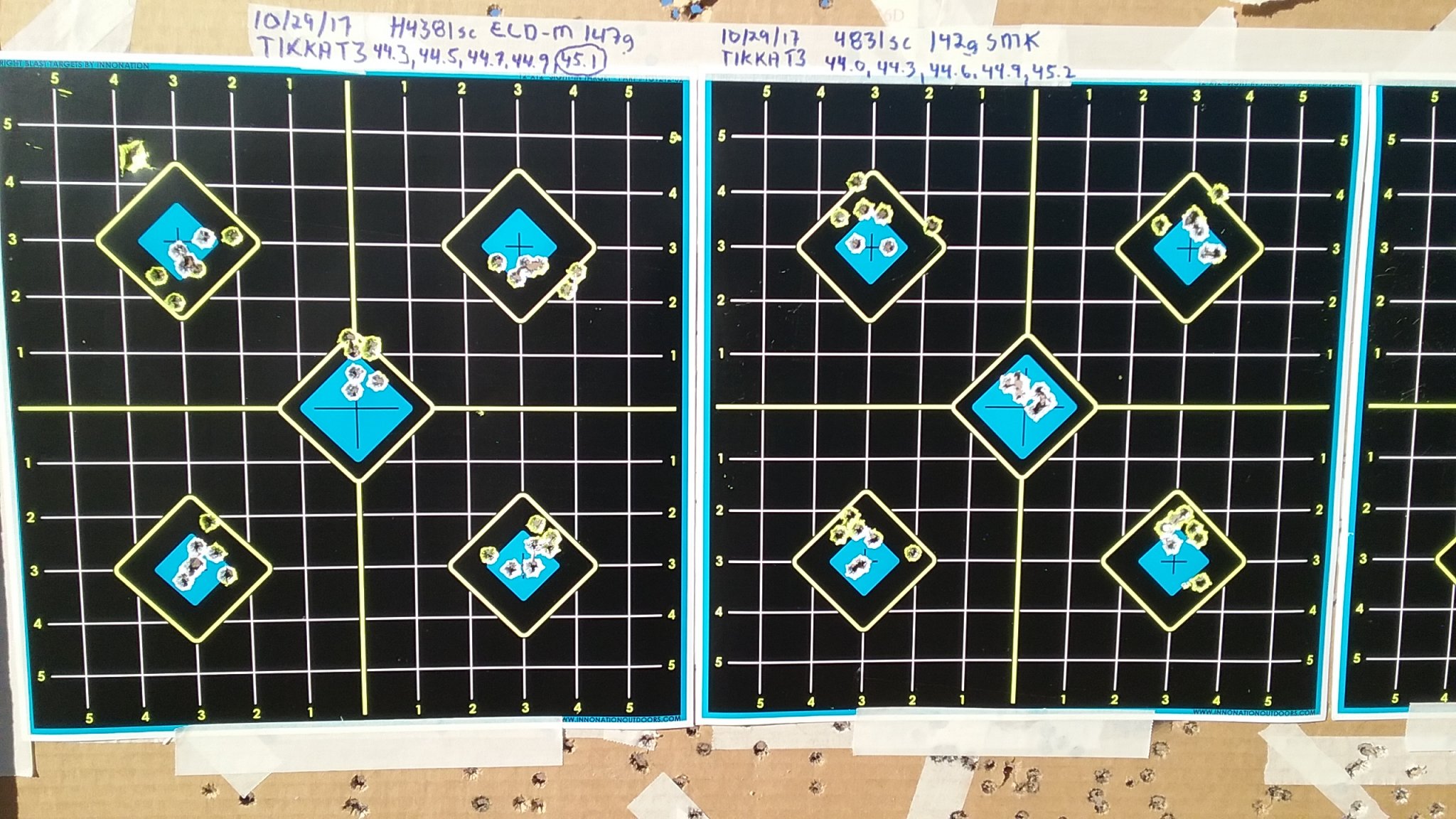

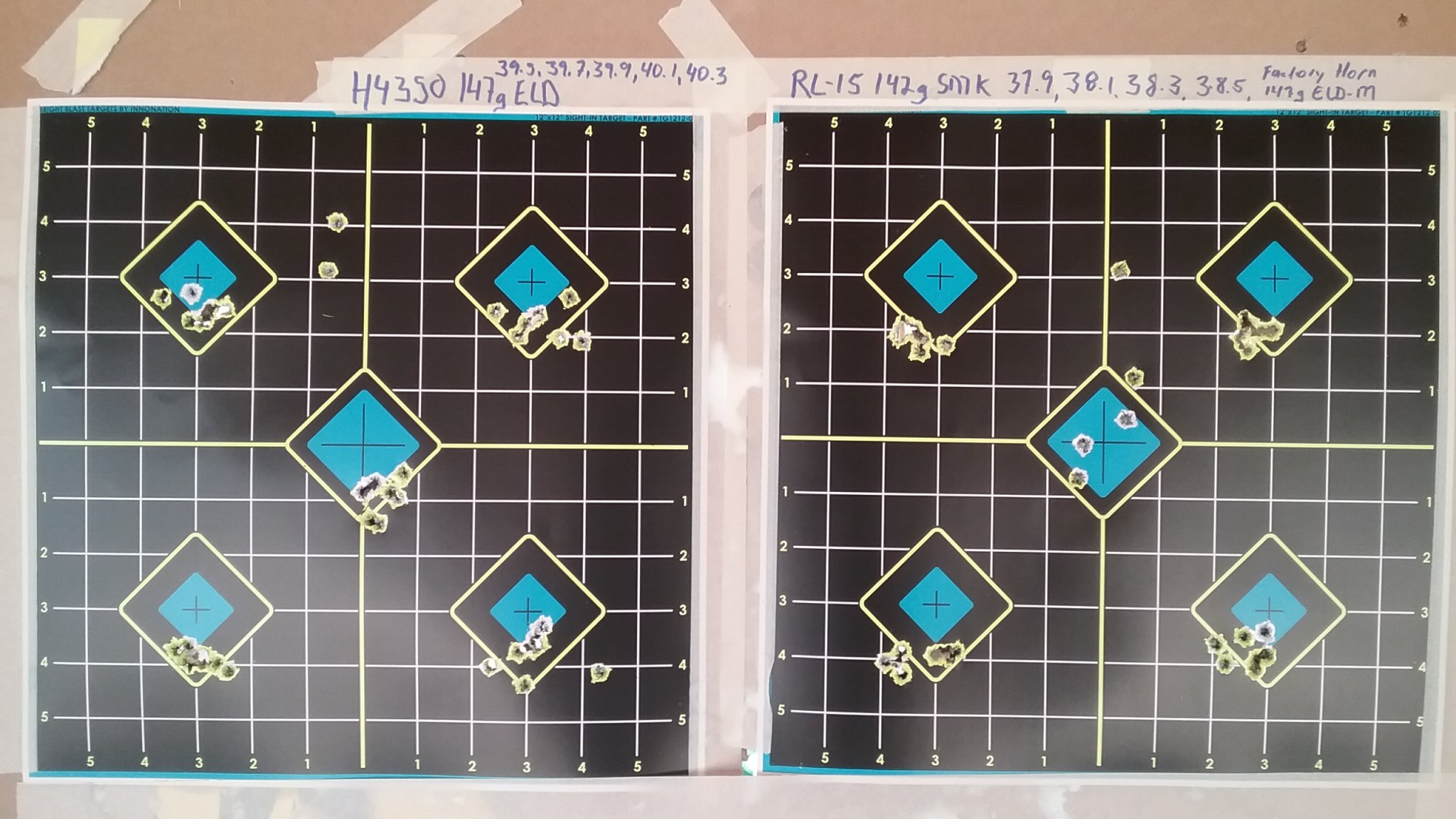

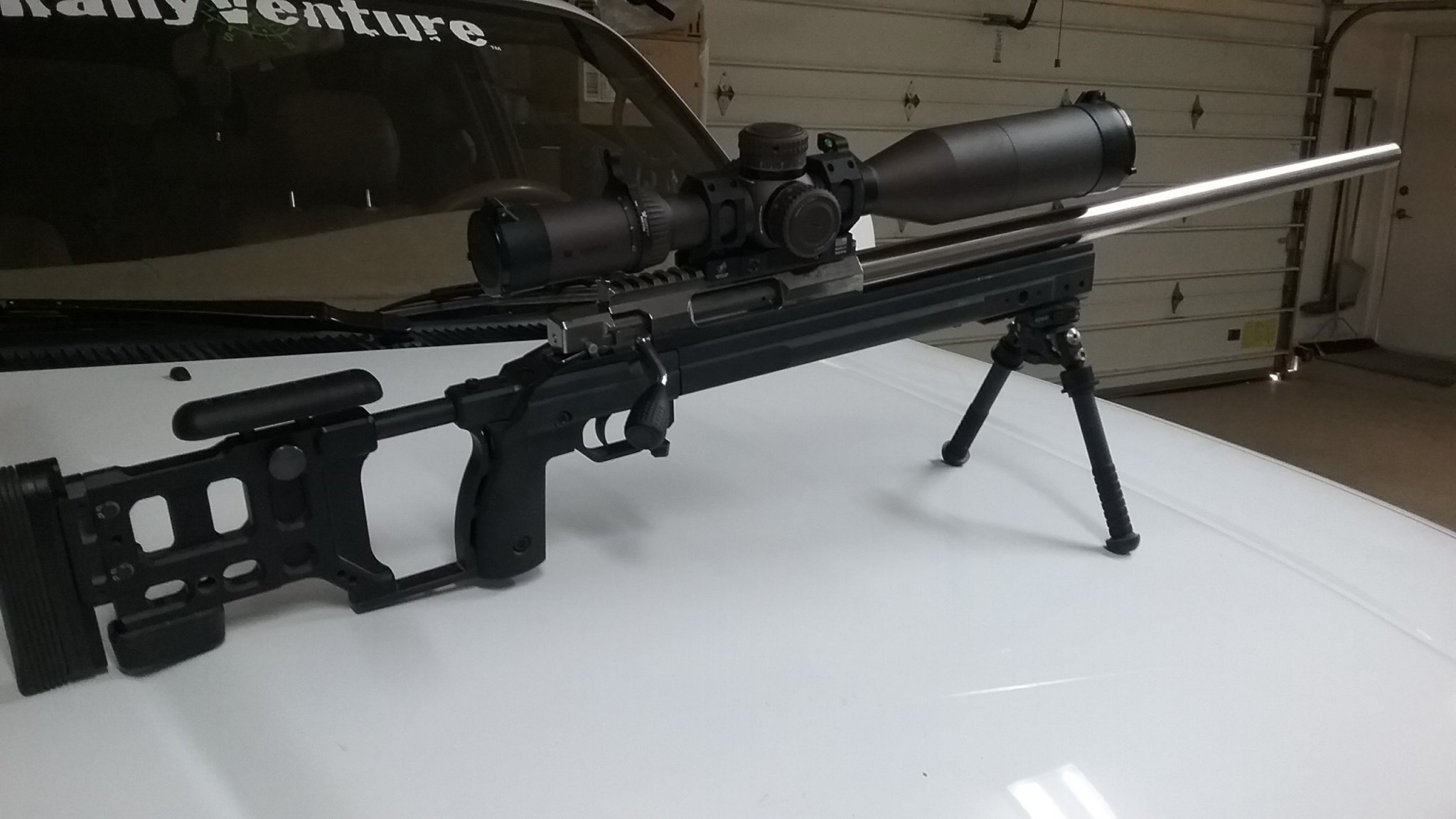

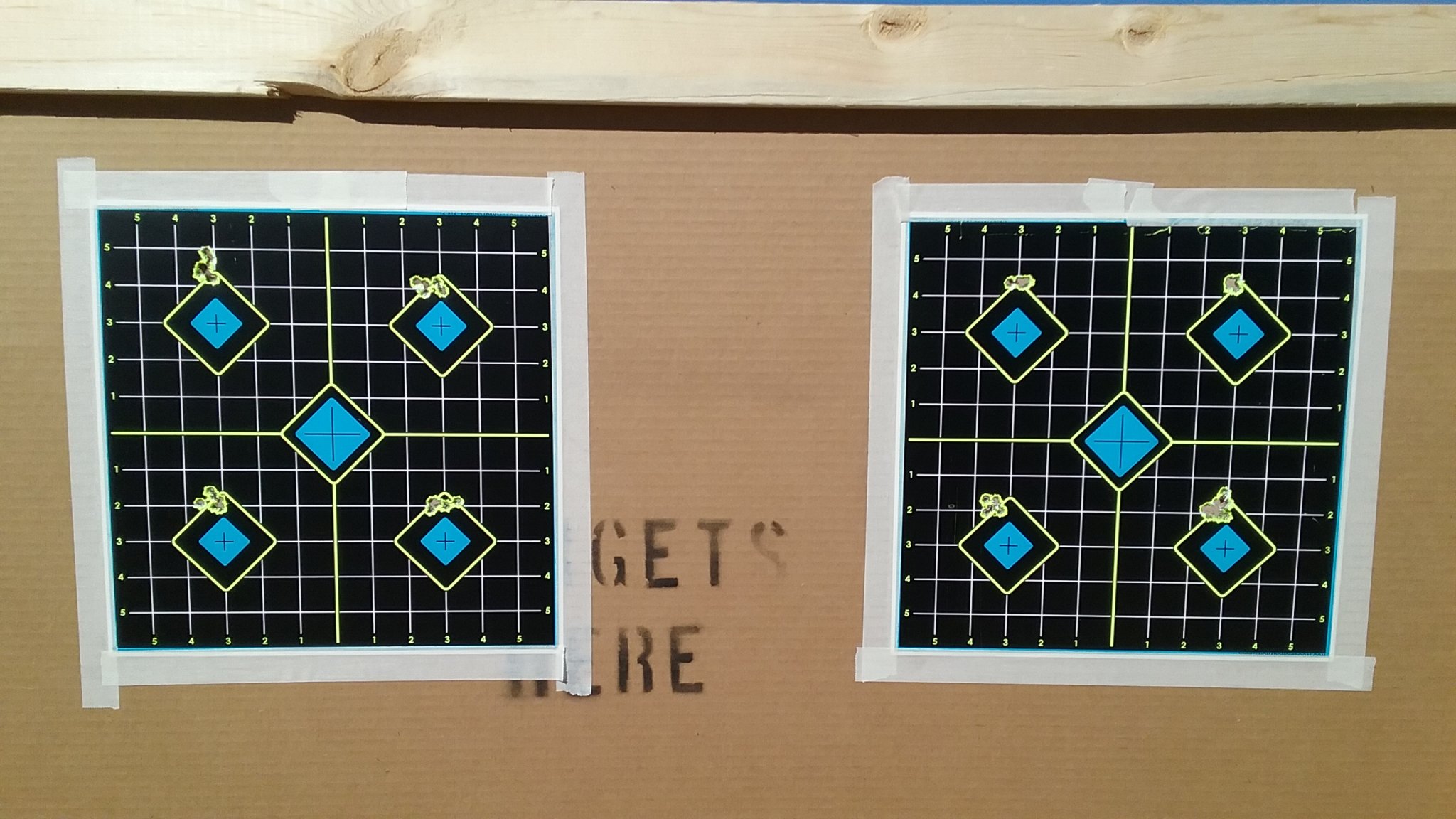

    Here's some results from a 24" Tikka T3x CTR. I started buying H4831sc when H4350 was so scarce, and have now standardized on it for PRS loads. Although the H4350 gave me some good groups with low SD, 45.2g of H4831sc and the 142g SMK's was a sweet spot.
    October 29, 2017 413 PM.jpgOctober 21, 2017 937 AM.jpgr my PRS loads.


    knuckleballz

    Elk Hunter
    Belligerents
    Minuteman
    Dec 12, 2013
    446
    307
    I found my tikka t3x superlite liked rl26 with 47.9 with the 147eld -m .005" off the lands. This superlite 24" light profile barrel has been hard to load for. This combination is producing 1/2 moa groups. I wasn't able to get the higher velocity and accuracy with h4350. I was getting to the point of giving up on this gun for acceptable accuracy for a hunting rig til I found this combination. My CTR is much more accurate and easier to load for.


    knuckleballz

    Elk Hunter
    Belligerents
    Minuteman
    Dec 12, 2013
    446
    307
    This was with starline large primer brass and cci 250 primers. No pressure signs or primer issues. No stiff bolt lift. I have a new lab radar on the way for my next range trip to measure velocities and confirm ballistics.


    FOHA1

    Private
    Belligerents
    Minuteman
    Aug 5, 2014
    62
    26
    I was getting discouraged with my initial groups, considering how well my other Creedmoor was doing with various loads, but that 45.2g of 4831sc was a sweetspot, been using it ever since.


    kev4usc

    Private
    Minuteman
    Sep 23, 2020
    3
    1
    I am running the exact barrel and bullets but my barrel has a 1 in 7.5 twist.
    Any suggestions for the loads for this setup?


    EDMJustin

    Canadian Eh
    Belligerents
    Minuteman
    Apr 24, 2017
    62
    108
    Alberta, Canada
    I would try
    I am running the exact barrel and bullets but my barrel has a 1 in 7.5 twist.
    Any suggestions for the loads for this setup?
    I would try the same work up. I don't think the twist will will affect your pressure while working up charge weights. It may affect you downrange performance though.


    clcustom1911

    "Cartman 1-2, come in" aka Chili Tat
    Belligerents
    Minuteman
  • Oct 23, 2017
    4,839
    8,420
    Texas Hill Country
    Thanks!
    I have used the H4350 before but it's nowhere to be found now. I'm going to try the RL26.
    140+ weight bullets and you should have a node in the 46-47 grain range.

    I run my 142 matchkings with 46.9-47 of R26 inside Prime brass with Fed210M primers. Hammers.


    EDMJustin

    Canadian Eh
    Belligerents
    Minuteman
    Apr 24, 2017
    62
    108
    Alberta, Canada
    RL
    Thanks!
    I have used the H4350 before but it's nowhere to be found now. I'm going to try the RL26.
    RL26 is very hard for me to find right now. In the end I went with the reloder 16. Gave me the lowest es/sd in most temps. More important for me being in Canada with such huge temp changes through the year.


    Gustav7

    Son of a Gun...
    Hessian
    Belligerents
    Minuteman
  • Jul 18, 2019
    1,078
    584
    Ohio (OH)
    Just did a pressure test with 147's and RL26 today in my factory Savage 10 - 24" barrel.

    Got to 47.5 and didn't really have anything on the case that'd concern me pressure wise... I just can't stuff anymore powder in the damn case lol

    At 47.2 and 47.5 I got 2836fps for both.

    Going to try 47.3 and see how it groups and how ES looks.

    If I could push 147's at 2830 on regular basis that'd be pretty legit.
