6.5 Creemoor w/ 140gr Berger Hybrid Starting load?

Shooter_308

Sergeant
Belligerents
Jan 9, 2012
329
1
22
32
Long Island, New York
Hey all, question. Gonna start loading for my 6.5 with Norma brass, h4350, 140gr Hybrids. I cannot for the life of me find an actual STARTING load and minimum COAL with the 140 bergers actually published anywhere. Any help is appreciated.


daved

Full Member
Belligerents
Minuteman
Mar 28, 2013
156
15
22
Las Vegas, NV
Go to the Hodgdon website and use their metallic reloading tables - they have all the info you require to start working up a load safely. Then Google "Optimal Charge Weight/Dan Newberry" and use that procedure to get the best load for YOUR rifle.

Enjoy!


Shooter_308

Sergeant
Belligerents
Jan 9, 2012
329
1
22
32
Long Island, New York
No, I know how to reload, I've been doing it for years but it's always been started with published data. I can't find any published data for a Berger 140 Hybrid.


GreenBlood10

Lead Farmer
Belligerents
Nov 27, 2012
193
6
22
Spring Grove, Pa

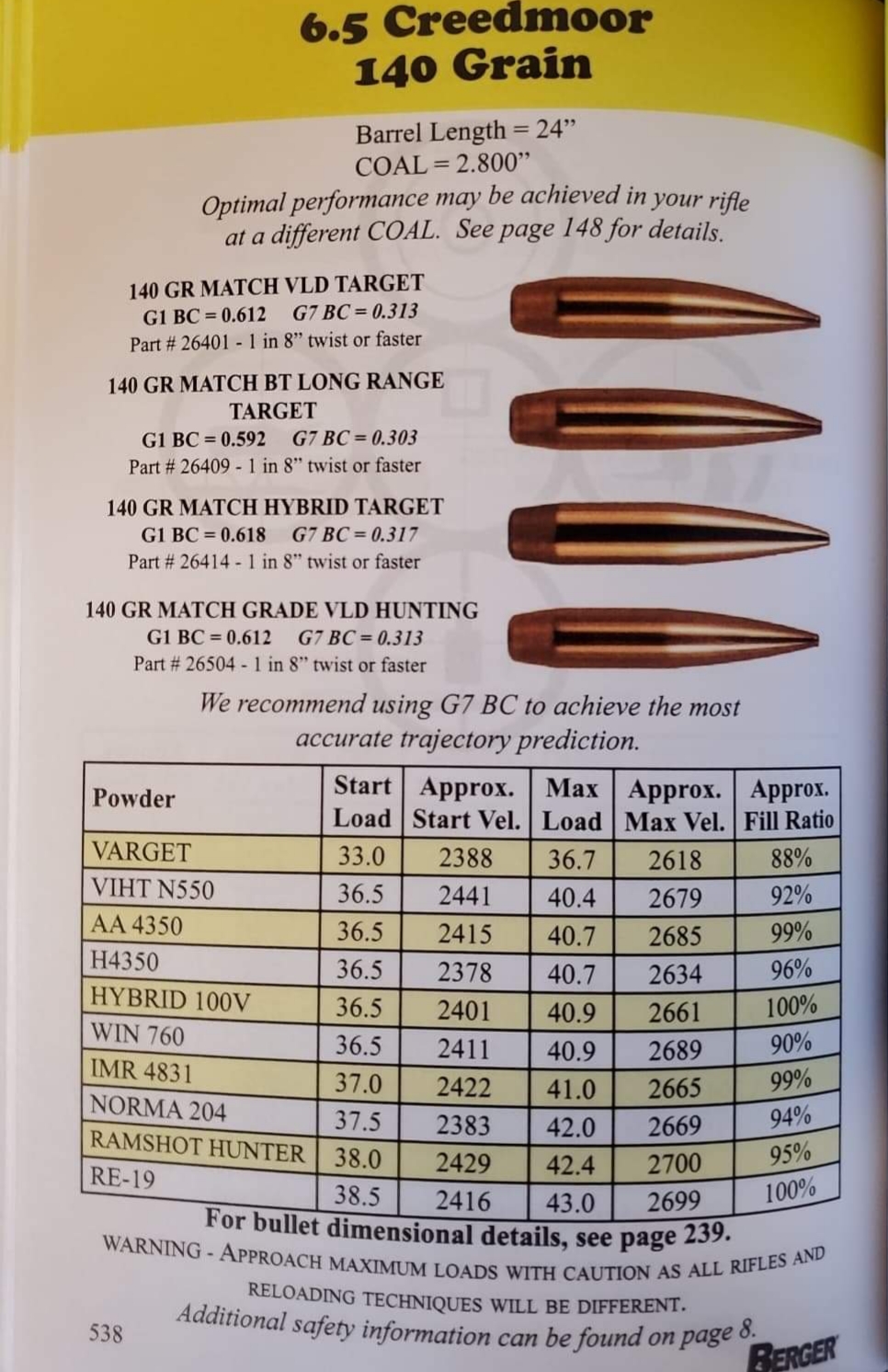

The Berger manual is a wealth of knowledge. Highly recommend picking one up. COAL=2.800". Start at 36.5 grains of H4350 and work up from there. Max is going to be 40.7.


wilson1911

Bantha Poo Doo
Hessian
Belligerents
Aug 6, 2012
557
582
99
Oklahoma
Norma brass has a small bit less capacity than hornady brass. I run 42.2 with 140's/hornady. If I remember correctly, the norma was about half a grain less. I would start at 40 grains and work up.

Cartridge : 6.5 Creedmoor Hornady
Bullet : .264, 140, Berger Hybr #26414
Useable Case Capaci: 45.037 grain H2O = 2.924 cm³
Cartridge O.A.L. L6: 2.830 inch = 71.88 mm
Barrel Length : 27.0 inch = 685.8 mm
Powder : Hodgdon H4350

Predicted data by increasing and decreasing the given charge,
incremented in steps of 0.716% of nominal charge.
CAUTION: Figures exceed maximum and minimum recommended loads !

Step Fill. Charge Vel. Energy Pmax Pmuz Prop.Burnt B_Time
% % Grains fps ft.lbs psi psi % ms

-07.2 96 39.16 2647 2178 49402 7637 97.8 1.415
-06.4 97 39.46 2666 2209 50521 7685 98.0 1.401
-05.7 98 39.76 2684 2240 51666 7732 98.2 1.387
-05.0 99 40.06 2703 2272 52838 7778 98.4 1.374
-04.3 99 40.37 2722 2303 54037 7822 98.6 1.360 ! Near Maximum !
-03.6 100 40.67 2740 2335 55263 7865 98.7 1.347 ! Near Maximum !
-02.9 101 40.97 2759 2366 56519 7906 98.9 1.333 ! Near Maximum !
-02.1 102 41.27 2778 2398 57803 7946 99.0 1.321 ! Near Maximum !
-01.4 102 41.57 2796 2430 59118 7985 99.2 1.308 ! Near Maximum !
-00.7 103 41.87 2815 2463 60464 8022 99.3 1.295 ! Near Maximum !
+00.0 104 42.18 2833 2495 61841 8057 99.4 1.283 ! Near Maximum !
+00.7 105 42.48 2851 2527 63252 8091 99.5 1.270 !DANGEROUS LOAD-DO NOT USE!
+01.4 105 42.78 2870 2560 64696 8124 99.6 1.258 !DANGEROUS LOAD-DO NOT USE!
+02.1 106 43.08 2888 2593 66176 8155 99.7 1.246 !DANGEROUS LOAD-DO NOT USE!
+02.9 107 43.38 2906 2626 67691 8184 99.8 1.234 !DANGEROUS LOAD-DO NOT USE!
+03.6 108 43.69 2925 2659 69243 8212 99.8 1.222 !DANGEROUS LOAD-DO NOT USE!

Results caused by ± 10% powder lot-to-lot burning rate variation using nominal charge
Data for burning rate increased by 10% relative to nominal value:
+Ba 104 42.18 2937 2681 72781 7766 100.0 1.202 !DANGEROUS LOAD-DO NOT USE!
Data for burning rate decreased by 10% relative to nominal value:
-Ba 104 42.18 2686 2243 51103 8008 95.2 1.389


jdnoble

Online Training Member
Belligerents
Jan 1, 2014
33
35
24
MA
what software did you use to do these calculations, thanks.


Darkside-Six

My Dixie Wrecked
Belligerents
Oct 8, 2013
3,216
515
219
I would actually start at 41 grains and work up. there are a ton of recipes in the Reloading depot. I've never used norma brass but with Hornady I found my load at 42.3 H4350 loaded to 2.18 to Ogive and that gave me 2815 out of a 24" Bartlein. I loaded all the way up to 43.3 before I started seeing pressure signs. 140 hybrids are not jump sensitive at all, but they are very long so you can't just start a few thou off the lands as you will still be beyond mag length.

  • Like
Reactions: acudaowner

Shooter_308

Sergeant
Belligerents
Jan 9, 2012
329
1
22
32
Long Island, New York
Well, got some serious info here. Really nice node at 40gr of h4350. Also noticed a possible node around 42, going to move up to 42.5 in .1 increments. Not sure if I'll have unburnt powder issues though, only being a 20" barrel. Groups were shot round-Robin. I have NO clue what happened at 41.5, and 39 has an extra round in it intended for 39.5 (I wasn't paying attention). These were all at 2.820 COAL, I forget BTO size, I have it written down.


Attachments

AuburnBLK

Private
Belligerents
Mar 7, 2017
49
3
0
Oddly both my creedmoors like the famous 42.8. Converted Lapua 308. Pressure at 43.1 in the Bartlien barrel... didn't run RPR up to pressure.


LG65CM

Private
Belligerents
Sep 29, 2017
202
34
34
I'm at 41 grains H4350 , Lapua SRF brass, CCI 450 primer, 24" RPR bbl, loaded to 2.81" COAL. MV ~2700-ish. All my loads (different powders and bullets) are around 2700-ish MV and in two rifles, gas and bolt, and have proven accurate to very accurate and have hits just past 1K.


YF19EX

Private
Minuteman
Sep 7, 2011
6
13
6
40
Looking to also try out the Berger 140 Hybrids.

So far I have been using 140 ELD-M, I have been using 41.5 (max book), Lapua SRP Brass (5x fired), 205M out of my Accuracy International AT 24" stock barrel. I avg 2750s with single digit SDs. Works great at 1100 and just as good at a mile.

I have some fresh Lapua Brass coming in. I will break in the brass on the 140 ELD-Ms and see if the Berger likes 41.5gr as well.

  • Like
Reactions: LG65CM

Punkur67

Online Training Member
Online Training Access
Belligerents
Minuteman
Oct 11, 2019
317
369
69
Hey all, question. Gonna start loading for my 6.5 with Norma brass, h4350, 140gr Hybrids. I cannot for the life of me find an actual STARTING load and minimum COAL with the 140 bergers actually published anywhere. Any help is appreciated.
I started load development on the same bullet and powder combo this weekend
Load:
Berger 140gr Hybrids
Lapua small primer brass
H4350 Powder
FGM SR primers

Brass Prep:
Turned necks with K&M
Uniform primer pockets
Uniform and debur flash holes
Neck size with Redding competition bushing die

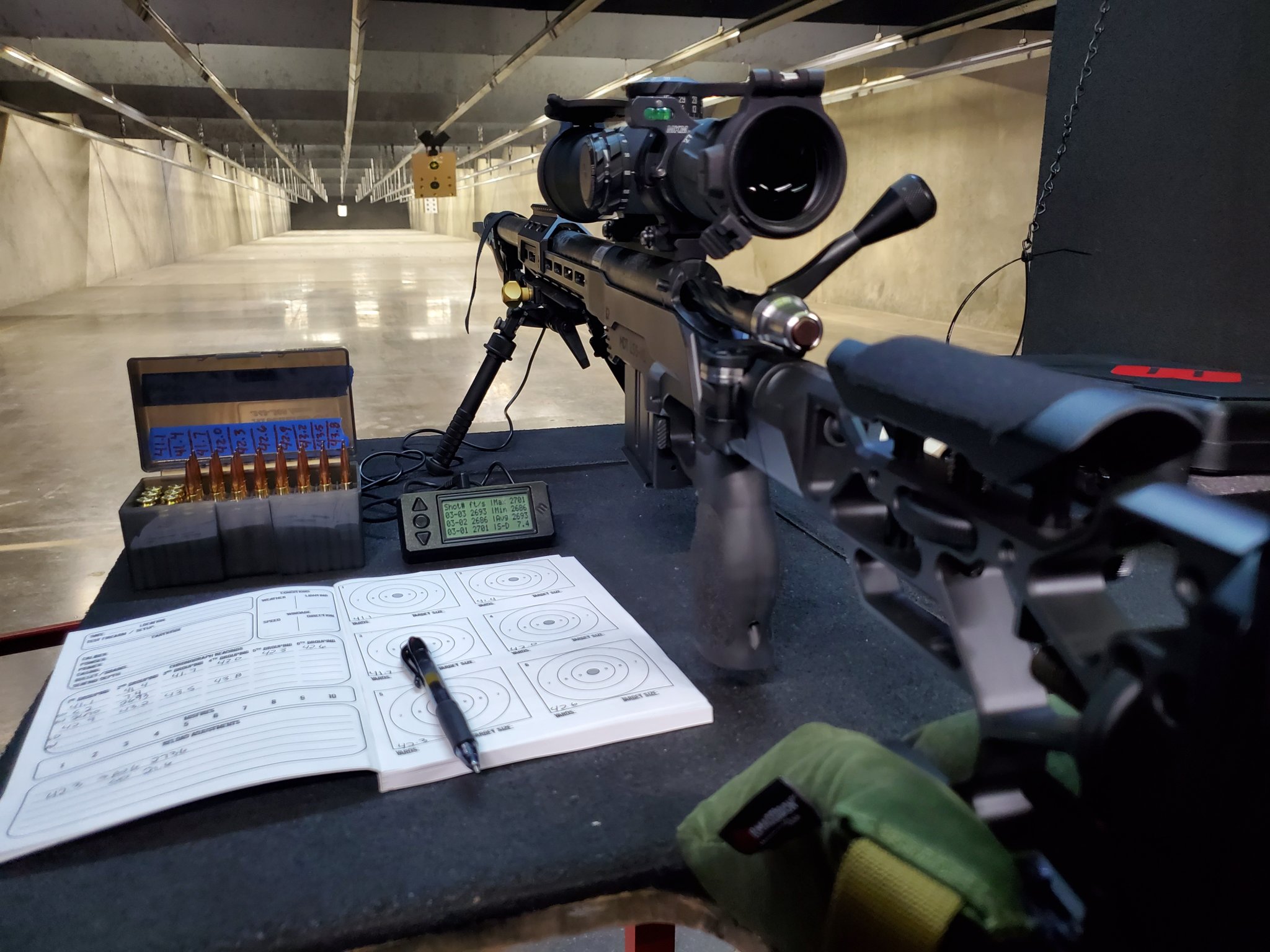

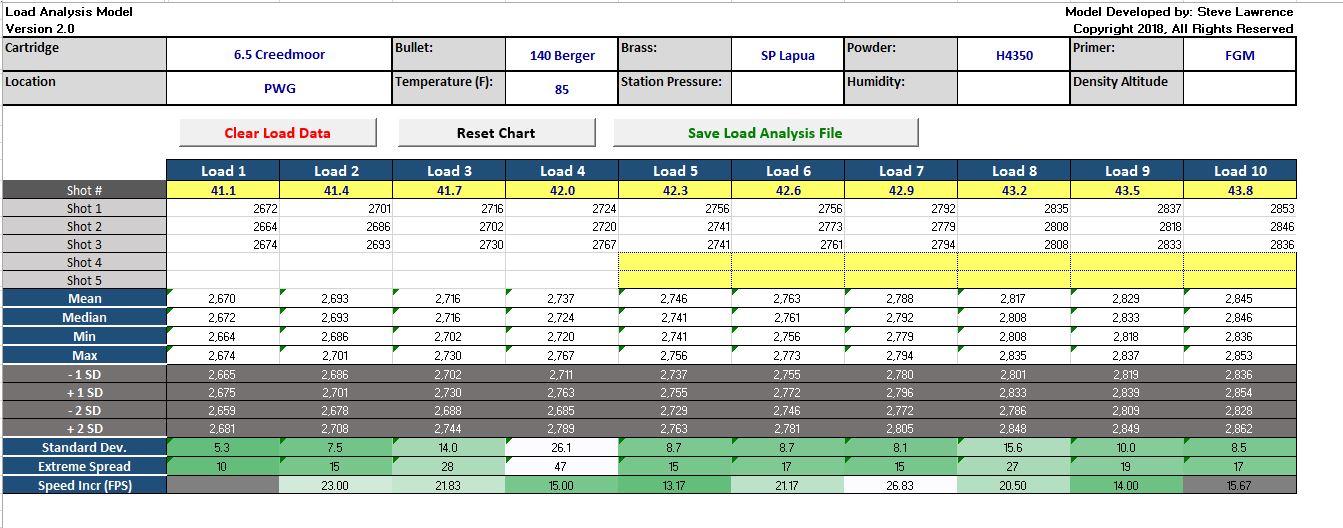

I had an issue with COAL fitting in to the magazines with the jump I wanted to start with @ .030. I ended up setting the jump @ .070 to fit the mags but the Hybrids are very tolerant of the longer jumps. I was aiming for 2850fps and just hit it with my max load. I am going to load up a few more charges above this group to see if there is a node between 2850 and 2900 but will probably end up around 2750fps. Every load shot sub .75" and plenty of options with single digit SD's.
6.5 creedmoor-1.JPGBallistic-X-Export-2020-08-24 06:46:45.481985.png20200823_114002.jpg


BBVDD

Sergeant of the Hide
Belligerents
Minuteman
Apr 30, 2019
121
70
34
Collierville, TN
I was aiming for 2850fps and just hit it with my max load. I am going to load up a few more charges above this group to see if there is a node between 2850 and 2900 but will probably end up around 2750fps. Every load shot sub .75" and plenty of options with single digit SD's.
Try some Reloder 16 if you want to push 140s into the 2900 range.

  • Like
Reactions: LG65CM and Punkur67

heyjoe

Private
Minuteman
Feb 7, 2012
32
13
12
36
Northern California
My personal experience: I started at 37 gr RL-16. Final stats below.
2890 FPS
0.49 MOA
26” barrel
43.1 grains Reloder 16
140 gr Berger hybrid
2.87” COAL
0.050” off the lands
CCI 450’s
Lapua SPP
No pressure signs

Last edited:
  • Like
Reactions: LG65CM

clcustom1911

"Cartman 1-2, come in" aka Chili Tat
Belligerents
Oct 23, 2017
4,597
7,892
119
Texas Hill Country
Anyone try the stabal 6.5 and the hybrids yet?


AnimalMother224

maybe steel go ding
Belligerents
Feb 1, 2014
253
131
49
east side
here's my junk

2780FPS
Starline LRP
140 hybrid
40.0 RL16
F215M
.050 OTL

Getting flattened primers. Anything higher than 40 grains I get sticky bolts and ejector marks

seems like everything shot out of my pipe likes to be .050 OTL .. while the hybrids are a larger 5 shot group in the .4s than other 140 class. I could tighten that up with seating depth fine tuning should I feel inclined

ETA: I messed up my data with the VLDs ...

Last edited:

Gustav7

Son of a Gun...
Hessian
Belligerents
Minuteman
Jul 18, 2019
857
481
69
Ohio (OH)
I'm about to start playing around with the 140 hybrids and RL 26.... see how hard we can push those. I have a factory Savage barrel I'm getting itchy to replace, but I can't bring myself to swap it without using it up a little more.

Starline SRP 6.5cm brass - CCI 450's
Starting around 44.5gr and working up to 47+ depending on what my pressure test tells me.

Due to the hybrid design, I'm gonna have to seat them quite a bit further off the lands to keep OAL mag length, so looking at around a 80-100 thou jump and go from there.
