Gunsmithing Anyone have XLR chassis problems?

[Andy Warhog]

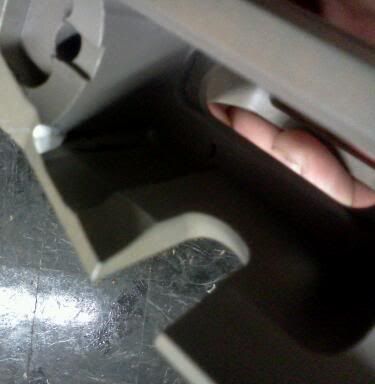

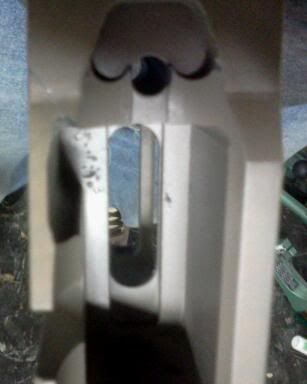

I have a Huber Concepts trigger and I had some problems with it and my chassis. It went in just fine, I just couldn't activate the safety. I ended up taking a chainsaw file and relieving about 1/8" out of the chassis.

It's got enough room now, so everything functions fine. Just wondering if anyone else has had any issues.



[jeo556]

Re: Anyone have XLR chassis problems?

I had the same problem with a SSS comp trigger for a Savage LA and XLR chassis, but to be fair I never told Kyle that I was using an aftermarket trigger. I did test the chassis with the factory trigger and it worked fine. Turns out that I just needed to take a small amount of material from the trigger housing. Everything works fine now.



[LoneWolfUSMC]

Re: Anyone have XLR chassis problems?

It's a common problem when using aftermarket triggers with factory inlets.

The action in our XLR is still running a factory trigger and we don't have any issues.



[Andy Warhog]

Re: Anyone have XLR chassis problems?

Glad to hear I'm not the only one. I did call Kyle to let him know about it so he could give people a heads up or tweak the design some.



[Wild_Bill]

Re: Anyone have XLR chassis problems?

Hi the problem is with the aftermarket triggers not the XLR stocks. we fit XLR stocks with Jewell triggers and they clear but then with a other aftermarket triggers with larger boxes they require a trip to the mill to relieve the inlet the same we would have to do to any other stock on the market that is designed for a factory trigger.

I suppose that makes it more dificult for some people but as a manufacturer you have to draw the line somewhere or else you would end up having to machine a massive hole in the stock to make sure it clears every concivable trigger in existance.

Anyway i am glad you worked it out.



[Andy Warhog]

Re: Anyone have XLR chassis problems?

Yeah it wasn't much, only 1/8" or so, no need for a mill, it wasn't anything a file couldn't fix.



[Phylodog]

Re: Anyone have XLR chassis problems?

I had a similar situation with mine and a factory trigger. Strangely, the stock was installed on another rifle first and didn't have any issues on that one. I initially thought it was the tip of the bolt stop spring making contact but it was actually the forward tip of the bolt stop. 12 seconds with a Dremel and it was running smooth, a non issue for me.
