AR-10 Matrix - Anybody Experienced w These ???

[j-huskey]

Since I cant find an Armalite AR-10 B stripped upper..... (and have the taken down parts... barrel n handguard swap), I thought, well, just build another rifle. Might be easier. Might.

Does anyone here have any knowledge about these Matrix kits ??

Will be built into a 16" hunting carbine with armalite parts and an armalite factory barrel that's currently occupying my B upper I want to put the 22" Kreiger back into....

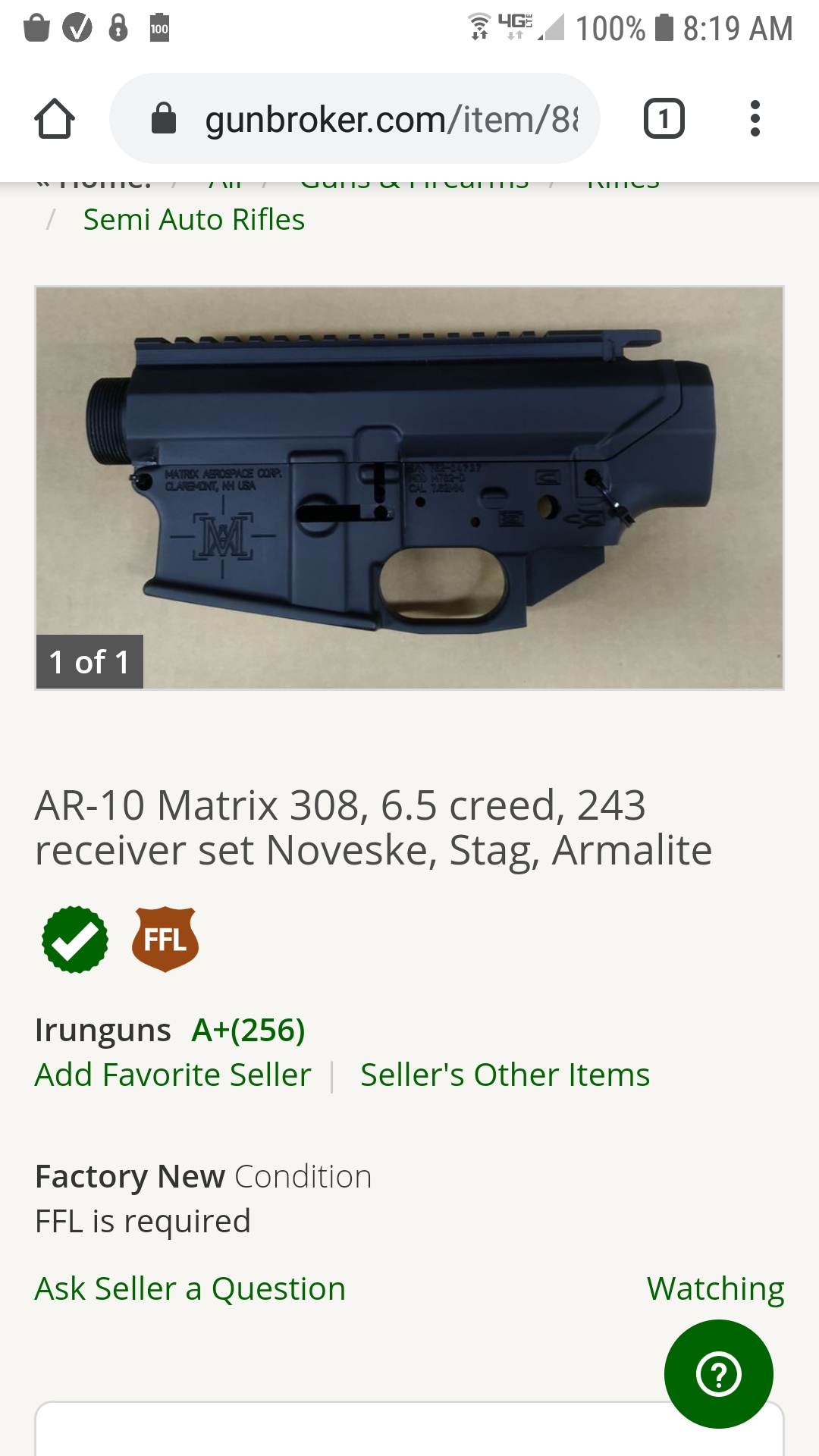

See pic of Matrix set being currently sold on GB..

Thanks all.



[sinister]

That's an OUTSTANDING price.

Matrix makes the receiver sets for the Ruger. Sig used them for their original 7.62 prototypes.



[Waorani]

I've got two sets I've never built if you want to tinker with one before buying. For some reason, they've always been bargain priced and I've never understood why. I vaguely remember there are minor parts fitment issues but can't remember details. They do have two different upper patterns - Armalite barrel nut thread and SR-25 thread. Assume those are SR-25.

I bought in an attempt to put early AR10 uppers on SR-25 mag pattern lowers but that's a no go.



[j-huskey]

Thanks Dave !

Rgr Waorani ! Might want to tinker... yes.



[j-huskey]

I've got two sets I've never built if you want to tinker with one before buying. For some reason, they've always been bargain priced and I've never understood why. I vaguely remember there are minor parts fitment issues but can't remember details. They do have two different upper patterns - Armalite barrel nut thread and SR-25 thread. Assume those are SR-25.

I bought in an attempt to put early AR10 uppers on SR-25 mag pattern lowers but that's a no go.

Armalite Series B uses the m14 modified magazine and are unique to that. The B receiver has a flat cut that let's the m14 style enter but not the magpul mag.
The upper has a ledge stop to keep the m14 type mag from going higher into the bolt area.

Armalites recent releases are the earlier A series pattern and take the SR 25 type or Magpul magazines. The upper and lower are specifically different to accommodate the magazine.

I have both B and the new A series guns. The barrels interchange freely. The bolt stop is different.
That's the main parts thing I see, besides the obvious A & B differences in both upper/lower.

I have DD rails, and those fit any of the myriad of uppers - AS LONG AS - you had the correct DD barrel nut.

Such a pain in the ass.....

Check PM please Sir !

VR
jw



[sinister]

SLR Rifleworks and Midwest Industries both make Armalite AR-10 and DPMS-High compatible rail fore-ends. Their barrel nuts have the same external diameter -- you specify in SLR's drop-down menu which thread pitch you need (Armalite or DPMS).



[j-huskey]

SLR Rifleworks and Midwest Industries both make Armalite AR-10 and DPMS-High compatible rail fore-ends. Their barrel nuts have the same external diameter -- you specify in SLR's drop-down menu which thread pitch you need (Armalite or DPMS).

Thanks,
Have a Midwest Industries setup. I like it.
