AR10 wear patterns?

[mj23polaris]

Rifle has 1900rds all 6.5 Creedmoor. Ballistic 20in barrel, aero receiver set and BCG.

I've reached out to both companies last monday, ballistic responded and asked about the BCG, sent them pics and haven't heard shit. Aero hasn't responded at all

Is this normal wear for a AR10 platform? If it is ok I'm not complaining just wanting to make sure it's normal. Gun shoots fine and I've never had a malfunction.

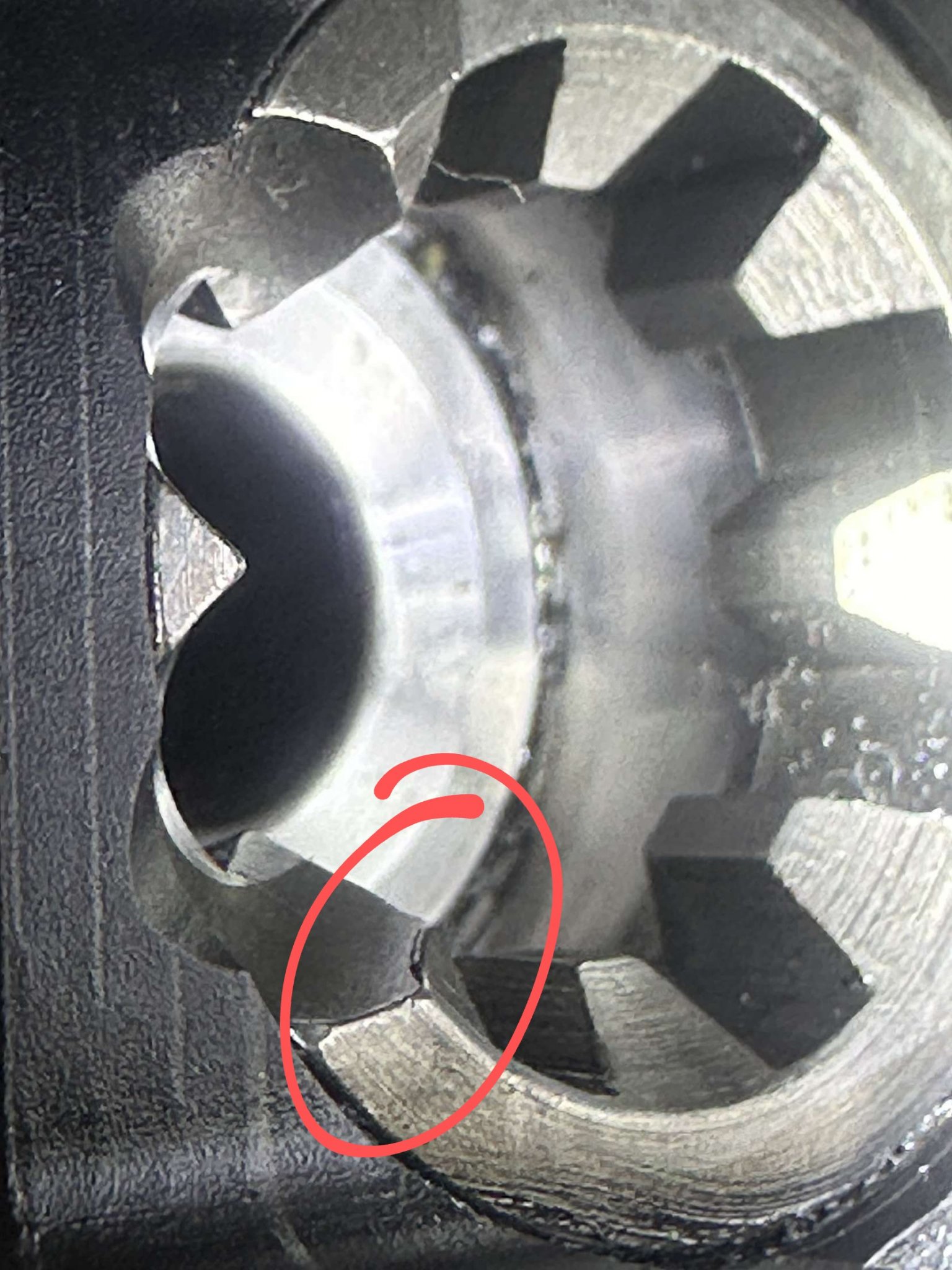

Barrel extension, flow on the feed ramp

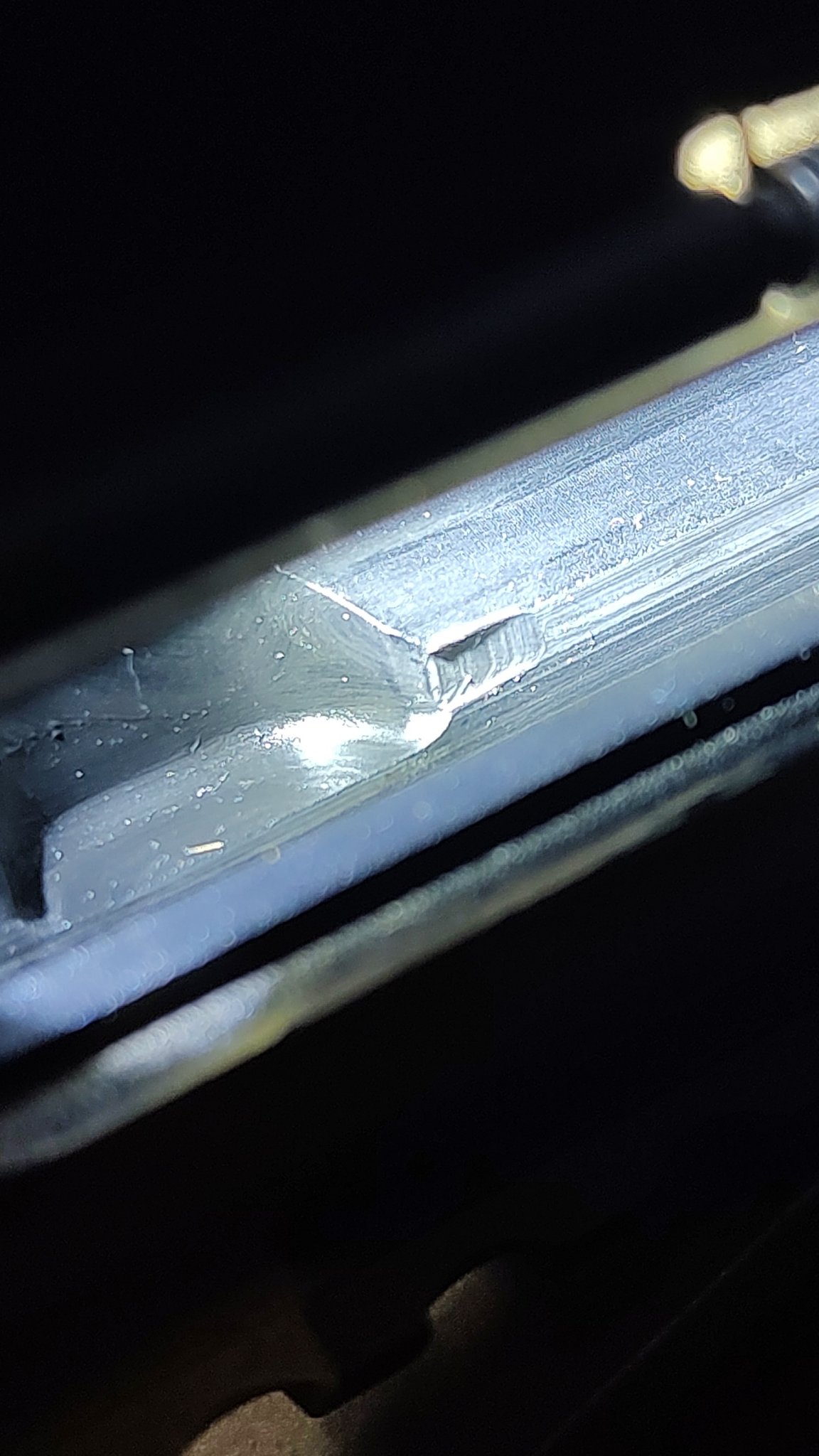

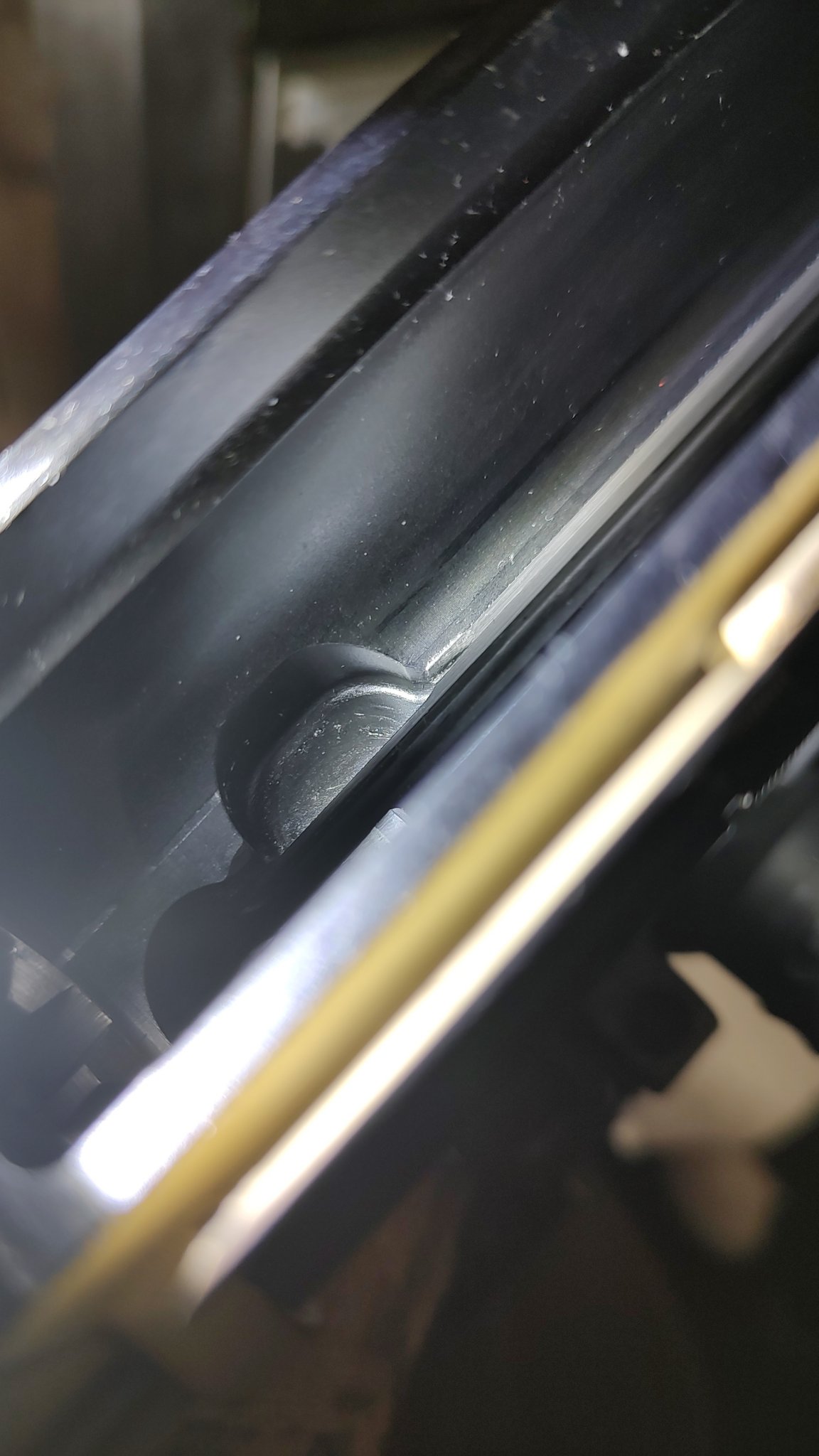

Upper receiver

Bolt head



[tucaz]

can speak to the extension and bolt lugs but the cam pin drag is something i see but not in everything. some uppers are worse that others. some dont have any.

can’t recall if thats normal or a sign of excessive carrier speed. so tagged for interest and answers here.



[mj23polaris]

can speak to the extension and bolt lugs but the cam pin drag is something i see but not in everything. some uppers are worse that others. some dont have any.

can’t recall if thats normal or a sign of excessive carrier speed. so tagged for interest and answers here.

Man if I remember right the cam pin looks fine but I could be wrong. I found all this cleaning it and I disassembled the bolt and nothing stuck out but I'll double check.



[Cascade Hemi]



[mj23polaris]

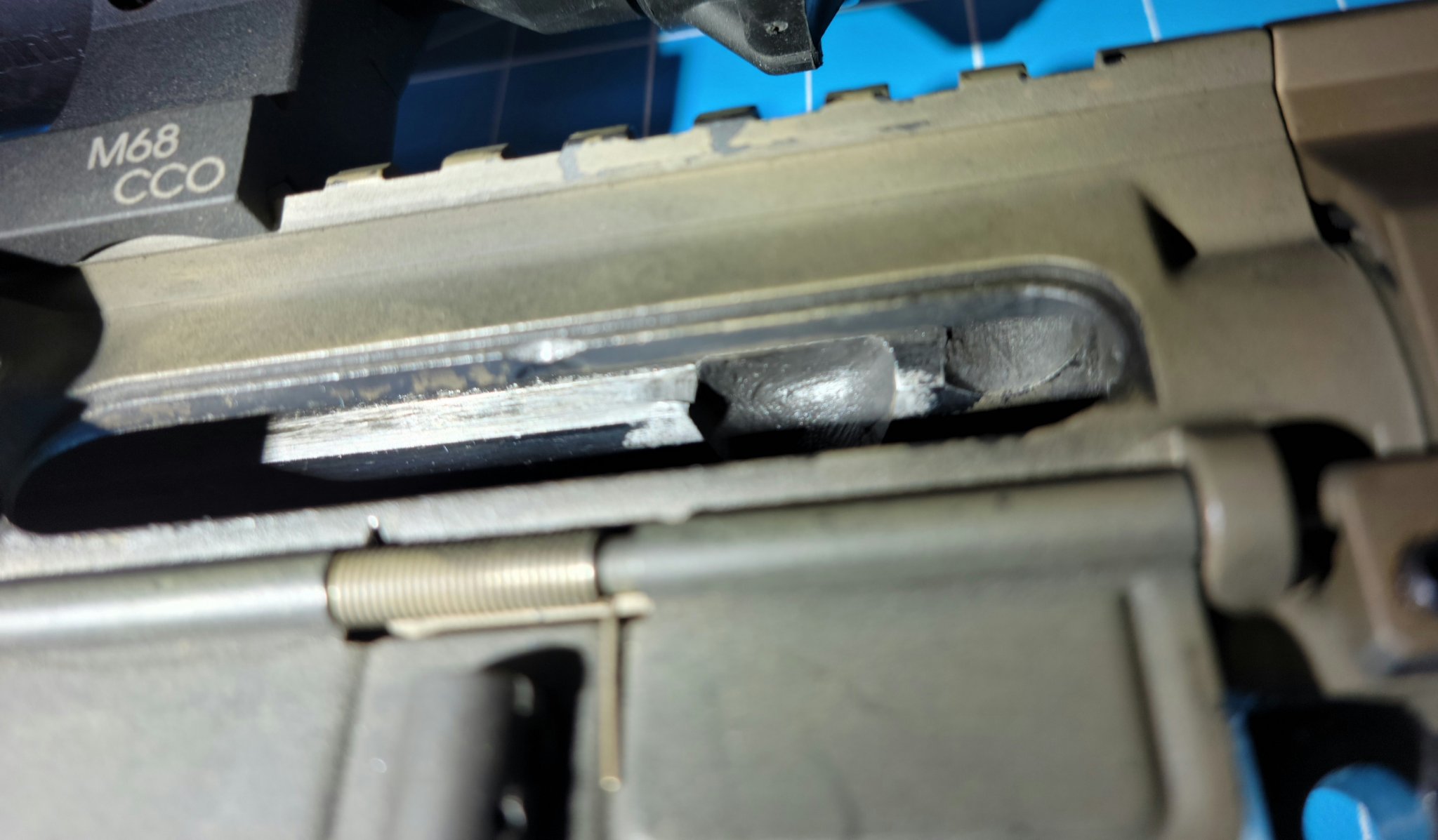

View attachment 8293837

Ok so normal then? I got a AR-15 upper with a few thousand threw it and I don't recall seeing anything like that.



[msgriff]

I'd be looking at the barrel/barrel extension (BE) not being properly timed/clocked in the upper. Shooters perspective, the barrel/BE could be counter-clockwise from being correct. If the bolt lugs are disengaging from the BE lugs before the cam has completed its travel in carrier cam path, the cam pin is not inline like it should be and gouges the cam pin cut-out of the upper until it does line up. The wear on that side of the rear of the bolt lugs would indicate that the bolt is over-rotating in relation to the BE and engaging the adjacent BE lug. and not the BE lug that the bolt lug would normally lock into. Hard to tell for sure, but that BE looks cracked.



[mj23polaris]

I'd be looking at the barrel/barrel extension (BE) not being properly timed/clocked in the upper. Shooters perspective, the barrel/BE could be counter-clockwise from being correct. If the bolt lugs are disengaging from the BE lugs before the cam has completed its travel in carrier cam path, the cam pin is not inline like it should be and gouges the cam pin cut-out of the upper until it does line up. The wear on that side of the rear of the bolt lugs would indicate that the bolt is over-rotating in relation to the BE and engaging the adjacent BE lug. and not the BE lug that the bolt lug would normally lock into. Hard to tell for sure, but that BE looks cracked.

I'll pull the barrel nut tonight and check time and see if there is enough slop in the upper for the barrel to be clocked one way or other. I don't remember it being sloppy but it's been almost a year since I assembled the upper.



[Gohring65]

Looks awfully dry. Do you grease the lugs?
Oil on the bcg?



[mj23polaris]

Looks awfully dry. Do you grease the lugs?
Oil on the bcg?

It's dry because I had just cleaned it. I regularly lube as need be.



[Gohring65]

It's dry because I had just cleaned it. I regularly lube as need be.

Good job! That’s the cleanest I’ve ever seen an upper and bolt. Ultra sonic? Or parts washer?



[mj23polaris]

Good job! That’s the cleanest I’ve ever seen an upper and bolt. Ultra sonic? Or parts washer?

Haha I literally just wipe it off. I use clp for lube.



[RUTGERS95]

all I see is wear from usage that doesn't appear to be a concern



[Gohring65]

Haha I literally just wipe it off. I use clp for lube.

I would ditch the CLP and use a proper gun lube or synthetic motor oil. I really like that lucas oil gun lube and I grease the backside of the lugs. Lots of reciprocating parts in that machine and I personally don’t think CLP is up to the task. Greasing the lugs is very important to my regimen. I don’t see that kind of wear on BCGs with thousands of rounds on them. My guns are just range toys, I might rethink things if I was going into a dirty duty situation.



[mj23polaris]

all I see is wear from usage that doesn't appear to be a concern

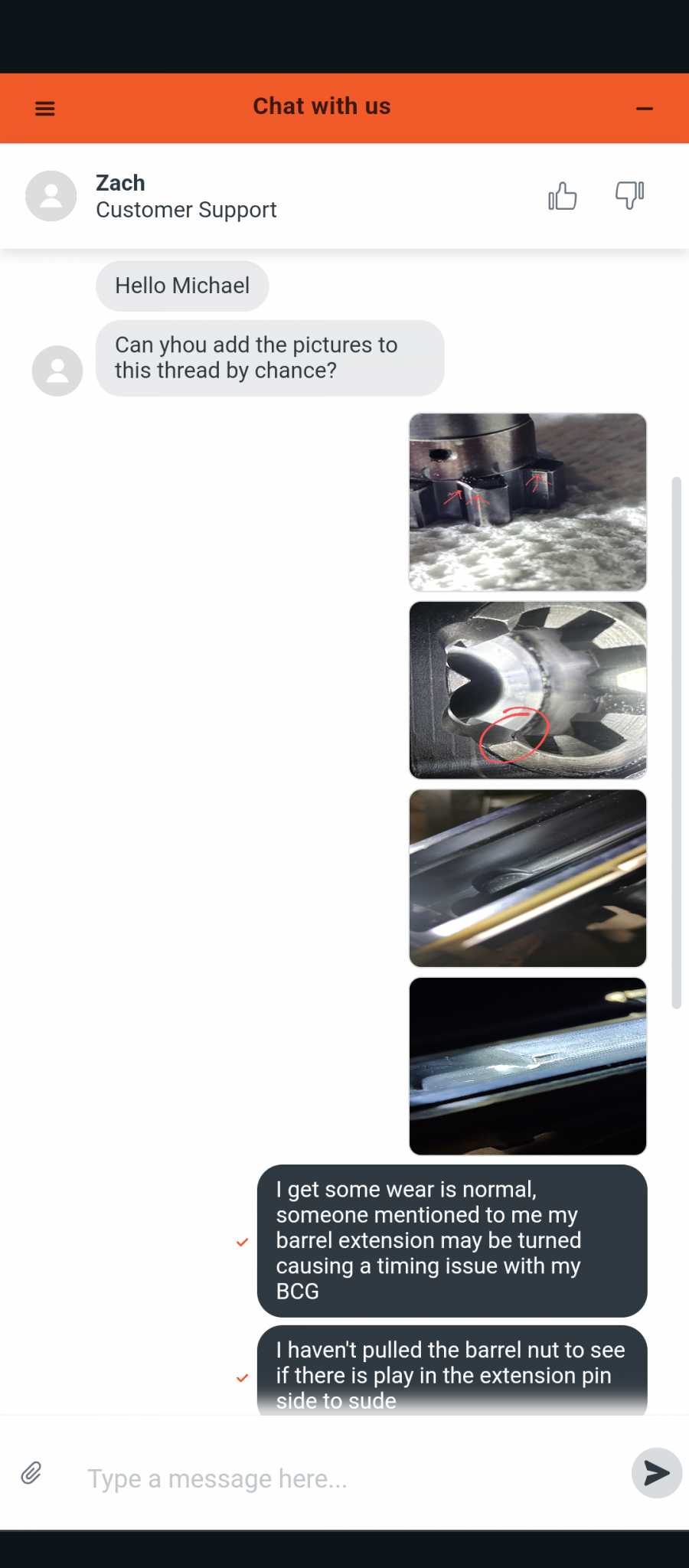

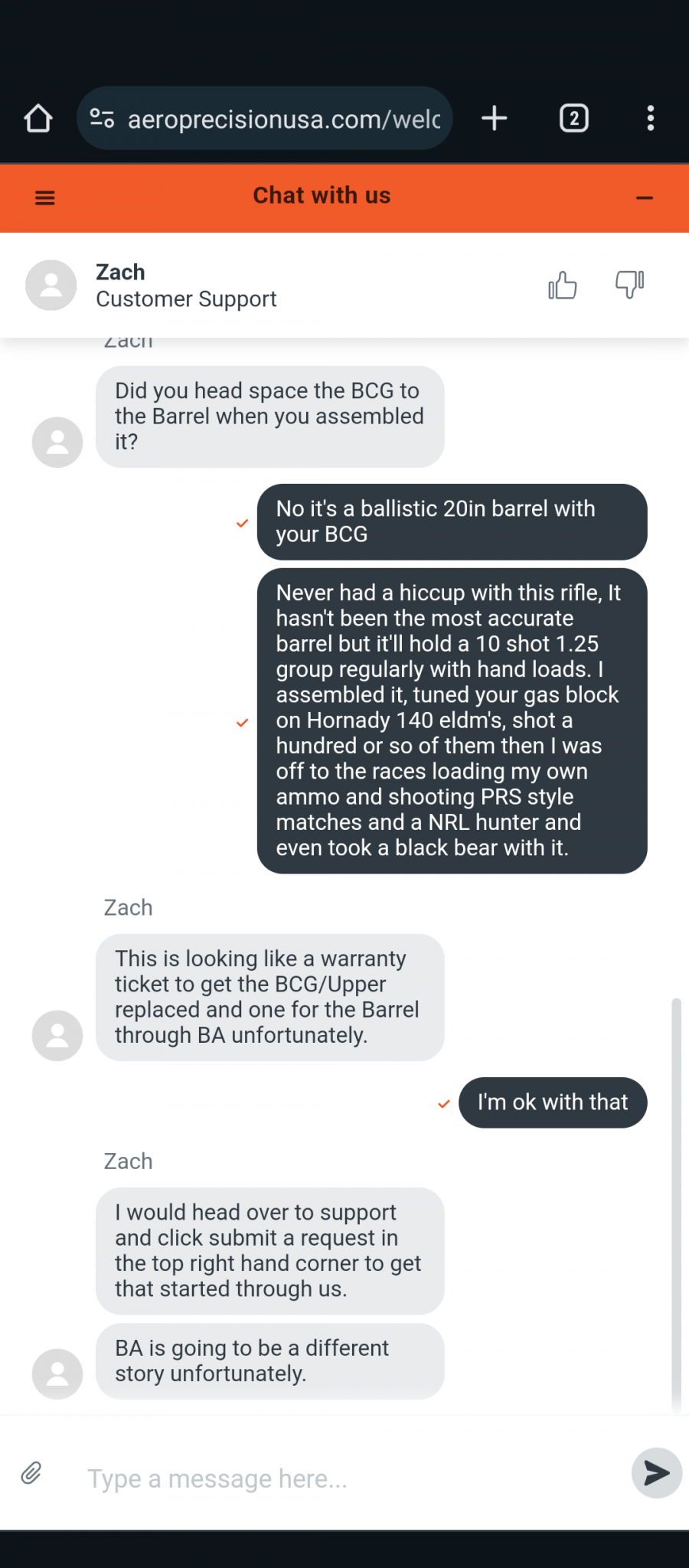

Aero FINALLY got back to me. I talked to a guy on their chat system and sent him pics. He told me to submit a warranty for the upper and BCG and get a hold of BA about the barrel.



[mj23polaris]



[RUTGERS95]

Aero FINALLY got back to me. I talked to a guy on their chat system and sent him pics. He told me to submit a warranty for the upper and BCG and get a hold of BA about the barrel.

good, get all new as they probably think it best to just replace and keep good cs. good for them and good for you!!!!!

also, agree on using synthetic motor oil and recommend mobil 1.



[mj23polaris]

good, get all new as they probably think it best to just replace and keep good cs. good for them and good for you!!!!!

also, agree on using synthetic motor oil and recommend mobil 1.

Thanks for the tips on the oil, I'll start using it moving forward



[thehun]

I would ditch the CLP and use a proper gun lube or synthetic motor oil. I really like that lucas oil gun lube and I grease the backside of the lugs. Lots of reciprocating parts in that machine and I personally don’t think CLP is up to the task. Greasing the lugs is very important to my regimen. I don’t see that kind of wear on BCGs with thousands of rounds on them. My guns are just range toys, I might rethink things if I was going into a dirty duty situation.

Concur ... after switchign to Amsoil 10W40 for my lube several years back ... wear and honestly carbon build up has been a LOT easier to clean



[thehun]

Upper receiver wear mark looks normal ... your bolt lugs ... I'd keep an eye on ...

Aero owns BA (IIRC) so not sure why they have a different process ...



[mj23polaris]

Upper receiver wear mark looks normal ... your bolt lugs ... I'd keep an eye on ...

Aero owns BA (IIRC) so not sure why they have a different process ...

Yea they own them. I've talked to BA about warranty before they where easy to deal with. So we'll see how this timeline plays out.



[AmmoFort]

What happened with this?



[lastshot12]

Following.
