ARC Xylo Chassis Magazine Over Insertion Screws

[axarob44]

Does anyone know what type of screw are the magazine over insertion screws . I know they are 10-32 but was wondering what type? I'm guessing low head SHCS or possibly what Mcmaster Car sells ultra low head cap screw. Or are they a custom made screw? And it kind of blows my mind that they are not included with the chassis for the extra $7.00 that cost me $19.00 total to have them shipped to me. Also this is a Nucleus action too you would figure it wouldn't need them. What do I know though. Thank you.

ETA: I do appreciate that ARC offers their products at very economical price point in this day and age. And they quality is superb !



[kindabitey]

There’s an exploded drawing of the Xylo on the website. It will have a number and arrow pointing to the appropriate part. Off to the side will be a part list/ description. It’s listed under Product Drawings and Instructions.



[axarob44]

Yeah it doesn't tell you what type of screw it is. Just lists it as M12 magazine stop screw. I did order them but was curious what they actually are. I found one 10-32 low head screw and put it in and it seems to clear the bottom of the action but don't know for sure.



[Ichi]

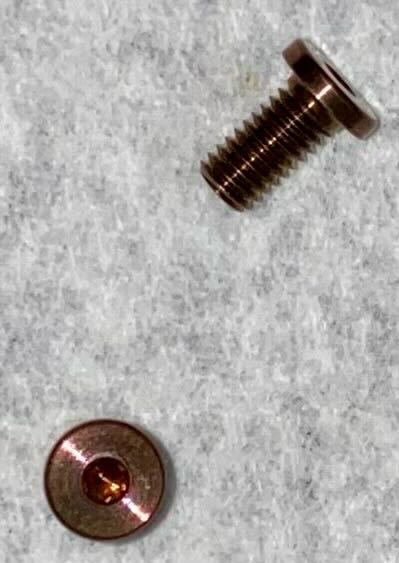

Maybe this will help...



[axarob44]

Those heads are thin! Looks like I'll be waiting till Friday. Thanks for the picture Ichi ! I get it, those are kind of expensive screws.

ETA: Just for reference. The standard low head (Camcar brand) screws clear the action in the chassis. I have a long action Gen 1 Nucleus Action in a long action Xylo chassis (newest straight from ARC don't know what Gen)

Don't know if they will clear with a different action. I just painted the screw heads to see if there was interference between the screw heads and bottom of the action as I carefully tightened the action screws. I will replace with the proper screws when they get here from ARC

The magazines fit with no slop now!
