To all the guys trying to pillar bed and using chassis stocks. Has anybody tried using a barrel block? Nothing more than a block attached to the barrel and then attached to the stock. The barrel and action hang out there is space totally free floated. With the no recoil of the 22rf, it should be easy using aluminum.
- Thread starter bsekf
- Start date
And that would be me.....Fuglie and Son of Fuglie.
Epoxy bedded barrels with the barrels locked down, the receiver hanging free.
www.snipershide.com
Epoxy bedded barrels with the barrels locked down, the receiver hanging free.
Cz 455 FUGLIE
Coming up on 3 months, and my Precision Trainer stock still hasn't shipped. That's ok, just means that there's been time for my overactive imagination to come up with a project to keep me occupied. The CZ 455 FUGLIE. (F)irearm (U)tilizing (G)lued (L)inear (I)ntegral (E)mbedding Or...
www.snipershide.com
Never heard of that bedding method! If the barrel is floating and the action, then you have a central pivot point. That surely would not work. You could have vertical movement of both barrel and action. One of the other must be stable to eliminate vertical.
did a bunch of reading and research into barrel blocks for a project i was getting into
in theory, they are a perfect idea but the block adds a few wrinkles; like possibly squeezing the barrel too tight and changing the size of the bore.
it adds vibration on both sides of the block not just from the action forward
some guys mount the scope to the action some guys mount it to the block
lots of "ive tried and done it this way" etc
but in reality they dont really help with accuracy
it more of a packaging aid so you dont need a stock
personally i still want to mess with one but its not a world beater idea
in theory, they are a perfect idea but the block adds a few wrinkles; like possibly squeezing the barrel too tight and changing the size of the bore.
it adds vibration on both sides of the block not just from the action forward
some guys mount the scope to the action some guys mount it to the block
lots of "ive tried and done it this way" etc
but in reality they dont really help with accuracy
it more of a packaging aid so you dont need a stock
personally i still want to mess with one but its not a world beater idea
littlesister, the barrel block is 5-6 inches long and carefully bedded into a cutout in the stock. No pivot, they do it to BR centerfire rifles. The trick is fitting the block to the barrel.
justin, did you just glue the barrel into the stock? How much of the barrel is glued in? With the no recoil of the 22rf, that would work without a block. Now.... did it shoot better? Did you leave the action screws out completely?
brianf, never thought about the action vibrating along with the barrel......HUM!! I saw it done to 260AI F-Class, guy called it a 6.5 Mystic. Guy did it with a Savage 200 action, trying to keep cost down. It was competitive.
justin, did you just glue the barrel into the stock? How much of the barrel is glued in? With the no recoil of the 22rf, that would work without a block. Now.... did it shoot better? Did you leave the action screws out completely?
brianf, never thought about the action vibrating along with the barrel......HUM!! I saw it done to 260AI F-Class, guy called it a 6.5 Mystic. Guy did it with a Savage 200 action, trying to keep cost down. It was competitive.
Last edited:
For those that dont know what a barrel block is:
The challenge is getting a proper fit between the two, or epoxying it if you want to fill the voids which then means heating it up to change later on. Too many people have success with it for it to just "not need a stock"... whatever that means.
The challenge is getting a proper fit between the two, or epoxying it if you want to fill the voids which then means heating it up to change later on. Too many people have success with it for it to just "not need a stock"... whatever that means.

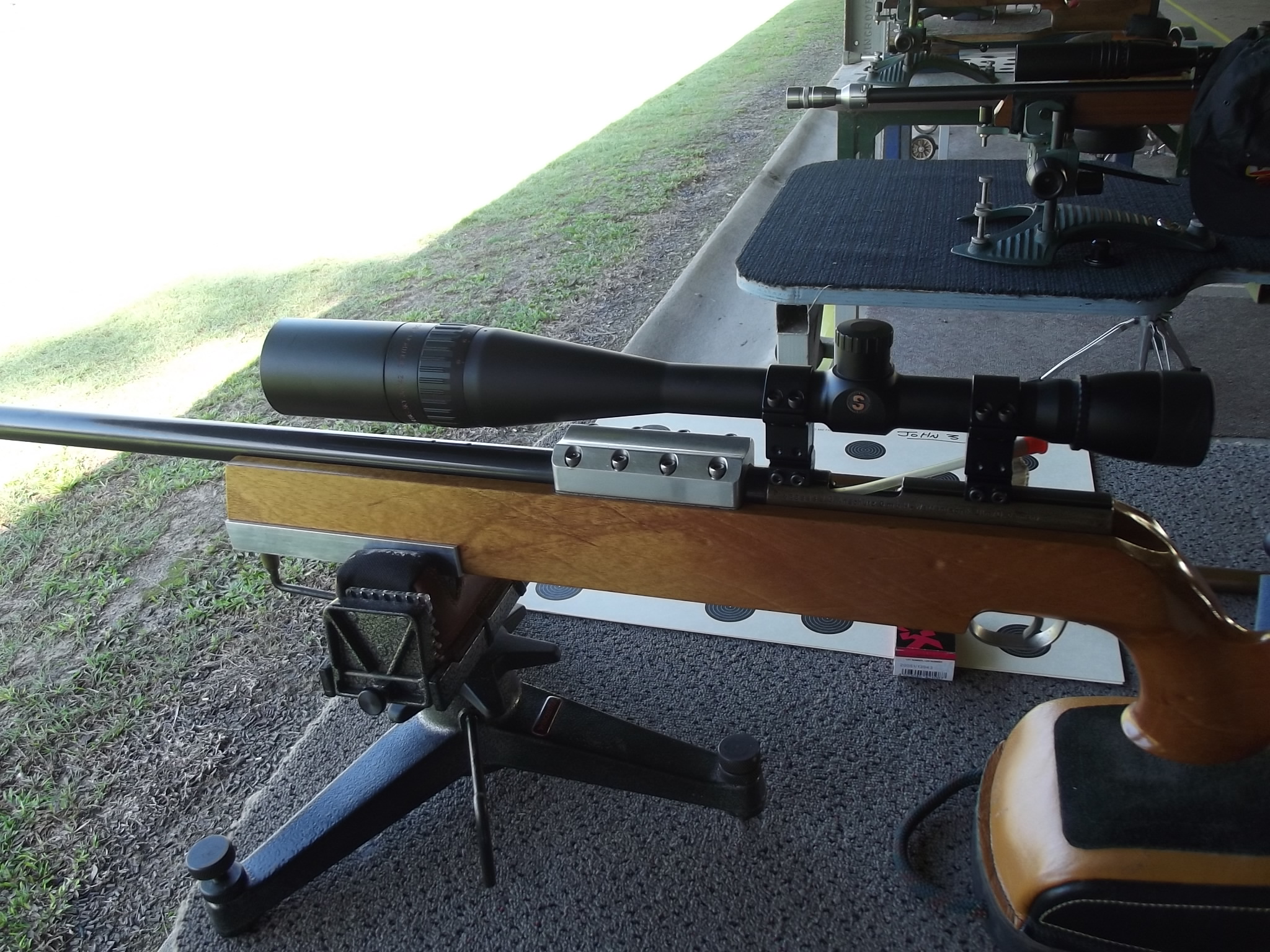

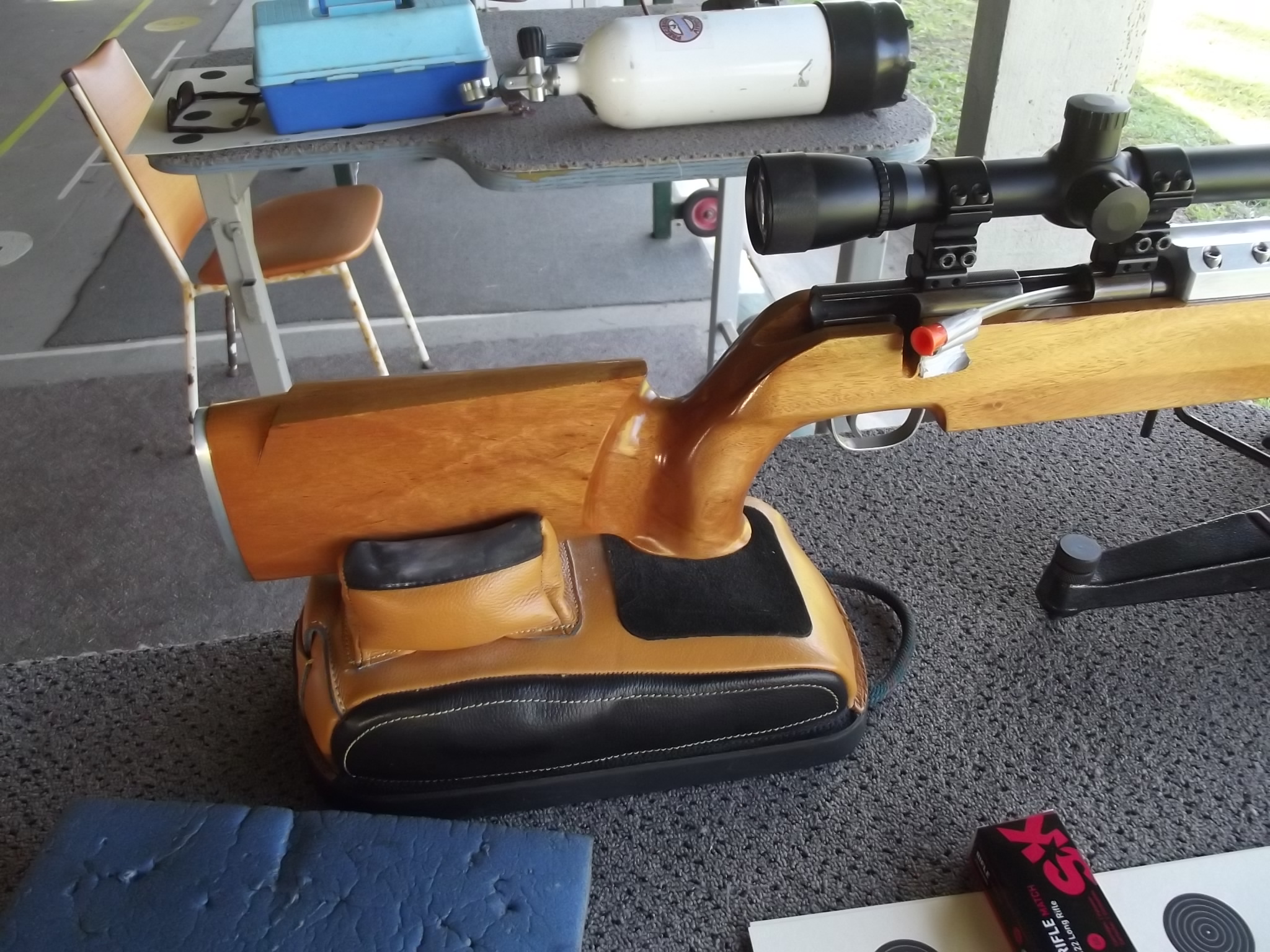

The Fuglie and SOF are only held in place by the steel plates and leather pads.
Receivers are not attached to the stock/block, only the barrel provides support.
The result is a minimum of barrel resonance/vibrations.
The accuracy is dependent on the skill of the shooter and ammunition quality,
when the Lilja bull barrels are installed.
Receivers are not attached to the stock/block, only the barrel provides support.
The result is a minimum of barrel resonance/vibrations.
The accuracy is dependent on the skill of the shooter and ammunition quality,
when the Lilja bull barrels are installed.

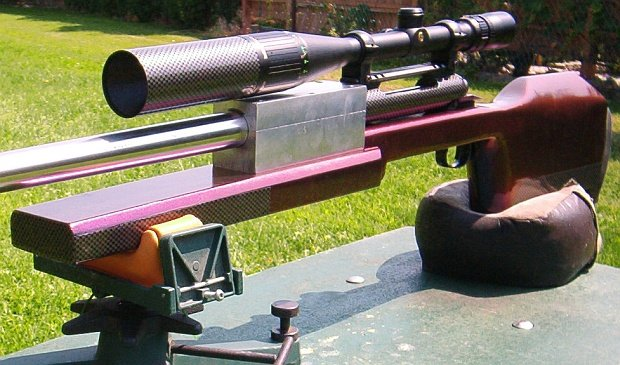

The 3rd picture, with the purple stock, is the 6.5 Mystic.
Justin, Is the entire barrel glued into the stock or just 5-6 inches ahead of the action? I would think gluing the entire barrel might cause some unusual stress from heat. In centerfire, the block around the chamber acts as a heat sink. However, 22rf develops little heat in a heavy barrel. Did it improve the accuracy?
Justin, Is the entire barrel glued into the stock or just 5-6 inches ahead of the action? I would think gluing the entire barrel might cause some unusual stress from heat. In centerfire, the block around the chamber acts as a heat sink. However, 22rf develops little heat in a heavy barrel. Did it improve the accuracy?
Yes, accuracy did improve.
Heat is not a factor with the 22lr.
With magnum rimfire, I have to watch the temperatures.
Shoot 5, take a break until the barrel cools off.
The Fuglies produced better results than the free-floated/receiver mounted setups.
Was it the extra weight/stability? Elimination of stock flex? Dampening of barrel harmonics?
I think all three factors helped.
Heat is not a factor with the 22lr.
With magnum rimfire, I have to watch the temperatures.
Shoot 5, take a break until the barrel cools off.
The Fuglies produced better results than the free-floated/receiver mounted setups.
Was it the extra weight/stability? Elimination of stock flex? Dampening of barrel harmonics?
I think all three factors helped.
Well, just shows how little I know. Actually have seen this system in CF. Didn't know what it was called. Never saw it in RF. I would think if it were a superior bedding system It would be used in UL RF. Which again it may be. I have owned a couple of sleaved RF actions. Supposed to stiffen the action and increase bedding area. They were no more accurate than a regular bedded action.

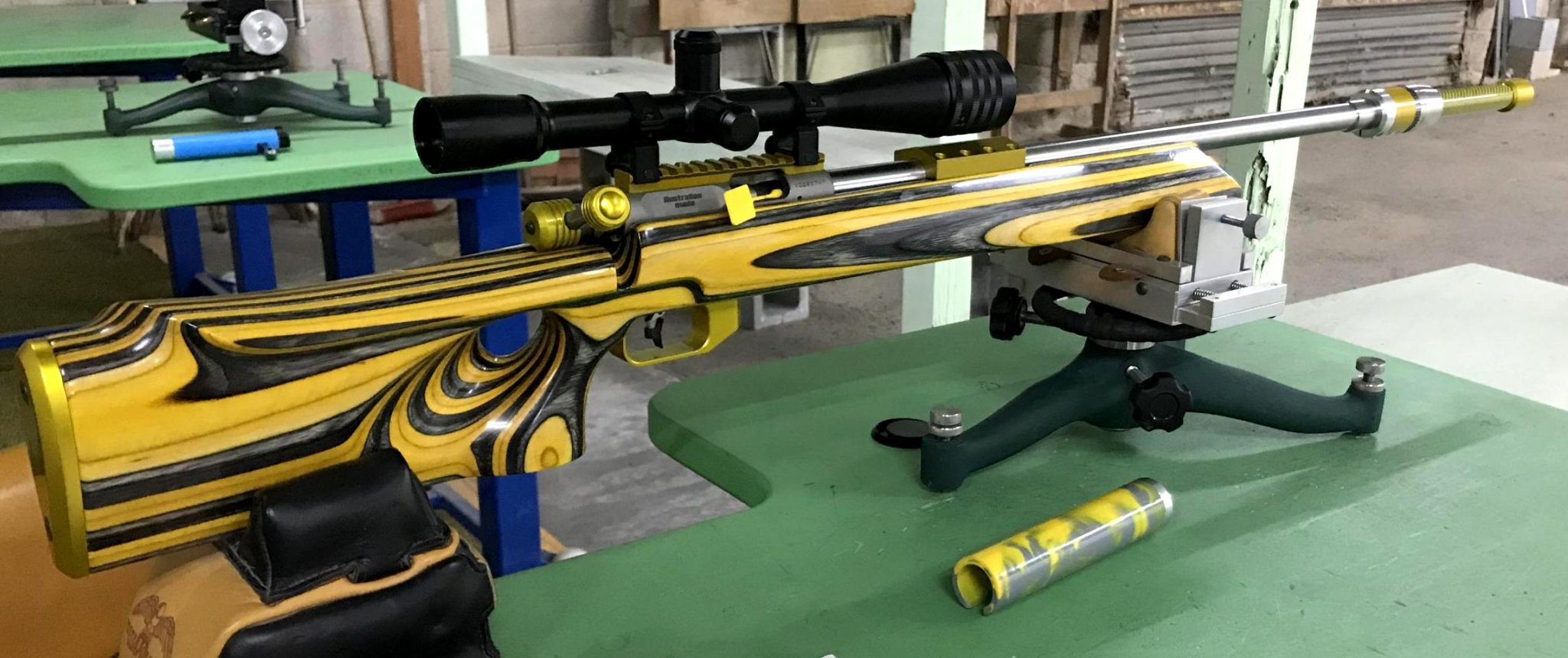

Similar concept to the bedding block, but all barrel clamping.
EC Universal Concept
EC Universal Concept
This stock not only has the barrel block, but also incorporated a tuner function on the ACTION side. Pretty sure Mr. Madison has a patent for this design. I know of one that shot incredibly well.....
Madison Tuner Stock
Madison Tuner Stock
