Gunsmithing Bat Machine Action tennon drawings?

[Straight Shooter]

Anyone have all of them? I need the M 1.125" and CT 1.187" tennon drawings but would like to get them all.


Thanks

Shawn



[ridgeway]

This is a I have...



[Rthur]

Not trying to be a smartass but Bat might email you the prints you need.

R



[Straight Shooter]

Been waiting on Bat all day. I even phoned them after 3m and left a message. Still no joy. I will keep trying them. When I get them I putting them up for everyone.


Thanks Ridgeway, I found that one earlier.



[Rthur]

SS sounds like the same luck I have had on prints. It can be hit or miss depending on who you get on the line.

R



[wtopace]

You might want to check with BAT before putting them all up for everyone. They might consider them proprietary / IP if they don't make them freely available on their website.



[Straight Shooter]

I will do that. I really doubt it's proprietary though as it's nothing to do with the action but only the tennon. We went ahead and just measured it up and did it. It would have saved some measuring time. Stiller has the specs for their tennons on their site.

There was a time when Near the scope base guy made me sign a non compete letter before he would sell me a scope rail.



[ridgeway]

Nothing proprietary about it, just a super simple tenon drawing that includes dimensions. If you have a BAT action, you can achieve the same thing by doing some basic measuring and calculations. Drawing is pretty much for reference only...the guy doing the work has to do the fine machining to make it work.



[Straight Shooter]

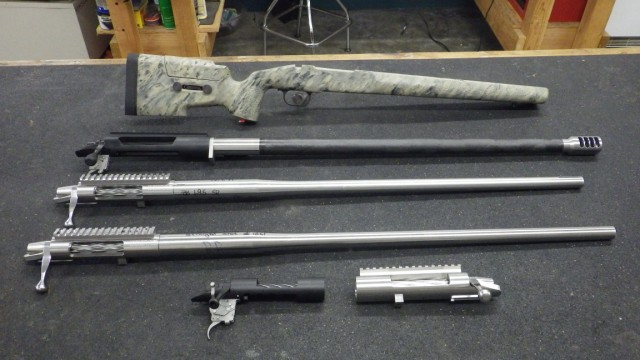

Bat didn't have a drawing for the larger actions. He just confirmed what we already had measured up. Mostly extra long range stuff going lately. McMillan, Stiller Tac 408, Bat M and CT, Pierce Titanium SA, You got to like the good stuff.
