Black Hills 5.56mm 77 Grain Tipped MatchKing Ammunition








The Black Hills 5.56mm 77 grain Tipped MatchKing ammunition is loaded with the same Sierra 77 grain Tipped MatchKing projectile that is available as a reloading component (#7177), with the addition of a cannelure. The Black Hills ammunition was actually brought to market before the reloading component was.







The 77 grain Tipped MatchKing is the longest bullet (that I’m aware of) that is currently being loaded by a major manufacturer to magazine length for the 5.56mm cartridge.







With a nominal length of 1.070”, the 77 grain Tipped MatchKing is 0.335” longer than a 55 grain FMJ bullet and 0.085” longer than the standard Sierra 77 grain MatchKing.







Not only is the bullet itself long, but the ogive section of the 77 grain Tipped MatchKing is also extremely long for a bullet loaded to magazine length in the 5.56mm cartridge; so much so, that the grooves of the cannelure extend into the ogive of the bullet, as evidenced by the “arrow head” shaped cannelure grooves.


















The Black Hills 77 grain Tipped MatchKing ammunition is loaded in 5.56mm WCC brass that has the annealing iris still visible. The primer pockets are crimped and sealed. The case-mouth is crimped but has no sealant. The load is charged with “ball powder.”












Velocity


I chronographed the Black Hills 77 grain Tipped MatchKing ammunition from a semi-automatic AR-15 with a chrome-lined, NATO chambered 20” Colt M16A2 barrel with a 1:7” twist.







Chronographing was conducted using an Oehler 35-P chronograph with “proof screen” technology. The Oehler 35P chronograph is actually two chronographs in one package that takes two separate chronograph readings for each shot and then utilizes its onboard computer to analyze the data to determine if there is any statistically significant difference between the two readings. If there is a statistically significant difference in the readings, the chronograph “flags” the shot to let you know that the data is invalid. There was no invalid data flagged during this testing.

The velocities stated below are the muzzle velocities as calculated from the instrumental velocities using Oehler’s Ballistic Explorer software program. The strings of fire consisted of 10 rounds over the chronograph.














Each round was single-loaded and cycled into the chamber from a magazine fitted with a single-load follower. The bolt locked-back after each shot allowing the chamber to cool in between each shot. This technique was used to mitigate the possible influence of “chamber-soak” on velocity data. Each new shot was fired in a consistent manner after hitting the bolt release. Atmospheric conditions were monitored and recorded using a Kestrel 4000 Pocket Weather Tracker.







Atmospheric conditions

Temperature: 72 degrees F
Humidity: 44%
Barometric pressure: 29.64 inches of Hg
Elevation: 950 feet above sea level

The muzzle velocity for the 10-shot string of the Black Hills 77 grain Tipped MatchKing ammunition fired from the 20” Colt barrel was 2808 FPS with a standard deviation of 14 FPS and a coefficient of variation of 0.50%.

For those of you who might not be familiar with the coefficient of variation (CV), it is the standard deviation, divided by the mean (average) muzzle velocity and then multiplied by 100 and expressed as a percentage. It allows for the comparison of the uniformity of velocity between loads in different velocity spectrums; e.g. 77 grain loads running around 2,650 fps compared to 55 grain loads running around 3,250 fps.

For comparison, the mil-spec for M193 allows for a coefficient of variation of approximately 1.2%, while one of my best 77 grain OTM hand-loads, with a muzzle velocity of 2639 PFS and a standard deviation of 4 FPS, has a coefficient of variation of 0.15%
.







Accuracy


I conducted an accuracy (technically, precision) evaluation of the Black Hills 77 grain Tipped MatchKing ammunition following my usual protocol. This accuracy evaluation used statistically significant shot-group sizes and every single shot in a fired group was included in the measurements. There was absolutely no use of any group-reduction techniques (e.g. fliers, target movement, Butterfly Shots).

The shooting set-up will be described in detail below. As many of the significant variables as was practicable were controlled for. Also, a control group was fired from the test-rifle used in the evaluation using match-grade, hand-loaded ammunition; in order to demonstrate the capability of the barrel. Pictures of shot-groups are posted for documentation.

All shooting was conducted from a concrete bench-rest from a distance of 100 yards (confirmed with a laser rangefinder.) The barrel used in the evaluation was free-floated. The free-float handguards of the rifle rested in a Sinclair Windage Benchrest, while the stock of the rifle rested in a Protektor bunny-ear rear bag. Sighting was accomplished via a Leupold VARI-X III set at 25x magnification and adjusted to be parallax-free at 100 yards. A mirage shade was attached to the top of the free-float hand-guard. Wind conditions on the shooting range were continuously monitored using a Wind Probe. The set-up was very similar to that pictured below.










The Wind Probe.






The test vehicle for this accuracy evaluation was one of my semi-automatic precision AR-15s with a 20” stainless-steel Lothar-Walther barrel. The barrel has a 223 Wylde chamber with a 1.8” twist. Prior to firing the Black Hills 77 grain Tipped MatchKing, I fired a 10-shot control group using match-grade hand-loads topped with the Sierra 77 grain Tipped MatchKing (without a canelure). That group had an extreme spread of 0.68”.



















The control group . . .





Three 10-shot groups of the Black Hills 77 grain Tipped MatchKings ammunition were fired in a row with the resulting extreme spreads:


1.26”
1.14”
1.37”



for a 10-shot group average extreme spread of 1.26”. The three 10-shot groups were over-layed on each other using RSI Shooting Lab to form a 30-shot composite group. The mean radius for the 30-shot composite group was 0.41”.



The smallest 10-shot group . . .






The 30-shot composite group . . .







MK262 Comparison

The table below compares the test results from this article to my previously obtained test data for Black Hills MK262 Mod 1 ammunition, which is loaded with the standard Sierra 77 grain MatchKing (with a cannelure.)







A.E.S = average extreme spread for three 10-shot groups at 100 yards

M.R. = mean radius for the 30-shot composite group

M.V. = muzzle velocity

S.D. = standard deviation of muzzle velocity

C.V. = coefficient of variation of muzzle velocity





JimmyT

Private
Belligerents
Feb 25, 2017
121
14
22
Is the TMK for civilian use or is there a group using these operationally?


Centuriator

Dude...you're being very un-Dude.
Hessian
Banned !
Belligerents
Jul 3, 2012
2,900
1,631
219
Middle 'Merica!
Many SOCOM units use Nosler 5.56. Our training facility was gifted with the remaining Nosler rounds that were left over when a SOCOM unit left after a pre-deployment training workup at the facility. Awesome stuff. Always fun to shoot on Uncle Sam's dime. :)

  • Like
Reactions: TACC

Evolution 9

Hurter of feelings
Belligerents
Mar 6, 2010
382
172
49
36
Central Idaho
Better damage (wound profile) than MK262. Better BC than MK262. Best ammo ever for my needs. Sold out everywhere but some on Gunbroker for reasonable.


TACC

Gunny Sergeant
Belligerents
Minuteman
Jan 10, 2019
906
673
99
Good to know just found some of these available, will have to give them a shot


WIVigilance

Private
Belligerents
Mar 10, 2017
127
41
34
WI
Better damage (wound profile) than MK262. Better BC than MK262. Best ammo ever for my needs. Sold out everywhere but some on Gunbroker for reasonable.

Saw some this morning, never ordered from them. Just an FYI for people looking.


shooter545

Private
Belligerents
Aug 9, 2011
32
7
12
60
NC
Molon,
loving it please continue with your work. I have printed all your stuff on here an the other sight and put it in a binder. Maybe you should put them all into a book.


mark5pt56

Gunny Sergeant
Belligerents
Nov 20, 2005
1,721
116
169
Florida
I like these bullets, just finished up testing and settled on this bullet, 24 8208/205M/LC (12) case 2.285, 2870 from a 24" Tikka Varmint.

  • Like
Reactions: MarinePMI

-Time-

Mediocre Marksman
Online Training Access
Belligerents
May 6, 2017
187
78
34
One of my favorite loads, and bullets. They’re running ~2773 out of my 18” Larue stealth. POI has always been identical to the SMK too. Absolutely potent on deer with a boiler room shot. Not always a big exit, but it vaporizes the heart and lungs. I’ve never had one go more than 25yards in 10+ deer.

  • Like
Reactions: Evolution 9

10ring'r

Major Hide Member
Belligerents
Minuteman
Apr 9, 2019
1,124
1,497
119
60
Wisconsin
I use this ammo for my 600yd. shoots. My rifle will shoot this in under .5 moa @ 100yds. (5 shot groups).
At 600, it will shoot it in a .8-.5 moa group, as long as there is less than 5 mph of wind and I do my part. For my gun (18", S.S., 1-n-8T, Bull) it has worked the best, but it's a little spendy ($1.16 per), for a 5.56 round. Mac


Longshot85

Incognito
Belligerents
Jan 19, 2011
269
137
49
36
Great write up

They shoot great, I have a single digit SD TMK with XBR 8208


BCX

Major Hide Member
Belligerents
Minuteman
Mar 18, 2018
1,390
570
119
It does. Then says to email them to place an order and that’s when they hit me with the $750. The old bait and switch method is strong with them
I just received 4 cases. 3 different ammo types. The BH 50 Optimized load is $750 a case, the 77 TMK was $575 a case. Give them a call. 30 years in business, stand up guys. I bet it was a mishap.


dpb1776

Private
Minuteman
Jun 11, 2018
48
12
12
I have looked at these for reloading. They appear to be set pretty deep is there a higher risk of setback or overpressure with these bullets? Sorry if this is a dumb question.


Molon

Private
Minuteman
Feb 26, 2020
57
132
39
I have looked at these for reloading. They appear to be set pretty deep is there a higher risk of setback or overpressure with these bullets? Sorry if this is a dumb question.

I haven't had any issues with set-back or pressure. The odd thing about this projectile is that it cannot be seated to standard AR-15 magazine length without the ogive going below the case mouth.







....

  • Like
Reactions: LRRPF52

BCX

Major Hide Member
Belligerents
Minuteman
Mar 18, 2018
1,390
570
119

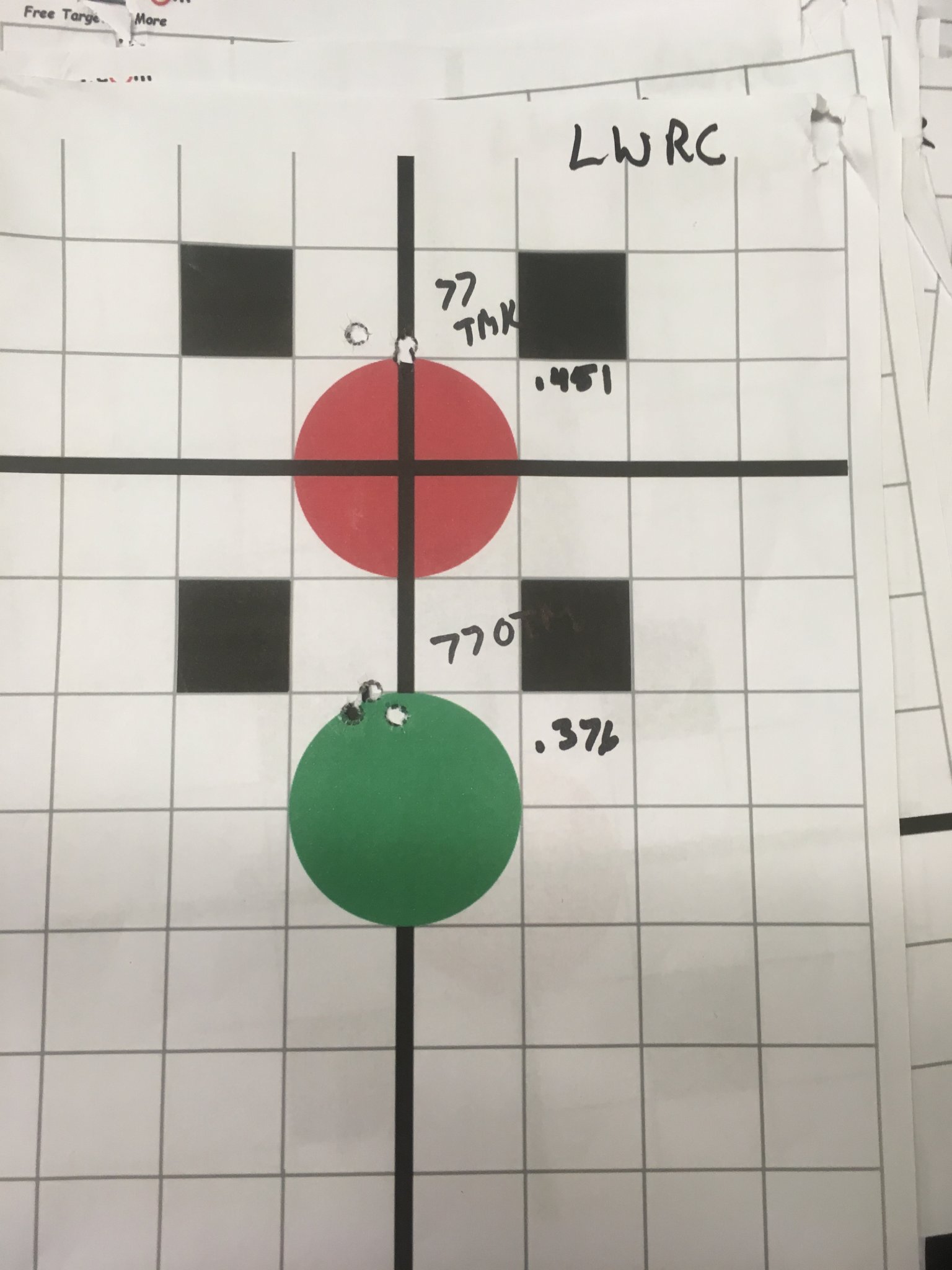

My LWRC piston gun shoots the Black Hills. Shot prone w soft rear bag. A20986CA-FED2-4C89-B96C-BD0400F5FEB5.jpeg
