SOLD FS: Area 419 1-1/4" Die Lock Ring Multi-Pack and Wrench

jrg137

Private
Supporter
Full Member
Minuteman
Oct 19, 2017
78
14
BRAND NEW 1-1/4″ Multi-Pack includes (4) rings, all 1-1/4×12, and a wrench.

Finish on rings is black nitride. Wrenches are aluminum, finish is a black hardcoat anodize.
  • LARGE DIAMETER – more surface contact with the turret head means the ring will align with the press and force the die straight, instead of grabbing onto the die and aligning as it may.
  • MORE THREAD ENGAGEMENT – the rings feature .350″ of thread engagement, which is 15-25% more than common die lock rings. This results in roughly a full thread of additional engagement, increasing the ability of the ring to square the die to the press.
  • INTERNAL WRENCH ENGAGEMENT – with traditional rings, there is a flat or knurling on the outside, which requires you to get a wrench around the outside to tighten. On a multi-die head this requires you to get tools between dies and fight with the location – or you have to make the ring smaller which has real downsides. This ring is designed with internal wrench engagement, mitigating this issue altogether.
  • PRECISION STAINLESS STEEL MANUFACTURING – The threads and bottom face of the ring are machined in a single operation, delivering square surfaces to align your die. We then leave the ring and threads hole and unobscured by splits and grub screws. All rings are made of 17-4PH stainless steel. Available in raw stainless or with a black nitride finish.
Total thickness of rings is .500″ and outside diameter is 1.685″. Ideal for Area 419 ZERO reloading press or any single stage press (excluding co-ax).

$95 shipped


Attachments

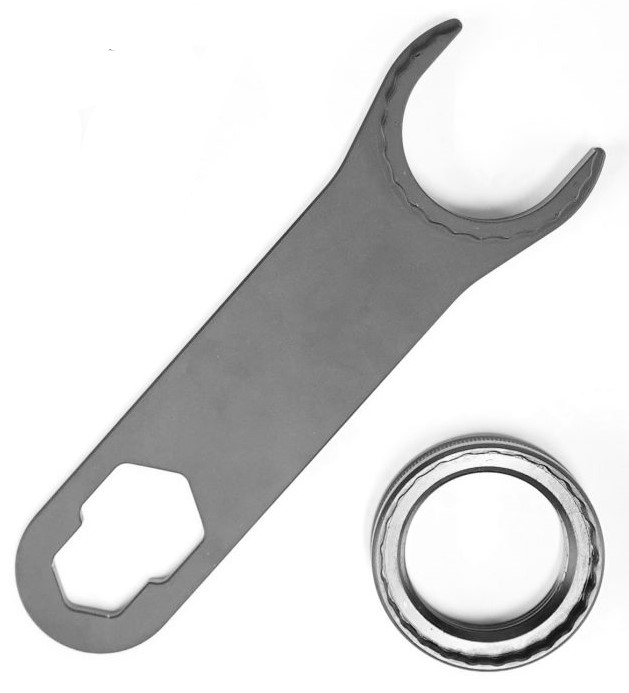

  • LockRingKitTop-768x768.jpg
    42.5 KB · Views: 51
