GeoBallistic Help. I’m doing something wrong

[tag_heuer]

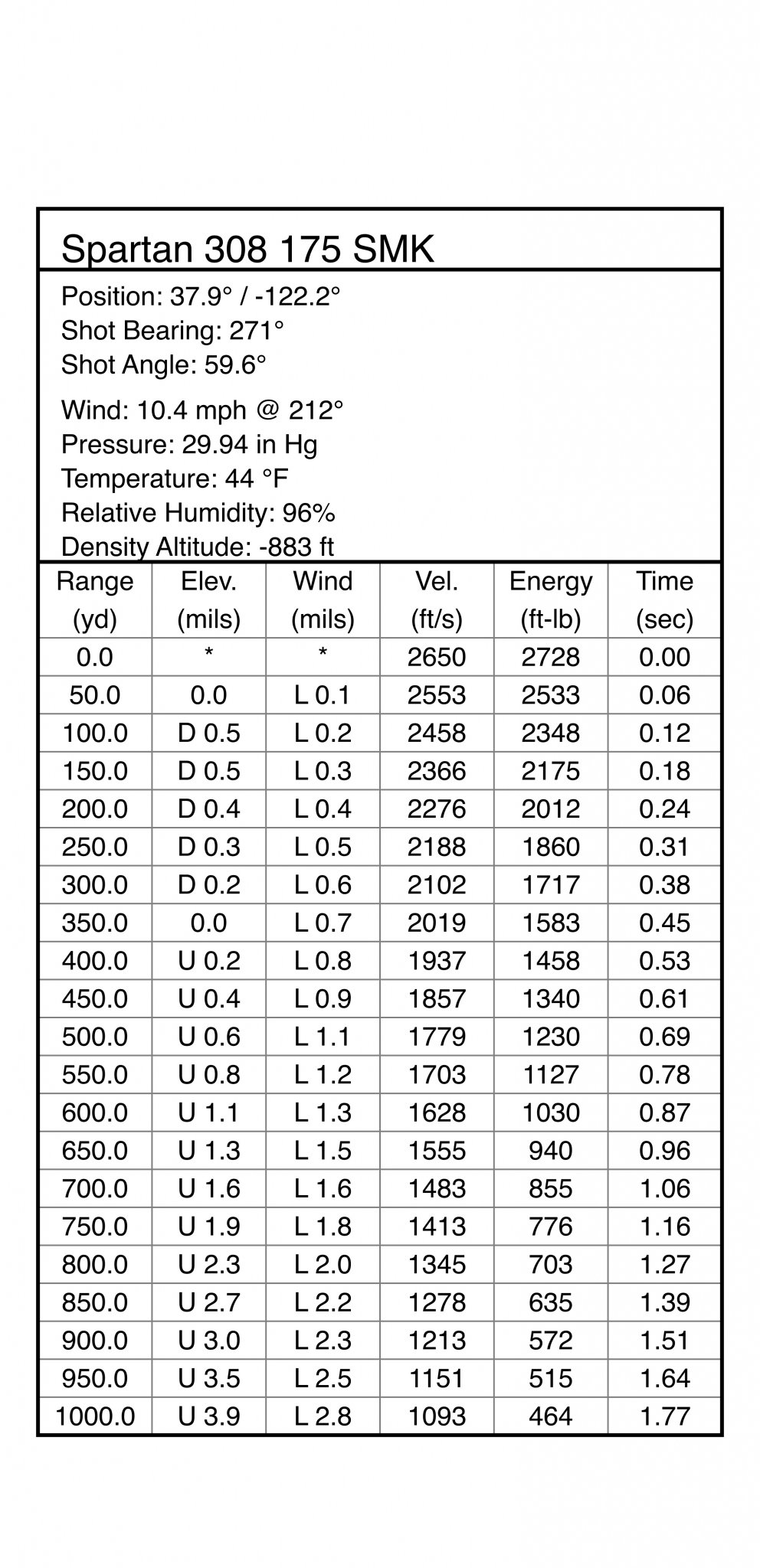

I think I’m doing this right, but when it produces a chart it’s zeroed at 0.0 and 350. It should be zeroed at 100. Anyone know what I’m doing wrong



[lash]

Something is not inputted correctly. I'm not familiar with GeoBallistic so show us a picture of your inputs screen.



[Diver160651]

looks like your zero range is not set at 100... most programs will spit out something similar.. should look something like this



[blbennett1288]

Did you enter 100, hit done on the key pad, and done on the page? Doesnt look like you hit done as it is still an option in the bottom right hand corner



[Diver160651]

Did you enter 100, hit done on the key pad, and done on the page? Doesnt look like you hit done as it is still an option in the bottom right hand corner

Lol that’s mine showing him the min settings



[blbennett1288]

Lol that’s mine showing him the min settings

Facepalm, my bad



[tag_heuer]

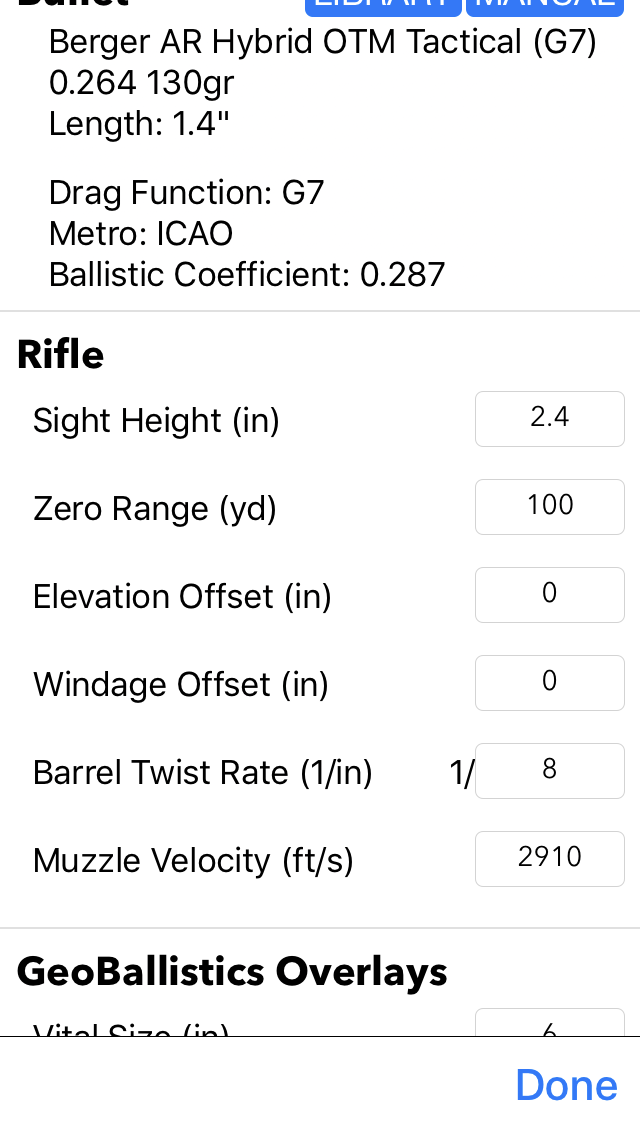

looks like your zero range is not set at 100... most programs will spit out something similar.. should look something like this

View attachment 6880418

Yes. I made sure of that.



[tag_heuer]

I also fooled with the G1 and G7. Still the same



[Diver160651]

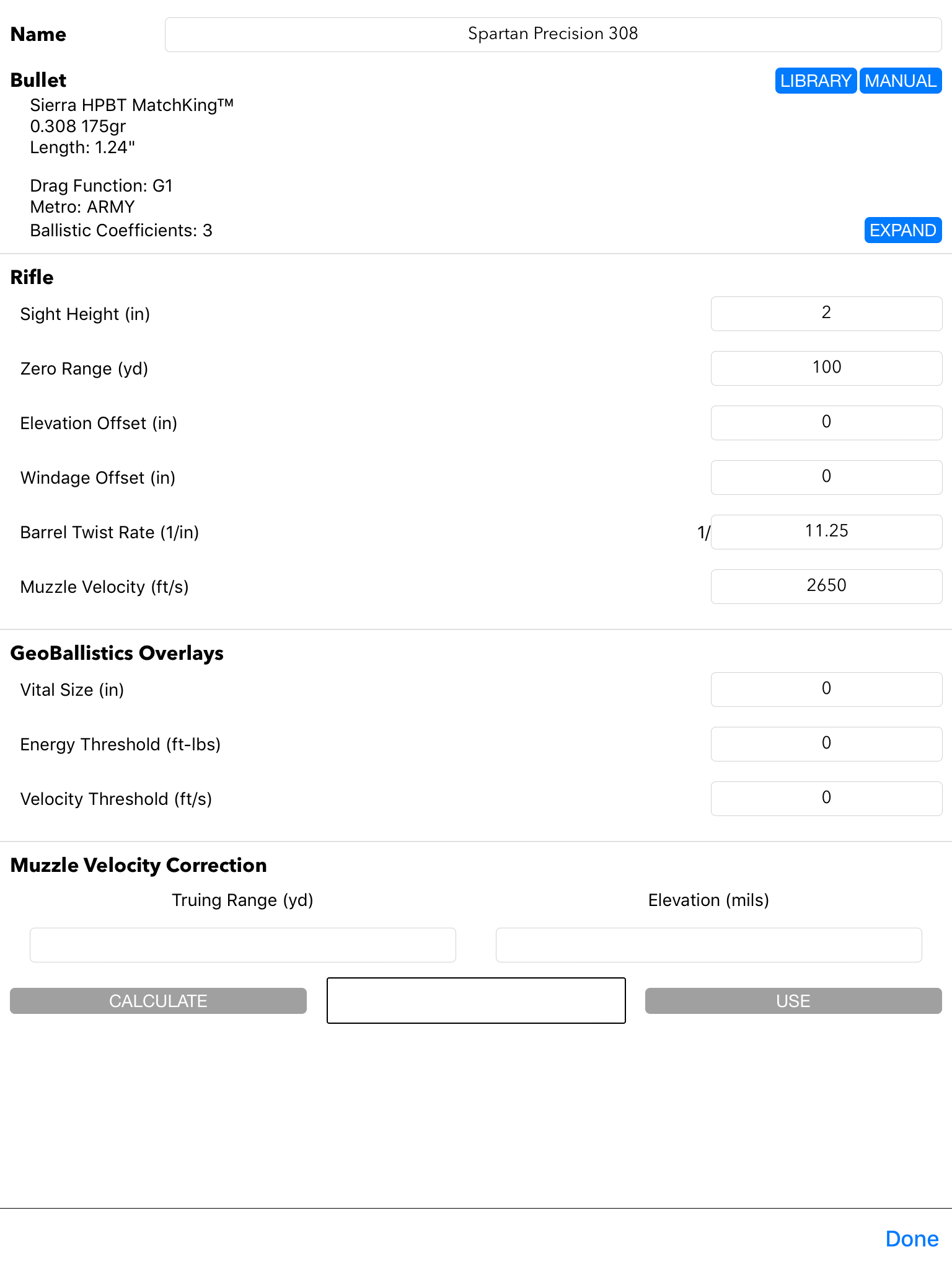

Yes. I made sure of that. View attachment 6880471

What is your AOF in the range card?



[Diver160651]

59 that’s high angle shooting.. I didn’t see that at first but only 2 things in any solver do what you are experiencing— funky zero or AOF info



[aaronk]

There's nothing wrong with the chart posted, it's just your angle of fire that's changing your dope to account for actual horizontal distance.



[tnc]

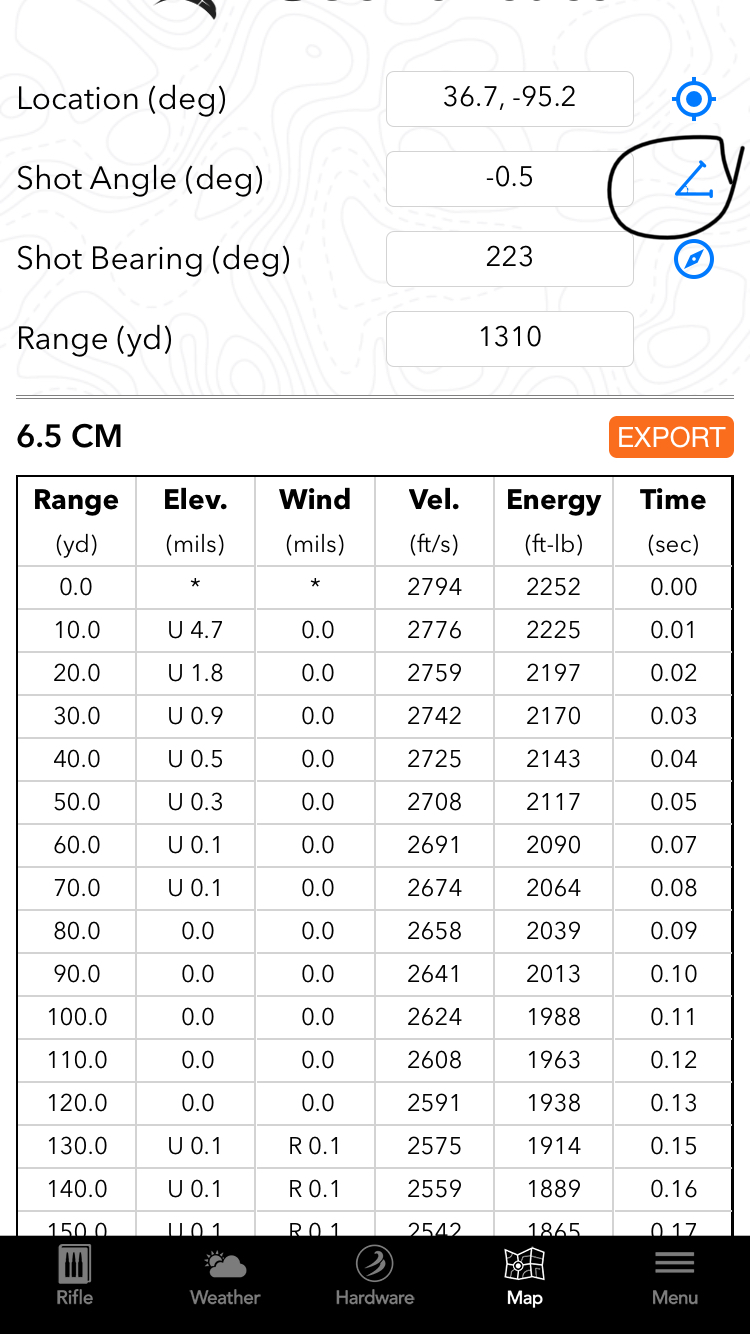

Yep. Check this. Lay your phone flat and press this button to adjust angle of fire.



[TEUFEL820]

Interesting... I would have never thought of that



[tag_heuer]

There's nothing wrong with the chart posted, it's just your angle of fire that's changing your dope to account for actual horizontal distance.

That’s it!!!!!! You guys rock!!!! Thank you. I never even thought of that.
