KMW Setinel IMB & Impact Action trigger hanger

Hoyt7mm

Bow Shooter
Full Member
Minuteman
Supporter
Apr 6, 2017
1,023
291
Wisco
Anyone else drop an Impact into a KMW with IMB? Looks like I'm going to need to remove some material from the front and back of the trigger cutout to make room for the trigger hanger. I know guys have done this with some chassis, but wanted to see if anyone else had experience with this before I dremel away on my favorite stock.

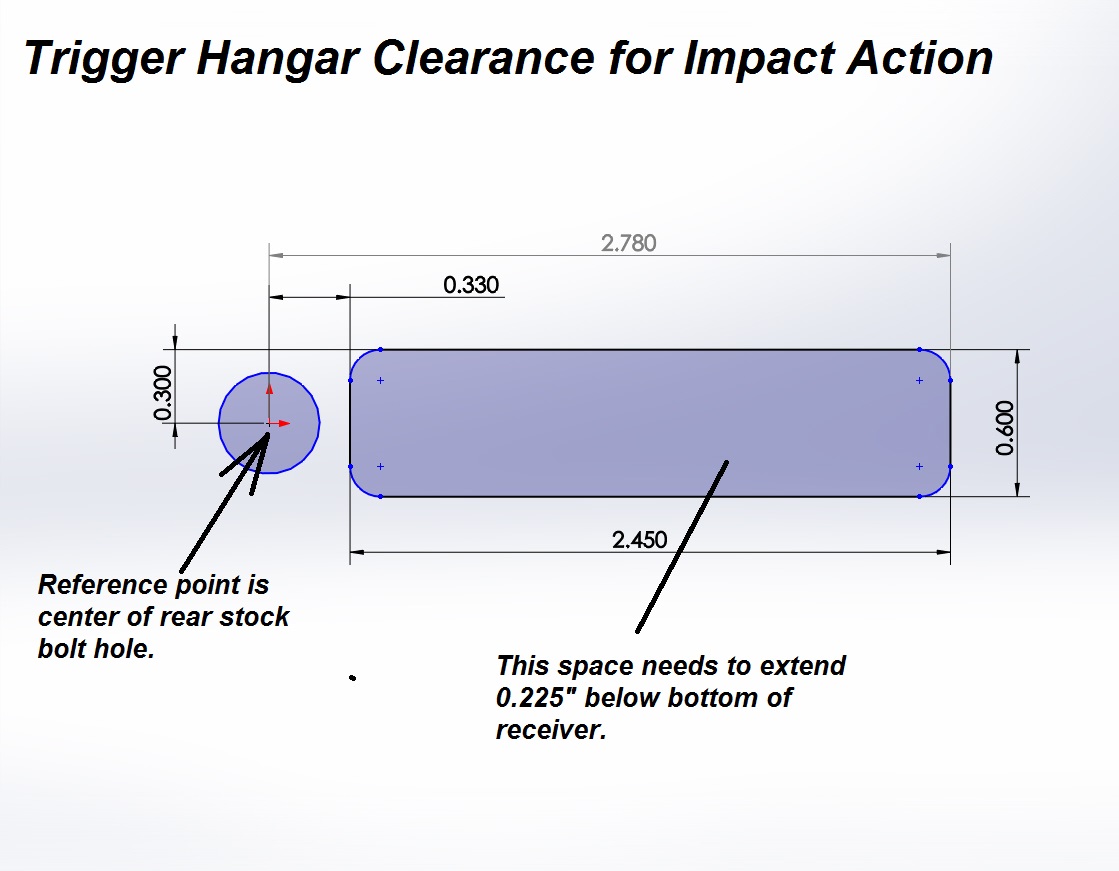

Here is a diagram that could be used to insure your trigger hanger clears.
All new gen IMBs and DBMs will be cleared for the Impact actions. In the mean time, see below:

Impact hangar clearance.JPG
