Litton M144 Spoting Scope

[telephone79]

I need some close up pictures of the quick disconnect for a Litton M144 Spotting scope used on the M24 SWS
System. I have the part that attaches to the scope it's self, however I need to source the Tripod attached "C" mount
If anyone could help me identify the part I need...I would greatly appreciate it.

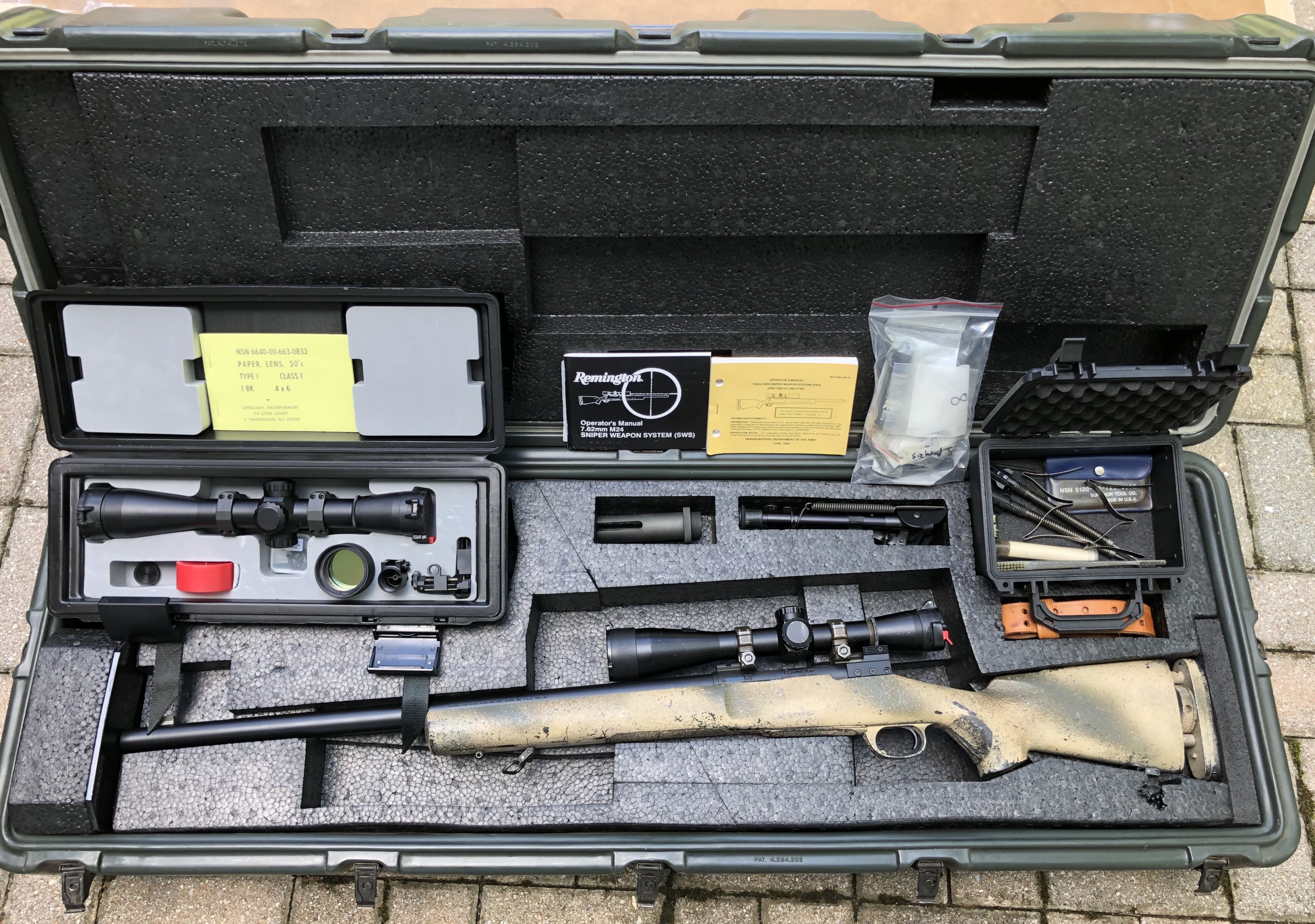

I have most of the M24 SWS accessories, but this is elusive. Any extra M144 tripods out ther that anyone wants to sell would be appreciated too.
Thanks!



[kft101]

These work?



[telephone79]

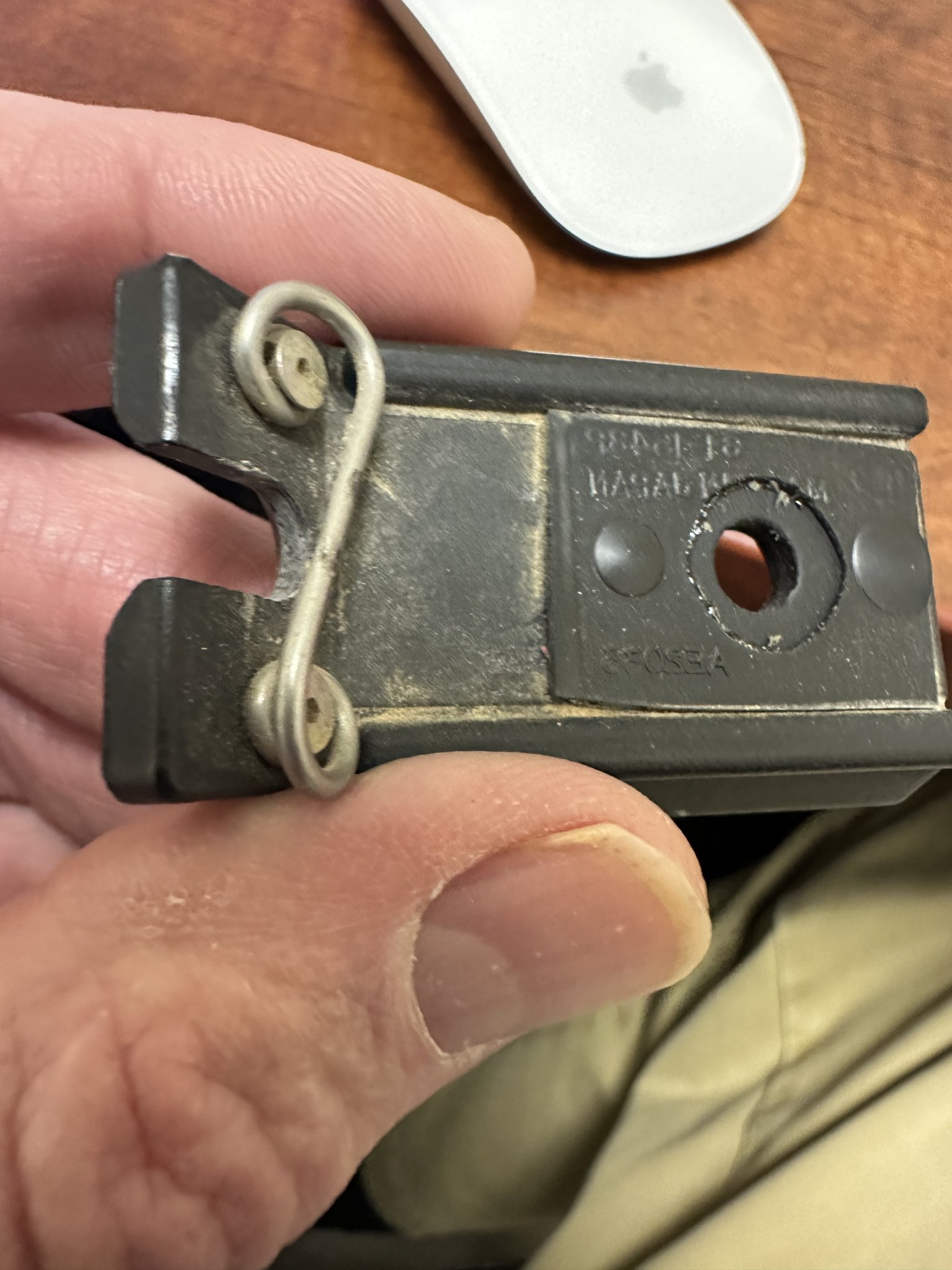

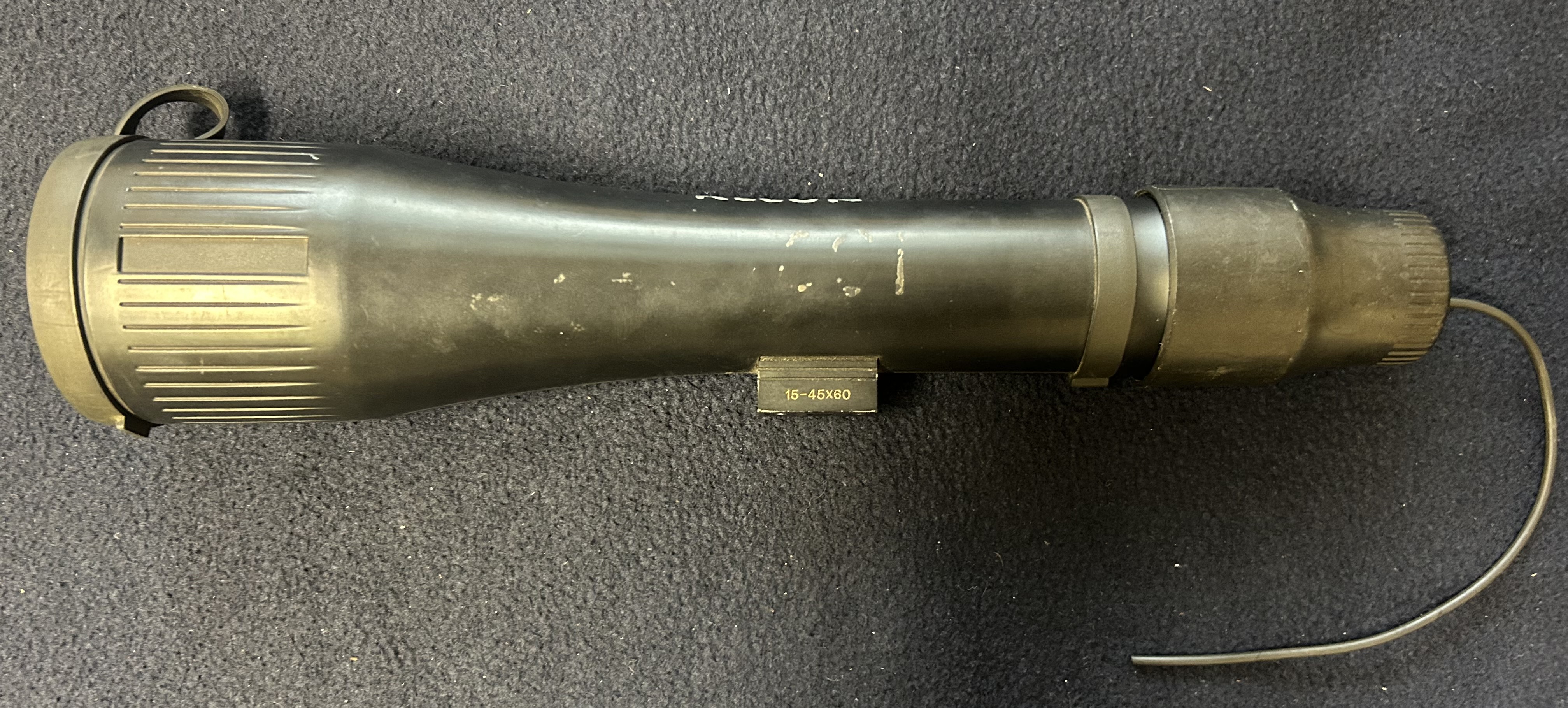

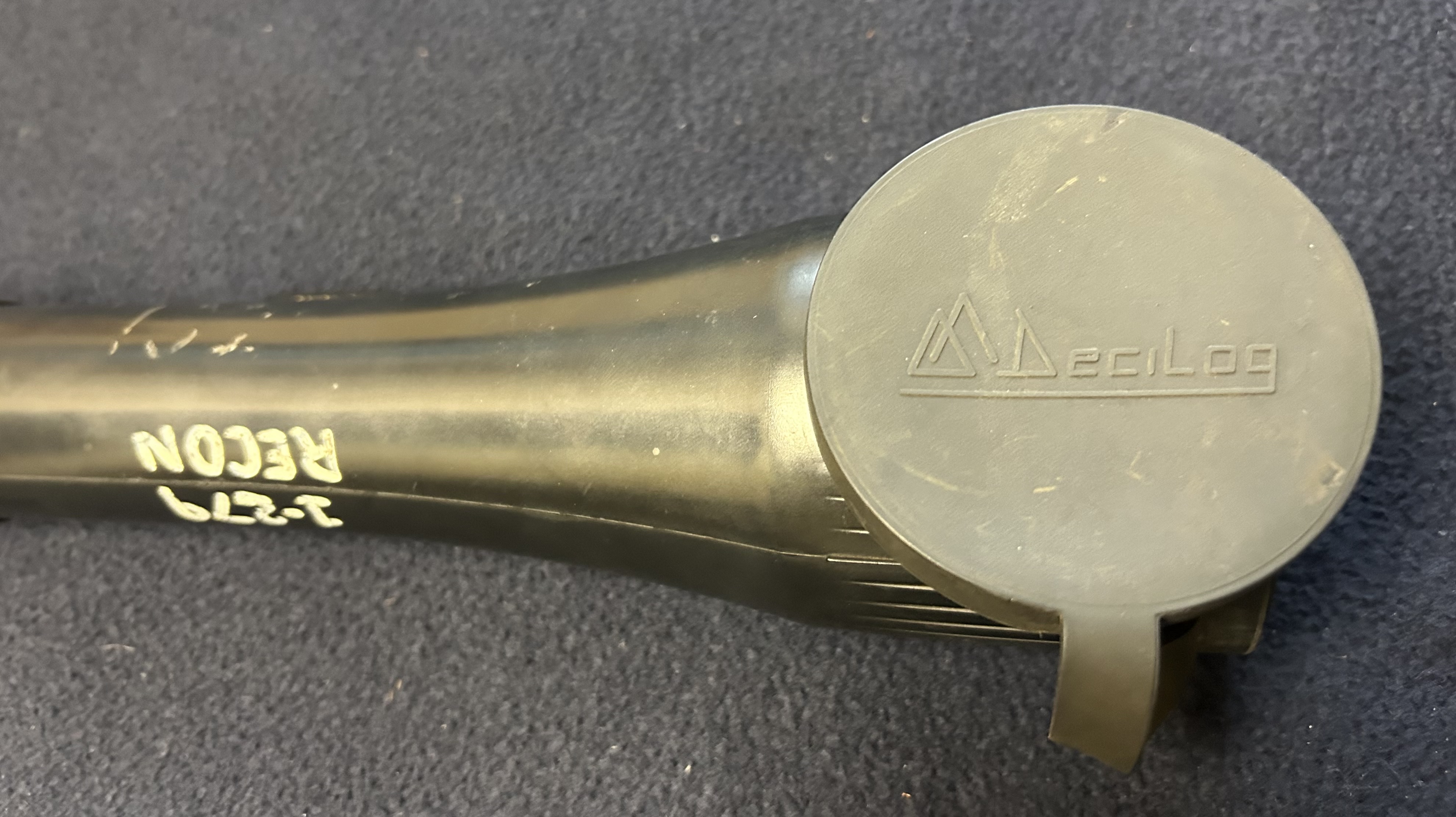

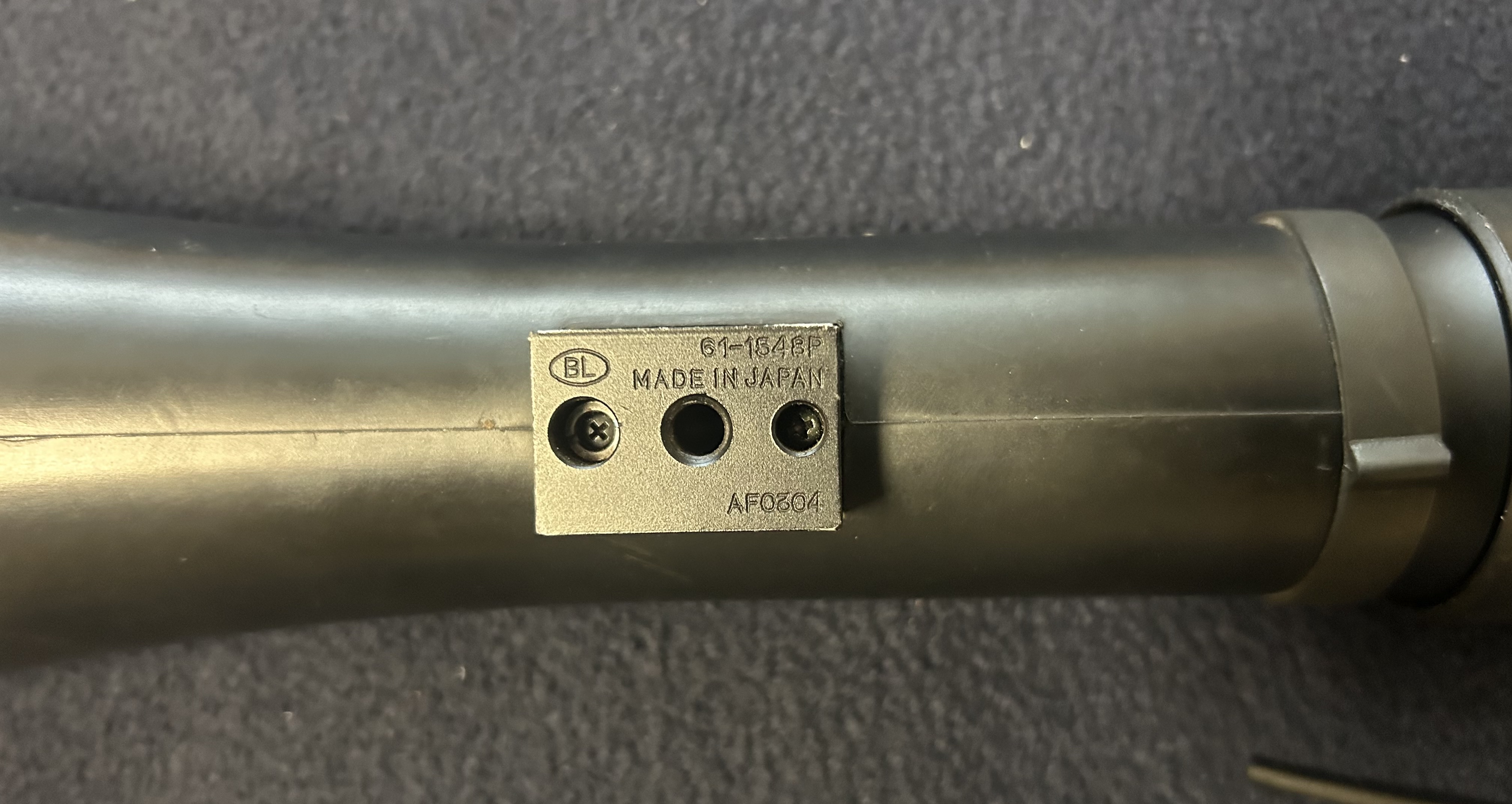

This is the mount that came on my Litton M144
I am looking for the C mount that was on the
Tripod. I can find nothing on line that would work. Any help would be appreciated.



[telephone79]

These work?

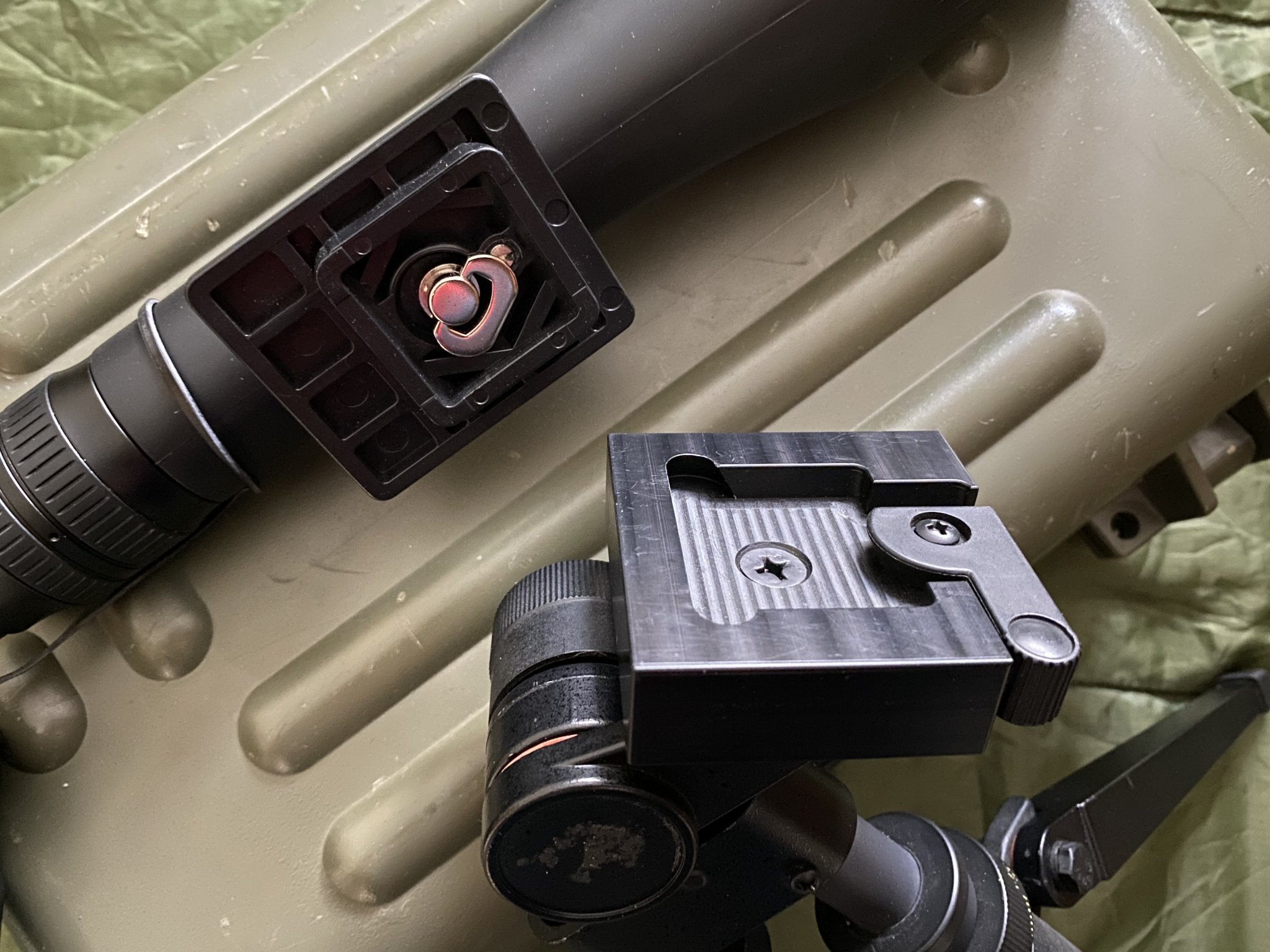

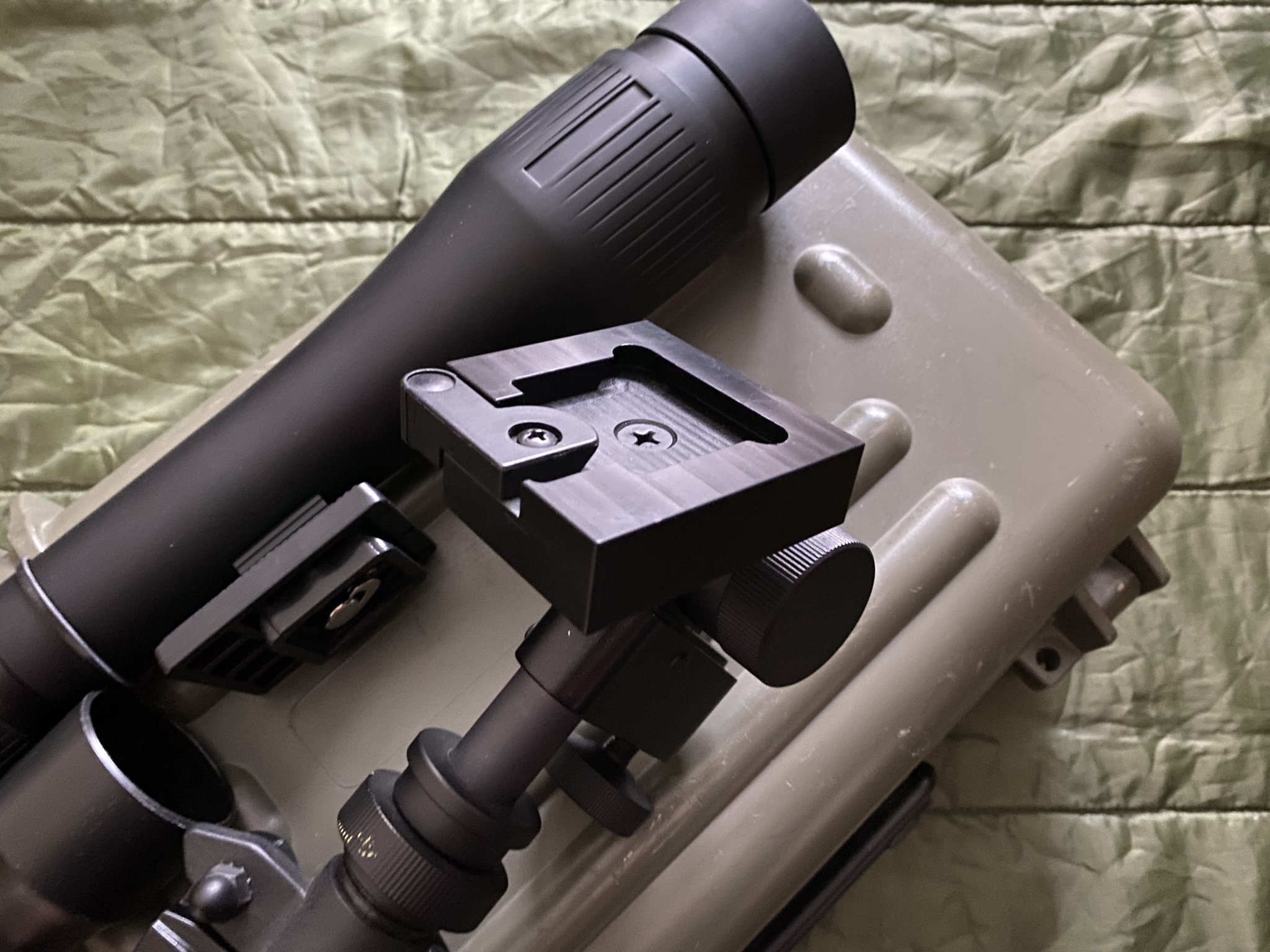

View attachment 8343703View attachment 8343704

Thanks for you pictures!



[telephone79]

Thanks for you pictures!

Are these the ones that came on the/your m144 when it was built for the Army? I purchased a similar pair from Amazon. I wanted to find a picture of the one that mates to the original one in my pictures. If yours are factory original it appears they changed mounts and used different ones during production.
Thanks for your reply!



[animaldoc]

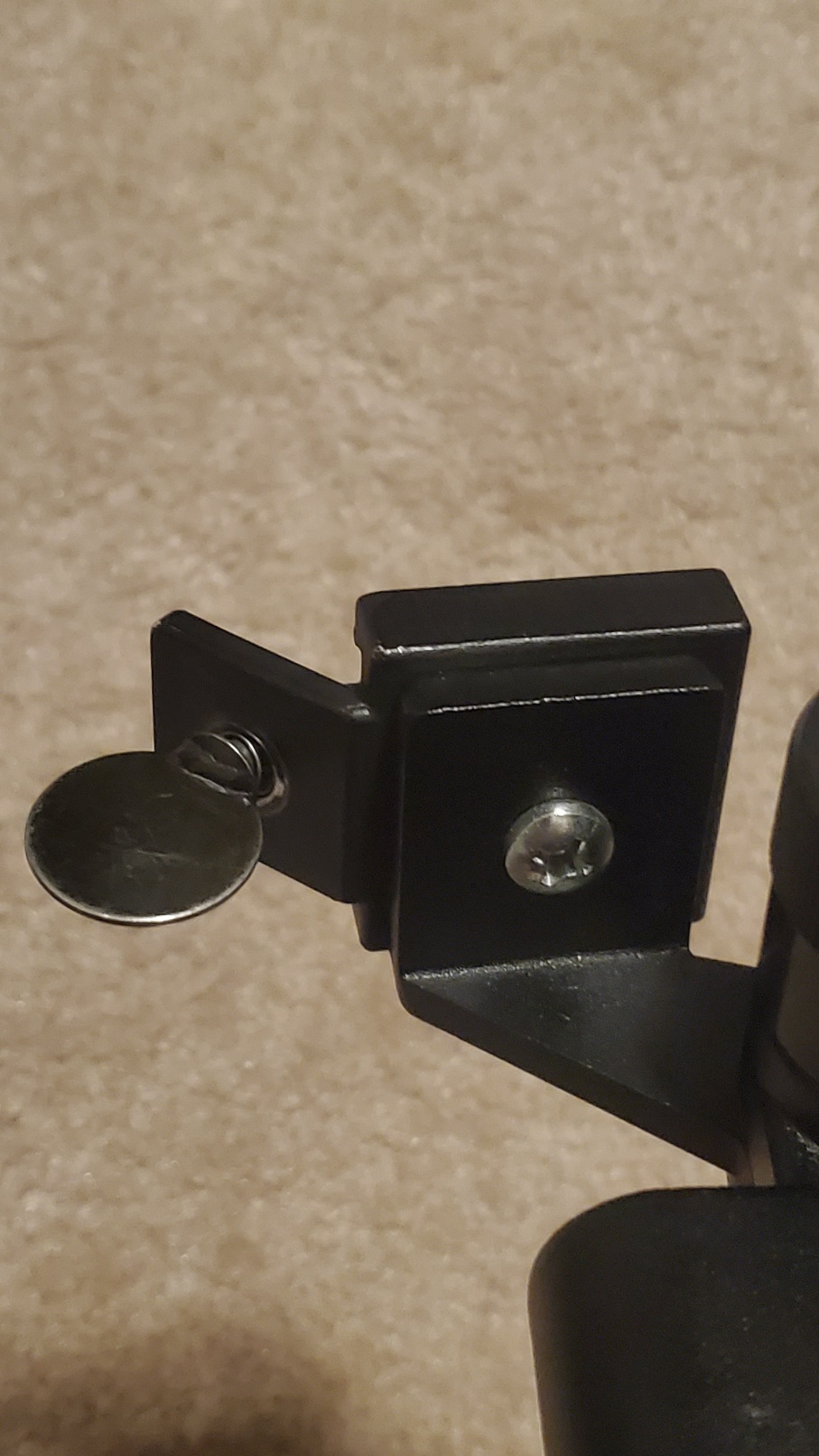

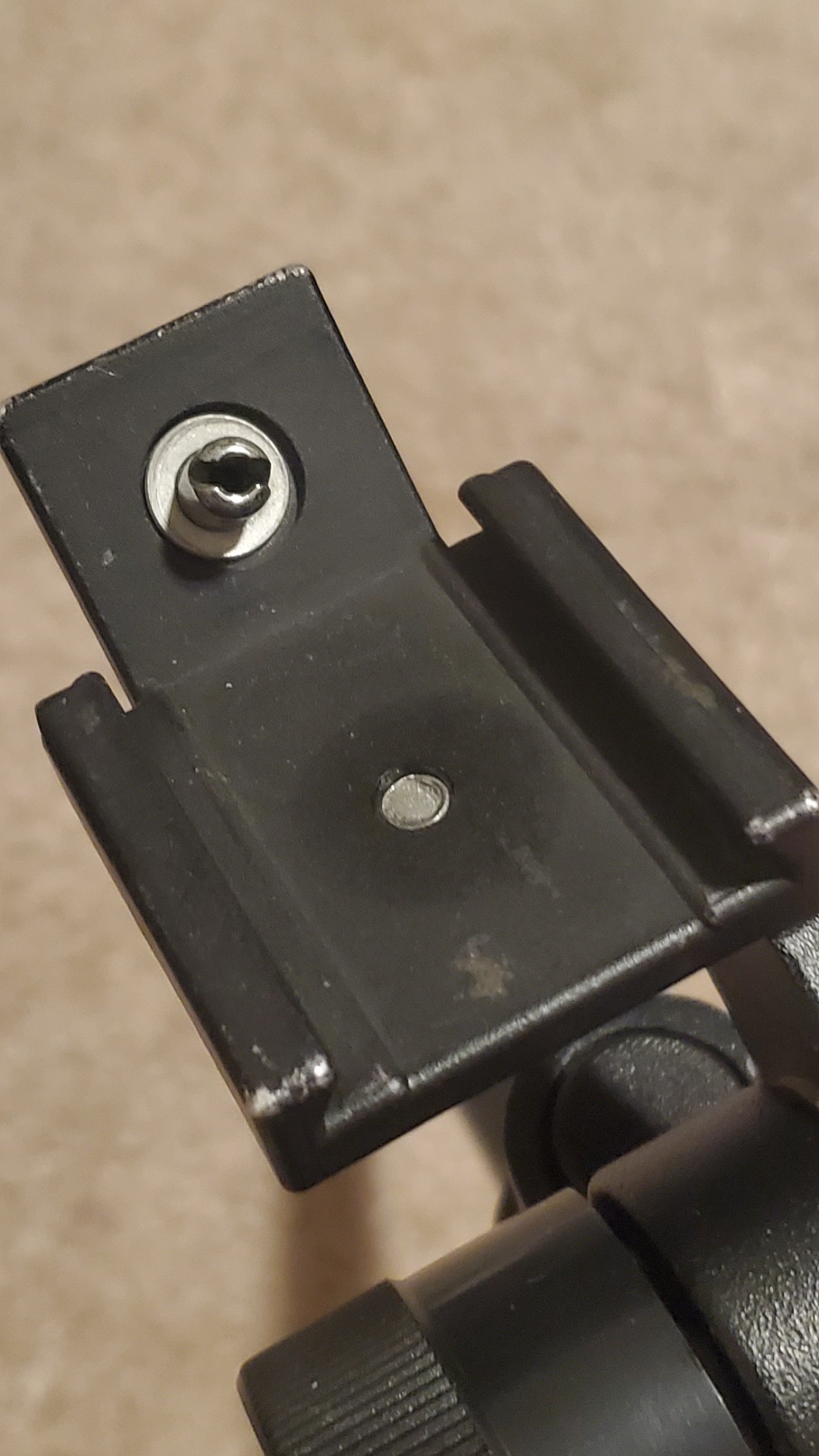

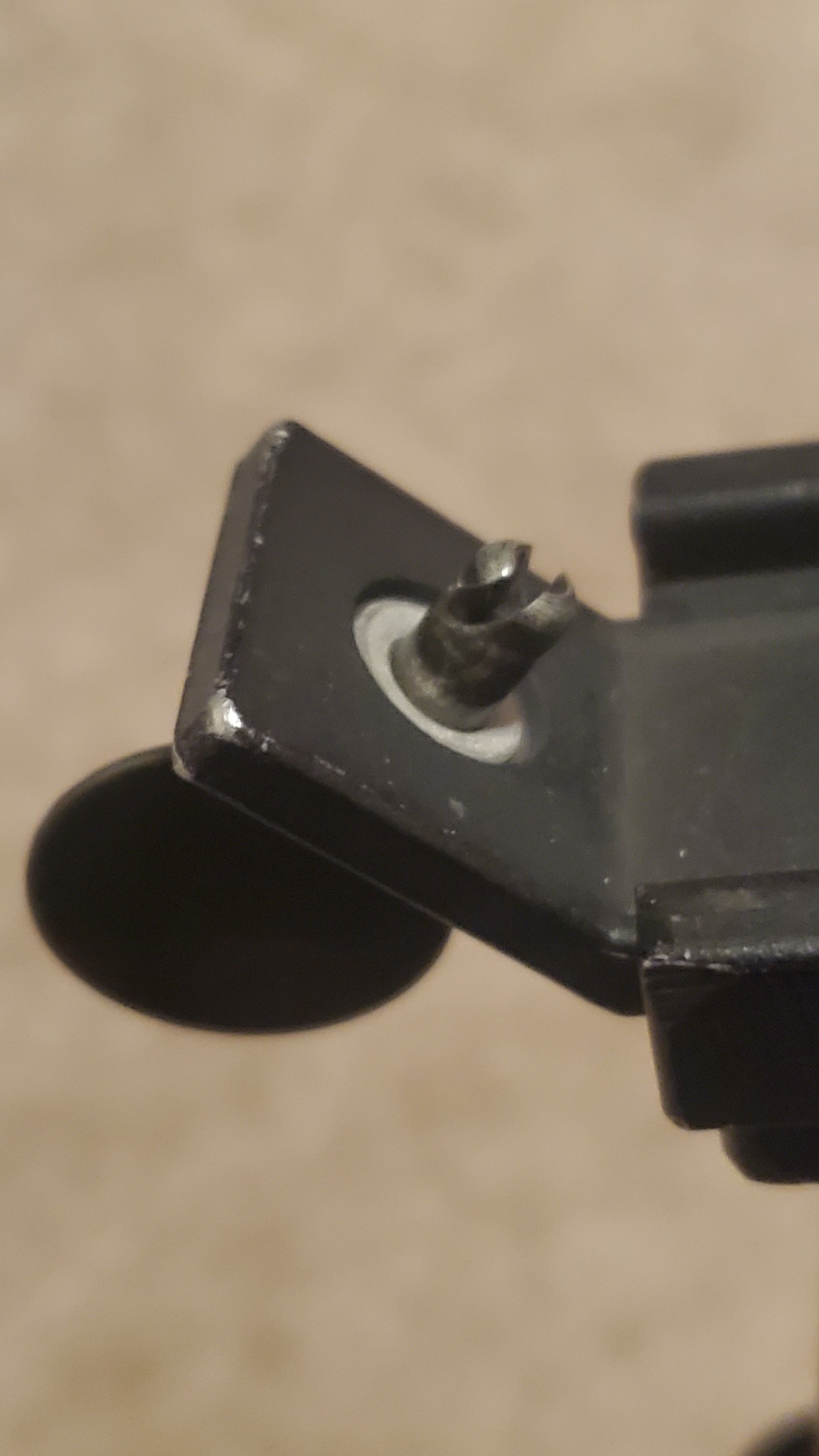

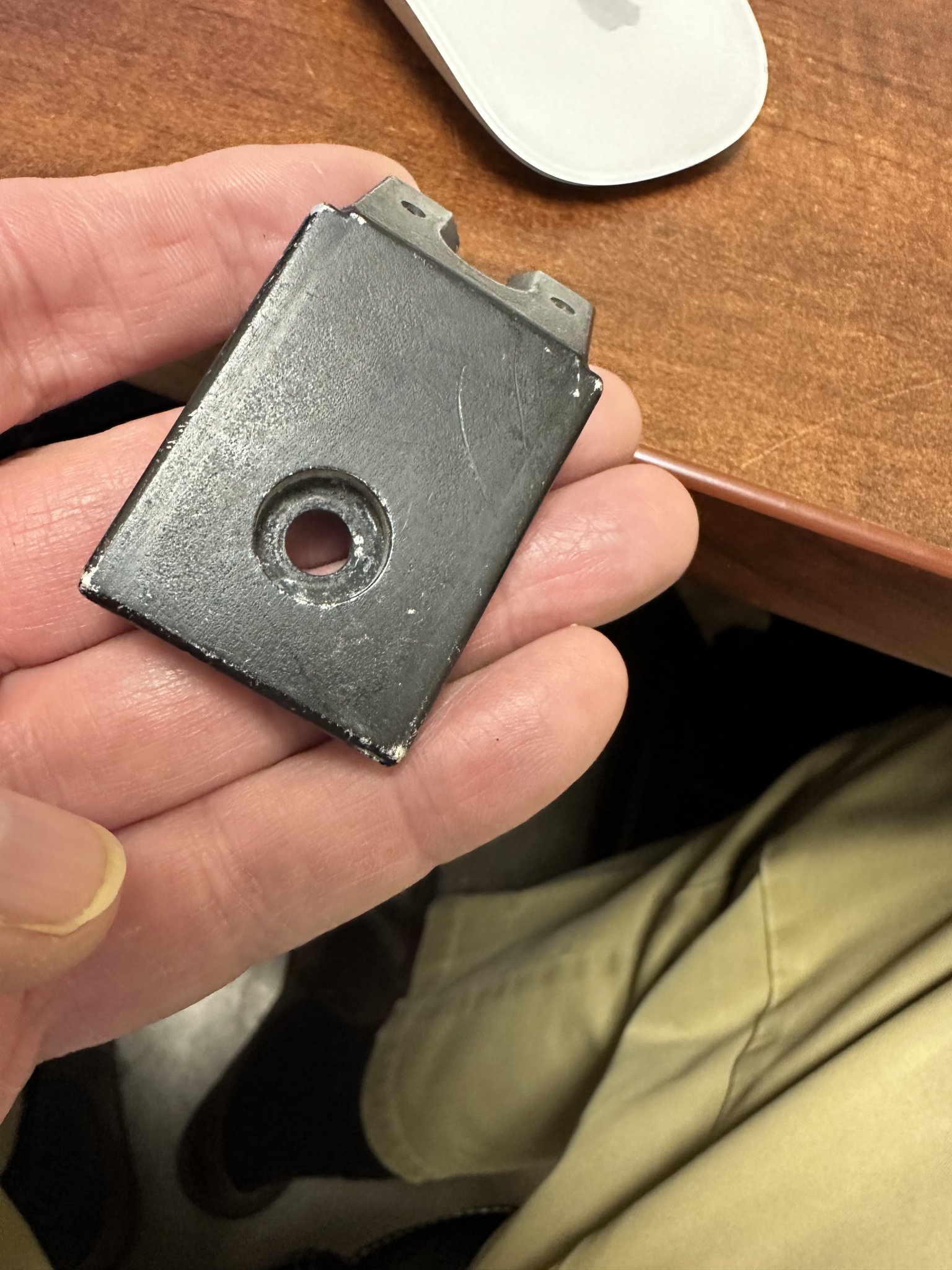

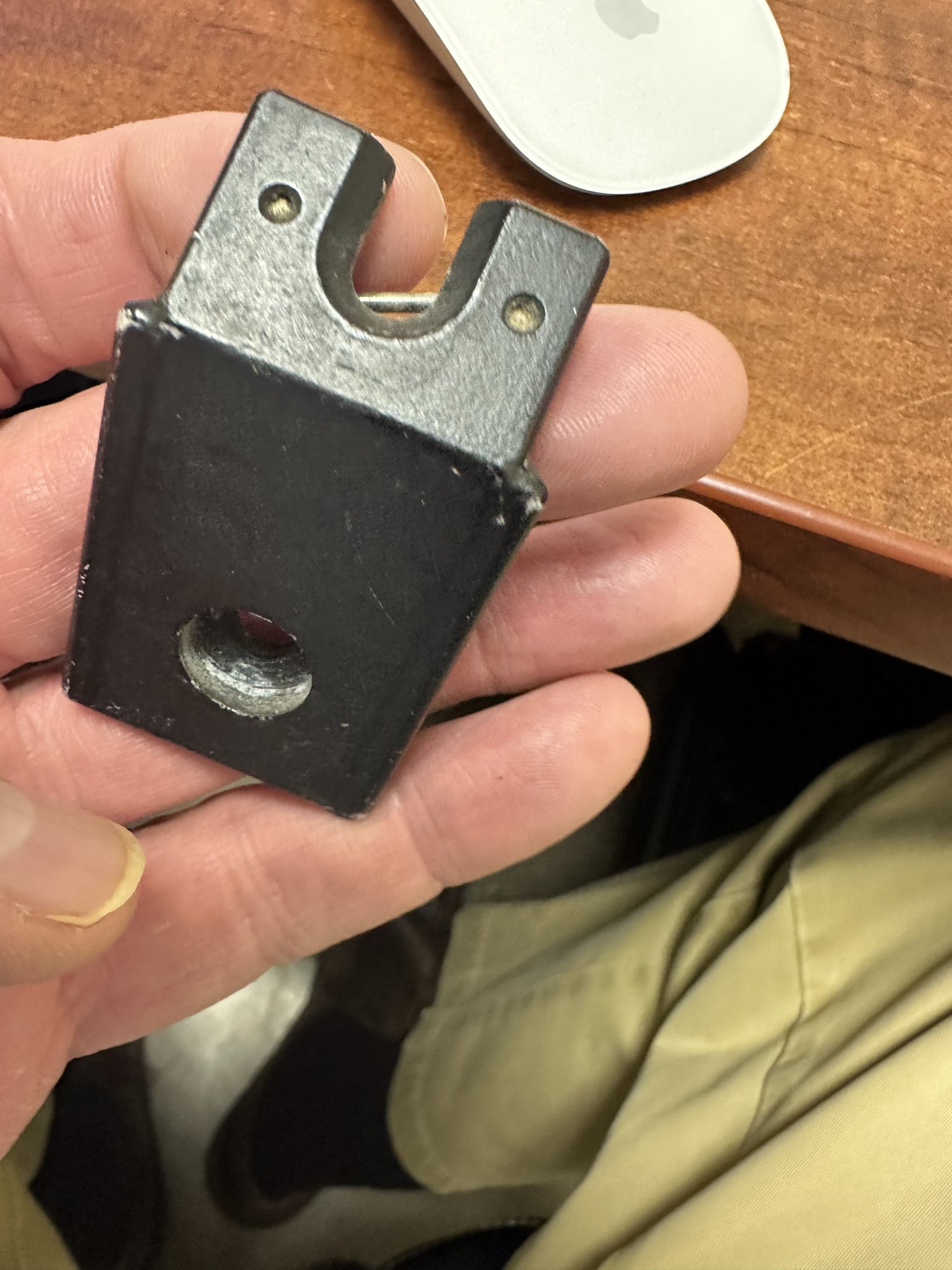

Here are pics of the one I have. The thumbscrew is notched to engage the spring on the scope mount section.



[telephone79]

Thank you!!!! That’s what I need. Now finding one or the proper tripod mount or complete tripod will probably be impossible ….. but I will try!
