Mcmillan Stock Studs

[Mauser48]

Finally picked up a Harris bipod. I am unable to mount the bipod with the legs facing forward because part of the bipod hits the sling stud. My stock had the 2 up front, its hitting the rear one. Before I go screw something up, are these studs just threaded into the stock or are they completely molded in and not meant to be removed?



[nikerret]

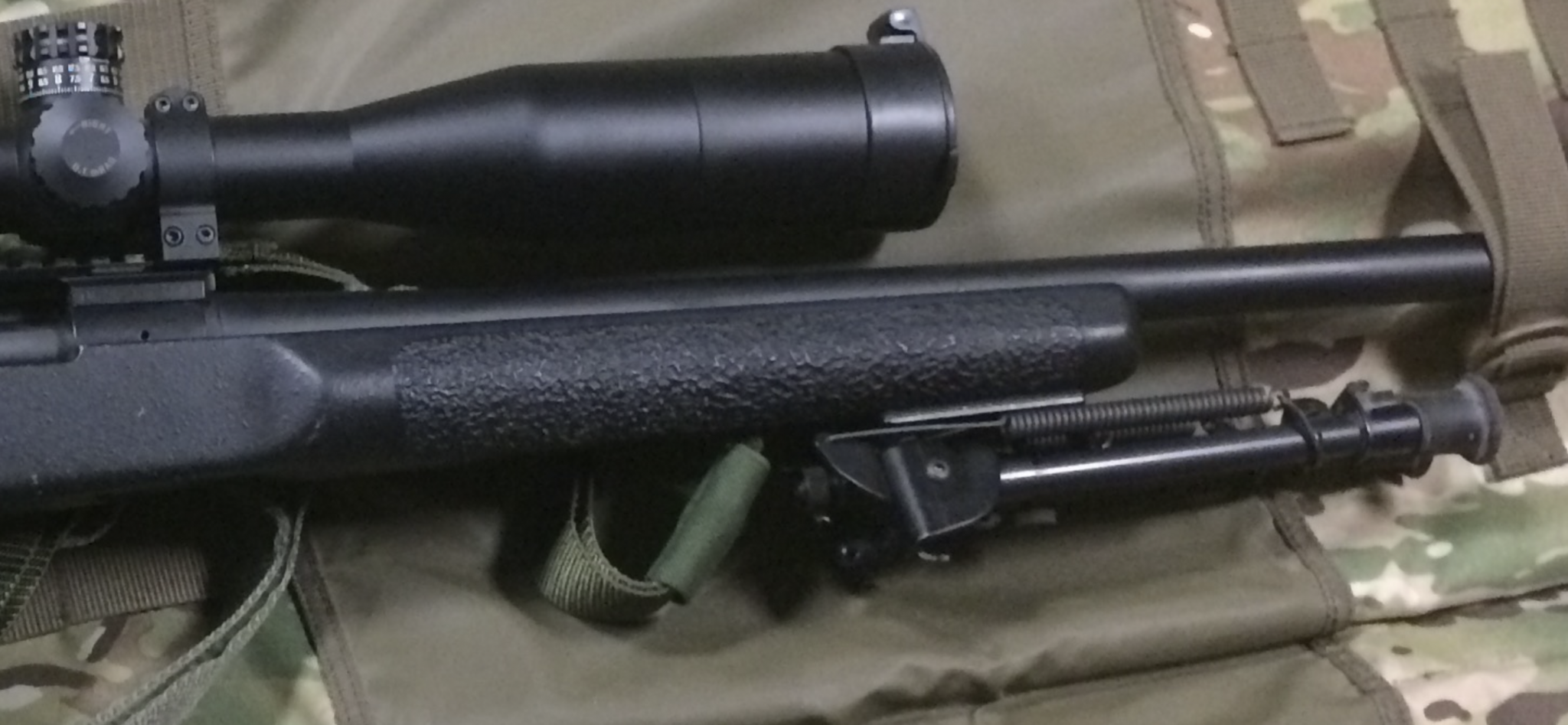

Here is my Harris bipod on my McMillan A5. I used the front stud for the bipod and the second stud (from the muzzle) for the sling.

Mine are just screwed in.



[5Pweld]

They are threaded in. Just stick an Allen wrench through the stud hole and unscrew.



[moaorbust]

On my McMillan A5 I could unscrew the sling studs. Unless yours are epoxied in for some reason you should be good to remove.



[j-huskey]

As previously said, they screw out. If you wanted to move the spacing however, that's a bit more involved.

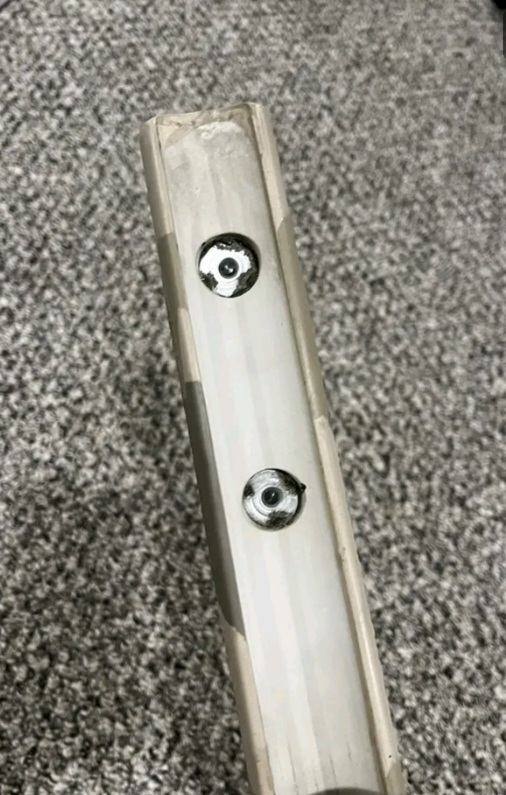

Pic shows the inner workings.



[Mauser48]

Awesome thanks guys. I haven't had the stock off in awhile so I forgot about the nut plates on top.



[FUNCTIONAL]

Yup. Just unscrew and the harris swivel model has a stud on the back if you need to run a sling.
