Mk13 mod3 build: parts list?

Sundancesurgical

Private
Minuteman
Feb 7, 2022
19
6
Utah
Having been bit by the MK13 bug during Covid, I have been quietly sourcing parts to send off for a MK13 mod 3 build. Being extremely new to this weapon, I wanted to verify a few things prior to sending off the items to the builder. Specifically, I am a bit confused regarding the firing pin, bolt, and extractor.

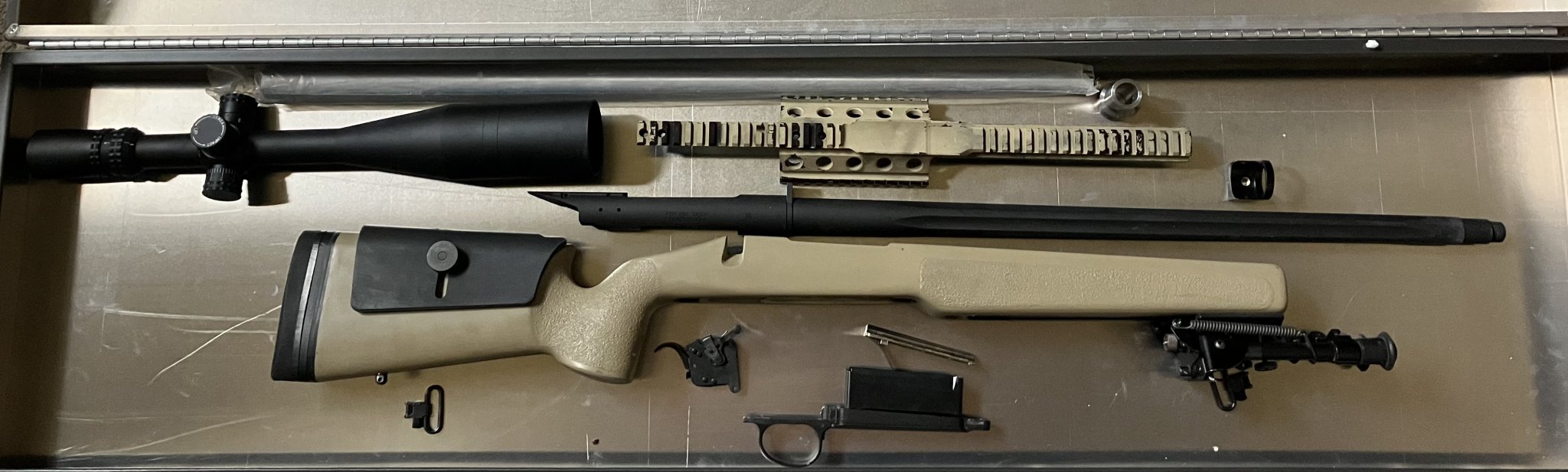

My current items already procured:
Lilja barrel
McMillan a-2 stock
McCann rail
Crane lug
Mk11 suppressor collar barrel adapter
Harris bipod
G6 barreled action
M24 trigger
8-32x 56 low speed NF
Heavy NF rings (not shown)
Turner saddlery sling (not shown)
Turner sling stock adapters



What I need:
Extractor
Firing pin
Ejector
Bolt

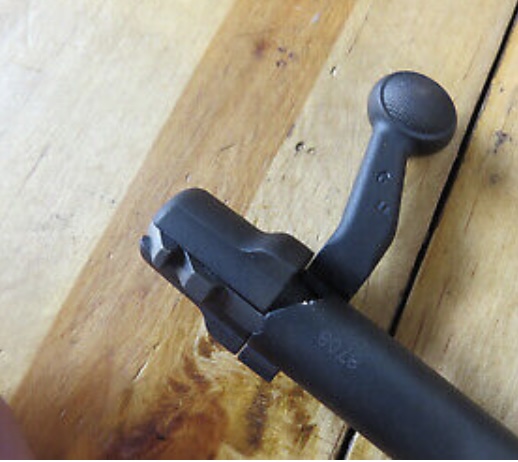

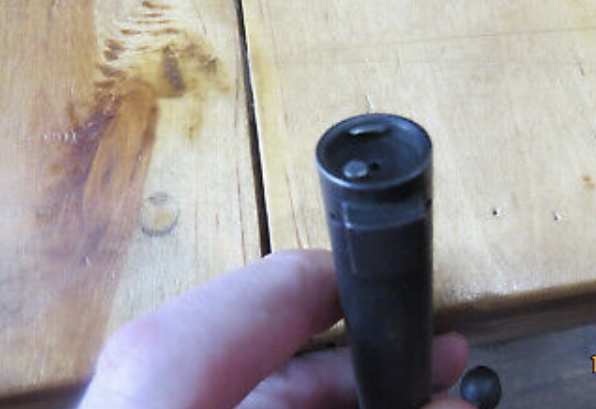

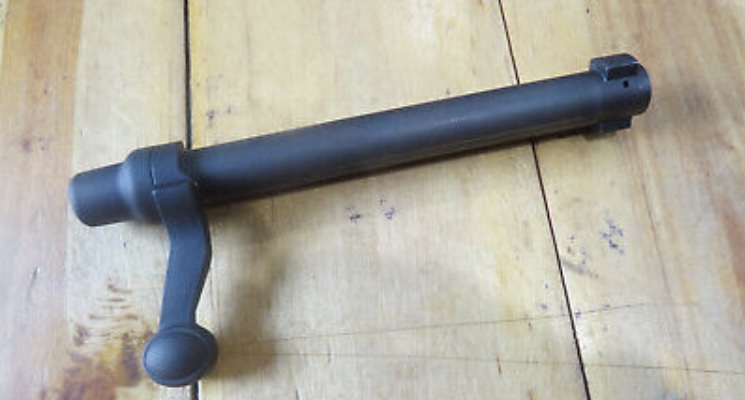

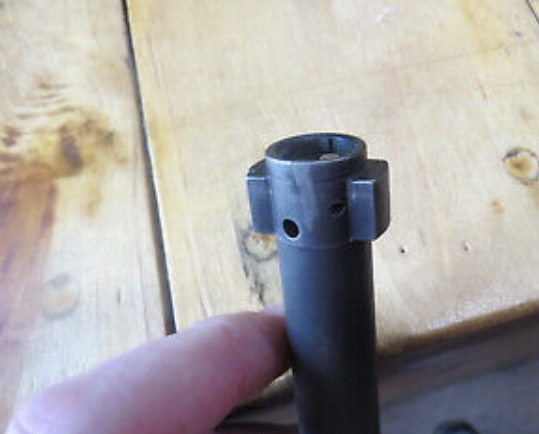

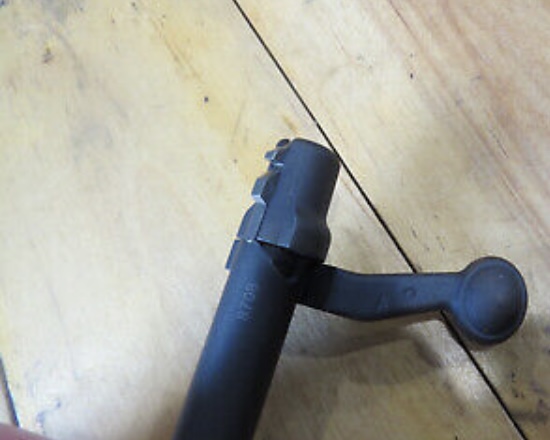

Does the item below check the boxes for the remaining items on my scavenger hunt list- ie bolt, firing pin, extractor?


AE31B4AF-D7C6-406A-97BE-1D2EF467CDAB.jpeg4EF3F8A1-BADD-41CC-A636-0D0D770A9F34.jpegEC21BFEF-D2B6-450A-BC20-F30061E217CD.jpeg

Thanks in advance for any help/counsel/guidance on the matter. There are some guys here with above expert level knowledge.


Attachments

  • 409CD476-F810-4B34-9D7D-DE215410B468.jpeg
    208.8 KB · Views: 89

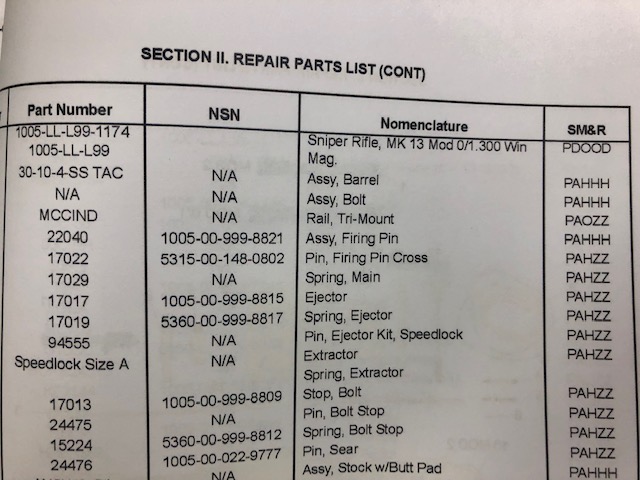

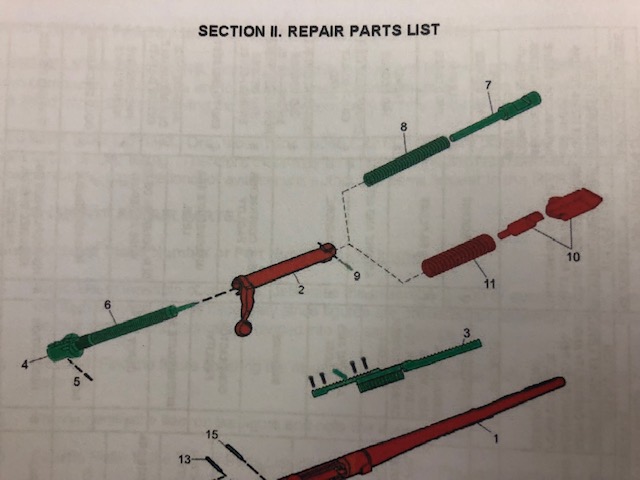

Hope this helps:
View attachment 7994542

View attachment 7994543

Extractor, Speedlock Size A:

Firing pin, ejector and bolt - were all standard Remington LA M700 parts, although the bolt was modified for the 'Sako' style extractor.
(Note: Trigger was the standard M700 part with a trigger job, not the M24 trigger group, for what its worth).
Definitely helps. Thanks a million for taking the time to reply.
(Heard you boys had a great time talking guns this weekend!)
