My adventures with a RimX and a tunacan tuner

Jesse_L_B

Private
Minuteman
May 22, 2019
27
29

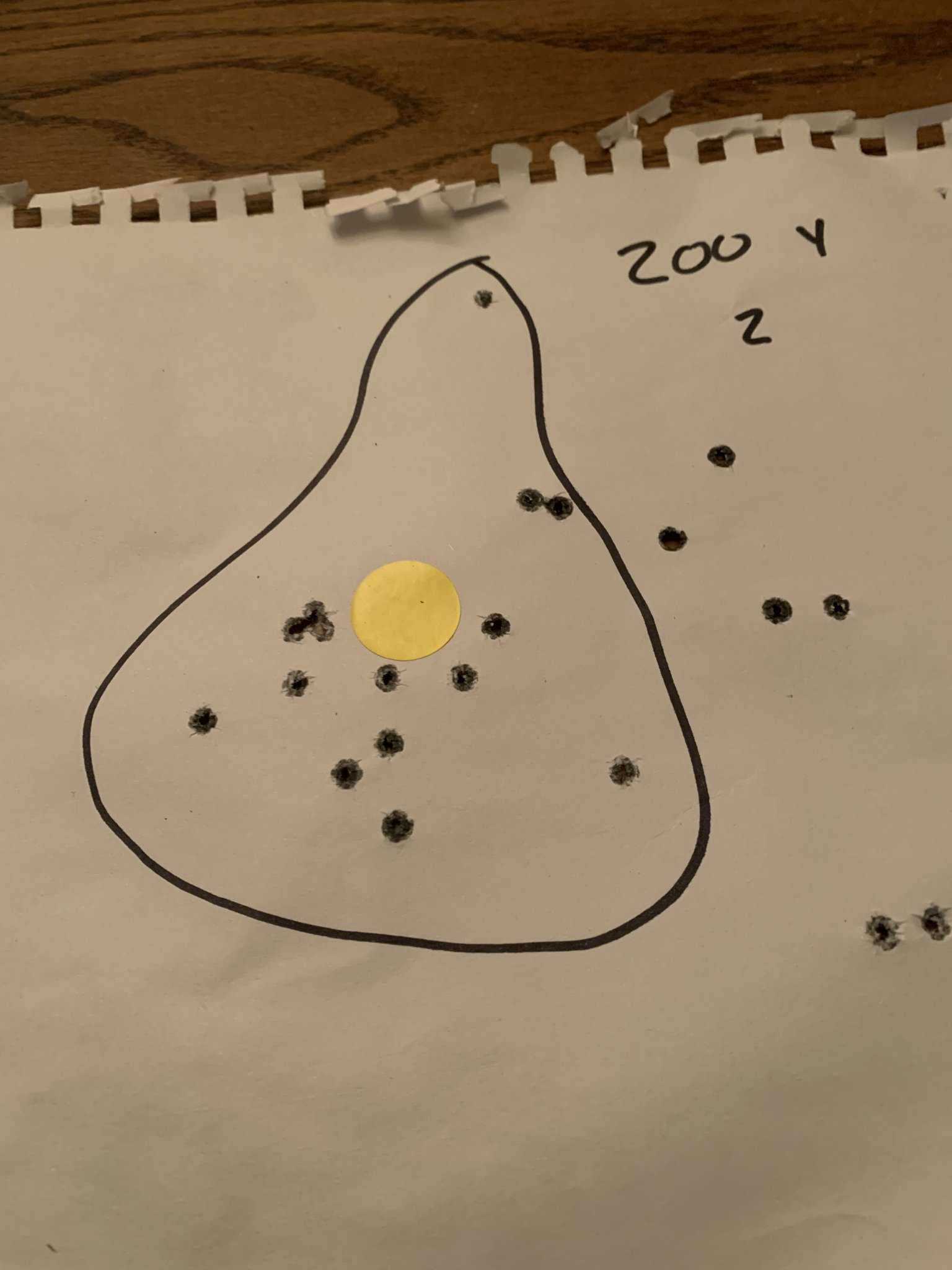

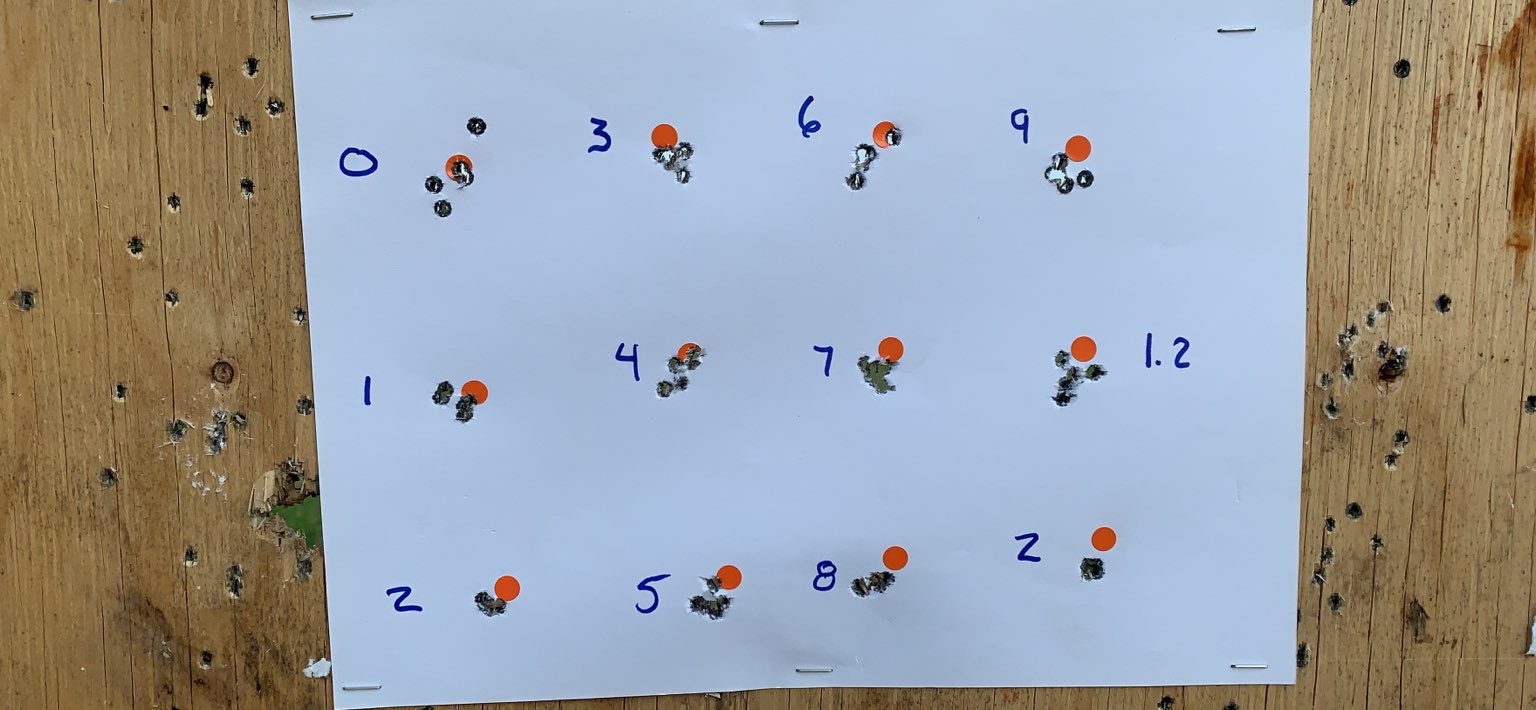

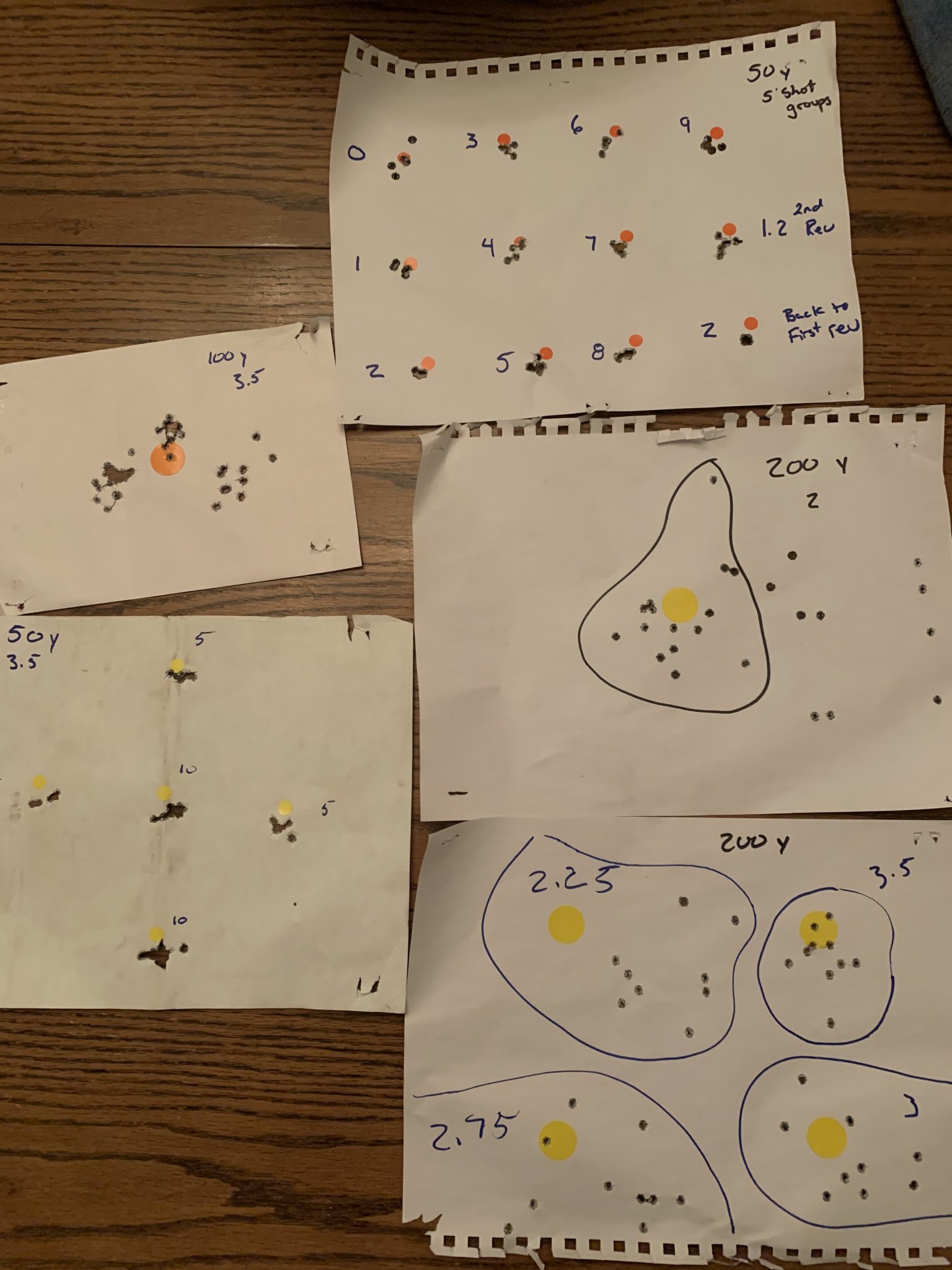

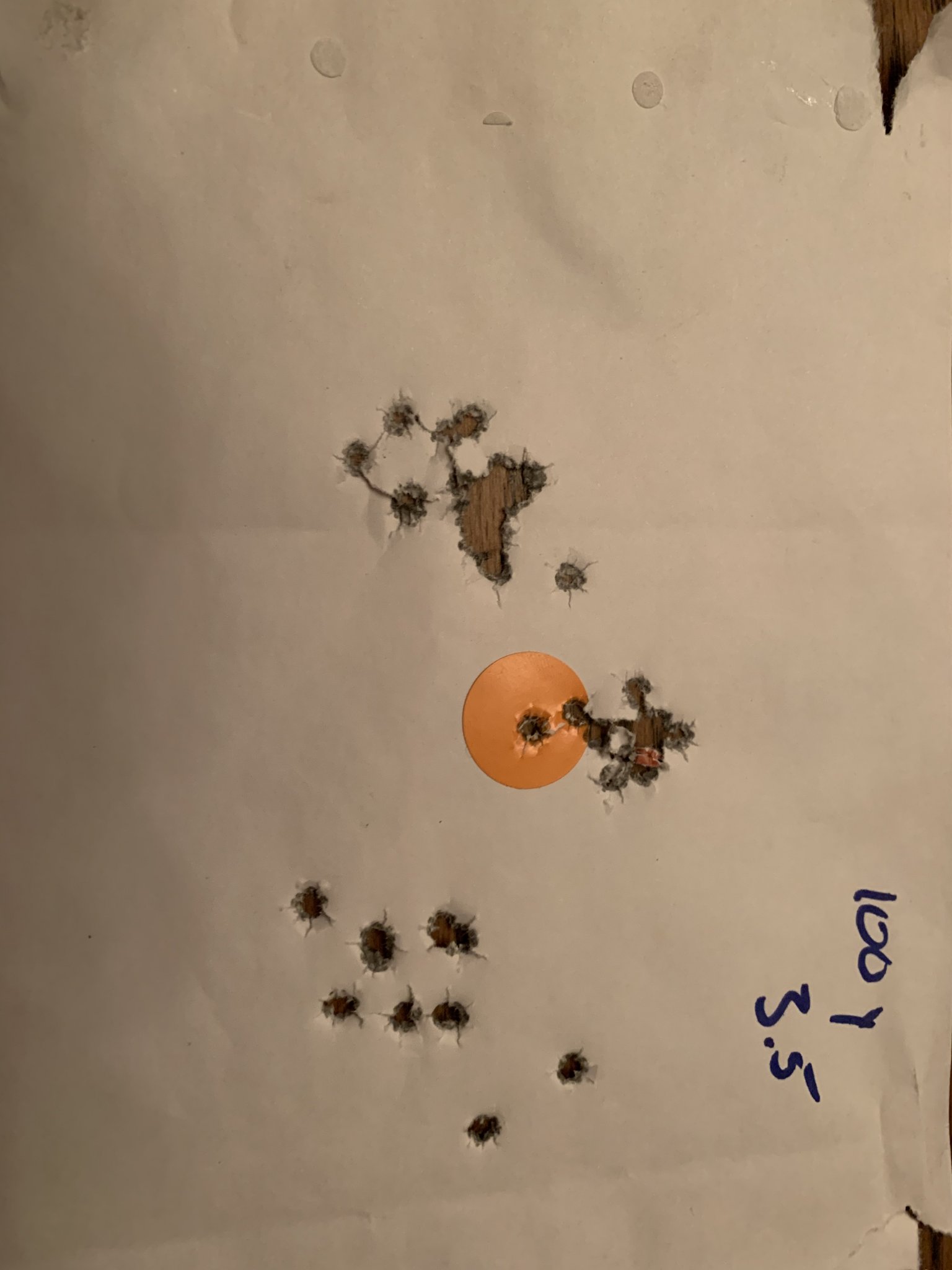

Well my first post in a quite some time and it’s going to be a lengthy one. I had heard a lot of good things about the tunacan 22lr barrel tuner from reddnobb, so I decided to give it a try. It arrived in the mail today, so after work I threaded it on and headed to the field I shoot at. I shot 5 round groups at each of the ten full settings on the tuner to see where the tightest nodes were. Setting 2 gave the best results at fifty and they were repeatable. So I moved out to 200 yards. First mag I didn’t hold wind and was at edge of target so I held wind and sent 15 rounds. Target was icky, so I put up a new sheet with four aimpoints and tried smaller adjustments from 2.25-3.5. I shot a few groups at 200 last week and will post a pic of one for comparison, but at setting 3.5 I shot one of my smallest 200y groups. I then moved the target in to 100, shot at setting 3.5. The one group I had a really bad flier on shot three so I sped through the mag really fast. Then I moved in to 50y to verify setting 3.5. I was a little skeptical at first but the proof is on the paper. I’m 100% convinced barrel tuners work. And now for the pictures.


Attachments

  • 38DED960-4E93-43FF-856D-378AE46E704C.jpeg
    193.1 KB · Views: 286
  • 88858406-4B60-4C9B-9F78-AE3EB8678A48.jpeg
    192.4 KB · Views: 279
  • 5874EC96-218A-4A74-B3CA-715339F540CE.jpeg
    309.4 KB · Views: 271
  • 3CD94AB7-53B5-4970-BAA9-D6CBEBAE4E32.jpeg
    162.3 KB · Views: 248
  • E00D1A6D-E496-48DC-9EFD-8EECE13AFB4C.jpeg
    178.3 KB · Views: 283

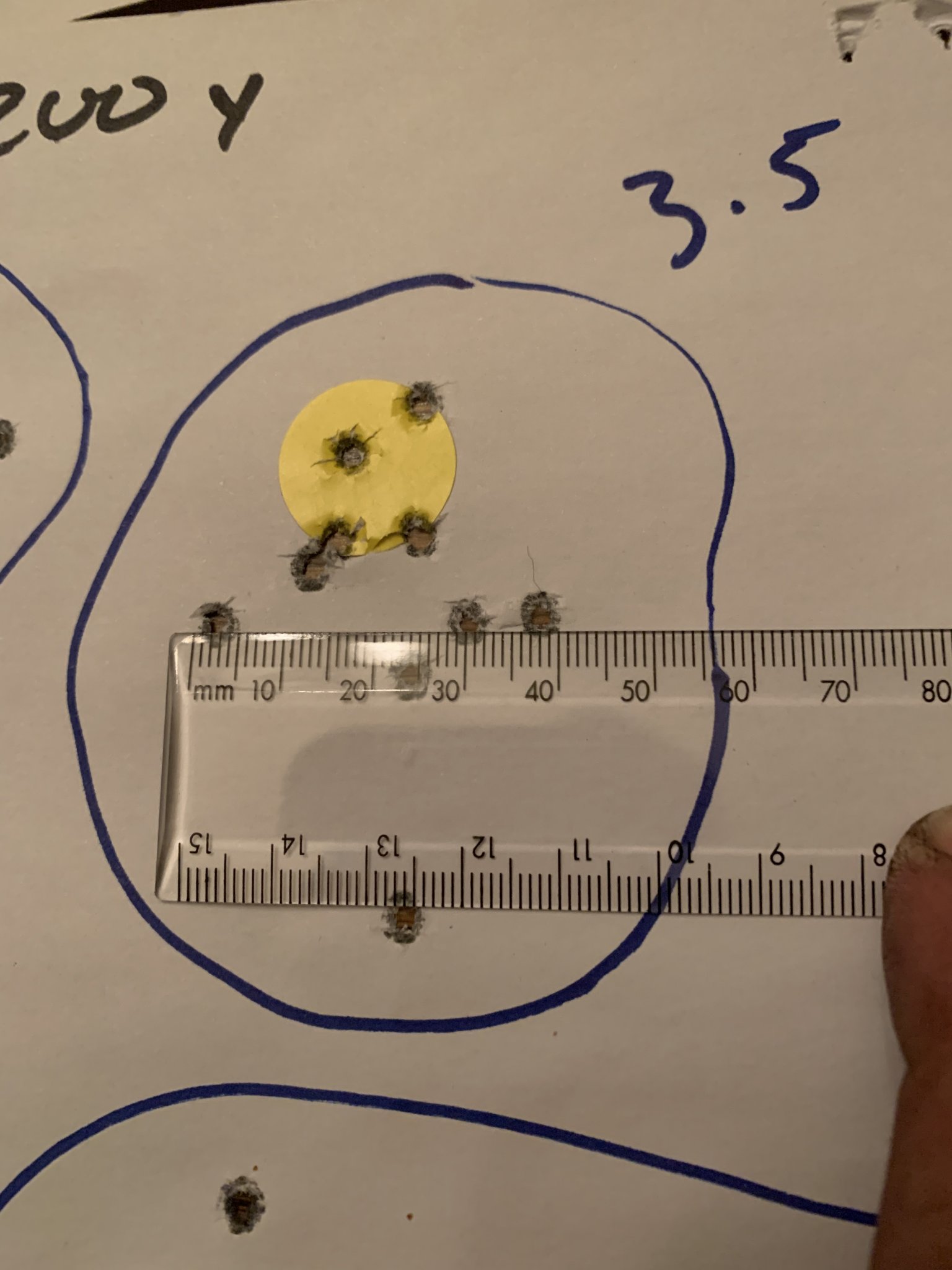

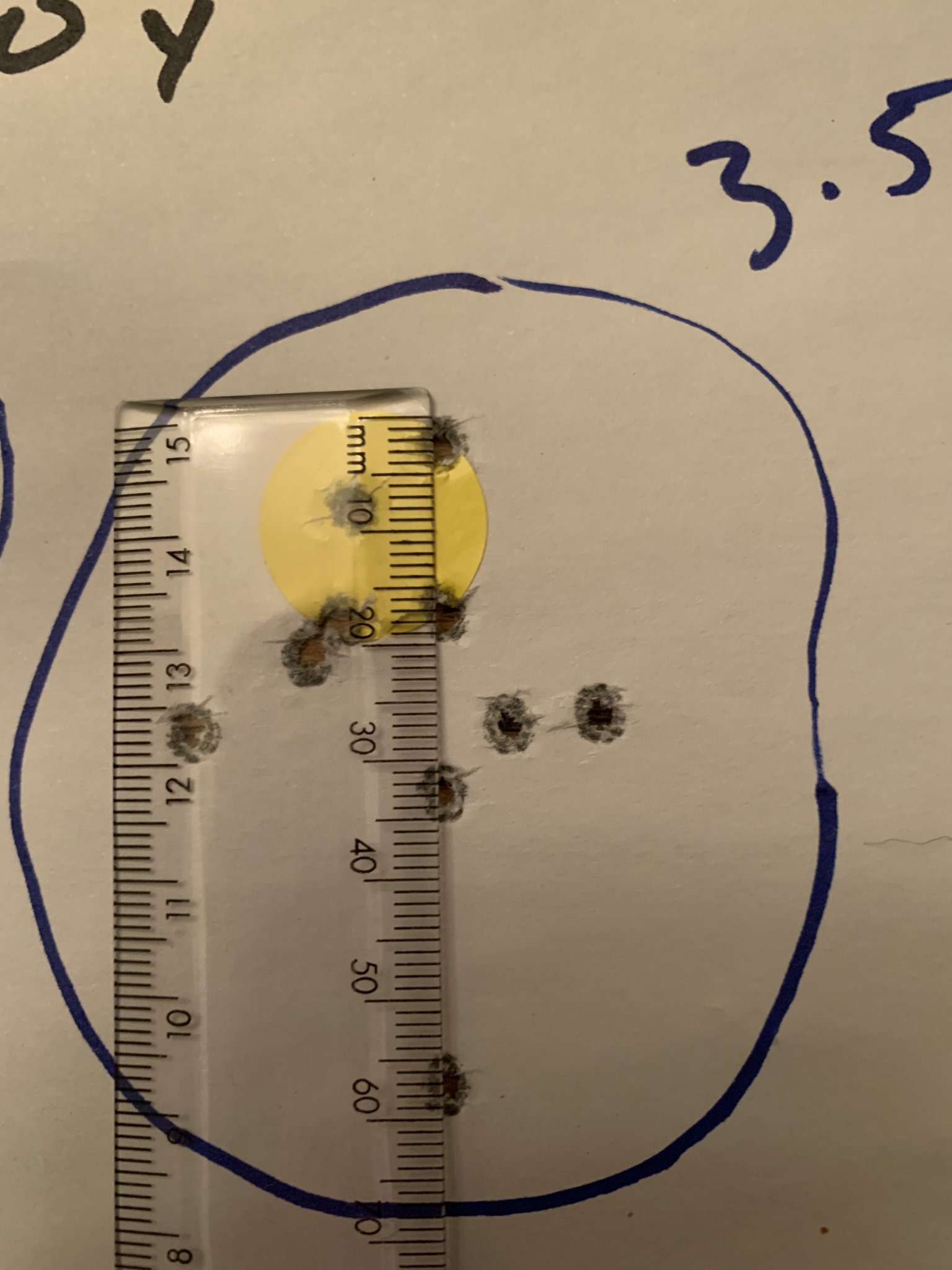

I wasn’t sure how many photos I could add at one time so here is the group from last week versus today’s 200y group.


Attachments

  • 2E62E516-C9CB-4BA6-B7A3-A4D77E7EE723.jpeg
    203.9 KB · Views: 150
  • BE789750-C964-40BA-A111-2826065AC3C3.jpeg
    213.1 KB · Views: 137
  • C9494F82-5820-447E-BEB2-1053DC554F50.jpeg
    223.1 KB · Views: 135
  • 3A5D638C-A8A2-4602-B906-EB5E7E4F6C35.jpeg
    282.4 KB · Views: 160

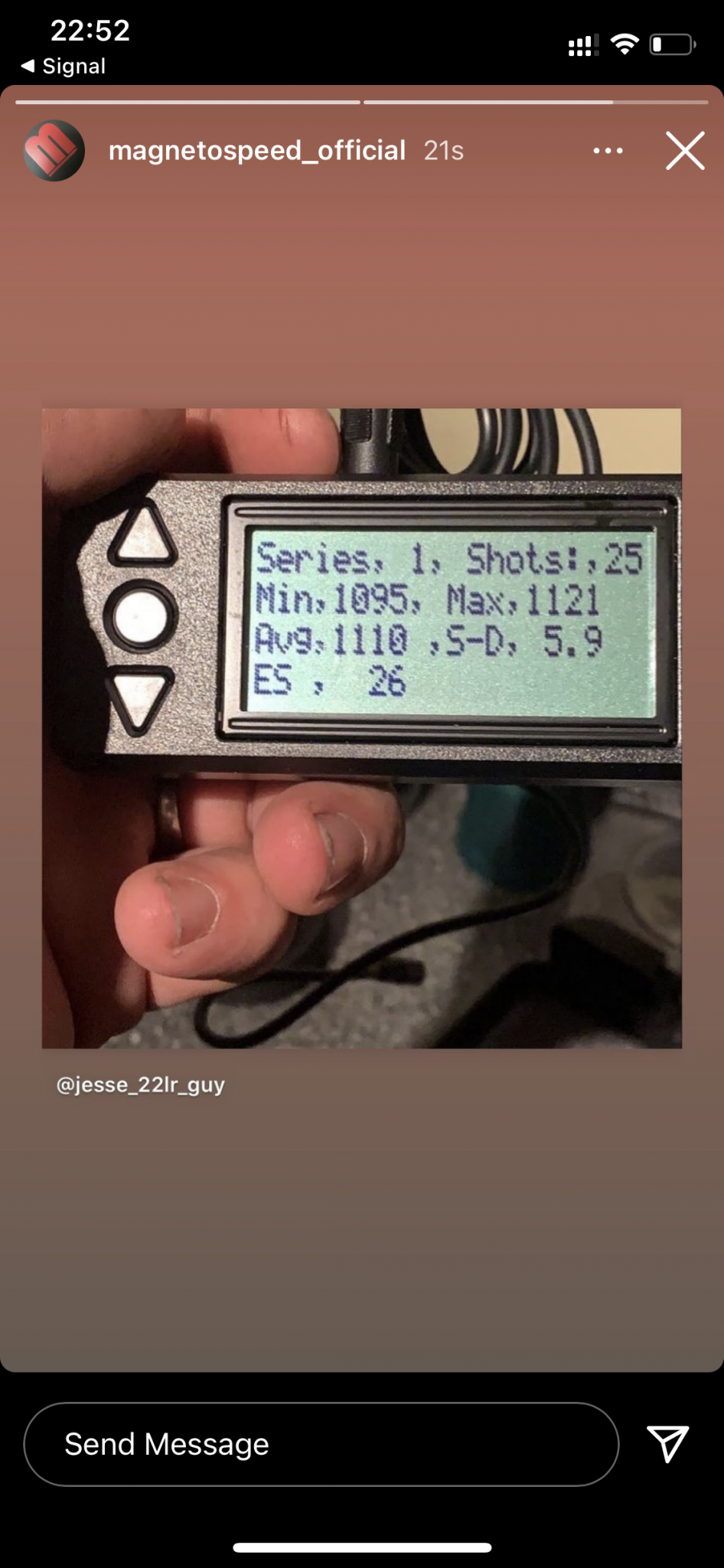

Here is what the magnetospeed shows for this lot of sk long range match. And a picture from before I got my tuner, a little something to hold you over till I get home from work.


Attachments

  • 7EE0379D-9193-4120-A4EA-6238BA90CE97.png
    1.5 MB · Views: 316
  • E062CCD5-ED47-42AB-9801-C18EB559E11E.jpeg
    138.4 KB · Views: 356
  • FD5F8F78-ABA7-41BD-B1E1-C9E89CDD3A61.jpeg
    146.2 KB · Views: 308
Rifle barrels can be challenging to tune with a barrel tuner. It's never as easy as shooting a box of ammo with each group at a different setting to determine when the barrel is truly in tune with the ammo.

To assess your tuner setting(s) more fully, shoot a box of ammo at 50 yards in groups of five to see the group size variation. With SK ammos they can vary quite a bit. When using a tuner, if the ammo itself is relatively inconsistent, it is difficult to know when the ammo is responsible for what's on the target or whether the tuner has had a significant role. One or two groups that appear consistent may not be telling a complete story.

Once a tuner setting is found that seems to produce better results, try it by shooting a box of ammo in groups of five. If the tuner groups still have quite a bit of group size variation, it may be necessary to begin again.

My buddy is buying a tuna can and very excited to see it!! We will test it on the vudoo v22 ans the rimx with a lothar. The rimx is proving to be shooting about 1.5-2 moa at 100, and 1.5-2.5 moa at 200. My vudoo seems to be shooting 1-1.5 moa at 100 and 1-1.5 moa at 200

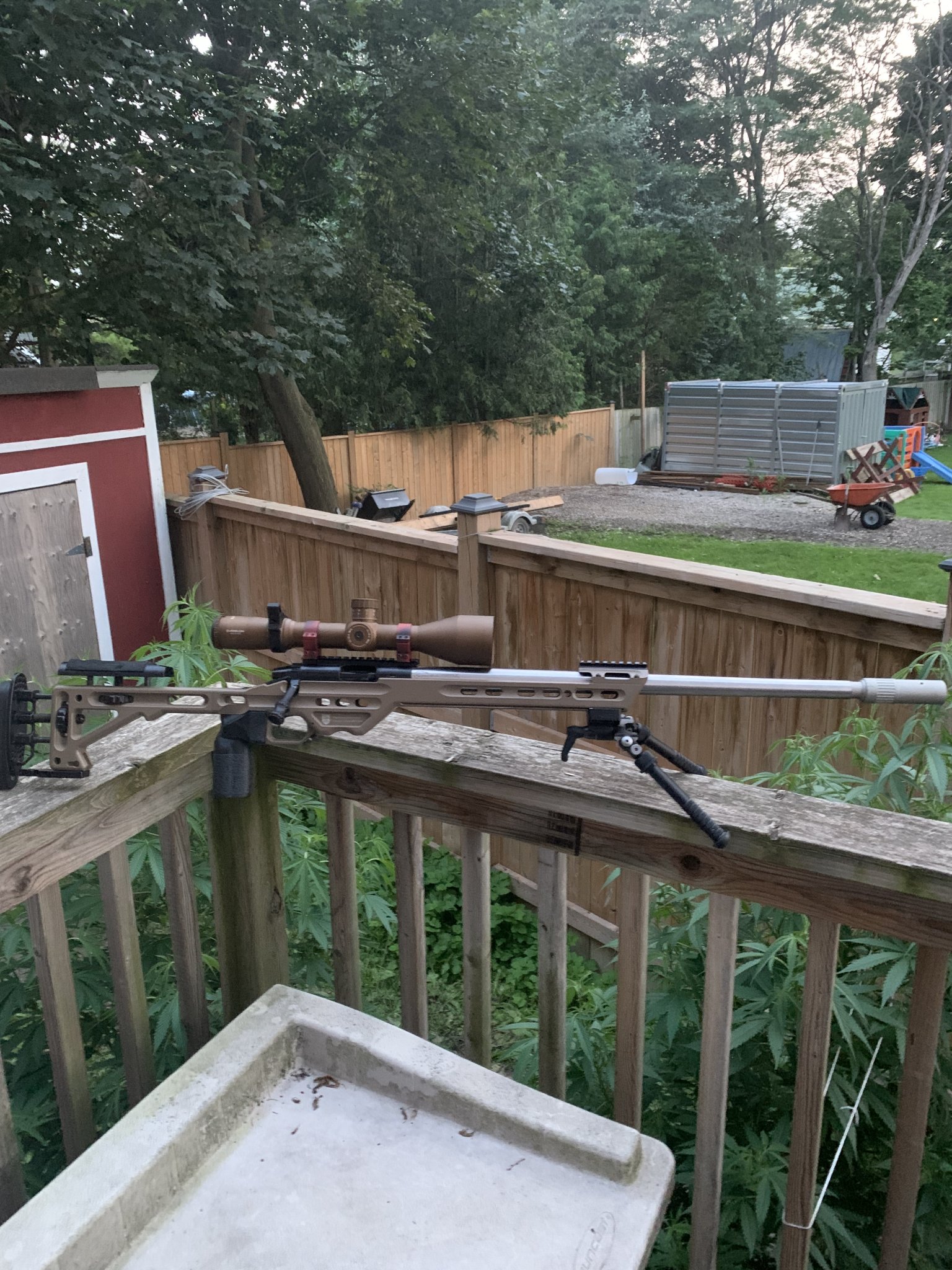

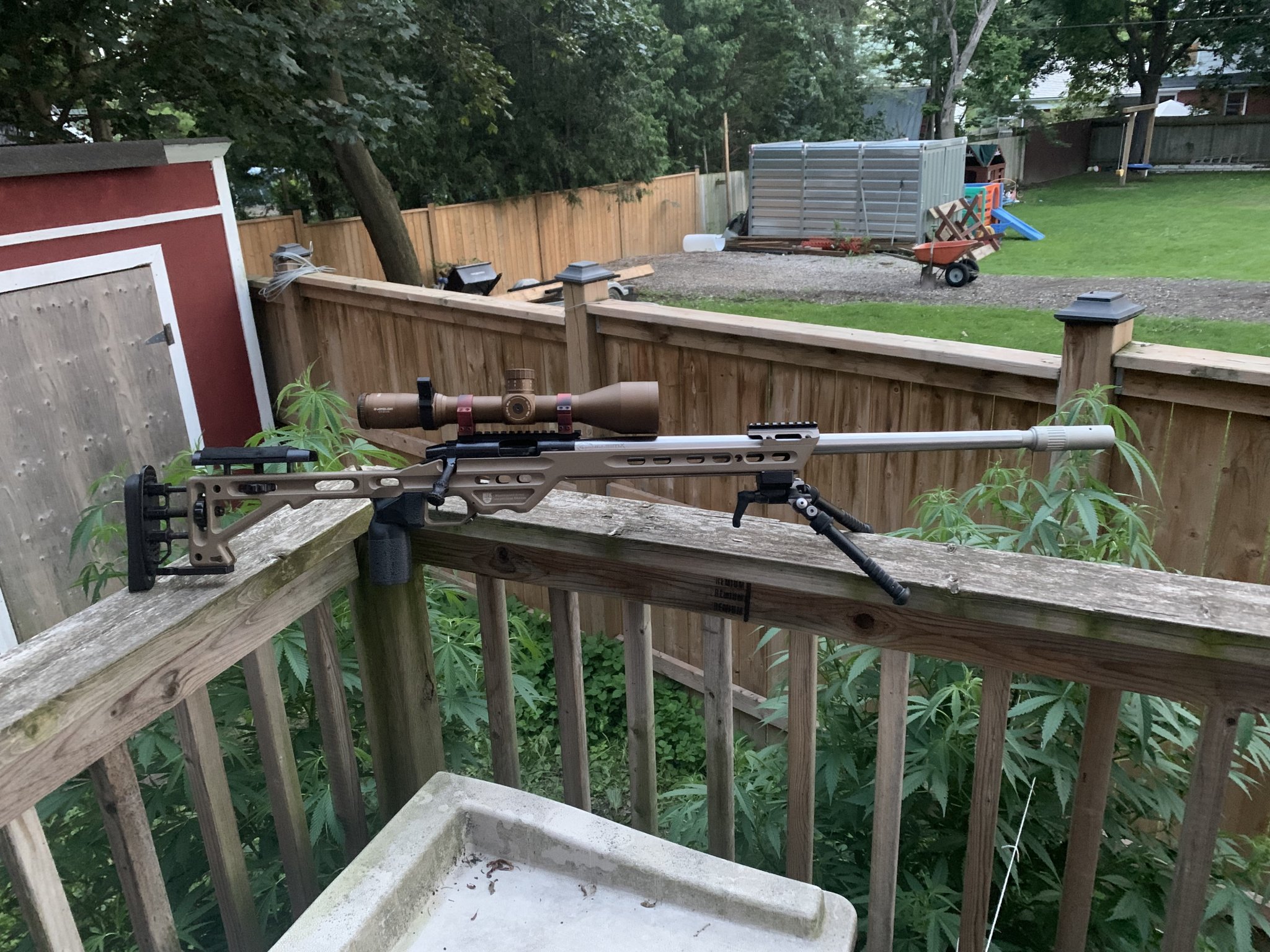

And with no further ado, here is a picture of my baby.

RimX action
Lothar barrel chambered by PVA
1:12 twist
22” long
Athlon cronus
Atlas biood
MPA ba comp chassis
Tunacan barrel tuner
Triggertech diamond, set silly light

Oh it makes me happy every time I look at this. The chassis will be cerakoted northern lights, a cooor shifter that changes from titanium blue to metallic green. Rings will be burnt bronze to match the scope.


Attachments

  • A7042435-6ADE-49E7-A499-6D5CA71E6221.jpeg
    659.7 KB · Views: 364
  • 7686E350-BA61-473C-9B70-0710FB061A80.jpeg
    656.6 KB · Views: 431
Are there any targets that can be shown with before and after Tuna Can results? Not just single groups but a number of consecutive groups that shows how this tuner may be able to reduce vertical spread?
