Need Advice on Seating Depth Results

Philys21

Supporter
Supporter
Minuteman
Supporter+
Jul 23, 2018
54
24
First time reloader here and I'm starting to develop a load for my 6.5 Creedmoor. This morning I completed 5 shot groups in .005 jumps from -.040 to -.075. All shots were at 100 yards, and I shot each group without waiting between shots. I did wait until the barrel was cool to the touch before shooting the next group (10-15 minutes).

I used a magneto speed to record all the shots, (attached to arca rail) and I noticed the 4th shot in 5 of the 8 series was the slowest, think that's coincidental or could there be a reason for this?

I'm not sure if should I should pick one of these jumps and move onto OCW or do some seating depth testing. Any advice is appreciated.

Action: 737r
Chamber: 6.5 Creed
Barrel: 26" 1:8 twist Brass:
New Lapua SRP
Case Prep: No sizing, No trimming/chamfer, Mandrel 0.2625, Imperial Dry Neck Lube
Bullet: 140 ELDM
Primer: CCI BR4
Powder: H4350 41.5 Grains


Attachments

  • 6.5 Creed 140 ELDM Seating Depth 7-10-21.jpg
    6.5 Creed 140 ELDM Seating Depth 7-10-21.jpg
    464.9 KB · Views: 112

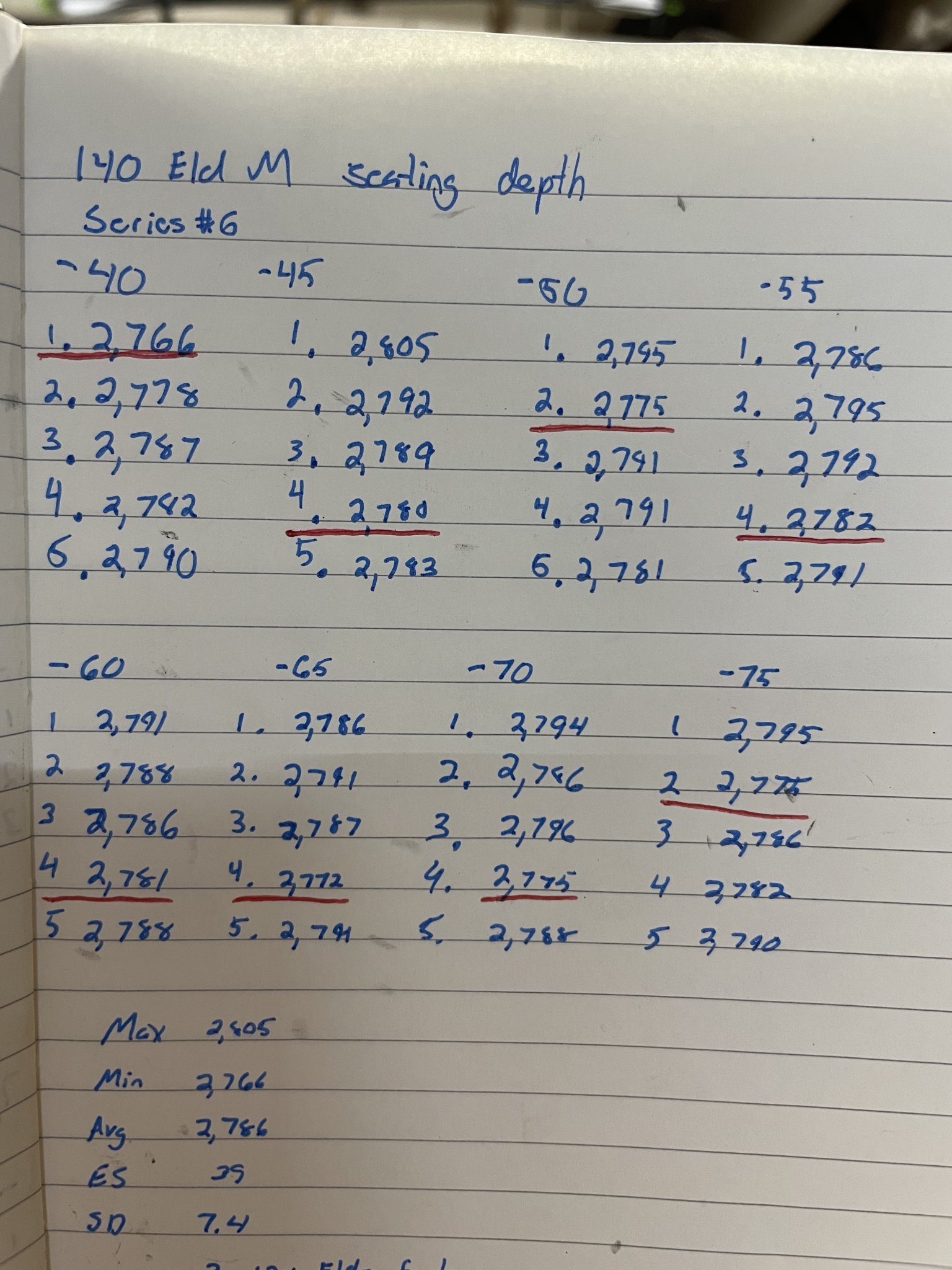

  • 6.5 Creed 140 ELDM Seating Depth Magneto Resuts 7-10-21.jpg
    6.5 Creed 140 ELDM Seating Depth Magneto Resuts 7-10-21.jpg
    420.4 KB · Views: 106
Last edited:

nn8734

nn8734
Supporter
Full Member
Minuteman
Supporter+
  • Feb 26, 2013
    3,923
    3,282
    Las Vegas, NV
    Why didn’t you run an OCW first? What is your minimum velocity requirement for the rifle/bullet combo?

    Also, if/when you do your OCW (assuming your not currently satisfied with the above results using 41.5g), do NOT shoot it with the magnetospeed attached (disregard this - overlooked the fact it’s attached to your rail not your barrel).

    I don’t see much, if any obvious variation in your groups so I’d jump them more towards .075 to keep pressure down, as your load shouldn’t be compressed using Lapua brass.

    Last edited:
    • Like
    Reactions: Newbie2020

    Baron23

    Check 6
    Supporter
    Full Member
    Minuteman
  • Mar 19, 2020
    4,115
    4,747
    69
    Maryland
    First time reloader here and I'm starting to develop a load for my 6.5 Creedmoor. This morning I completed 5 shot groups in .005 jumps from -.040 to -.075. All shots were at 100 yards, and I shot each group without waiting between shots. I did wait until the barrel was cool to the touch before shooting the next group (10-15 minutes).

    I used a magneto speed to record all the shots, (attached to arca rail) and I noticed the 4th shot in 5 of the 8 series was the slowest, think that's coincidental or could there be a reason for this?

    I'm not sure if should I should pick one of these jumps and move onto OCW or do some seating depth testing. Any advice is appreciated.

    Action: 737r
    Chamber: 6.5 Creed
    Barrel: 26" 1:8 twist Brass:
    New Lapua SRP
    Case Prep: No sizing, No trimming/chamfer, Mandrel 0.2625, Imperial Dry Neck Lube
    Primer: CCI BR4
    Powder: H4350 41.5 Grains
    What bullet?


    Philys21

    Supporter
    Supporter
    Minuteman
    Supporter+
    Jul 23, 2018
    54
    24
    The second pic says 140 eldm

    Ha forgot most important part, Yes the 140 ELDM.

    I choose to do seating depth tests first after reading the articles on Precision Rifle Blog, listening to RADD podcasts, videos and podcasts with Scott Satterlee, etc.


    spife7980

    Luchador
    Full Member
    Minuteman
    Feb 10, 2017
    11,426
    11,757
    Central TX
    Those look fine but I’d still go from .015 off to .035 off in the search for best accuracy.


    nn8734

    nn8734
    Supporter
    Full Member
    Minuteman
    Supporter+
  • Feb 26, 2013
    3,923
    3,282
    Las Vegas, NV
    Ha forgot most important part, Yes the 140 ELDM.

    I choose to do seating depth tests first after reading the articles on Precision Rifle Blog, listening to RADD podcasts, videos and podcasts with Scott Satterlee, etc.
    Ok. At this point id do a brief 3-5 shot OCW starting at 41g in .3g increments to 41.9g to see if your POi is stable through that range, assuming your MV is satisfactory to you

    Last edited:

    spife7980

    Luchador
    Full Member
    Minuteman
    Feb 10, 2017
    11,426
    11,757
    Central TX
    Ok. At this point id do a brief 3-5 shot OCW starting at 41g in .3g increments to 41.9g to see if your POi is stable through that range, assuming your MV is satisfactory to you - do NOT attach the magnetospeed for this. seating depth is your call.
    Since you repeated it, again, it’s on an arca rail, not barrel mounted.

    I used a magneto speed to record all the shots, (attached to arca rail)


    KnowNothing256

    Supporter
    Supporter
    Full Member
    Minuteman
    Supporter+
  • Jan 9, 2020
    1,803
    1,082
    I experimented with an off-barrel mount with the MS and still observed POI shift. A prior study illustrates that the sonic boom off the bullet will reflect off a nearby surface and impinge upon the bullet, causing yaw. I wasn’t able to get the MS far enough off the line of bore to avoid this without getting inconsistent and unreliable readings, even after playing with sensitivity.

    YMMV, but I will only use the MS for speeds going forward, nothing where group size matters.


    nn8734

    nn8734
    Supporter
    Full Member
    Minuteman
    Supporter+
  • Feb 26, 2013
    3,923
    3,282
    Las Vegas, NV
    I experimented with an off-barrel mount with the MS and still observed POI shift. A prior study illustrates that the sonic boom off the bullet will reflect off a nearby surface and impinge upon the bullet, causing yaw. I wasn’t able to get the MS far enough off the line of bore to avoid this without getting inconsistent and unreliable readings, even after playing with sensitivity.

    YMMV, but I will only use the MS for speeds going forward, nothing where group size matters.
    That’s interesting, and im not surprised to be honest. Im a LabRadar guy, can’t stand MS though I know a lot of folks use / like them for their smaller size and convenience factor.


    Philys21

    Supporter
    Supporter
    Minuteman
    Supporter+
    Jul 23, 2018
    54
    24
    I experimented with an off-barrel mount with the MS and still observed POI shift. A prior study illustrates that the sonic boom off the bullet will reflect off a nearby surface and impinge upon the bullet, causing yaw. I wasn’t able to get the MS far enough off the line of bore to avoid this without getting inconsistent and unreliable readings, even after playing with sensitivity.

    YMMV, but I will only use the MS for speeds going forward, nothing where group size matters.
    I've read about exactly this and I listened to a podcast or youtube video of David Tubb confirming what you're saying. Going off memory I think Tubb said it was a slight impact or only noticeable at ELR, but don't quote me.

    Iabradar is 2nd on my list, I'm buying a tbac bipod first.


    nn8734

    nn8734
    Supporter
    Full Member
    Minuteman
    Supporter+
  • Feb 26, 2013
    3,923
    3,282
    Las Vegas, NV
    I've read about exactly this and I listened to a podcast or youtube video of David Tubb confirming what you're saying. Going off memory I think Tubb said it was a slight impact or only noticeable at ELR, but don't quote me.

    Iabradar is 2nd on my list, I'm buying a tbac bipod first.
    So with everything said, I’d still keep the magnetospeed off of the rifle or at least do a quick POI shift test to confirm/deny its presence influences your point of impact before going to the OCW.


    Philys21

    Supporter
    Supporter
    Minuteman
    Supporter+
    Jul 23, 2018
    54
    24
    So with everything said, I’d still keep the magnetospeed off of the rifle or at least do a quick POI shift test to confirm/deny its presence influences your point of impact before going to the OCW.
    Sounds good, I’ll let you know how I make out.

    • Like
    Reactions: nn8734

    Dthomas3523

    Account no longer active
    Supporter
    Commercial Supporter
    Full Member
    Minuteman
  • Jan 31, 2018
    10,786
    15,664
    South Texas
    I've read about exactly this and I listened to a podcast or youtube video of David Tubb confirming what you're saying. Going off memory I think Tubb said it was a slight impact or only noticeable at ELR, but don't quote me.

    Iabradar is 2nd on my list, I'm buying a tbac bipod first.

    Tubb now mounts his a certain distance away(can’t remember how much) and turns the sensitivity up. Says the POI shift goes away.

    But with it mounted at the specified from magneto distance, you’ll usually notice a poi change away from the bayonet (wherever you decide to orient it). Sometimes the groups size stays same and sometimes it doesn’t.


    6.5SH

    Old Salt
    Full Member
    Minuteman
    Jul 24, 2020
    3,834
    5,828


    2x the diameter of the bullet away from the bottom of the bore.


    KnowNothing256

    Supporter
    Supporter
    Full Member
    Minuteman
    Supporter+
  • Jan 9, 2020
    1,803
    1,082


    2x the diameter of the bullet away from the bottom of the bore.

    Thanks for filling in the blanks, folks! I wonder if he’s still able to get good readings because the larger ELR calibers give a stronger response for the MS to pick up? It didn’t give me acceptable results on 100gr 6.5mm bullets, and I was aiming for 2x caliber free space too (the original study called out 1.7x I believe).


    6.5SH

    Old Salt
    Full Member
    Minuteman
    Jul 24, 2020
    3,834
    5,828
    He did state that the bullet composition and density can affect it, was more of a rule of thumb.


    Philys21

    Supporter
    Supporter
    Minuteman
    Supporter+
    Jul 23, 2018
    54
    24
    I did my OCW testing this weekend (100 yards) and am happy with the results, but came away with some questions. My biggest question is what takes priority, mean radius or the SD/ES of the velocity node? My lowest ES was from 41.4 to 41.6 but my smallest mean radius was from 41.8 to 42.0. I attached the grouping and ladder results of both groups.

    How would you guys proceed?


    Attachments

    • 140_ELDM_41-4_to_41-6_Work_Up_7-16-21.pdf
      223.5 KB · Views: 26
    • 140_ELDM_41-8_to_42-0_Work_Up_7-18-21.pdf
      178.7 KB · Views: 19

    nn8734

    nn8734
    Supporter
    Full Member
    Minuteman
    Supporter+
  • Feb 26, 2013
    3,923
    3,282
    Las Vegas, NV
    I did my OCW testing this weekend (100 yards) and am happy with the results, but came away with some questions. My biggest question is what takes priority, mean radius or the SD/ES of the velocity node? My lowest ES was from 41.4 to 41.6 but my smallest mean radius was from 41.8 to 42.0. I attached the grouping and ladder results of both groups.

    How would you guys proceed?
    How many rounds for each charge weight? If less than 20 then ignore SD/ES. 20 is the bare min I’d need for that info to be useful.
