Out of spec primer pockets??

Bmghunter

Sergeant of the Hide
Full Member
Minuteman
Oct 29, 2020
103
61
Usa
First time reloading these 223 and 556 brass cases. Been reloading for a few years now but first time on this cartridge.
So this batch of brass are from the same timer period, both are factory ammo that I've shot. One is a case of frontier ammo and the other is from greentips. The frontier cases have a frontier headstamp. The greentips have LC headstamp.
So I was going to reload these after all the brass prepping so now it's time to prime them. First one was a frontier headstamp and it went in fine. Second one was a LC headstamp and it didn't go in. It was stuck and slanted, with one side of the primer not into the pocket.
Ok, so I thought maybe these LC brass are crimped. I find another frontier brass and try that. Same problem, it didn't go in, and was slanted with one side still out. Ok weird, the first one went in fine. Tried another frontier and LC, both no good.
Ok so I thought, dang they are all crimped and I found a lucky badly crimped first piece that worked. So then I proceeded to get my small primer go/no go gauge. I went through about 700 of them and found about 20 that fit the go gauge. They are all frontier headstamp.

Ok so maybe frontier doesn't crimp very well I thought.
Took two of the no go brass, and used a countersink bit to drill out the crimp and check. I did that to both a LC and frontier brass and then tried the go gauge. Still didn't go in. It looks like the primer pockets on these brass are extremely out of spec.
Anyone experience this before?
All frontier ammo came from the same box, and all LC from the same box.

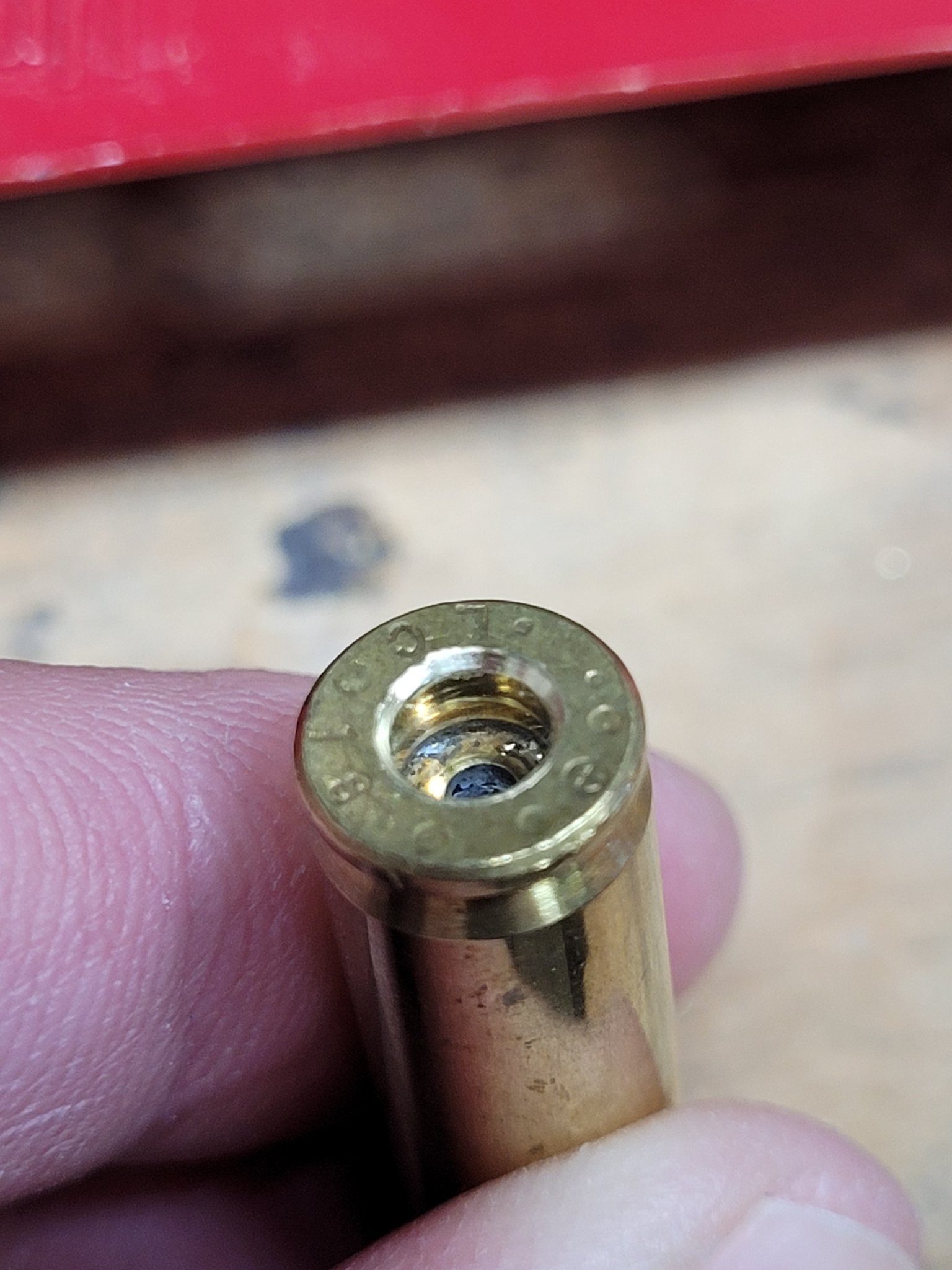

Piece that fits go gauge.

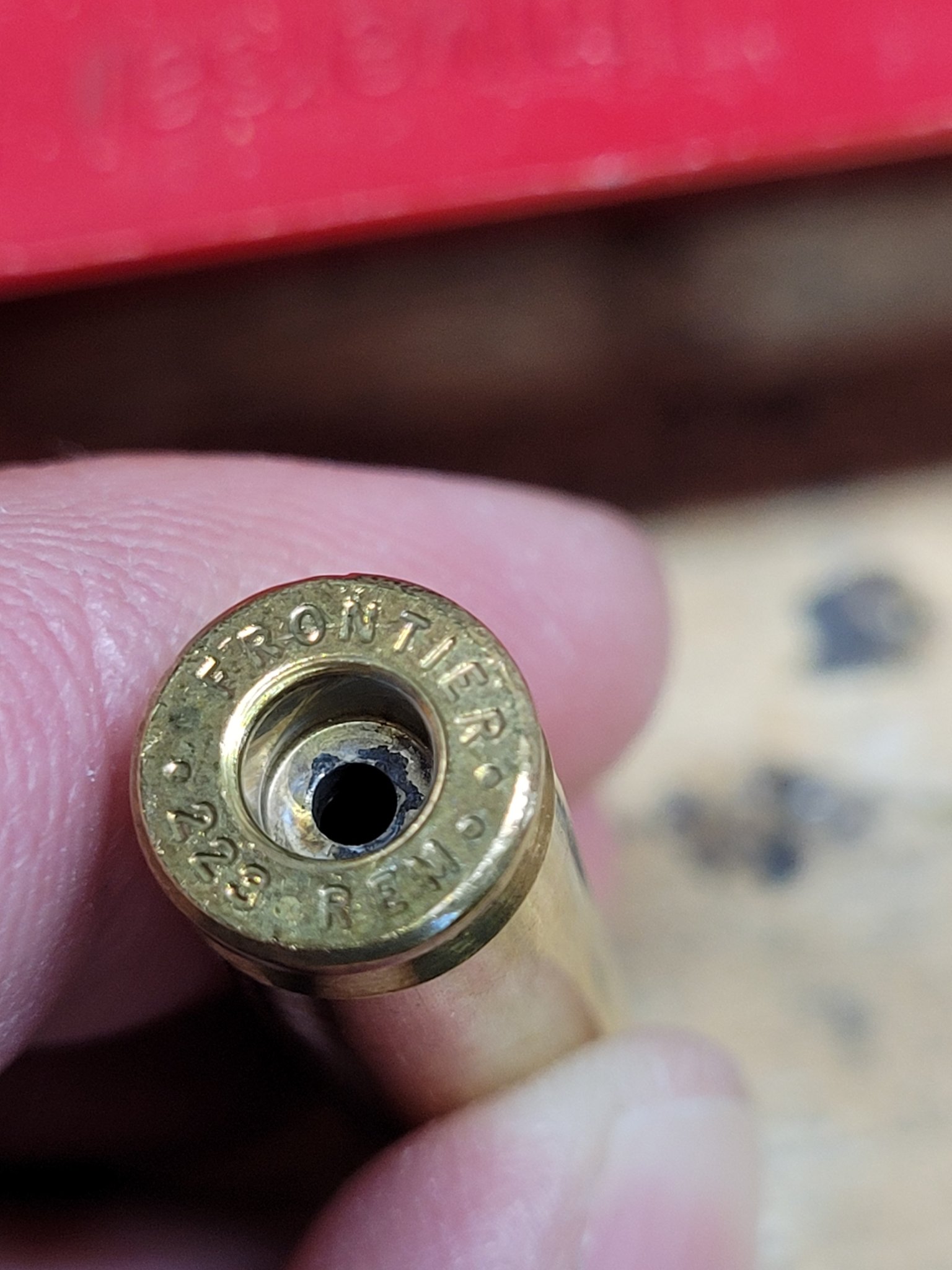

Piece that does not fit go gauge.

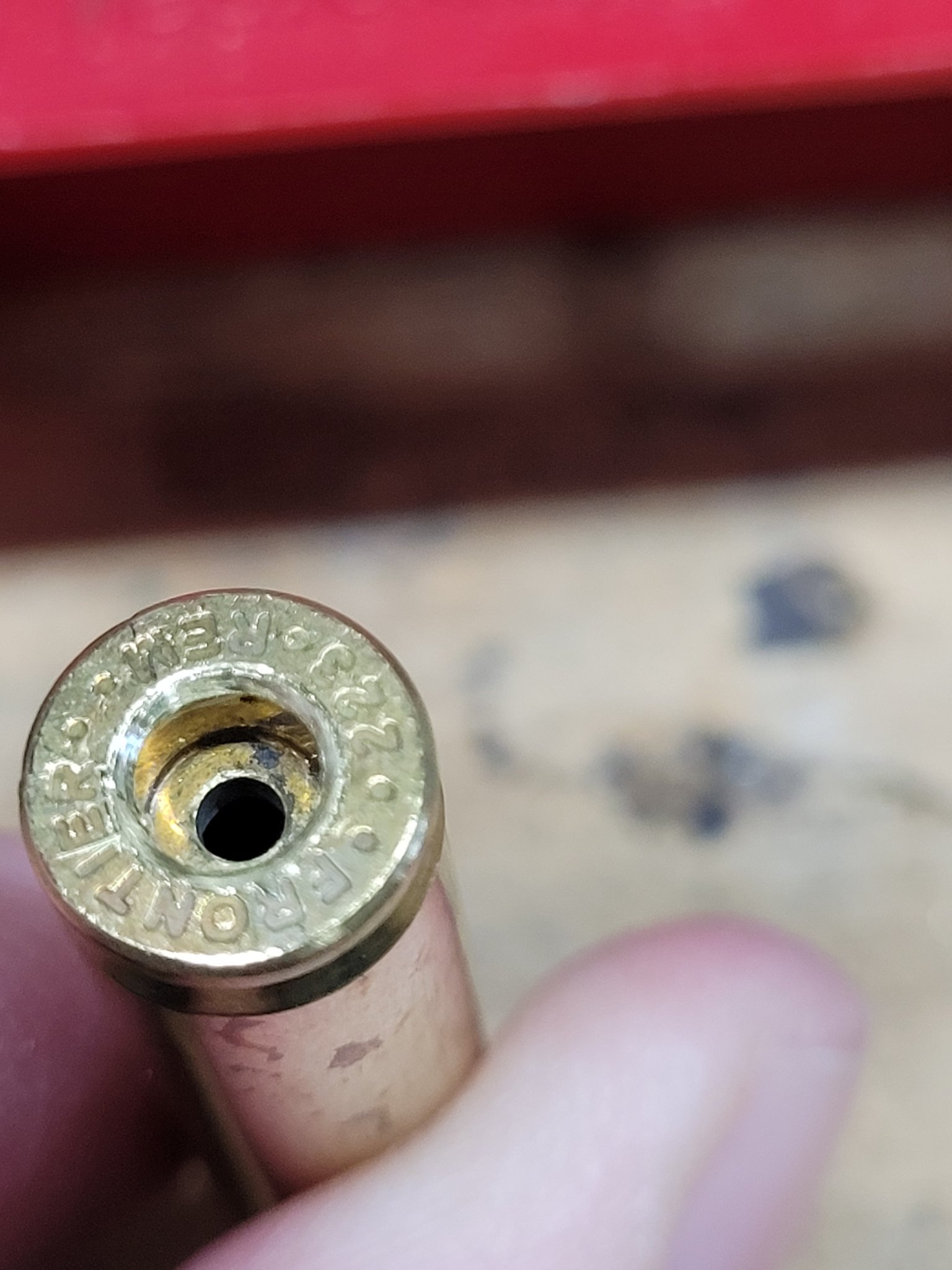

Two countersunk drilled pieces.


Last edited:

Bmghunter

Sergeant of the Hide
Full Member
Minuteman
Oct 29, 2020
103
61
Usa
Maybe I need to cut deeper into the pocket before clearing the crimp area.


DIBBS

Old Mountain Man-Tired occasionally Grumpy SOB
Supporter
Full Member
Minuteman
Supporter+
  • Aug 21, 2008
    2,510
    1,995
    WARSHington State
    You shouldn't have to remove that much material.

    A few twists with chamfering tool for case mouths may/should work.

    However, I strongly recommend the Dillon super swage. It makes short work of a PILE-O-Brass


    Bmghunter

    Sergeant of the Hide
    Full Member
    Minuteman
    Oct 29, 2020
    103
    61
    Usa
    Well looks like I did have to remove that much and more material to get past the crimp. It did work though so I guess it's a crimp issue and had to remove lots of material.
    Ended up using me Lee chamfering tools to remove it.


    Steel head

    Feral kitten
    Full Member
    Minuteman
  • Aug 3, 2014
    18,172
    58,200
    Washington
    Occasionally you’ll get a lot of displacement from the primer crimp requiring a heavy chamfer if your trying to cut the displaced material out.
    The heaviest cut shown will probably hold a primer just fine.

    That’s why I switched to swaging tool for dealing with crimps.
    It just shmushes the material back instead of cutting it out.


    db2000

    Supporter
    Supporter
    Full Member
    Minuteman
    Supporter+
  • Mar 27, 2020
    2,807
    2,000
    Hopefully your using a motorized chamfer at least


    n0glock

    Sergeant of the Hide
    Full Member
    Minuteman
    Jun 18, 2020
    153
    109
    RCBS makes a crimp remover (RCBS 90386) I chuck it up in a cordless drill and remove primer crimps while watching tv, I like it better than using the Dillon swager. Put an old towel in your lap to catch the shavings.


    Bmghunter

    Sergeant of the Hide
    Full Member
    Minuteman
    Oct 29, 2020
    103
    61
    Usa
    I used what was available and free, so one Lee chamfer/deburr bit from the kit mounted onto a Dremel bit to hold it and put on the drill. The other was the lee quick trim with chamfer deburr bit, using just the chamfer portion, on a driver. Worked well enough that I got over 100 cases done.
