Rifle Scopes phone/camera adapter for Leupold 12-40
- Thread starter JL
- Start date
Re: phone/camera adapter for Leupold 12-40
http://www.snipershide.com/forum/ubbthreads.php?ubb=showflat&Number=3753209#Post3753209
iWitness
http://www.snipershide.com/forum/ubbthreads.php?ubb=showflat&Number=3753209#Post3753209
iWitness
Re: phone/camera adapter for Leupold 12-40
davide, uses one called monocam with a small P&S camera
I am not sure who Monocam is, but he has posted images of the same.
davide, uses one called monocam with a small P&S camera
I am not sure who Monocam is, but he has posted images of the same.
How much you wanna spend? My Cadex surveillance rig does this well but it’s $2k. :-/
Checked those out last night they're cool but well beyond practicality for me.
Other options?
Last edited:
You've said all info appreciated so I'll jump in w/this.
Many of the adaptors set up for this kind of imagery, you'll have to find step-up/step down threaded rings or sleeves to attempt to use these adaptors to a specific spotter/rifle scope. I've found there are an infinite number of press fit sleeves, extensions et al w/different acc. thread sizes or w/the ability to come close to adapting this to what you want.
I'm still in the process of getting all the primary sfuff for my second rifle build, but when finished I may buy 2 adaptors which are made by Fotodiox, an outfit that specializes in adaptors which are very well machined to do something w/my cameras and/or cellphone behind my scopes.
I have the March 4.5-28X52 so the first adaptor I'd get would be this
www.bhphotovideo.com
One end of this fits a nikon digital camera, the other has a 48mm thread. the back end of the March has a 43mm acc. thread, so of course I'll spring for something like a Heliopan 48mm-43mm step down ring. You'll have to track down which rings juxtapose male to female threads the way you want.
I've seen a lot of cheaply made and constructed "Rube Goldberg" Bullshit sold to do this, and they're a waste of money. You need something that is professionally machined w/true right angles where they're supposed to be, and Fotodiox isn't Heliopan or B+W but it's good enough and will work.
For a combination of adapting either a cellphone or camera I may pick up this depending on the next scope I get.
Fotodiox manufactures mostly adaptors, and they're bought by photographers and they're machined right and they work.
Adapting to specific spotters/riflescopes you'll may have to track down ringed adaptors/step-up/step-down rings/extension rings w/different thread sizes, and there's an outfit call 'Raf" on ebay that makes adaptor rings that nobody else makes. They also sell helicoid/variable extension tubes if you need to get the distance right.
Many of the adaptors set up for this kind of imagery, you'll have to find step-up/step down threaded rings or sleeves to attempt to use these adaptors to a specific spotter/rifle scope. I've found there are an infinite number of press fit sleeves, extensions et al w/different acc. thread sizes or w/the ability to come close to adapting this to what you want.
I'm still in the process of getting all the primary sfuff for my second rifle build, but when finished I may buy 2 adaptors which are made by Fotodiox, an outfit that specializes in adaptors which are very well machined to do something w/my cameras and/or cellphone behind my scopes.
I have the March 4.5-28X52 so the first adaptor I'd get would be this
FotodioX Lens Adapter Astro Edition for T-Mount Wide Field Telescopes to Nikon Z-Mount Cameras
Buy FotodioX Lens Adapter Astro Edition for T-Mount Wide Field Telescopes to Nikon Z-Mount Cameras featuring Designed for Astro Photographers, Precise Fit and Solid Connection, Chrome Plated Brass Mounts, Precision All-Metal Construction. Review FotodioX null
One end of this fits a nikon digital camera, the other has a 48mm thread. the back end of the March has a 43mm acc. thread, so of course I'll spring for something like a Heliopan 48mm-43mm step down ring. You'll have to track down which rings juxtapose male to female threads the way you want.
I've seen a lot of cheaply made and constructed "Rube Goldberg" Bullshit sold to do this, and they're a waste of money. You need something that is professionally machined w/true right angles where they're supposed to be, and Fotodiox isn't Heliopan or B+W but it's good enough and will work.
For a combination of adapting either a cellphone or camera I may pick up this depending on the next scope I get.
Fotodiox manufactures mostly adaptors, and they're bought by photographers and they're machined right and they work.
Adapting to specific spotters/riflescopes you'll may have to track down ringed adaptors/step-up/step-down rings/extension rings w/different thread sizes, and there's an outfit call 'Raf" on ebay that makes adaptor rings that nobody else makes. They also sell helicoid/variable extension tubes if you need to get the distance right.
This isn't going to eliminate the issue of having combined 2 optical systems and then trying to consider 1 by itself; kind of like trying to figure out how food tastes after you've put hot sauce on it, but it will obviously be an improvement over hand holding a cellphone behind an optic.
Last edited:

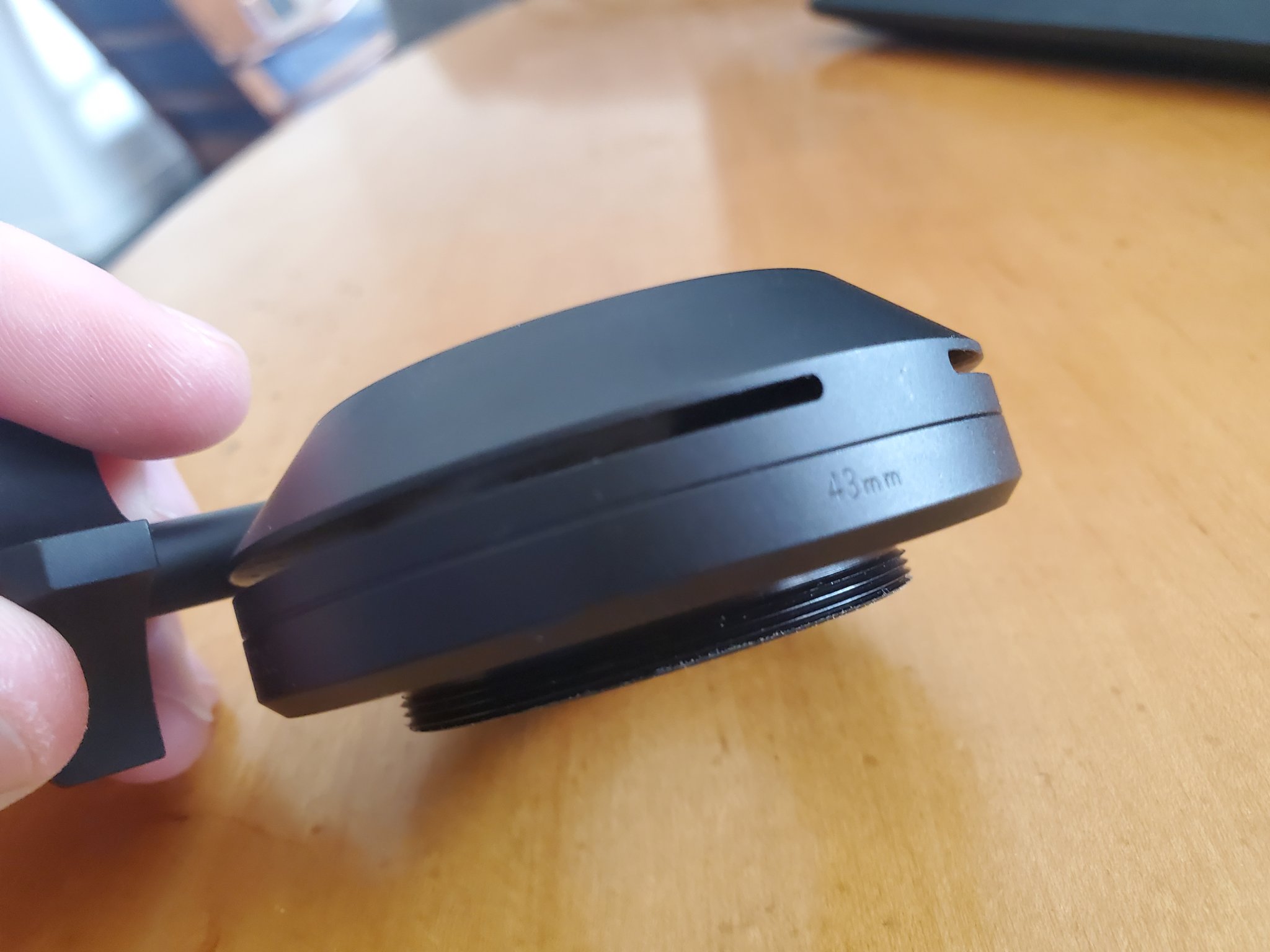

I'm going to try epoxy and this ring with a spare phone case and thread it onto the Leupold adapter.
www.bhphotovideo.com
Cokin 43mm Extension Ring
Buy Cokin 43mm Extension Ring featuring 43mm Front and Rear Threads, Increase Distance Between Holder & Lens, Ideal for Retractable Lens Designs. Review Cokin null
Attachments
Yes, Cokin also has filter rings/adaptors/ext. rings, so does K&F, also Fotodiox. There's also Heliopan and B+W.
An outfit from the east has every type of ring/adaptor in almost any size imaginable and if you can't find it somewhere else, this is your last stop.
rafcamera.com
You look like you've got a winner.
B&H also has this which is supposed to work w/different diameter eyepieces..
www.bhphotovideo.com
An outfit from the east has every type of ring/adaptor in almost any size imaginable and if you can't find it somewhere else, this is your last stop.
Search results for: 'm65x1+e'
Adapters for different lenses, cameras, telescopes, microscopes. Ability to make special adapters by request.
rafcamera.com You look like you've got a winner.
B&H also has this which is supposed to work w/different diameter eyepieces..
Novagrade Universal Double Gripper Digiscoping Adapter for Smartphones
Buy Novagrade Universal Double Gripper Digiscoping Adapter for Smartphones featuring For Mobile Devices up to 4.3" Wide, Dual Grippers for Improved Stability, Works with 39-60.75mm Eyepieces, Anodized Aluminum Construction, Polymer Compression Ring Set. Review Novagrade null
Last edited:
Spotting Scope Kits
VisionPro Shop provides affordable military grade adapters, iWitness kits, and waterproof cases for iPhone 4 or iPhone 4s smart phones to enable live streaming video via Skype or Facetime from just about any scope using the Tactical Solutions MonoLoc adapter and custom bushings. We make...
www.visionproshop.com
GX3 - Samsung Galaxy SIII & S4 Smartphone Mount
VisionPro Shop provides affordable military grade adapters, iWitness kits, and waterproof cases for iPhone 4 or iPhone 4s smart phones to enable live streaming video via Skype or Facetime from just about any scope using the Tactical Solutions MonoLoc adapter and custom bushings. We make...
www.visionproshop.com

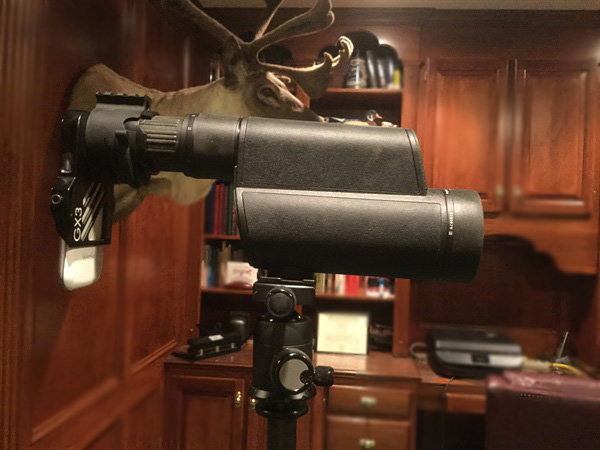

This is the setup I use with my spotter.
