Reloading for 375 Raptor

jerako92

Private
Minuteman
Jun 27, 2021
42
10
Southern NH
I'm converting 358 Win brass into 375 Raptor brass. I had a hell of a time at first by following the standard setup of a full length sizer. Found that I needed to bump the shoulder down to get the AR pistol to cycle. Initially, it just wouldn't go into battery. I dailed the FL sizer down pretty much until the lock ring doesn't grab the threads. I believe the Hornady LNL overcams at this point likely since the die is hitting the shell holder. After that, I toss the brass into the AR chamber and let the bolt slam closed.

The pistol is a 12" x-caliber barrel, Aero precision Upper, BCG and CH. Mounted to CMMG Mk3 lower.

I'm not sure it'll cause any damage, but I certainly would like to know what the possible culprits are. Any advice?

I also found that I was having some feeding issues with it, but it seems to be related to the PMAGs themselves. Since the neck of the 308 bullet is expanded to accommodate a .375 bullet, the mags seem to bulge around .30-.50 depending how many rounds I load into it. I did notice 308 rounds do the same thing, but to a much lesser extent. In any case, I trimmed down the follow guide channel fins and it seems to work as expected. I have not shot it yet, but the mag seems to work normally, seats easily and AR cycles manually as expected.

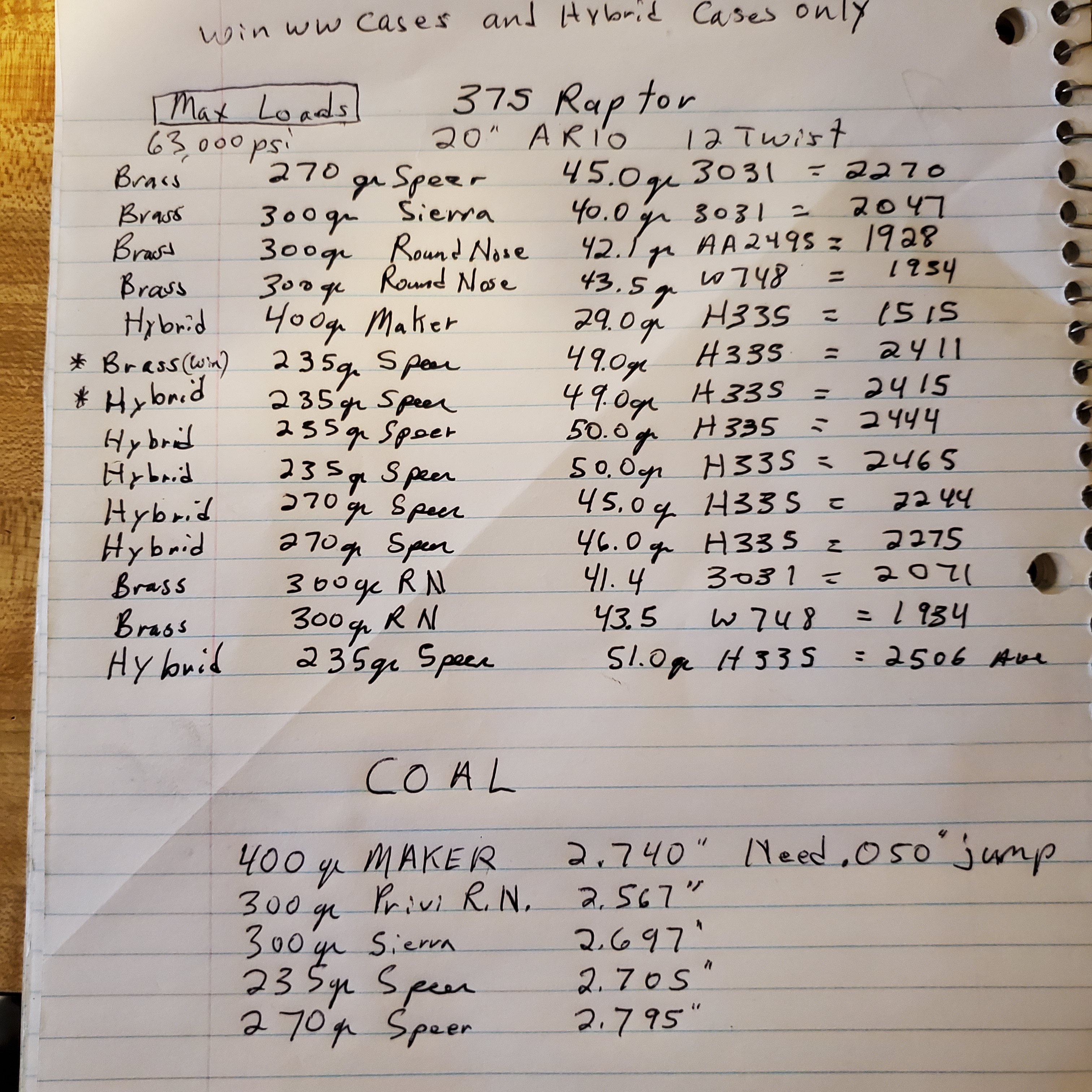

Here's my first load data for the newly built 375 Raptor...

It is Maximum for my AR 10 with 20" 12 twist barrel. Do not increase but start low and see where your pressure indicators start.

This was made from Winchester WW brand and hybrid cases which had more capacity than the others tested and were not used...as noticed by the asterisk by the hybrid and brass with the same capacity got almost the same velocity with the same powder charge.

You must be aware of the cartridge overall lengths shown at the bottom, that and use of other brass with less case capacity will affect drastically!
You must start your load development much lower for the powder charge if anything is different ...in smaller case capacity and shorter COALs...These "ARE
MAXIMUM LOADS"... NOT starting loads...so drop down at least 10% and work up.

Plus rifles, barrels, and chambers are all a little different in sizes.

Use at your own risk, becareful, for informational purposes...and work up, if you decide to use any of it.


Attachments

  • 20250720_184920.jpg
    1.2 MB · Views: 9
