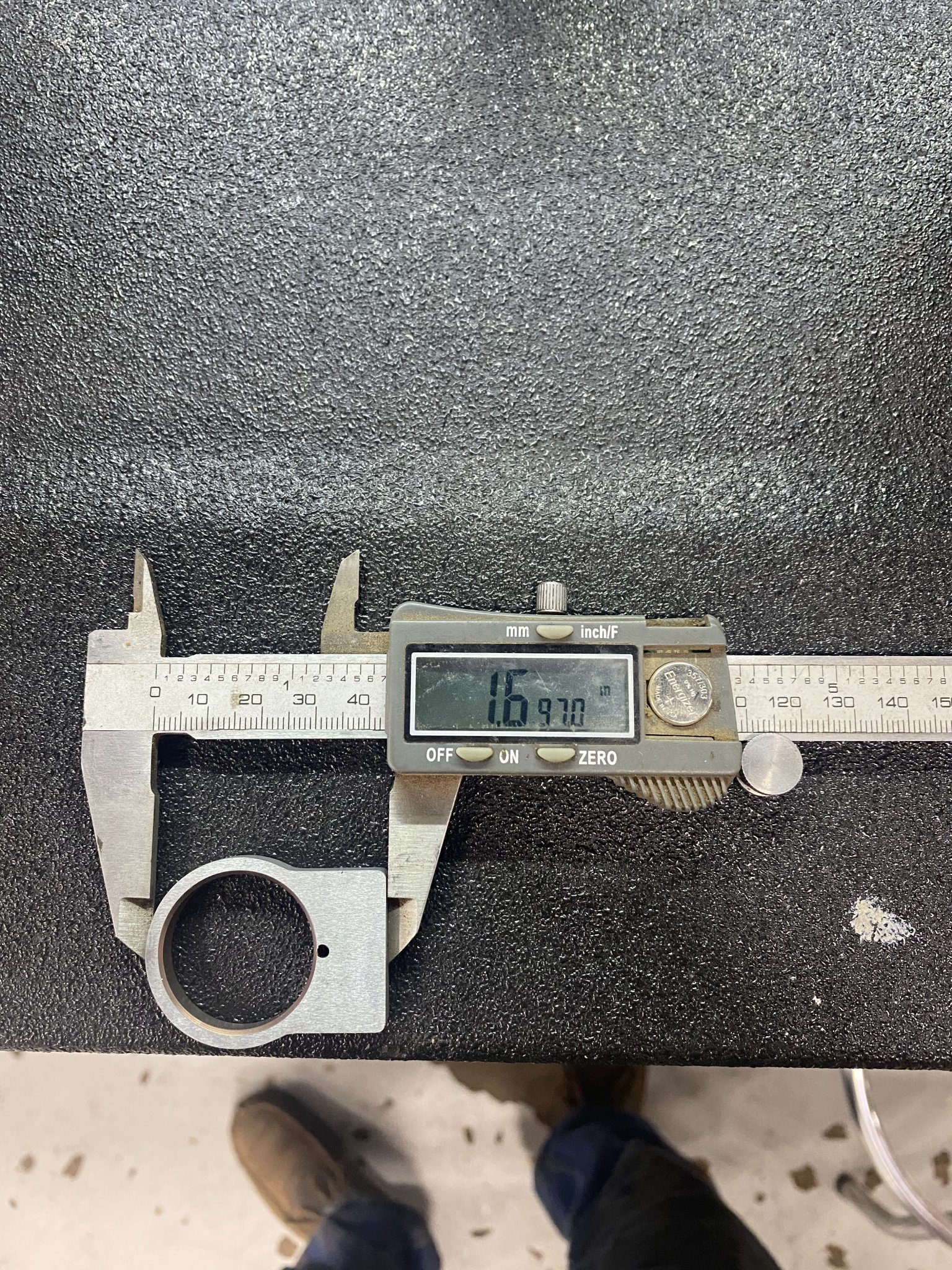

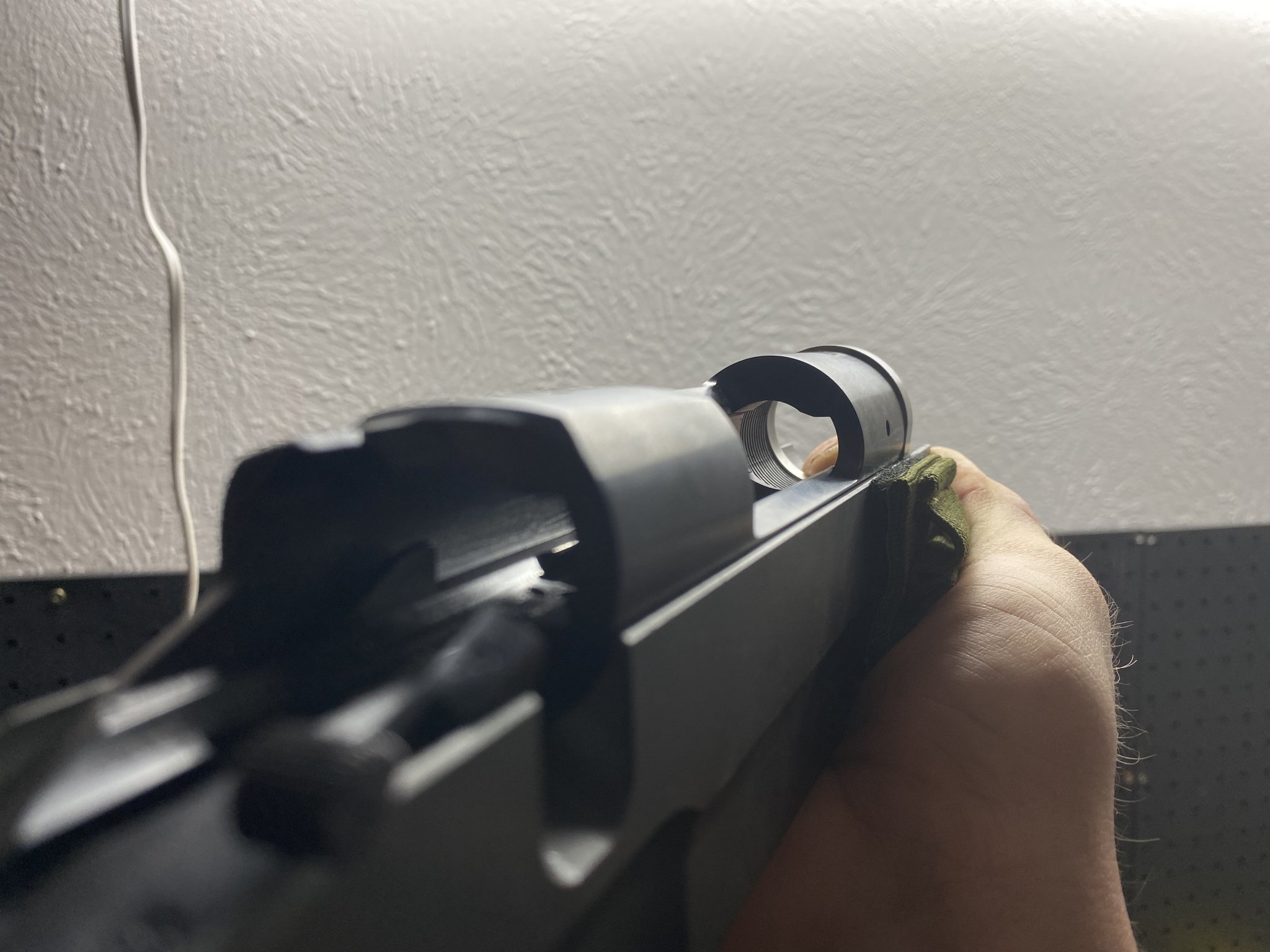

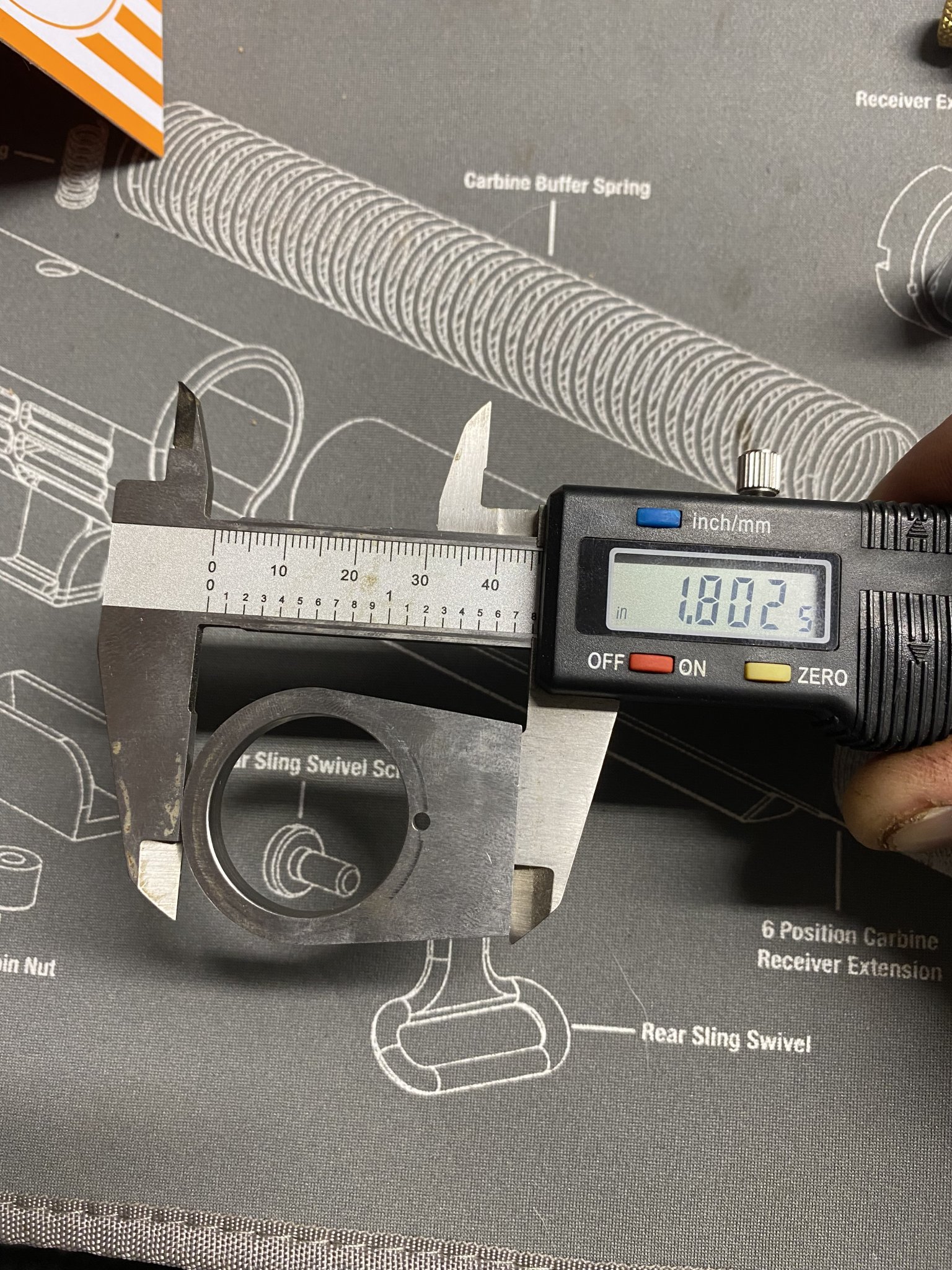

I built a Remington 700 Remage with a Pure Precision recoil lug and I found a interference issue with the lug not allowing the action to sit correctly in the chassis. Here are some photos. Are all lugs 1.802 height ? A factory barreled action fits perfect.
- Thread starter 806guns
- Start date
I think standard is 1.705 but I'm not 100% sure. Can you take some material out of the bottom of the lug recess? You might check the bottom corners a lot of them are rounded rather than square and that could be stopping you from dropping all the way down.
Grind it out, bed it to fit.
Grind it out, bed it to fit.
I am usually inclined to grind on the cheaper part.
It would be best if the lug was cut square. That might be my issue getting it perfect.
Buy a new lug or have someone machine the bottom.
Do not dig out more material from the stock. That's arguably one of the weakest points in a stock and digging out more material in a $800+ stock to save buying a $35 lug is ridiculous.
Everyone wants a thiccc lug but no one wants to admit a factory 700 thickness is fine for everything you'll ever shove in a rem700.
Do not dig out more material from the stock. That's arguably one of the weakest points in a stock and digging out more material in a $800+ stock to save buying a $35 lug is ridiculous.
Everyone wants a thiccc lug but no one wants to admit a factory 700 thickness is fine for everything you'll ever shove in a rem700.
I'd grind off some of the bottom of the lug. The bottom of the lug usually doesn't touch the bottom of the lug area in the stock/chassis so being perfectly true shouldn't be an issue. If you were that worried you could just bed the lug area. I would definitely not be digging into the chassis lug area,
This. Just tape off the bottom of the lug after grinding to create some clearance in the bedding- but I don't think even that would matter. Assuring the back of the lug is square to the receiver face in both axes is all I care about.
