S&B torque specs?

[kyotekiller25]

Can't find a torque value for S&B PMIIs in ring cap screws, warne mountain techs to be exact. Everything I see is with a spuhr mount. Would 25 be ok? I believe my MK4 scopes/rings are around 27, per leupold specs.



[Gee Kay]

Rifle Scopes - Torque Specs for Schmidt and Bender

Does anybody have the torque specs for the split ring allen head cap screws for an AI mount with a 34mm 5-25 Schmidt and Bender scope?

www.snipershide.com



[Gee Kay]

in most cases, scope manufacturers wont specify, ring manufacturers will specify what value to torque the screws/bolts to. i dont have my rifle here with the s&b on it so i cant check to tell you what i used, but its mounted in a sphur, i would say i used the sphur specs to torque the rings.



[308pirate]

Can't find a torque value for S&B PMIIs in ring cap screws, warne mountain techs to be exact. Everything I see is with a spuhr mount. Would 25 be ok? I believe my MK4 scopes/rings are around 27, per leupold specs.

Any scope that fails or binds in rings torqued to 25 - 30 lbf-in (assuming the rings are tightened evenly) is a piece of shit.



[TheOE800]

Any scope that fails or binds in rings torqued to 25 - 30 lbf-in (assuming the rings are tightened evenly) is a piece of shit.

Throw out yer Tangent Theta scopes erryone!



[kyotekiller25]

I just went with 25# It's a pretty heavy scope. Should be well built enough to handle 25#



[308pirate]

Throw out yer Tangent Theta scopes erryone!

They should be ashamed if that is so



[TheOE800]

They should be ashamed if that is so

Definitely heard stories of it years back. Mine seem fine.



[jhthyfd2]

in most cases, scope manufacturers wont specify, ring manufacturers will specify what value to torque the screws/bolts to. i dont have my rifle here with the s&b on it so i cant check to tell you what i used, but its mounted in a sphur, i would say i used the sphur specs to torque the rings.

I have a couple Schmidt Bender optics, as well as the Sphur mount, as you're aware 15 to 25 in/lbs is Sphur's recommendation. I personally torque mine at 20 in/lbs. I did call Schmidts technical support, I believe they are out of Virginia and they mentioned Sphur's torque specs are good to use. At 20 in/lbs I haven't had a problem of any kind.

Respectfully,
Jonathan



[J Scott]

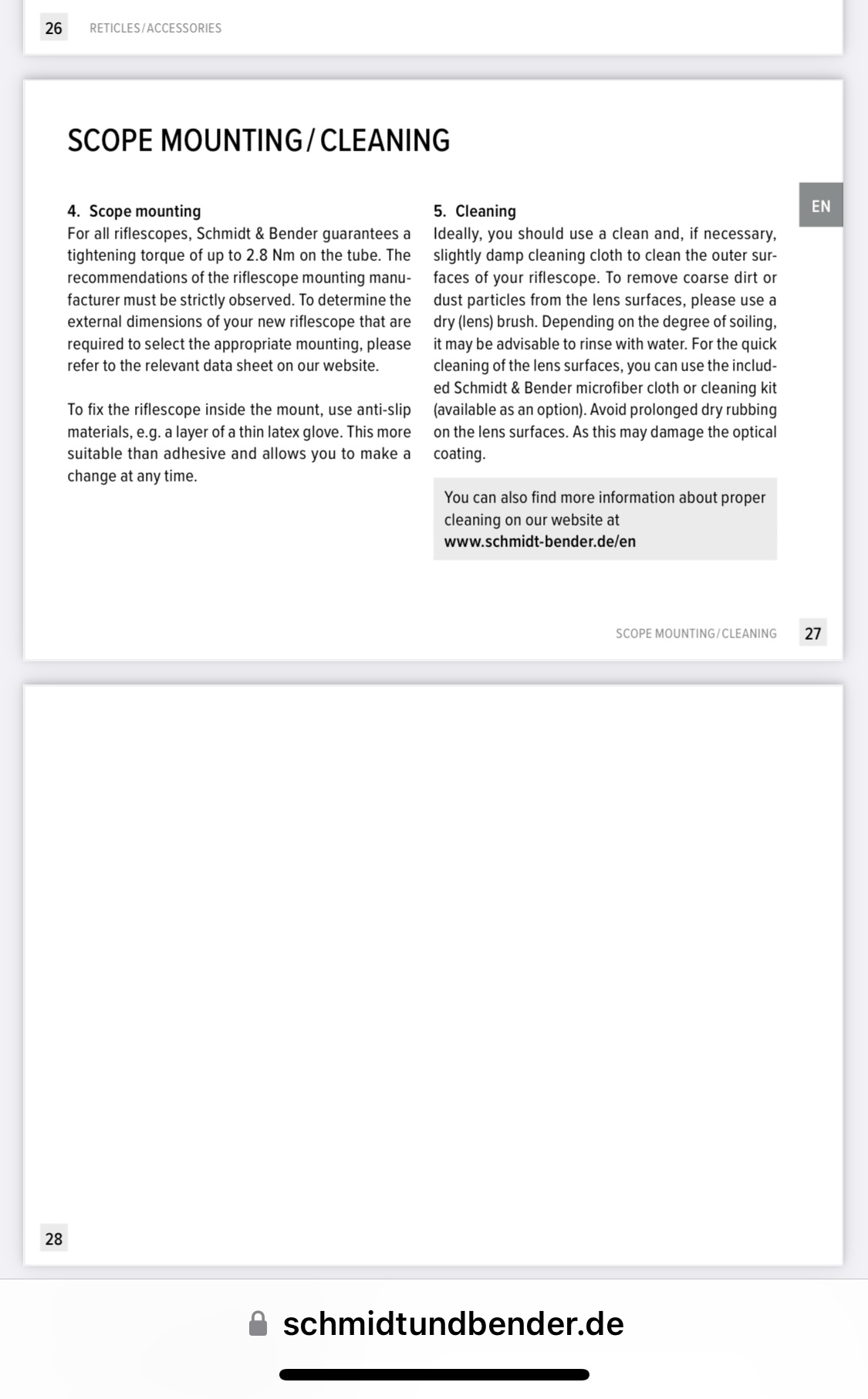

FYI...from S&B's PMII and Competition online owner's manual. I'm sure finding an online conversion calculator would be an easy find. Enjoy your S&B.



[kyotekiller25]

2.8nm is equal to 25 in lbs. So I am right there where it needs to be. Thank you!



[jhthyfd2]

FYI...from S&B's PMII and Competition online owner's manual. I'm sure finding an online conversion calculator would be an easy find. Enjoy your S&B.


View attachment 8466685
