Suppressors Thunder Beast Mid size can test

[TBACRAY]

Here you go
Mid Size can test on 23" 308 with LR 118





Micro 30 Long
MR-147.4,144.6,142.7,141.2,142.6 Avg-143.7
ML-144.1,141.8,139.3,141.4,140.9 Avg-141.5
MR/ML Avg-142.6
SE-131.7,132.3,130.4,131.1,133.0 Avg-131.7

OSS Helix 30
MR-146.4,138.9,138.5,138.1,136.9 Avg-139.7
ML-147.9,138.7,138.5,138.0,136.2 Avg-139.9
MR/ML Avg-139.8
SE-132.5,128.6,129.1,131.6,131.5 Avg-130.7

Dominus CB
MR-141.6,139.3,138.3,138.7,140.3 Avg-139.7
ML-139.1,138.4,138.9,137.6,139.4 Avg-138.7
MR/ML Avg-139.2
SE-127.0,127.9,124.8,123.9,130.4 Avg-126.8

Nomad
MR-142.8,143.2,138.0,138.4,141.5 Avg-140.8
ML-142.1,144.1,140.1,138.7,140.9 Avg-141.2
MR/ML Avg-141.0
SE-132.6,133.4,131.0,132.6,127.2 Avg-131.4


Omega with brake
MR-143.2,133.9,136.0,135.8,133.9 Avg-136.6
ML-143.5,132.7,134.4,134.0,135.0 Avg-135.9
MR/ML Avg-136.2
SE-137.3,130.4,129.9,131.3,132.1 Avg-132.2

Radiant
MR-140.4,140.5,140.0,139.9,137.8 Avg-139.7
ML-139.5,141.0,138.3,140.6,140.4 Avg-139.9
MR/ML Avg- 139.8
SE-127.4,129.4,128.7,128.4,127.5 Avg-128.3


Surge 7.62
MR-140.1,140.8,139.3,139.6,138.8 Avg-139.7
ML-138.7,137.5,139.2,137.8,137.7 Avg-138.2
MR/ML Avg-138.9
SE-126.0,125.7,124.4,127.4,124.7 Avg-125.7

Ultra 7 Gen 2
MR-136.4,138.5,136.9,138.4,137.8 Avg-137.6
ML-140.7,137.1,136.5,138.1,138.0 Avg-138.1
MR/ML Avg-137.8
SE-128.5,127.2,126.4,126.2,124.4 Avg-126.5



[Supersubes]

Surprised how loud the Nomad was. Also surprised how quiet the omega was with the brake. I hate that brake.



[Reload10]

Great video!



[shax2lex]

Awesome video. Great stuff. Makes me happier I went with a TBAC.



[Gtscotty]

Here you go
Mid Size can test on 23" 308 with LR 118





Micro 30 Long
MR-147.4,144.6,142.7,141.2,142.6 Avg-143.7
ML-144.1,141.8,139.3,141.4,140.9 Avg-141.5
MR/ML Avg-142.6
SE-131.7,132.3,130.4,131.1,133.0 Avg-131.7

OSS Helix 30
MR-146.4,138.9,138.5,138.1,136.9 Avg-139.7
ML-147.9,138.7,138.5,138.0,136.2 Avg-139.9
MR/ML Avg-139.8
SE-132.5,128.6,129.1,131.6,131.5 Avg-130.7

Dominus CB
MR-141.6,139.3,138.3,138.7,140.3 Avg-139.7
ML-139.1,138.4,138.9,137.6,139.4 Avg-138.7
MR/ML Avg-139.2
SE-127.0,127.9,124.8,123.9,130.4 Avg-126.8

Nomad
MR-142.8,143.2,138.0,138.4,141.5 Avg-140.8
ML-142.1,144.1,140.1,138.7,140.9 Avg-141.2
MR/ML Avg-141.0
SE-132.6,133.4,131.0,132.6,127.2 Avg-131.4


Omega with brake
MR-143.2,133.9,136.0,135.8,133.9 Avg-136.6
ML-143.5,132.7,134.4,134.0,135.0 Avg-135.9
MR/ML Avg-136.2
SE-137.3,130.4,129.9,131.3,132.1 Avg-132.2

Radiant
MR-140.4,140.5,140.0,139.9,137.8 Avg-139.7
ML-139.5,141.0,138.3,140.6,140.4 Avg-139.9
MR/ML Avg- 139.8
SE-127.4,129.4,128.7,128.4,127.5 Avg-128.3


Surge 7.62
MR-140.1,140.8,139.3,139.6,138.8 Avg-139.7
ML-138.7,137.5,139.2,137.8,137.7 Avg-138.2
MR/ML Avg-138.9
SE-126.0,125.7,124.4,127.4,124.7 Avg-125.7

Ultra 7 Gen 2
MR-136.4,138.5,136.9,138.4,137.8 Avg-137.6
ML-140.7,137.1,136.5,138.1,138.0 Avg-138.1
MR/ML Avg-137.8
SE-128.5,127.2,126.4,126.2,124.4 Avg-126.5

It looks like the Radiant was in the long configuration, was the Surge in the long configuration as well?



[shax2lex]

@TBACRAY I watch all of the tests y’all do. Just curious, but could you compare sound tests using your Ultra cans with a TBAC brake vs the Area 419 universal mount? It may swing more folks to use the TBAC. Thanks as always!



[Reload10]

It looks like the Radiant was in the long configuration, was the Surge in the long configuration as well?

The surge in long fig is 9" I believe. These were all 7" +- so it was most likely short.



[Gtscotty]

Surprised how loud the Nomad was. Also surprised how quiet the omega was with the brake. I hate that brake.

I don't think it was out of line really, you have to keep in mind that the cans in that test run 6.25" to 7.5" with total system weights (DT or can plus brake) of 9.8 oz to 23 oz, that's a decent span. Here's my notional breakdown, I took the difference between generic bare muzzle Mil and SE readings (Silencer Shop's Rem 700 .308 bare muzzle pulse data of ~170 Mil , and ~160 SE from their Nomad TI video), subtracted TBAC's recorded values and divided by can length in inches and weight in oz respectively. I know this isn't exactly defensible given the logrithmic nature of SPL, but the recordings are all so close, I don't really think it's that bad.

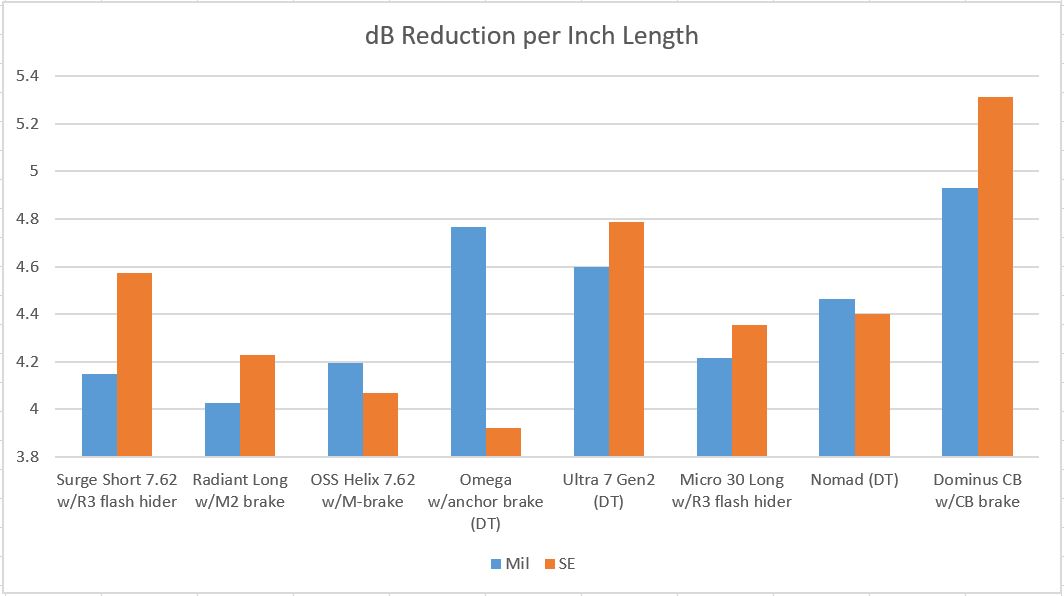

Anywhoo, the Dominus blows it out of the water on suppression per length, and the Gen 2 Ultra 7 looks good as well. The Nomad seems to be middle to front of the pack in general for the non-Gen2 TBACs and you can also see the imbalance imparted by the Omega's brake. Obviously without the brake contributing to the length, the Omega would probably take a big jump up on this chart, I'm just now sure how the metering data is affected. (cans arranged longest to shortest)

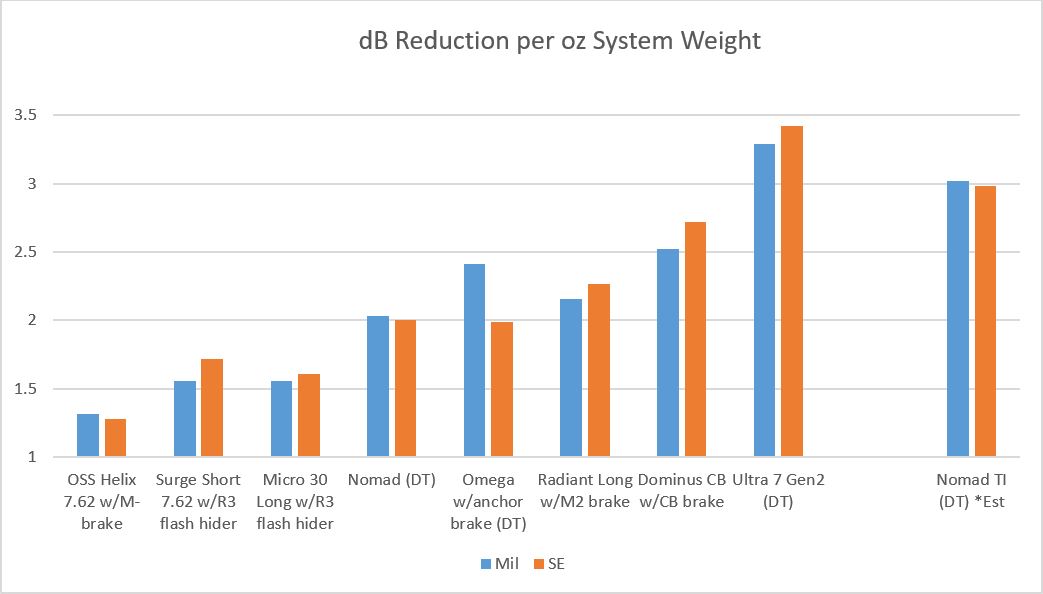

Here's the same kind of thing except divided by system weight. I used the DT weight for cans with that option and included the brake weight for cans that need to attach to a brake to be used. I didn't know what brakes/flash hiders were used with the OSS and Rugged cans, so I just included whatever muzzle device they ship with. I also included a theoretical column for the Nomad TI using the same pulse data as the Nomad 30 and a weight of 9.6 oz because that will be my next can, and I was curious how it will likely stack up. (cans arranged heaviest to lightest)

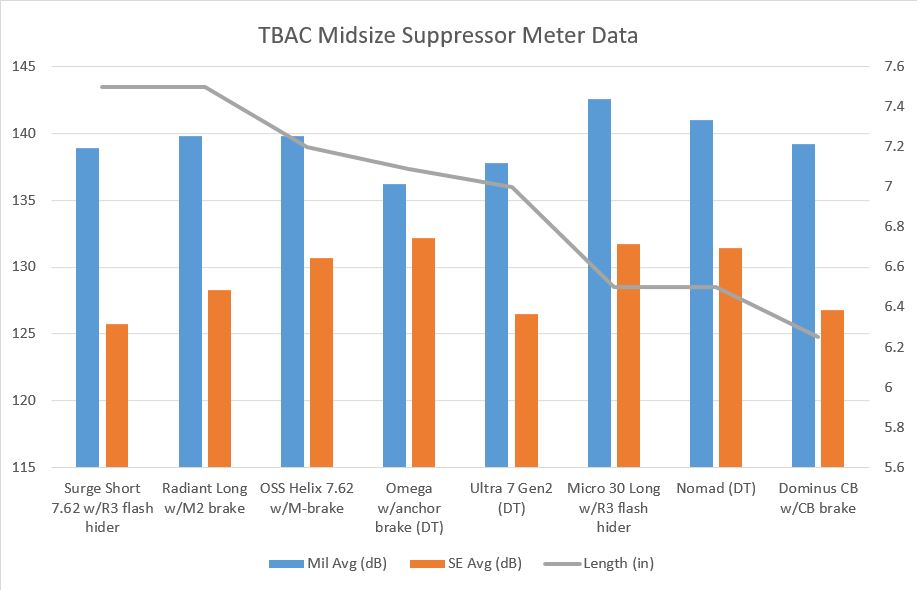

There's a chart with the un-molested averages. (cans arranged longest to shortest)



[Gtscotty]

The surge in long fig is 9" I believe. These were all 7" +- so it was most likely short.

Yep, I went back and paused it at the beginning when all the cans where there, it looks like the Micro 30 and Radiant were long, and the Surge was short.



[kurtispalu]

We didn’t have a flat end cap for the omega when we shot the video. We have one now and it’s on our list of data to add. It’s difficult this time of year to get a calm day to go meter but we will eventually post the data.



[Jnull]

Does the anchor brake actually do anything? I replaced mine with a flat end cap since it’s used for hunting.



[Supersubes]

Does the anchor brake actually do anything? I replaced mine with a flat end cap since it’s used for hunting.

Ya, makes it sound like shit.
