About 3 months ago I bought top of the line scope. (I don’t want to use the manufactures name because they’ve been great). I mounted it on my 6.5 creedmoor with ARC m-brave mount, torqued to 49inch pounds. (It’s the fixit sticks limiter I had). I took it out to shoot for the second time and after I took a shot the lens cracked. I’ve never dropped it or hit it on anything. I couldn’t figure out how it happened. Luckily the company fixed it no questions asked. I walked about wondering if it was because I went from warm to cold and that’s what caused the crack (who really knows)… but here’s where things have done south…it happened again today. Same situation. Going from hot to cold and shooting for prone. It cracked on the 3rd shot. I’m speechless. The mag ring, parallax ring all move freely. There’s not a scratch or ding on the scope. No ring marks. Has anyone seen something like this or have any good ideas? This scope is one of the top 3 brands..
- Thread starter Bsutton2010
- Start date
- Status
Here is a quick question for you.
How much gap is there between the objective lens of the scope and the barrel when it is all mounted up?
How much gap is there between the objective lens of the scope and the barrel when it is all mounted up?
.5/8”
Woof.
Sounds like it’s time for a 18lb limiter to me.
Did you tell them what you torqued it to?
(I wouldn’t
)
Sounds like it’s time for a 18lb limiter to me.
Did you tell them what you torqued it to?
(I wouldn’t
)Clarification - it’s the ocular lens NOT the objective lens
Nah Ive confirmed the torque limiter is correct. And the first time it cracked I used a 55inch pound limiter. The ARC rings are made to be torqued 55inch pounds.Woof.
Sounds like it’s time for a 18lb limiter to me.
Did you tell them what you torqued it to?
(I wouldn’t
I’ve got a second hand Razor that was replaced for its first owner for exactly that reason. I torque Vortex scopes to 17 inch pounds.
The mount to the rail, yes.
Same rings the previous owner of my Razor used and same directions that broke his scope.

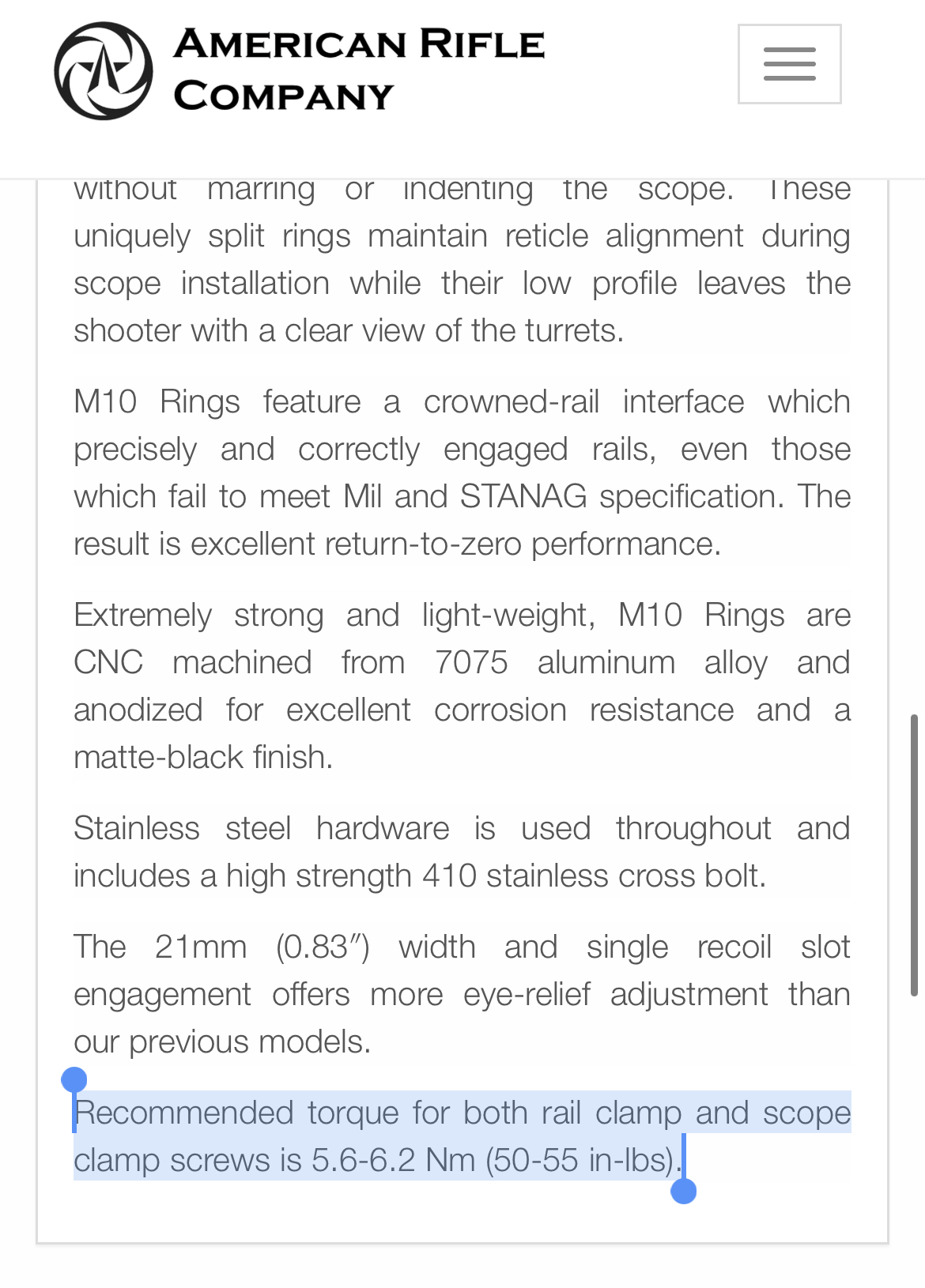

Before people tell me 49inch pounds is too much. Look up American rifle company rings. The manufacturer of this scope recommends them. It’s a singe screw so the torque is higher. I’ve already confirmed with another to torque limiter that it’s dead on.
I use ted’s recommended torque for his rings
Never had any issues.
Be interesting to hear what scope it is.
Never had any issues.
Be interesting to hear what scope it is.
I love cryptic shit posts that lack information on who, what, when, where, and why. They really add value to this forum and give the reader useful information that they may act on.
I'd take TT.Im betting NFwith a do not pass bet on TT
I guess I’ll go reread the directions on the M-Brace I just installed a couple days ago, that holds my unbroken scope torqued to manufacturers recommended limit…
Yeah I’ve used these rings on every scope brand even up to 55inch pounds. Never had an issue. It’s weird for sure.
You I trust. Am I wrong? What does he recommend?
Apparently you can’t read. I’ve got these rings on 7 other $3k+ scopes. And I’ve talked to Ted the designer. Never had an issue till now. Nothing can be said to make you realize your wrong so just stay out of this.I guess I’ll go reread the directions on the M-Brace I just installed a couple days ago, that holds my unbroken scope torqued to manufacturers recommended limit…

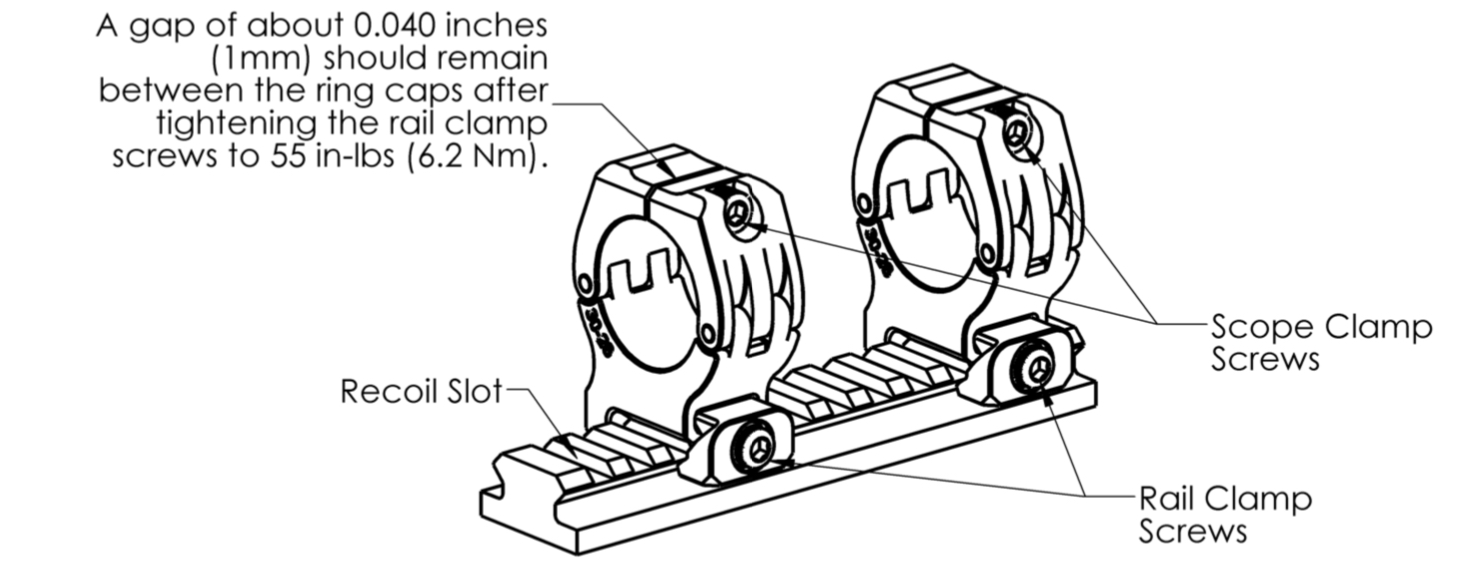

to me the instructions read tighten rail clamp screws to 55. In the photo it clearly shows the rail clamp screws are the bottom ones.
I will admit I could be wrong be cause I do not own a set and I am not positive.
Objective could be explained by barrel wacking the scope if it was mounted really close.
But for the Ocular to be cracking, unless it's something really brutal like a SCAR or an air rifle, it would seem the ring mounting is the next option.
The torque specs do seem to be way higher than anybody else recommends by a factor of more than 2x
Once you get the scope back from being repaired again, do you have a more traditional set of rings you could try to see if that fixes the issue?
But for the Ocular to be cracking, unless it's something really brutal like a SCAR or an air rifle, it would seem the ring mounting is the next option.
The torque specs do seem to be way higher than anybody else recommends by a factor of more than 2x
Once you get the scope back from being repaired again, do you have a more traditional set of rings you could try to see if that fixes the issue?
Last edited:
50-55
I think it used to be 60
It applies the force in a different way than standard ring so the cosine to get proper clamping force is I think +71%
He was talking smart person talk and I might have missed it a bit but it made sense.
I think I used the old spec of 60 on all of mine.
I love those rings.
Last edited:
Don’t want to throw the manufacture under the bus yet
I’ll try something else next time. Just a bummer cause I’ve used these rings for years on all different brands and never had an issue. The torque on the rings =20inch pounds but this mount only has 1 screw.
I have arc 1 peice m-10 and the rings are torqued to 55. No issue on 4 scopes I think or 3.
Then why start a thread about it? If you're not willing to actually state what happened why even talk about it?
I have a scope (nobody's knows what kind), I torqued it into some rings (you did mention ARC), the scope shit the bed ( the manufacturer has been great), I torqued the replacement scope down and broke it again.
You understand that that makes you look like a retard that doesn't understand torque values right?
My guess is TT because the premier had a reputation with rings doing bad things.
Bahah get out of here buddy. The manufacturer calls for a higher torque value. If it bothers you just stay off.
You go girl!
I would suspect this particular mount could be causing the issue. One scope, sure. But another right after... The odds of two different scopes back to back makes me think it's not the scope regardless of manufacturer. Enough people use ARC and high end scopes where this would have surely come up before. Maybe isolated to this specific mount you have. I would be looking elsewhere now after cracking two scopes glass. No threadlocker on the screw right?
If they aren’t
nope. What’s crazy is i have two of these scopes the other with the same mount and it’s perfectly fine. Doesn’t make sense. Going to change rings just to avoid the pain in the ass sending it back is.
I think that may be what he meant with "this particular mount" as in your other mounts of this brand/type may be fine. But maybe this one is fucked. But since we don't have any details everyone is just guessing anyways.
I want in on the action. What are my odds on a zco?
call me when the make and model is posted
Fair. I’ll try another when it comes back from warranty.
My bet is one of @Dirty D 's creatures sat on it and cracked the glass. OP is just ashamed to admit it.
Sounds like same scope both times. Manufacturer repaired original scope and it happened again in the same mount.
