Ultimatum Deadline Shouldered Prefits

[-Time-]

Anyone with a deadline gotten one done? Is there a tenon spec out there for drop ins?

I’m looking to move to shouldered barrels with wrench flats so I don’t have to pull the rifle apart to swap barrels.

Thanks!



[jmikell870]

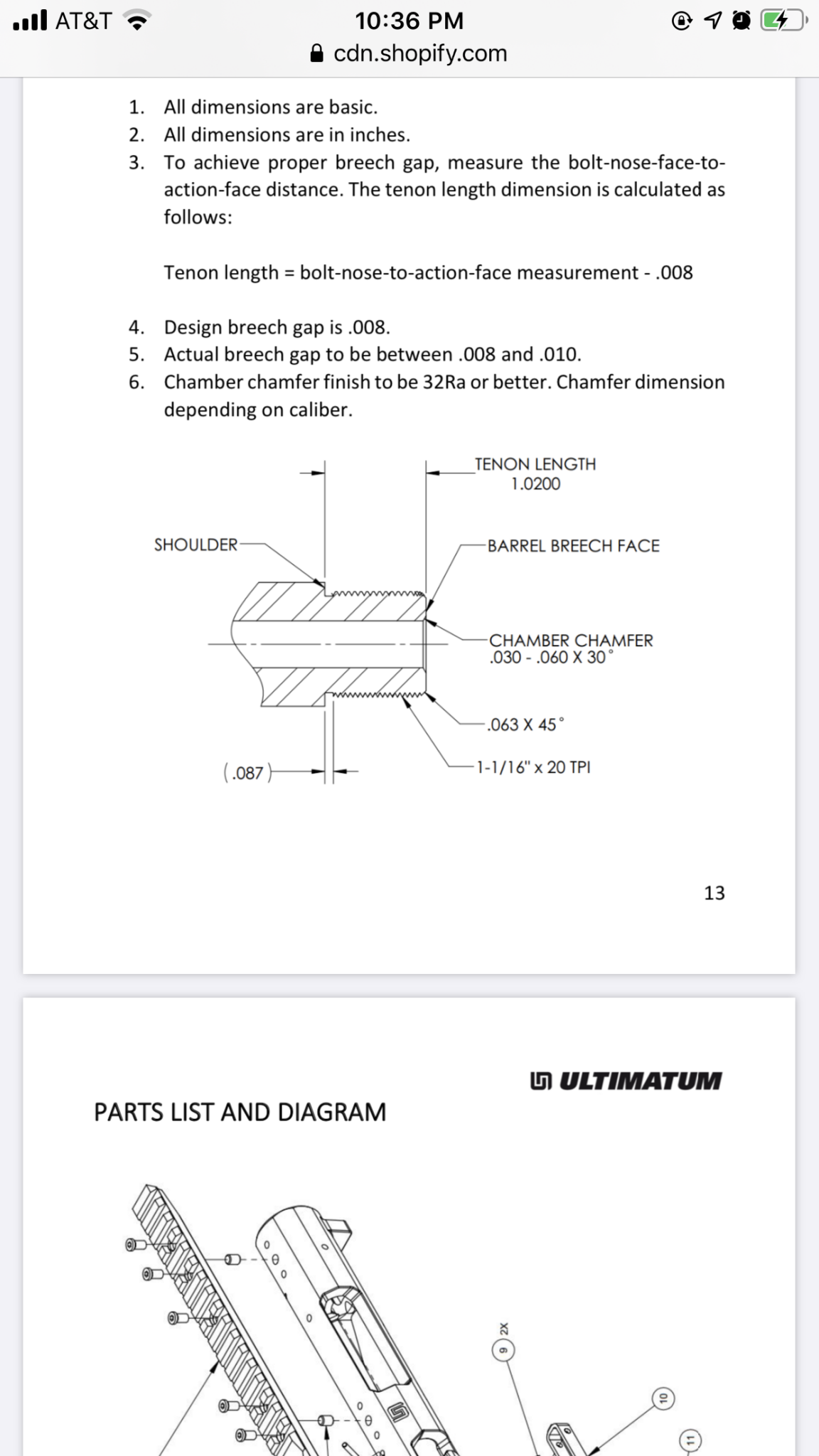

If you read the manual, I wouldThink the tolerance should be tight enough. But, I’m no gunsmith.



[-Time-]

If you read the manual, I wouldThink the tolerance should be tight enough. But, I’m no gunsmith.

I had the manual open and I still missed it, I’m a dumbass. Thank you!



[One1Bravo]

I had the manual open and I still missed it, I’m a dumbass. Thank you!

There is one measurement missing you'd need for a shouldered pre fit. I tried to get one spun up by Keystone and when I asked Deadline for it they gave a range of measurements and stated they didn't advise a barrel be made without the action in hand.



[jzwolen]

Both of my Deadline actions (One low SN, and one more recent) headspace the same between actions, bolts, and boltheads.

You could always send your action off once to a good gunsmith that would keep your measurements on file.



[-Time-]

Both of my Deadline actions (One low SN, and one more recent) headspace the same between actions, bolts, and boltheads.

You could always send your action off once to a good gunsmith that would keep your measurements on file.

Gonna end up sending it to PVA I think, I was hoping to avoid having to ship the action but oh well. If you have the numbers and don’t mind PM’ing me what the measurements were for the low s/n action was it’d be much appreciated, I have sub s/n 230.



[-Time-]

There is one measurement missing you'd need for a shouldered pre fit. I tried to get one spun up by Keystone and when I asked Deadline for it they gave a range of measurements and stated they didn't advise a barrel be made without the action in hand.

Interesting. Hopefully we can get some data piled up to get drop in prefits made for deadlines at some point then. I can’t imagine ultimatum would hold tolerances that wouldn’t headspace from one action to another.



[jzwolen]

My low SN# is in the low 050's...pretty early model, that is still my main match rig. My smith has always used the provided tenon print in the manual...nothing fancy.
