Weather vane for my Weatherflow

[Brian o 23]

Here's a link at my attempt to get wind direction to my Strelok Pro app. Any input on this would be great.

https://photos.app.goo.gl/gitFBb72uz1eX2H3A



[Racer88]

You might like this...
https://www.snipershide.com/shooting/threads/my-diy-weathermeter-wind-vane-project.6910787/



[Brian o 23]

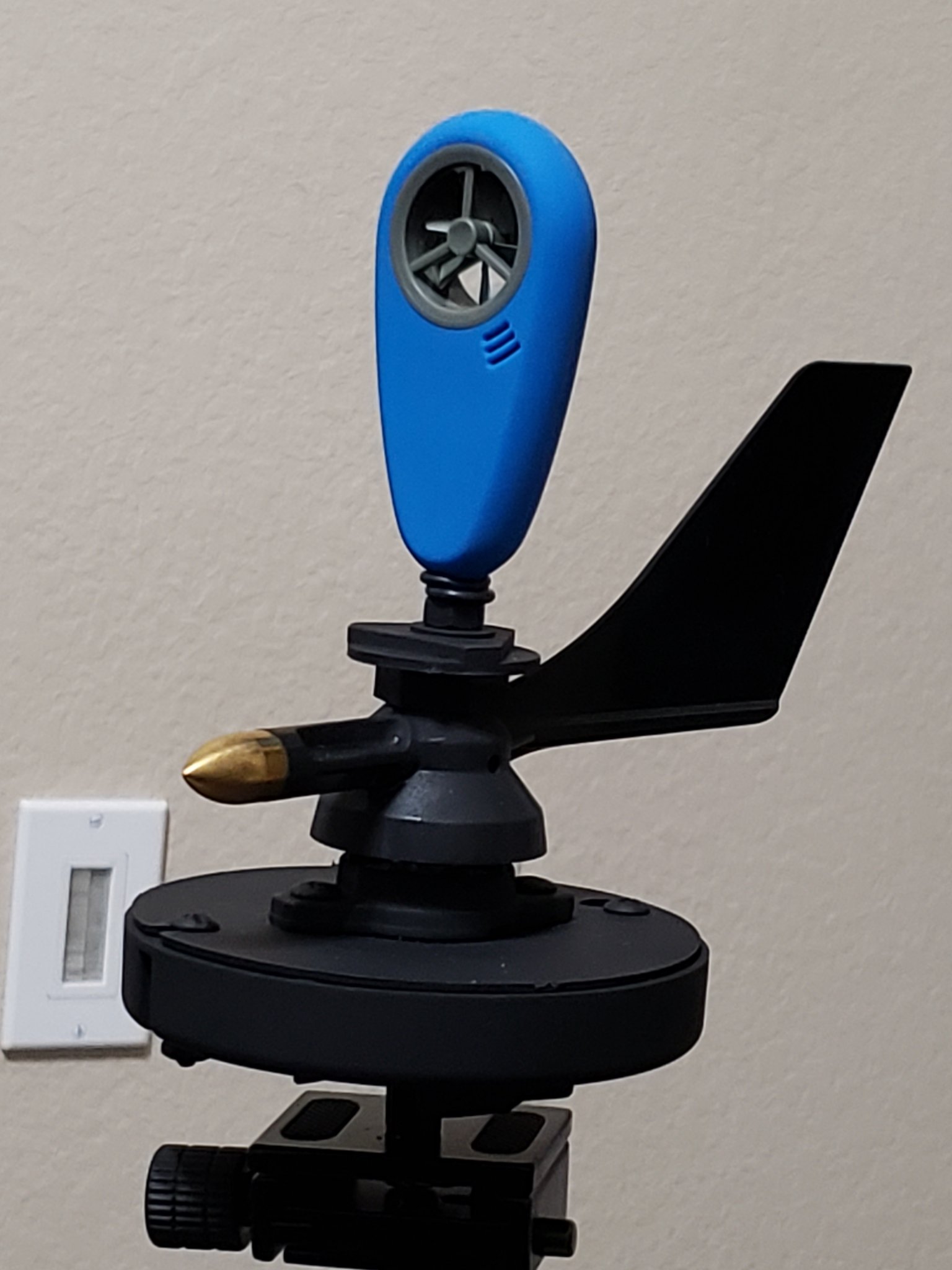

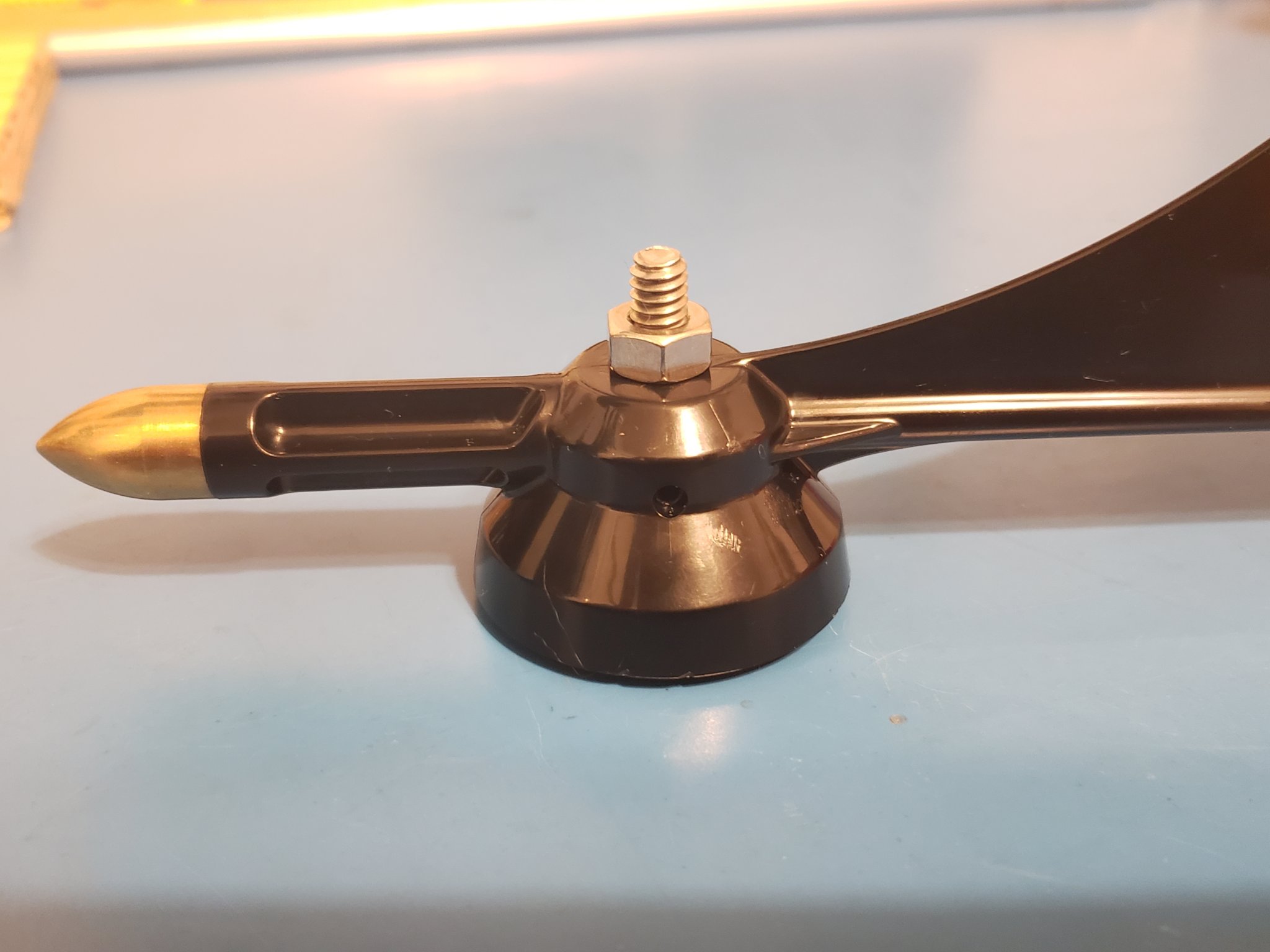

Looks pretty cool. I have a 1/4 20 bolt out the top of the vane that will thread in my weatherflow.
Just 1 bearing and 1/2" aluminum rod tampered to 10mm to fit the bearing . The vane slides on and off and I can push the rod in the ground and slide on the vane and it's ready to go.



[sabrecross]

@Racer88 , you inspired me!



[sabrecross]

I just finished building this a couple of days ago but I haven't tested it out yet.



[Brian o 23]

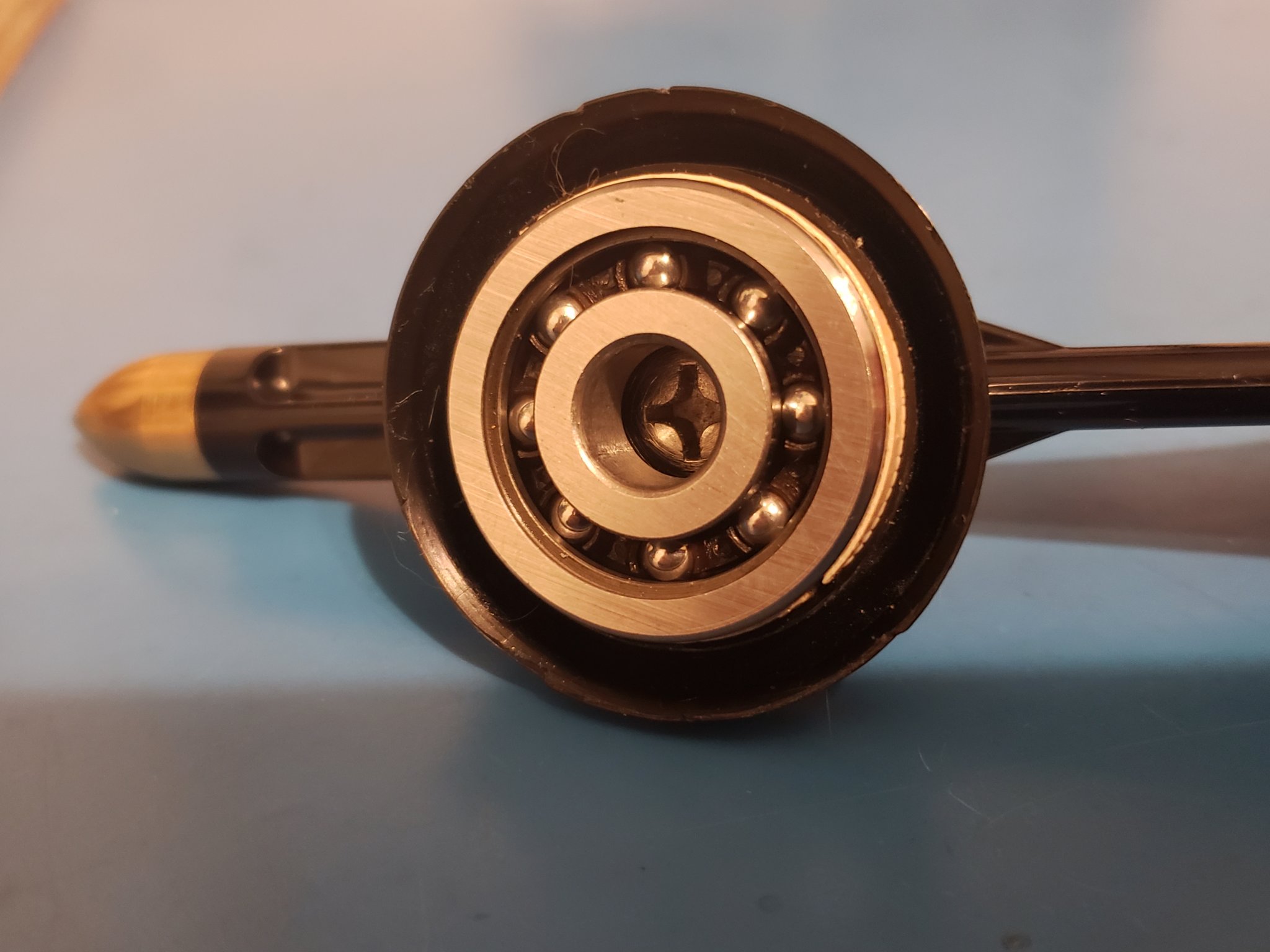

This is the bearing I use
LR200NPPLR200NPP Track Single Row Ball Bearing Sealed 10x32x9 Track Bearings I took both seals off and cleared all the grease out of the bearing and now it moves very easy. I used double sided tape to hold the bearing in place, works great.
I'll try to post some pics of my build.



[Brian o 23]

Hope this will help ya'll.
