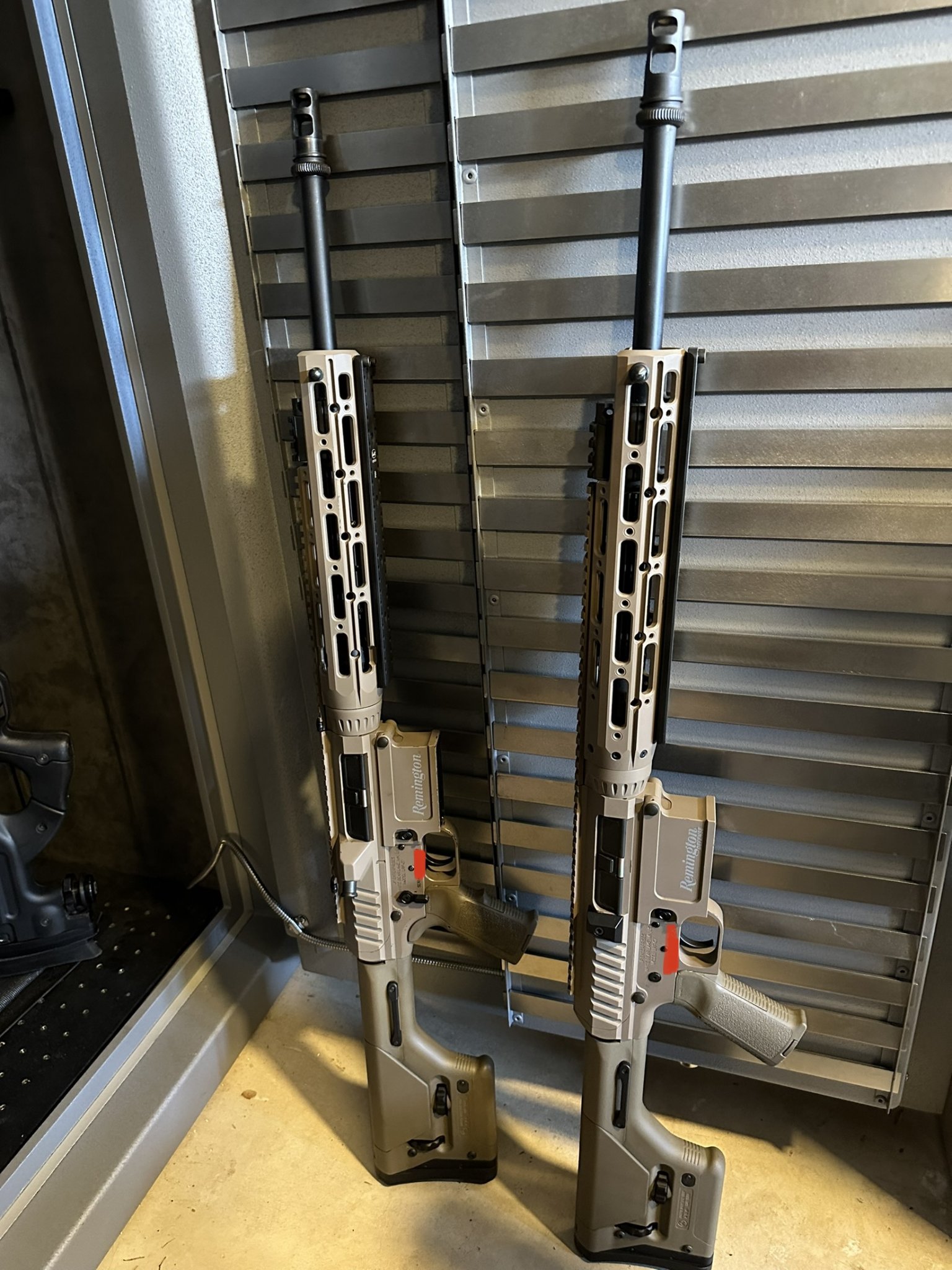

They are pretty cool….
I’m case anyone else comes looking for info by it took me quite a while to figure out that even though these are AR10 they are considered small frame ar and they fall under DPMS G2 specs.
I’m case anyone else comes looking for info by it took me quite a while to figure out that even though these are AR10 they are considered small frame ar and they fall under DPMS G2 specs.
Last edited:
Defense Depot manufactures and sells DPMS GII lower parts.
I have talked to DD before, once I get these scanned he will probably be the one to manufacture them. Unless we can find a Remington Defense employee with the .stl files I just haven’t had the time to deal with this particular project.
Does the ERASR lower use a standard G2 upper and BCG?
I believe it is a standard G2 Upper and BCG.
Last edited:
Kind of, the ERASR/R-10 upper has a cutout for a small plate that the charging handle latch hooks on to and it has a notch cut out of the to top for the handguard index tab. The G2 does not have these.
It is also important to note that there are two versions of the bolt that was used in the R10. Both are G2 bolts, but later in it’s life they charged the the lugs to be longer to help with a feeding issue they were having. Since there are two versions of the bolt there are also two versions of the bolt catch/release. One has a relief cut for the longer lugs and one does not, for use with the older bolt. If you happen to get a long lug bolt with a non relief cut catch you will not be able to lock the bolt back.
FYI I have an unreleased Geissele R-10 handguard if anyone is in need of one.
Attachments
Last edited:
I know the owner of this one (it was previously mine), it did not sell. He just took it down.
Didn’t realize they can be marked sold if it’s taken down.
So JP makes the receiver sets?
It was a joint build from Rem Def and JP.
To bad JP doesn't offer that handguard design, I like it. I wouldn't want that gas block set up though, almost looks like a gas piston system.
I hear ya. This is how they came straight from Rem, gotta keep OG.
Not many of these out there.
The hand guard is cool, since you can still use all of Cadex’s current accessories on it.
OK what did I miss? This seems like a cool club I missed out on
That all depends if you’re a collector, I guess.
I’m a few months late to this party, but for what it’s worth I did a very in depth write up comparing the R10 to a G2 on another forum. It has since been archived and the pictures aren’t showing up anymore. If there’s interest I can take the time to post pics here, but the write up portion is enough to give you an idea of what the upgrades are to the R10.
https://www.ar15.com/forums/AR-15/Review-Remington-Defense-R10-vs-DPMS-G2-Recon/121-746734/
https://www.ar15.com/forums/AR-15/Review-Remington-Defense-R10-vs-DPMS-G2-Recon/121-746734/
I might be interested! Could you post a pic? Curious to see what it looks like. Would be nice to get rid of the screw-on RAHG rail.

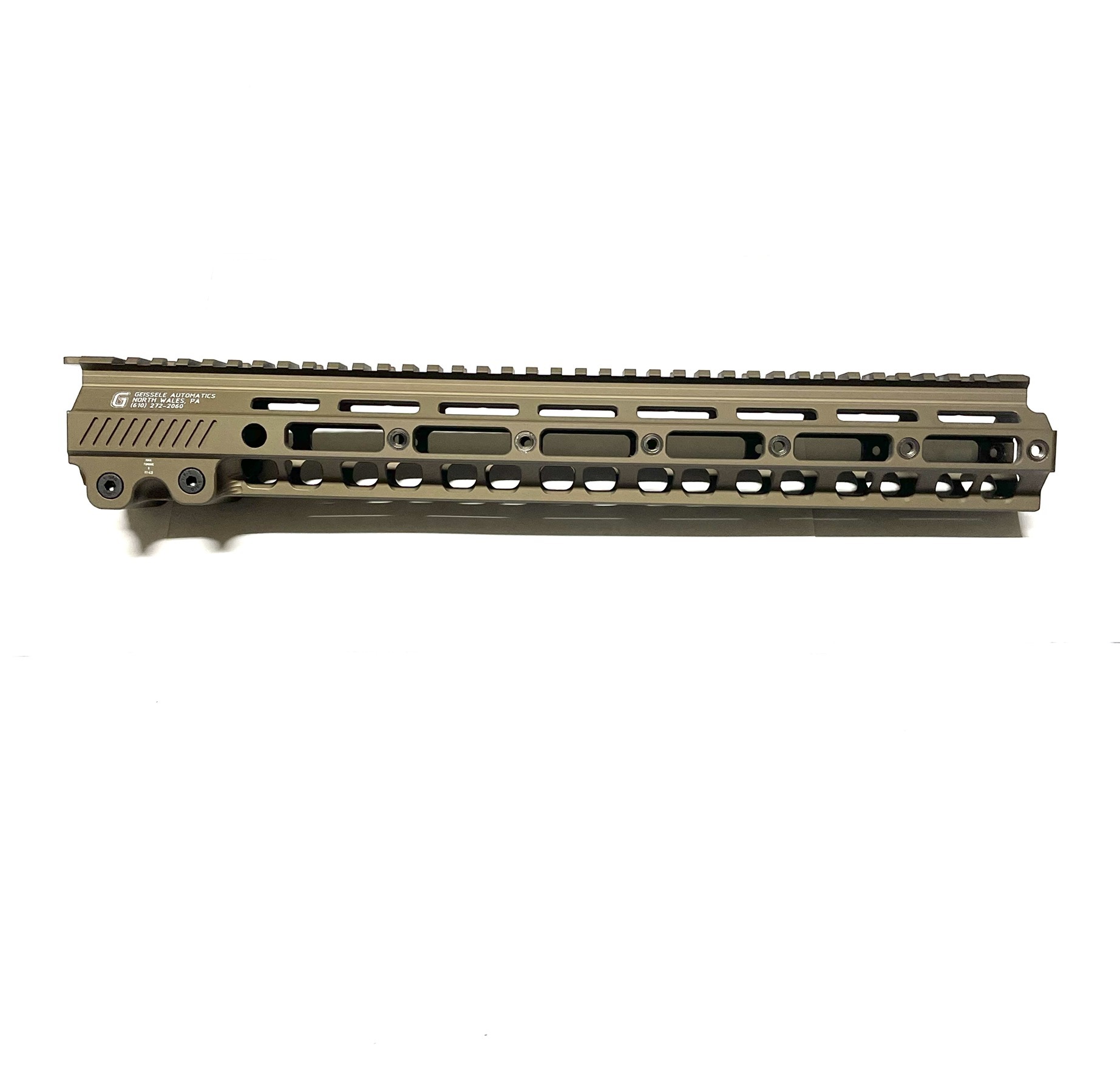

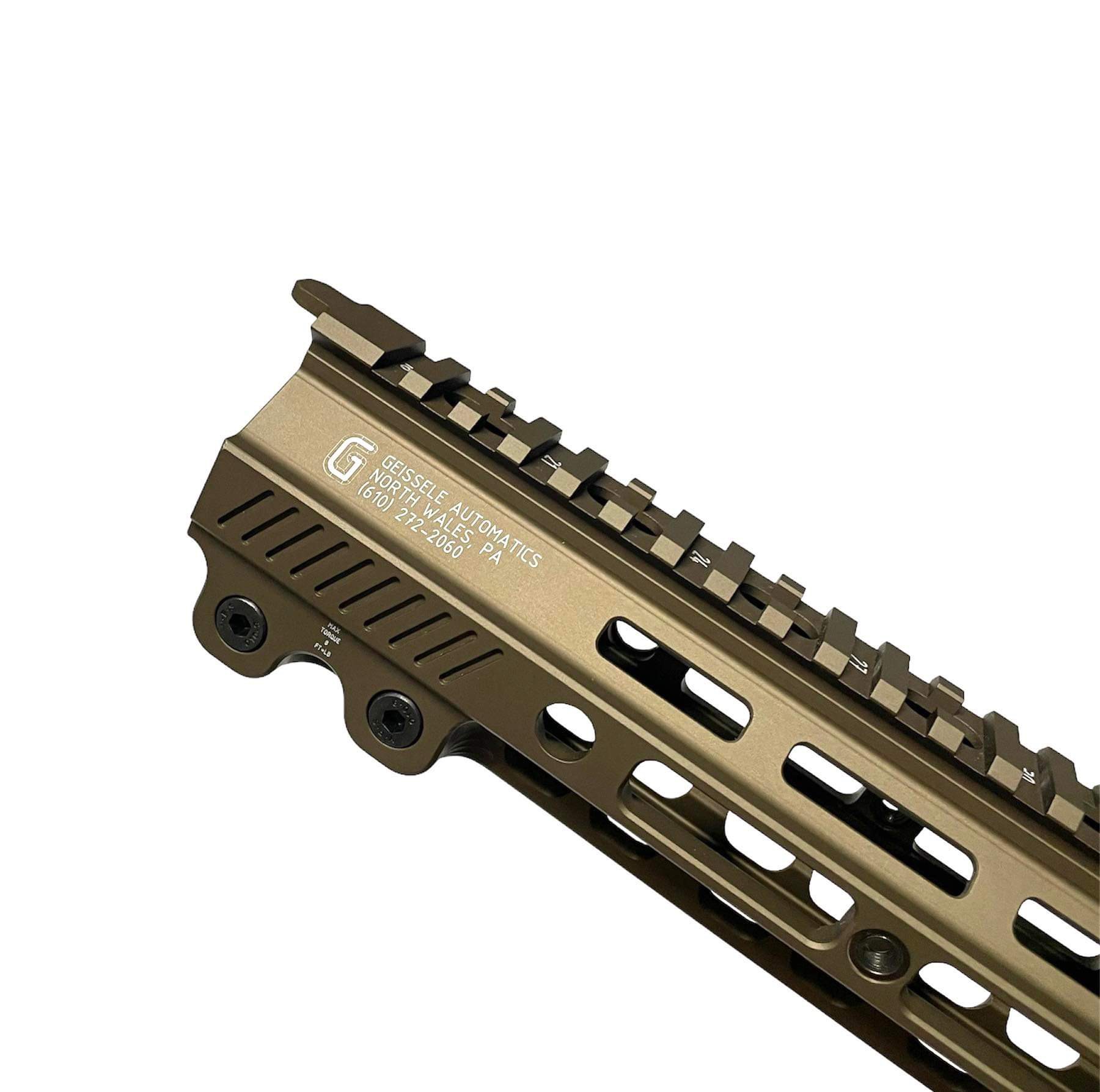

That handguard is long gone, but here are some pictures! Funny enough the kept the PEM serts lol, it was a bit lighter than the Remington handguard though.
Attachments
Man that is awesome! Thank you for sharing those. Hate that I missed out on that. Very cool piece.

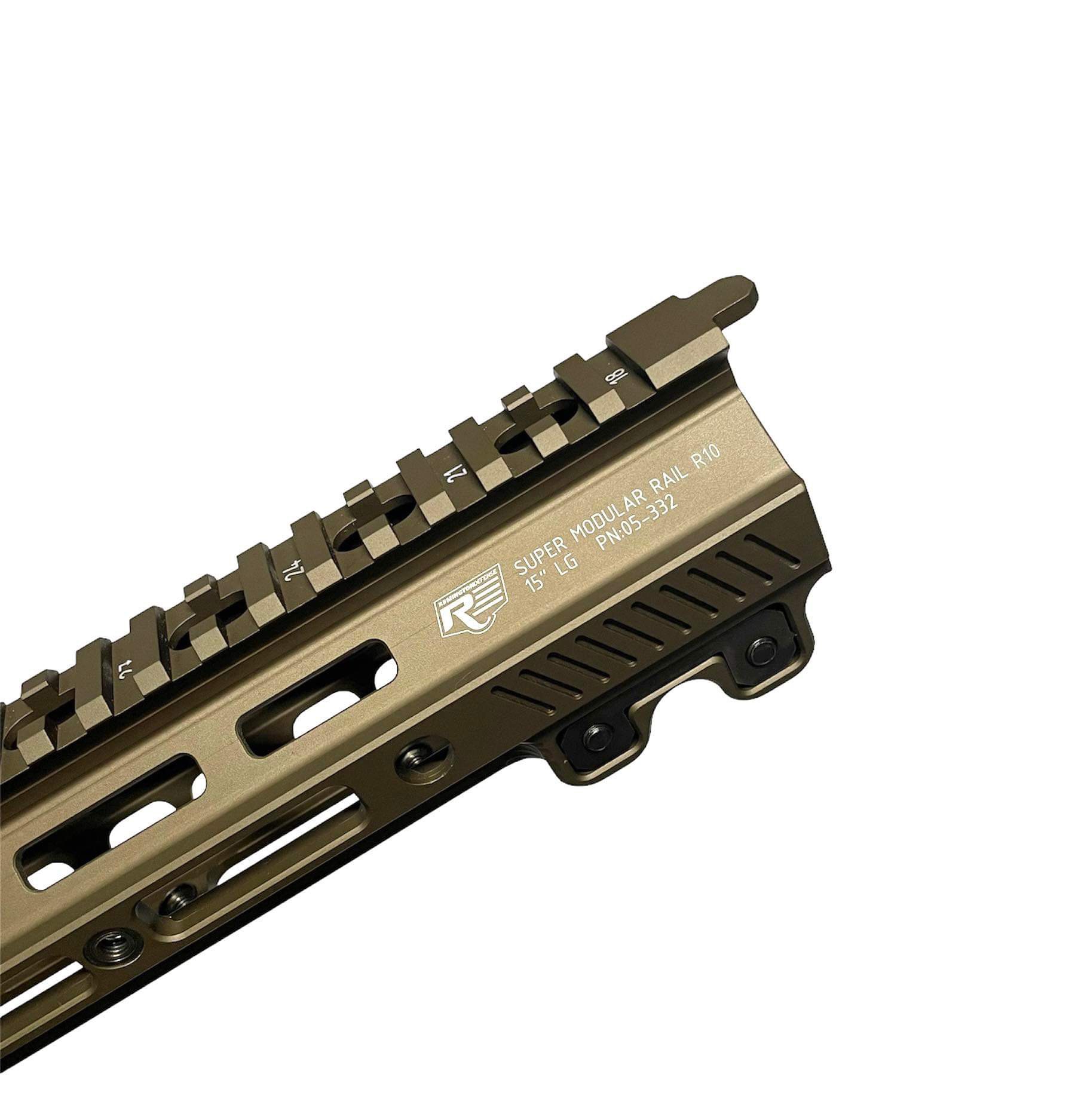

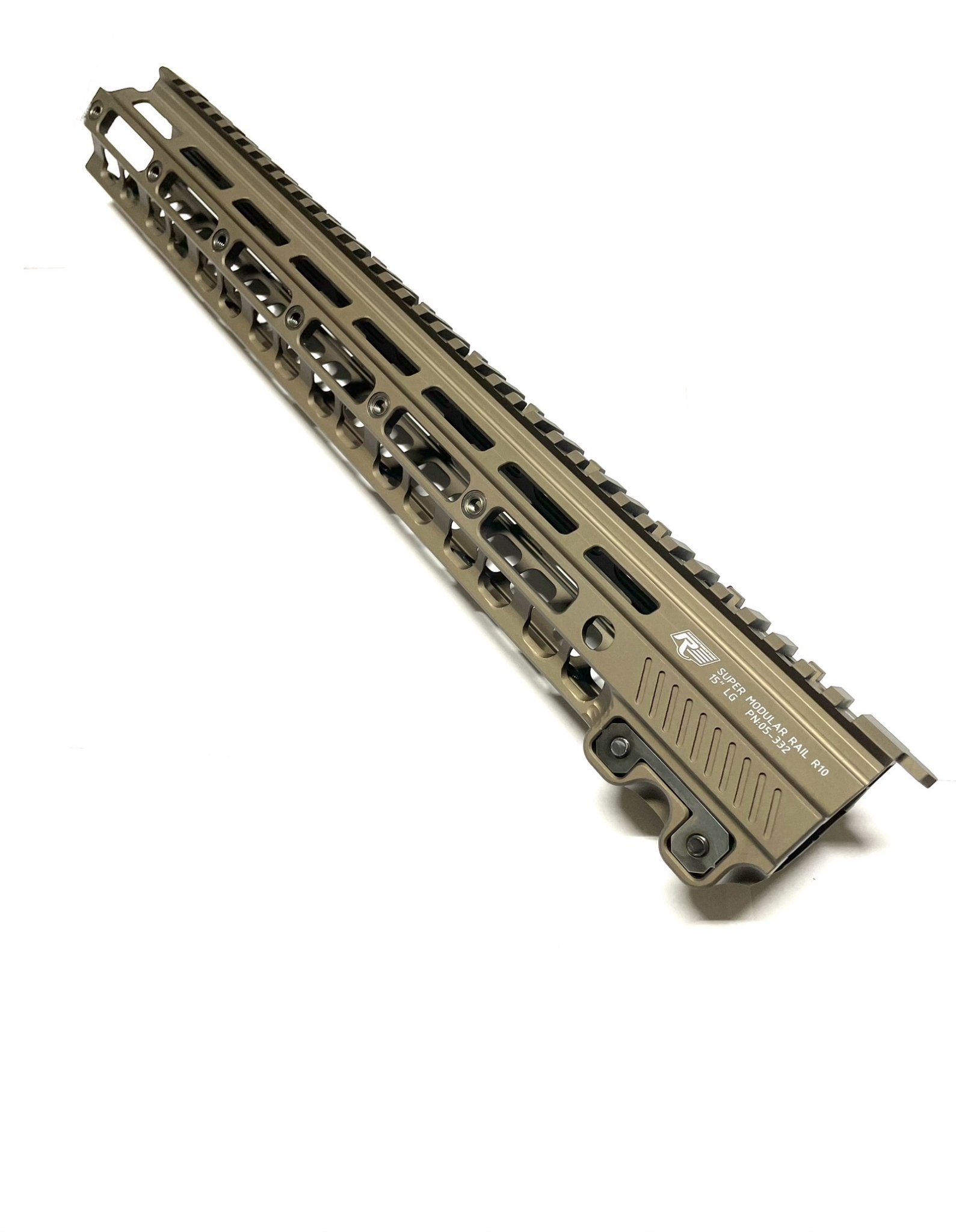

I’ve been trying to find a stray updated Remington rail since I got my R10. The updated model had a cutout for an adjustable gas block and utilized MLok slots.
Out of curiosity, how did you end up with that G rail?

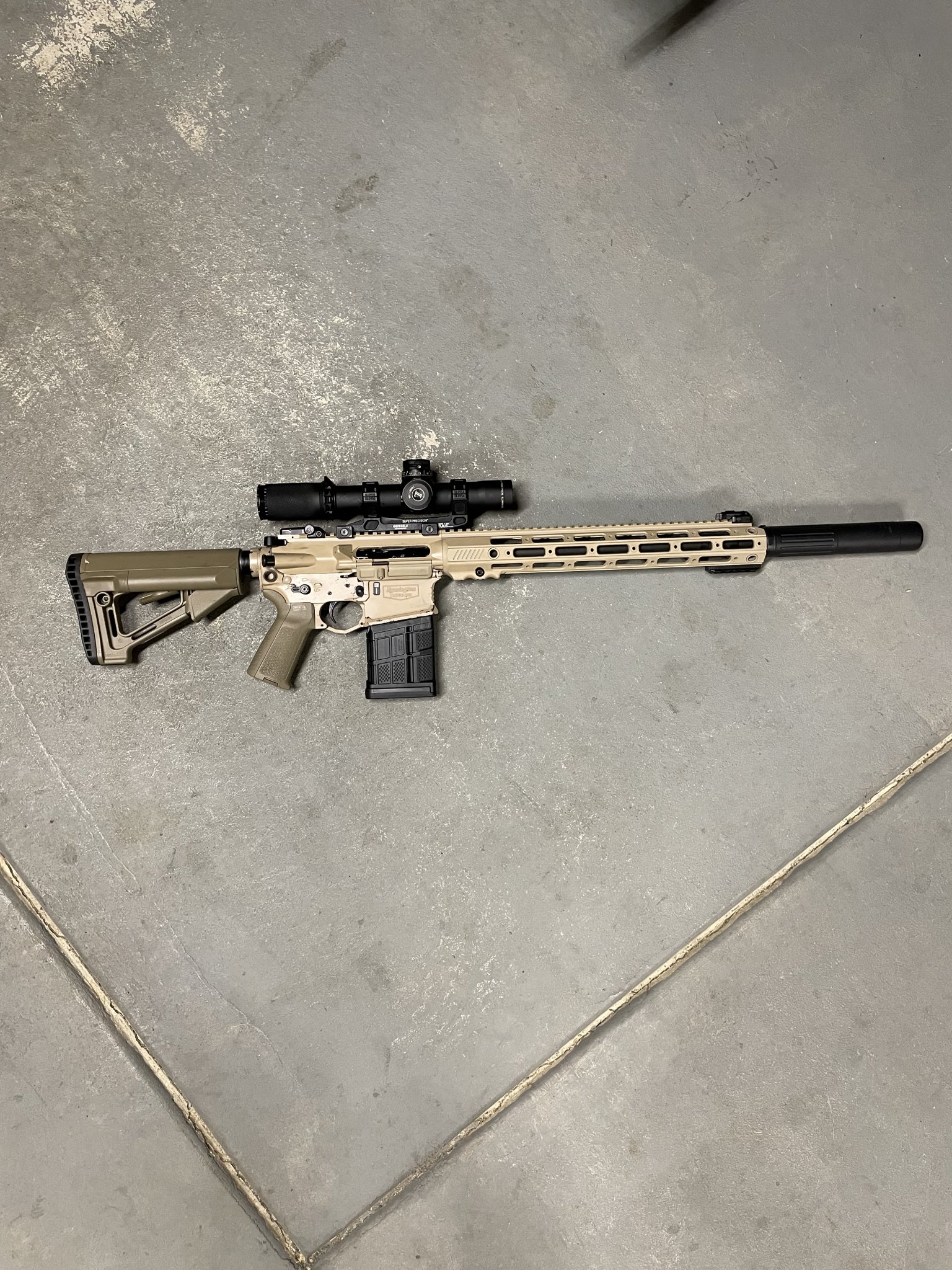

Bchico14 posted a photo of the R10 ERASR a DPMS G2+ (ambi-bolt release catch) rifle from Remington Defense. Remington had another more standard DPMS G2 (non-ambi-bolt catch) rifle called the R25 they sold to the public. Remington Defense as far as I can remember didn’t sell the R10 ERASR directly to the public until just before bankruptcy and nearly all of those are the Tunisia contract over run models. What Nolegs24 posted is a different rifle completely its the Remington RSASS (not DPMS GII) entry for the SASS competition developed jointly with JP Rifles.
