Gunsmithing 5x stock inletting.
- Thread starter LRI
- Start date

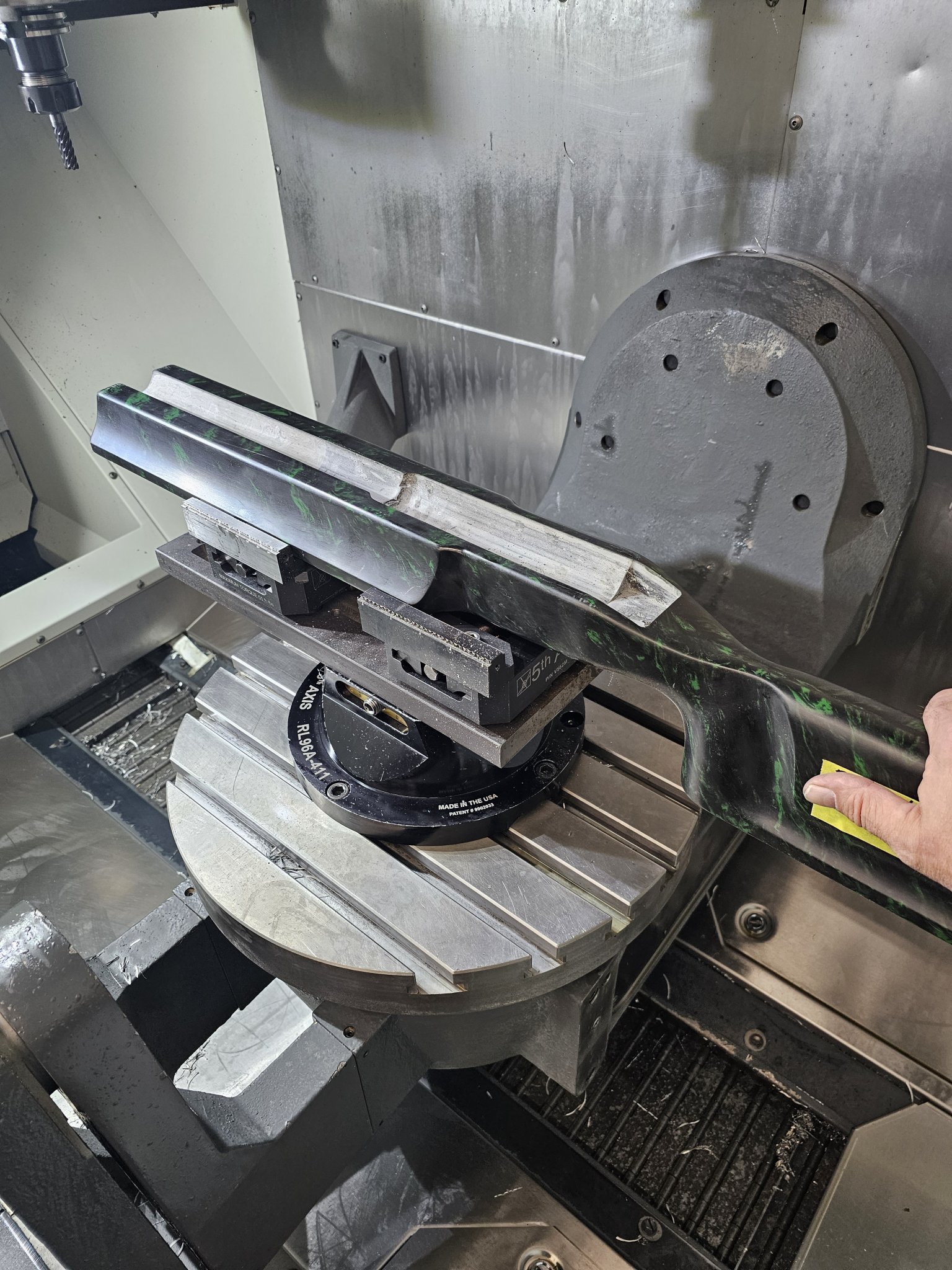

Do you want to stay with a vertical or go horizontal?
The encore:

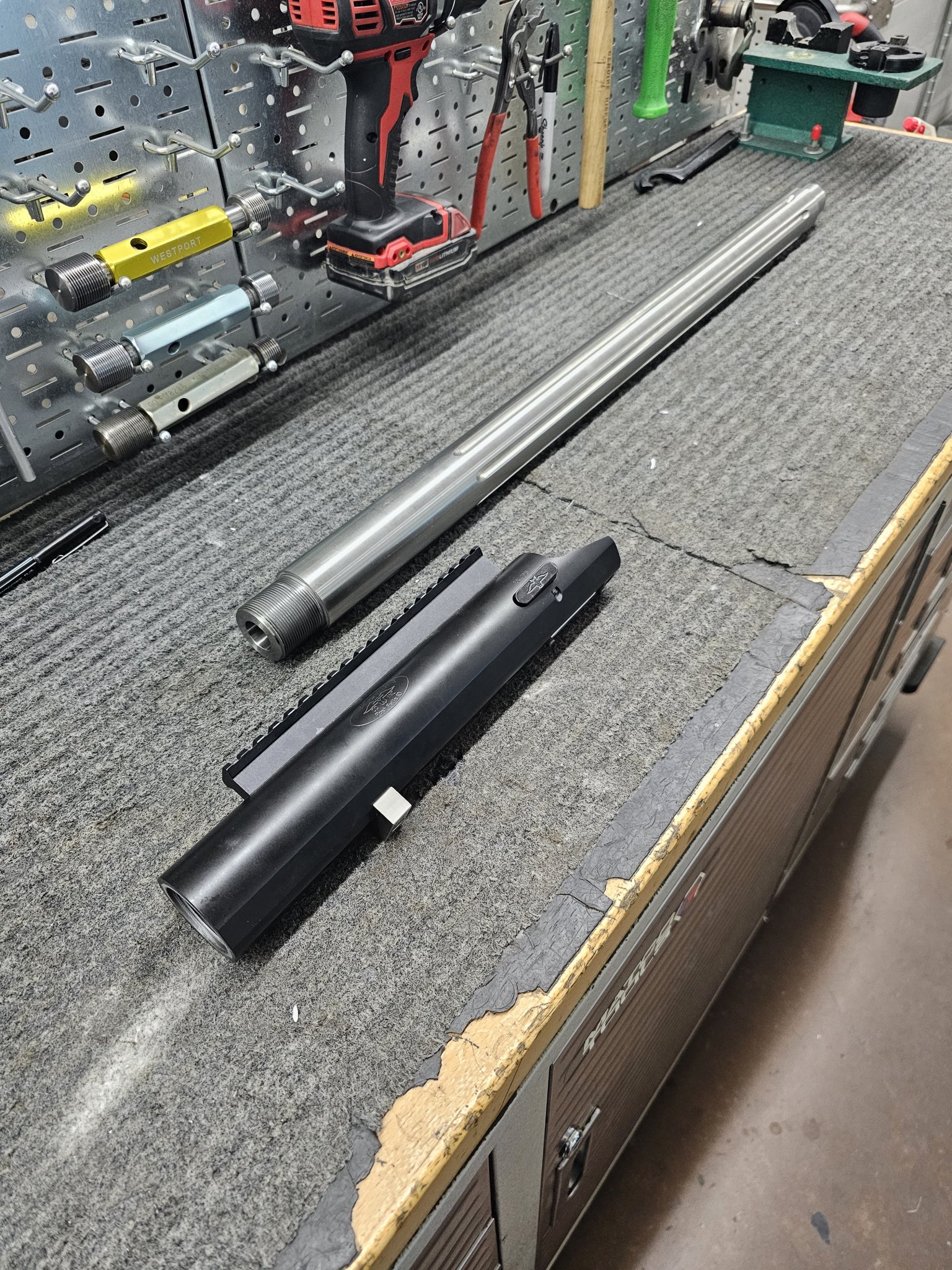

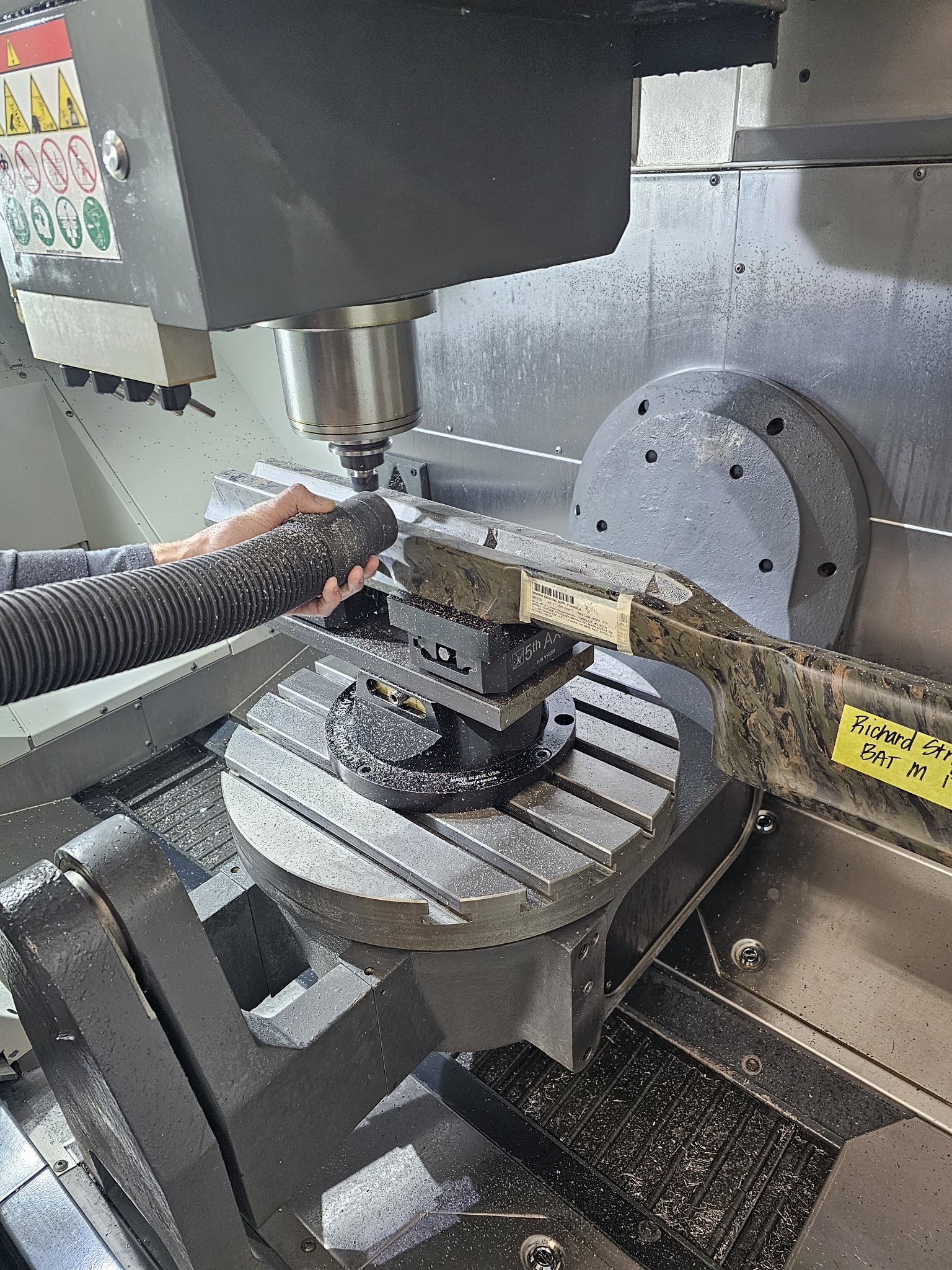

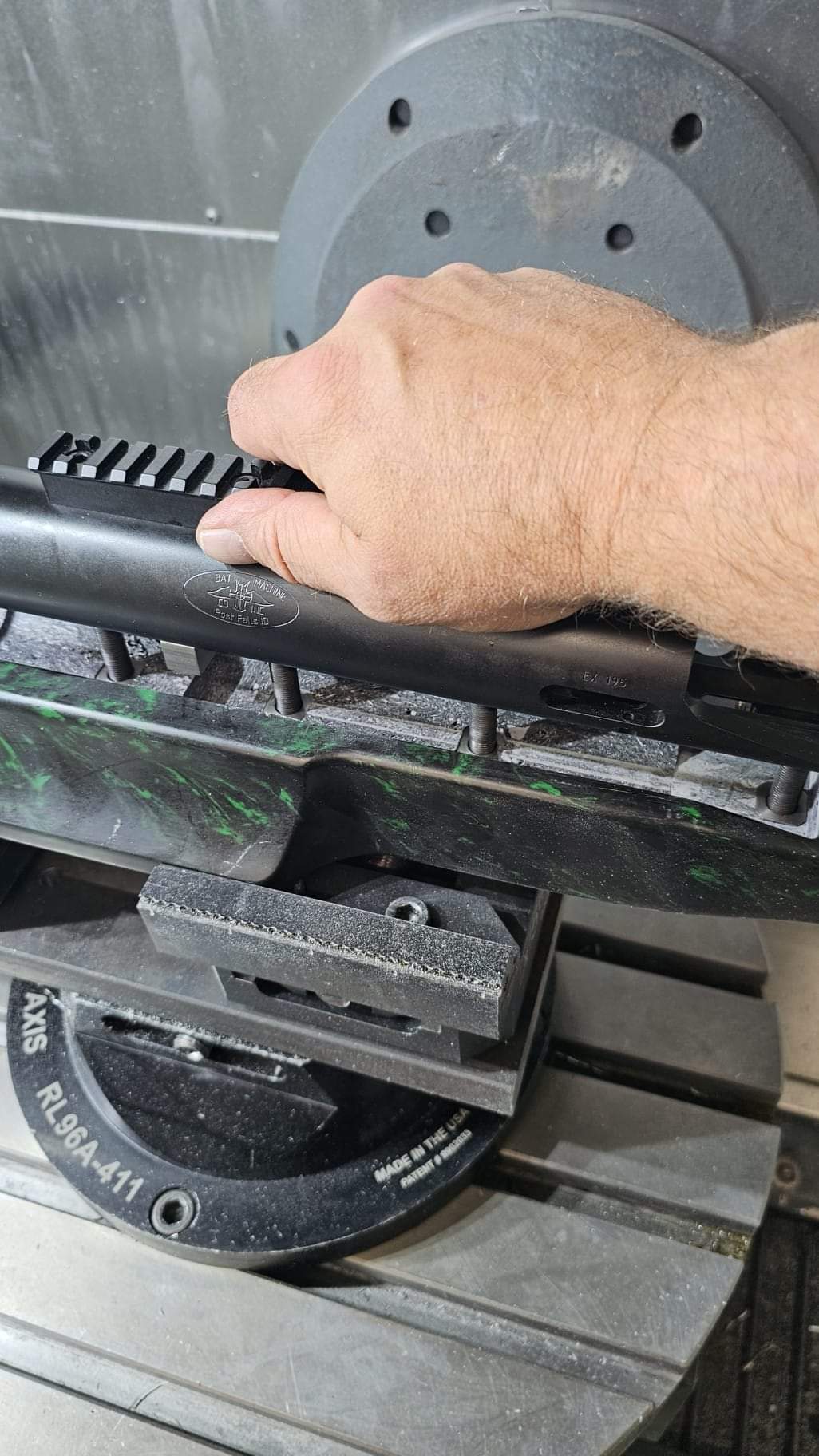

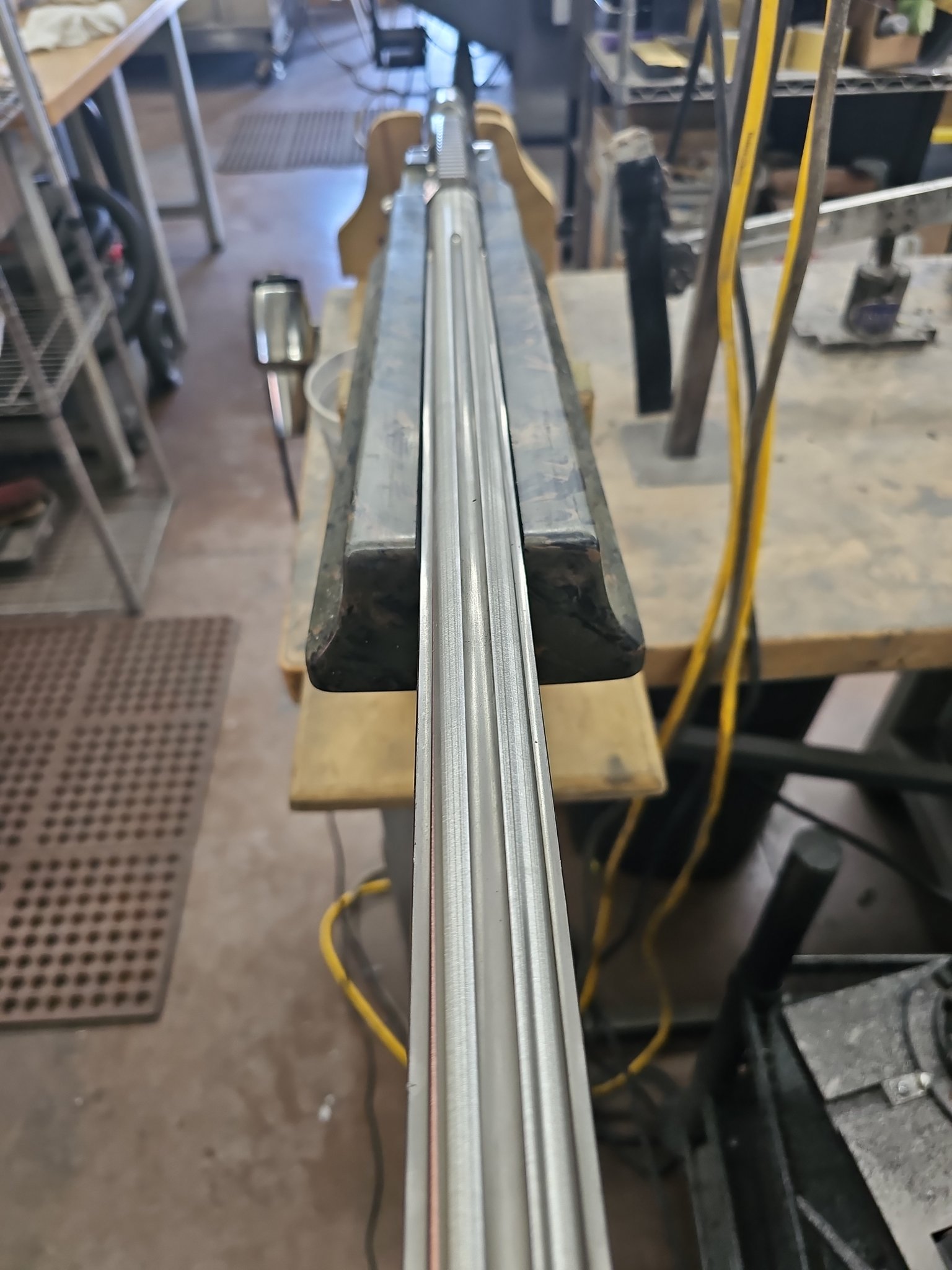

BAT 50 was today's project.

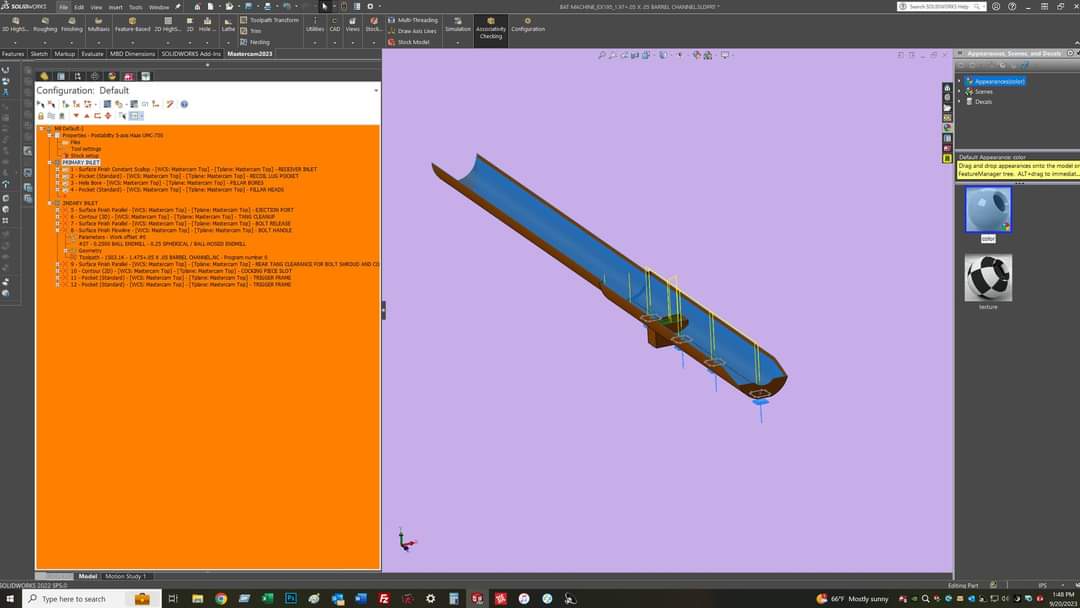

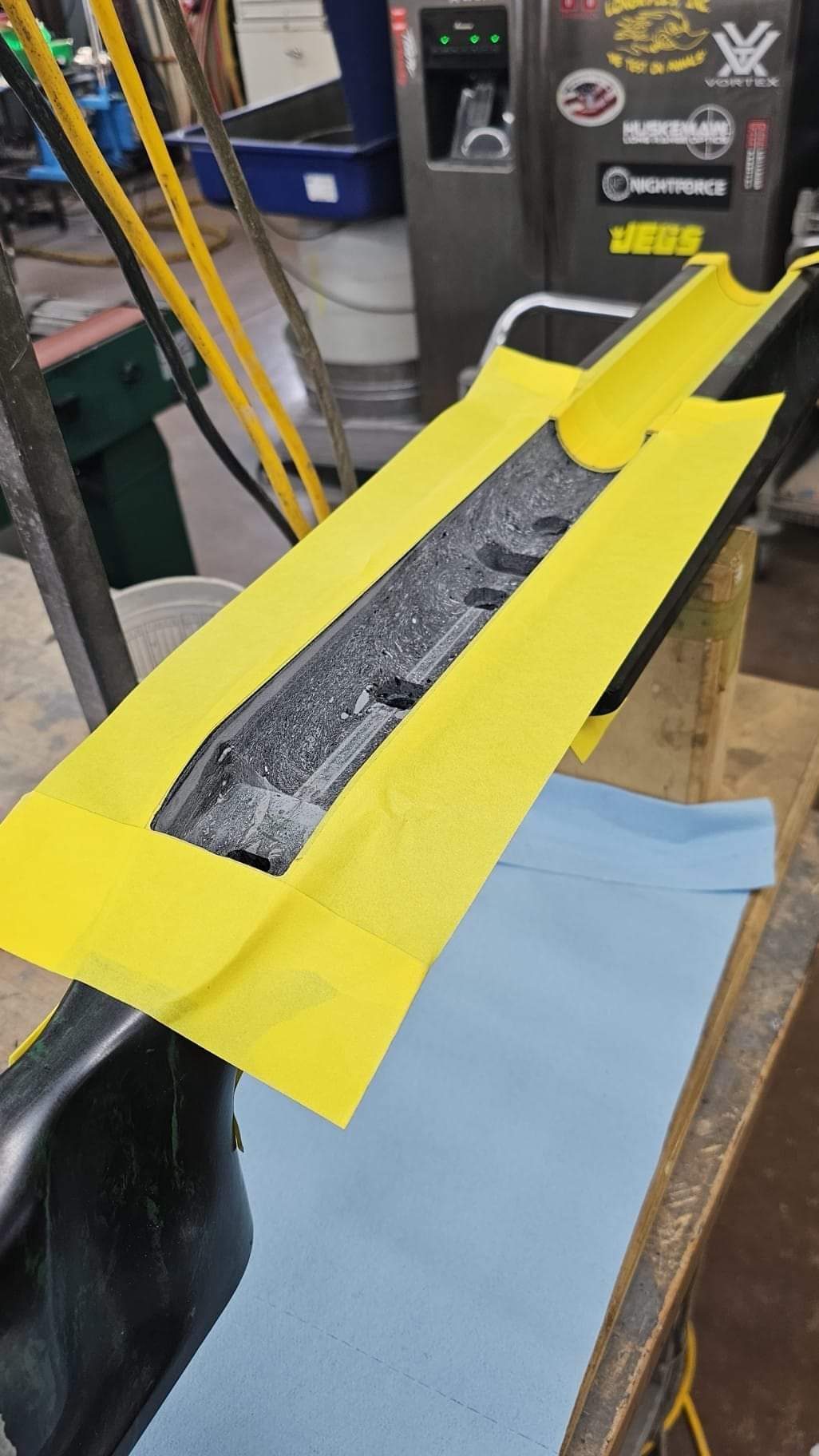

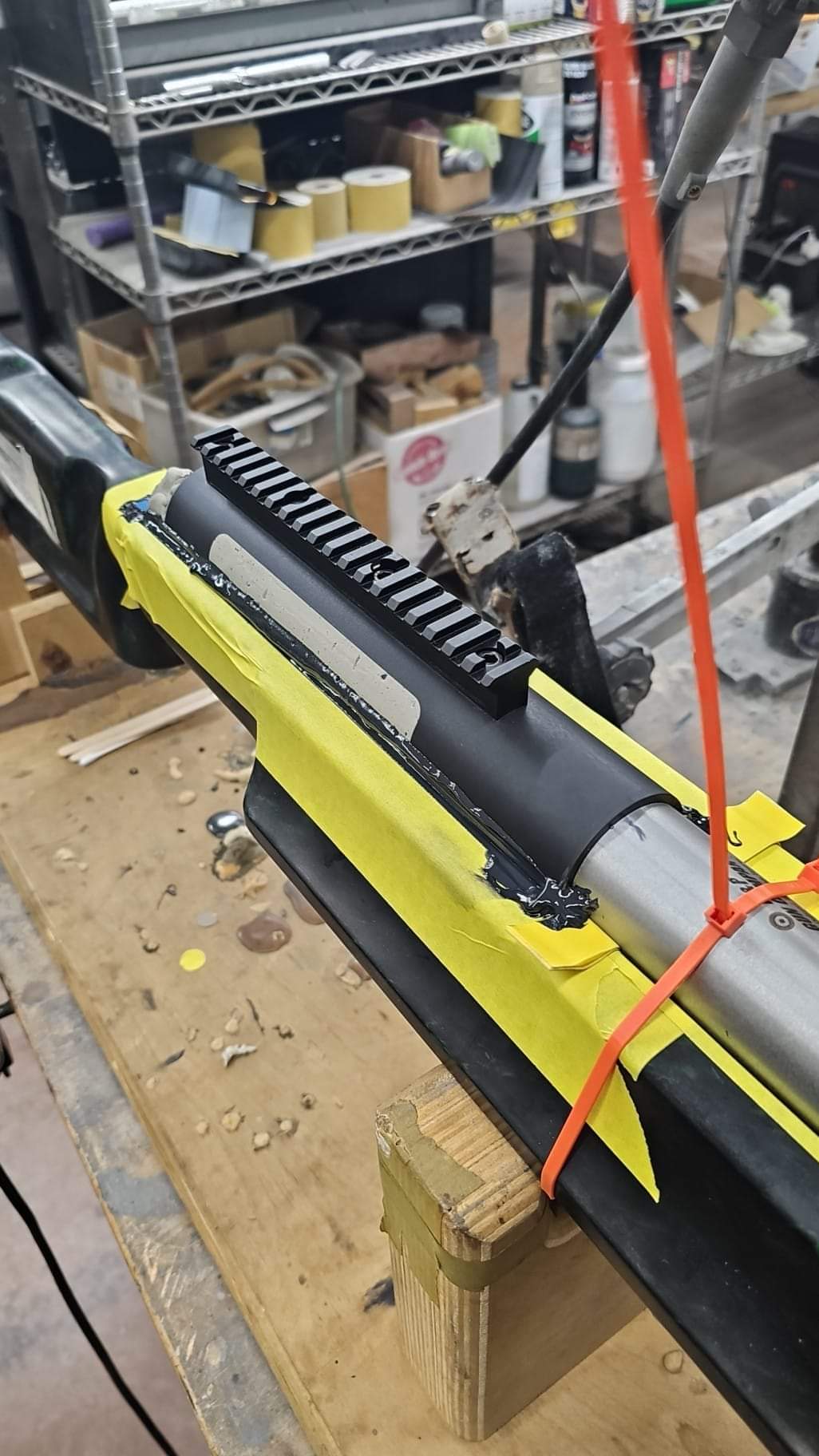

Inlet n bed. It's going to "cook" overnight.
BAT 50 was today's project.
Inlet n bed. It's going to "cook" overnight.
Attachments
Awesome.
Nice work. That rear tang fitment annoys me way more than it should. Old McMillan stocks or new ones ?

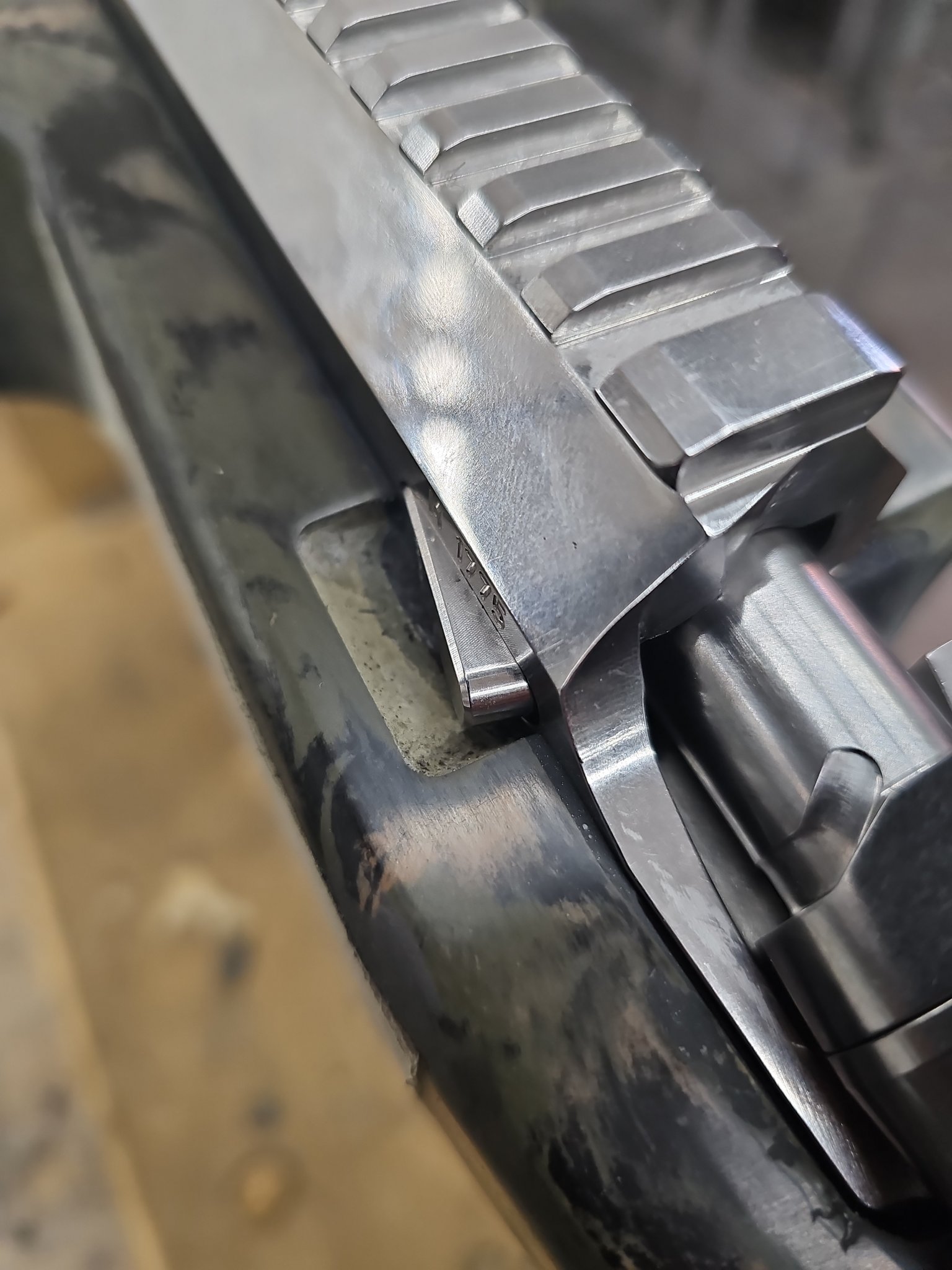

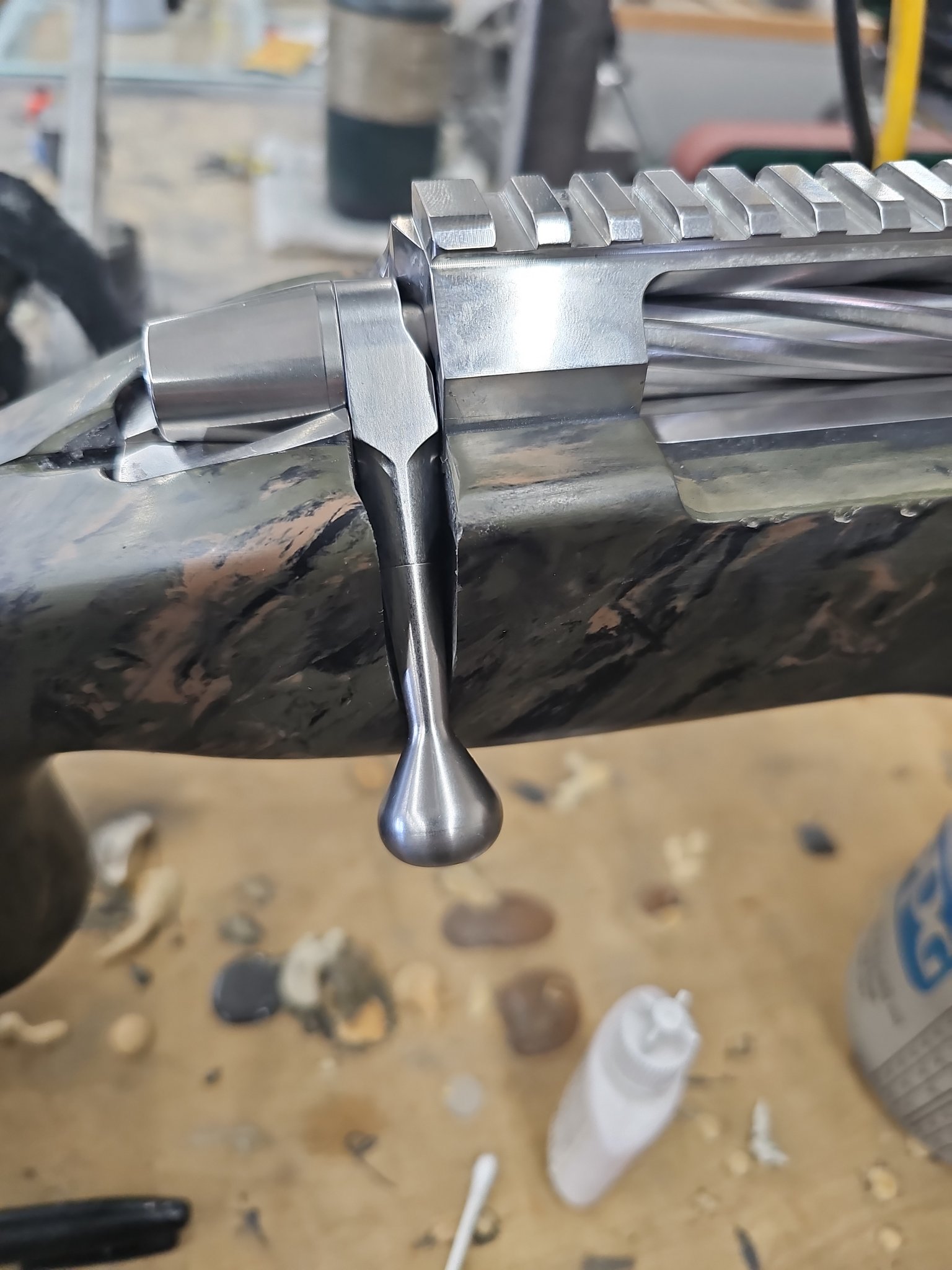

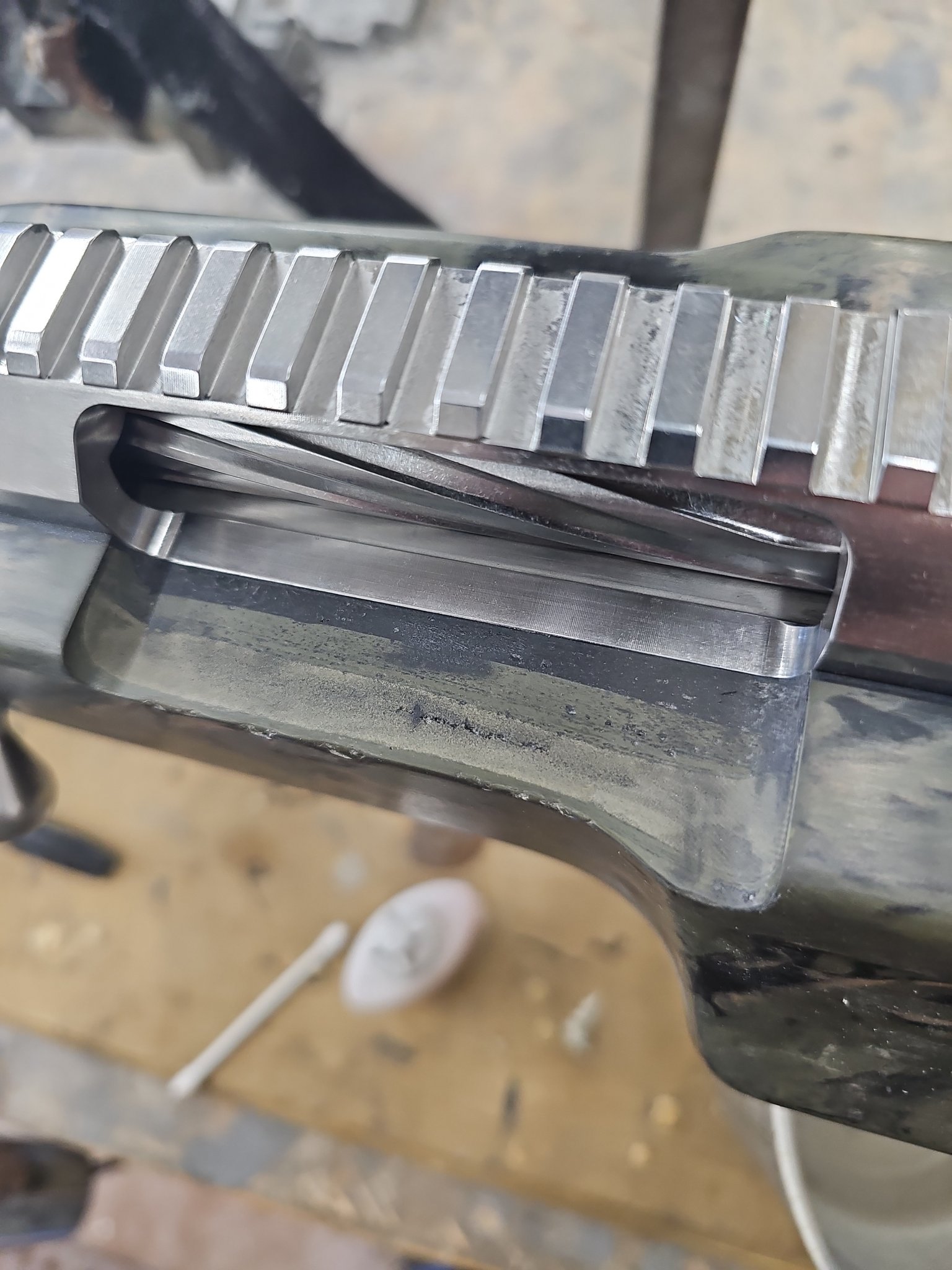

This is all client-supplied stuff and no paintwork on the exterior, so it is what it is. On the first gun, it's a 300WM plopped into a "railroad tie" sized stock so its not surprising at all that the tang is buried a bit. When I encounter this I finish the tang the same way I do on a Palma Rifle. Machine a clearance feature around the tang and the channel that the bolt runs through.

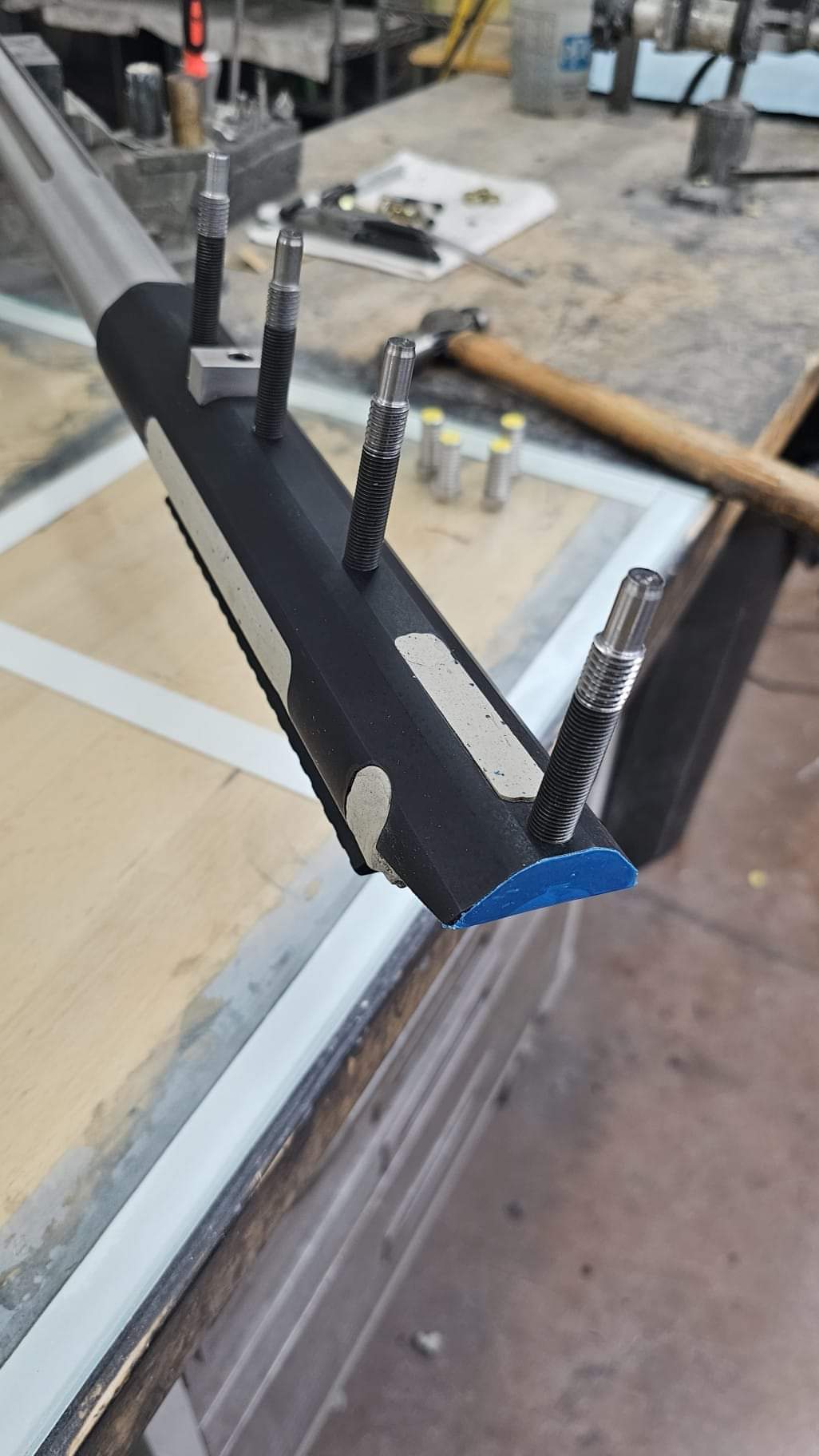

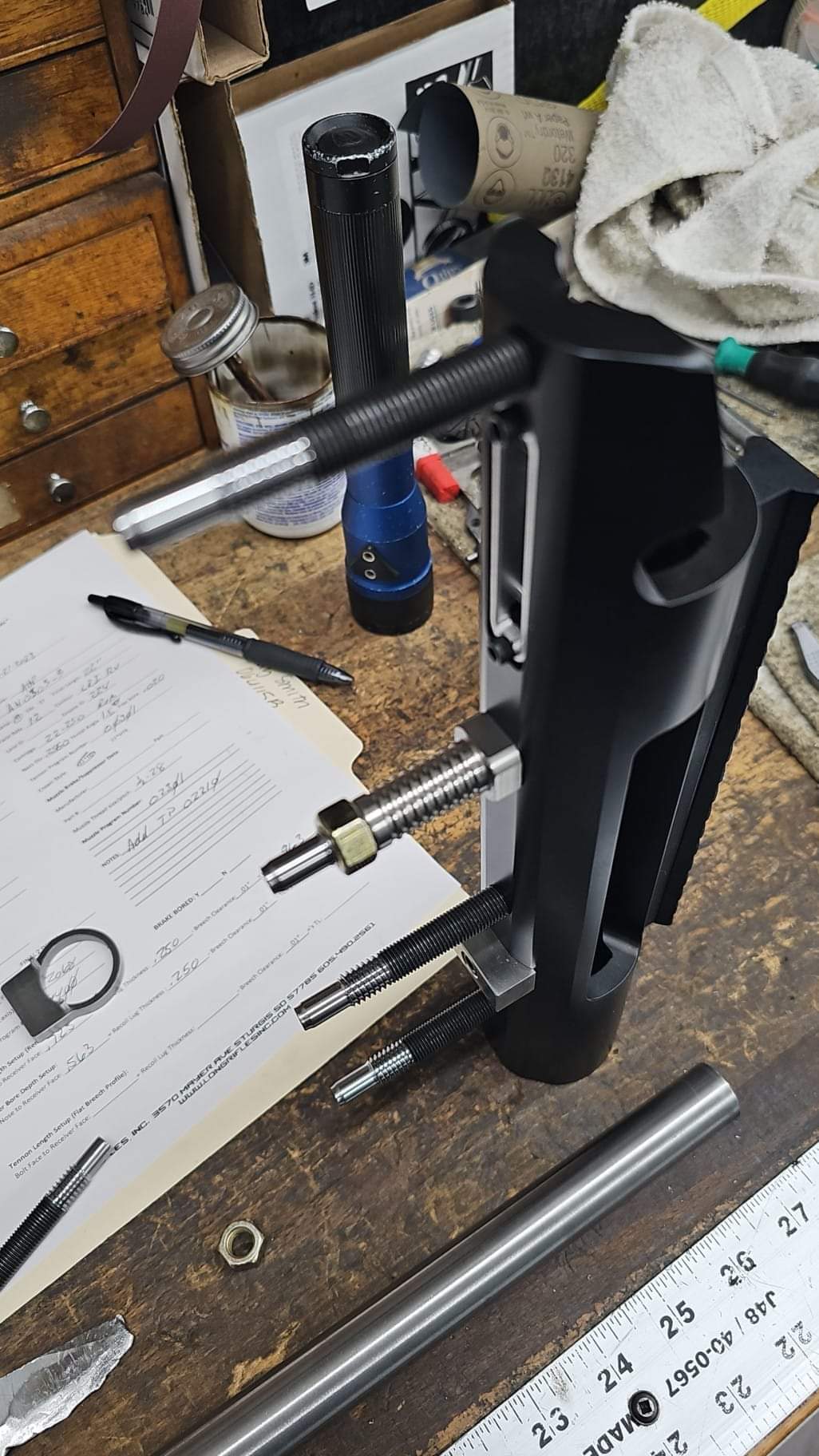

"Fitty Kal" stuff:

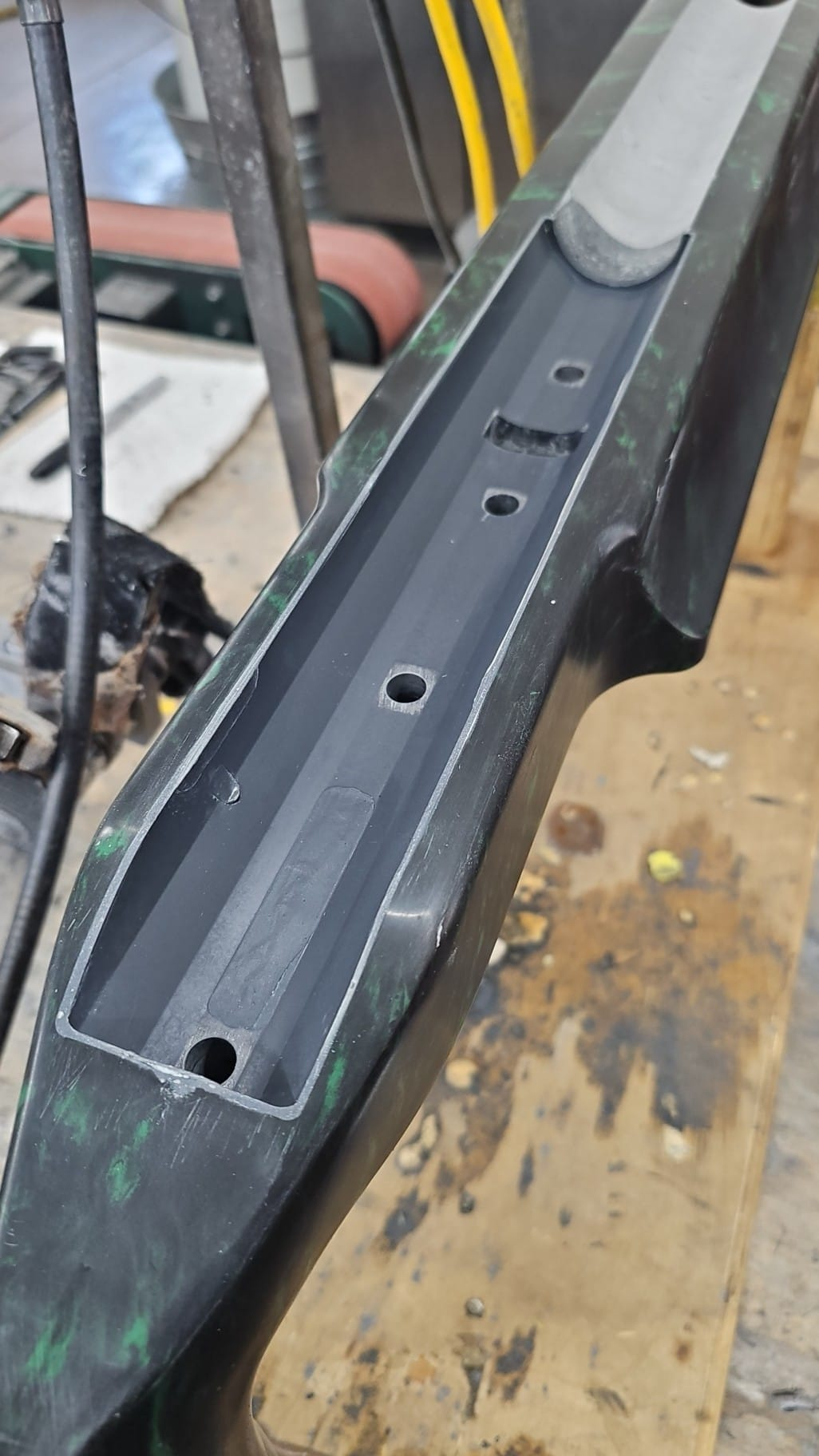

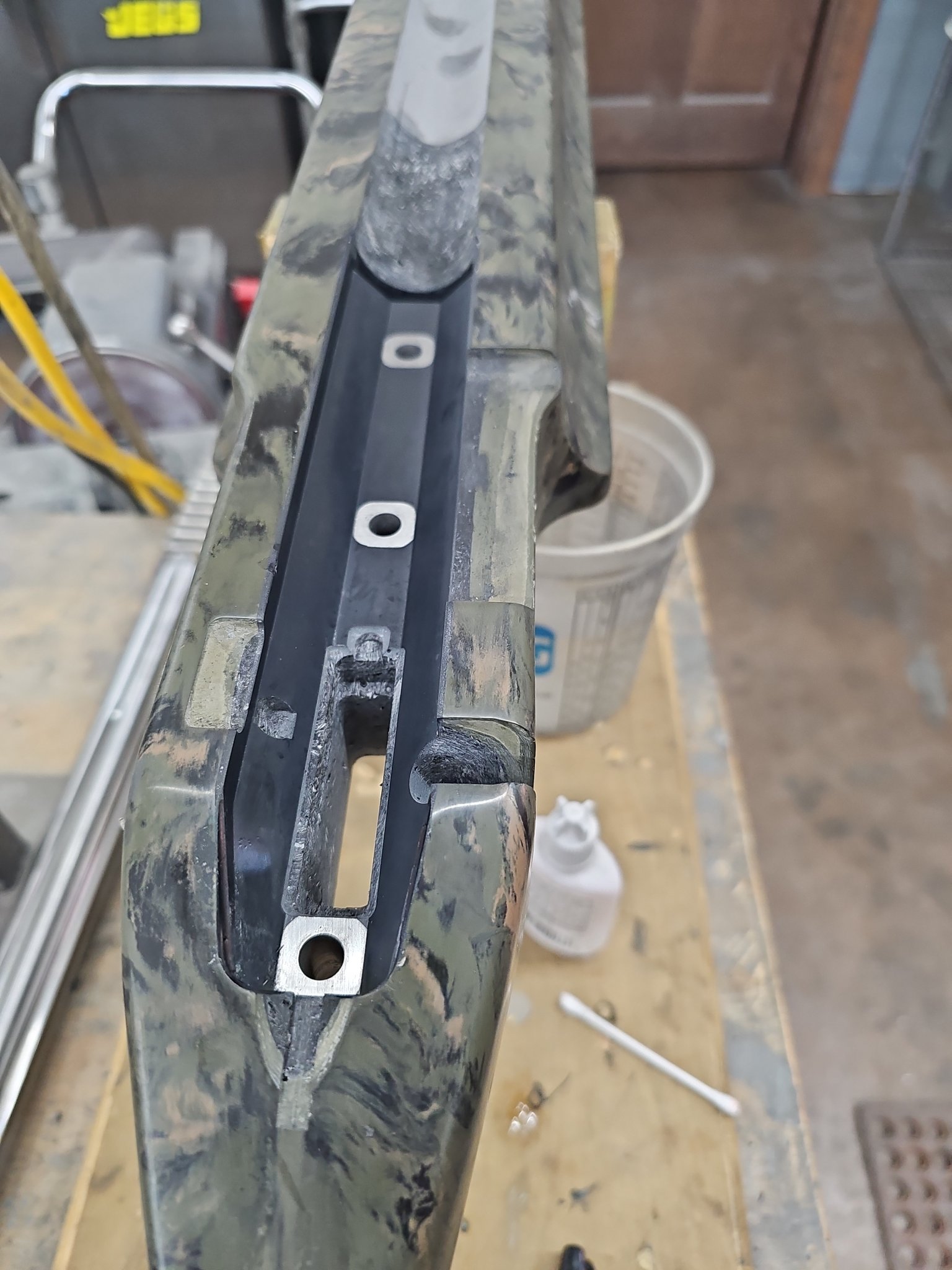

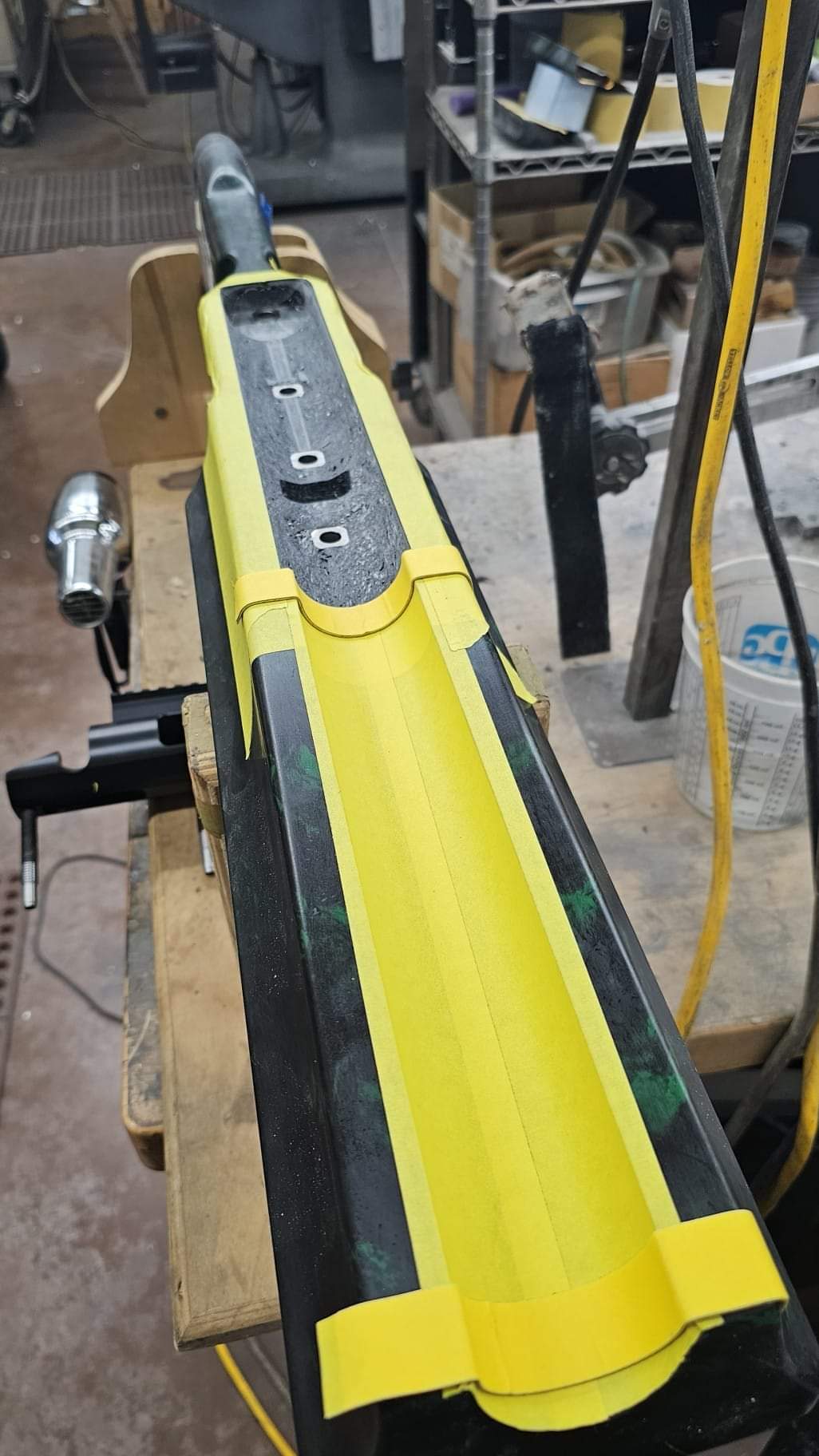

Right after bedding:

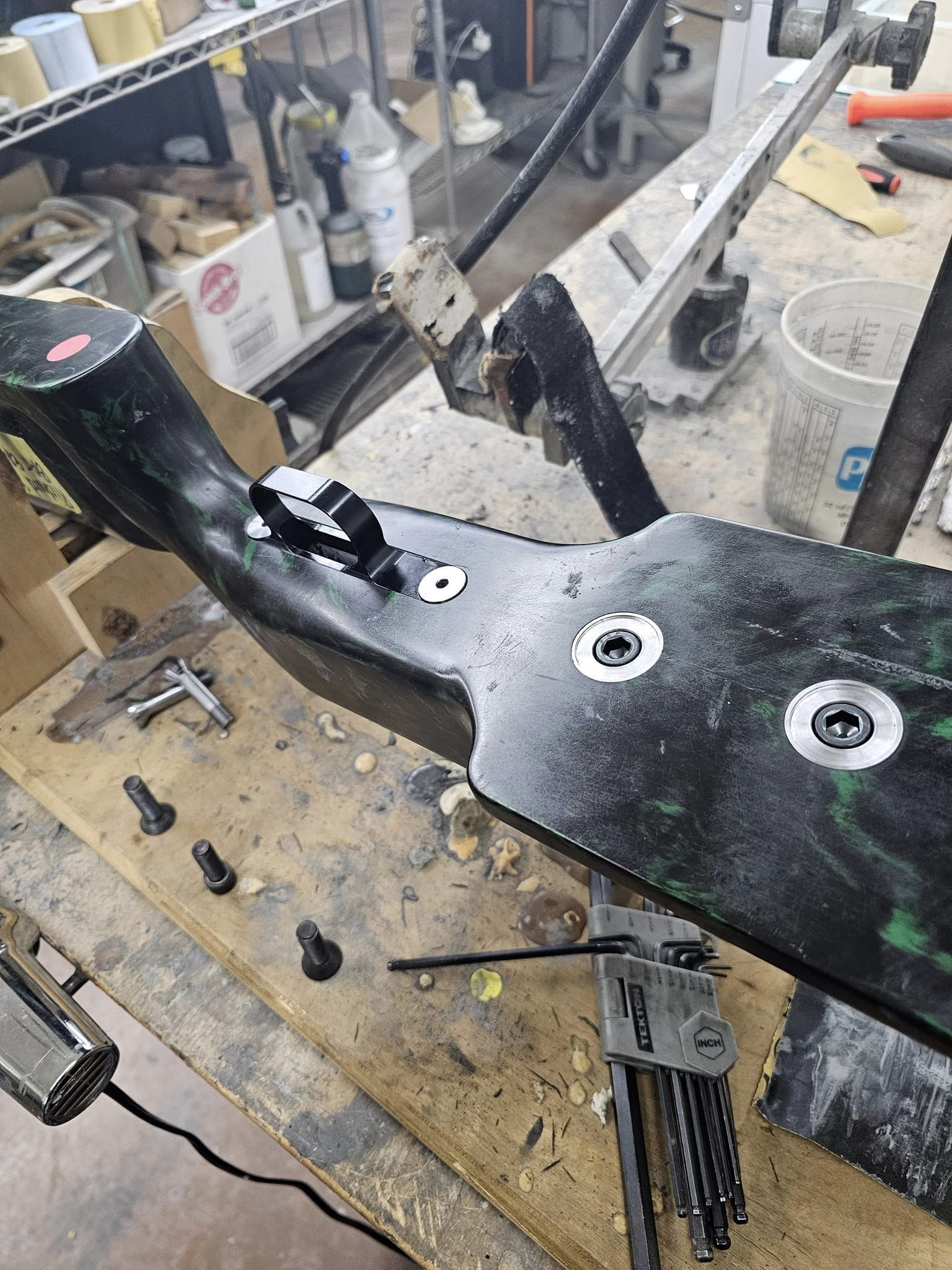

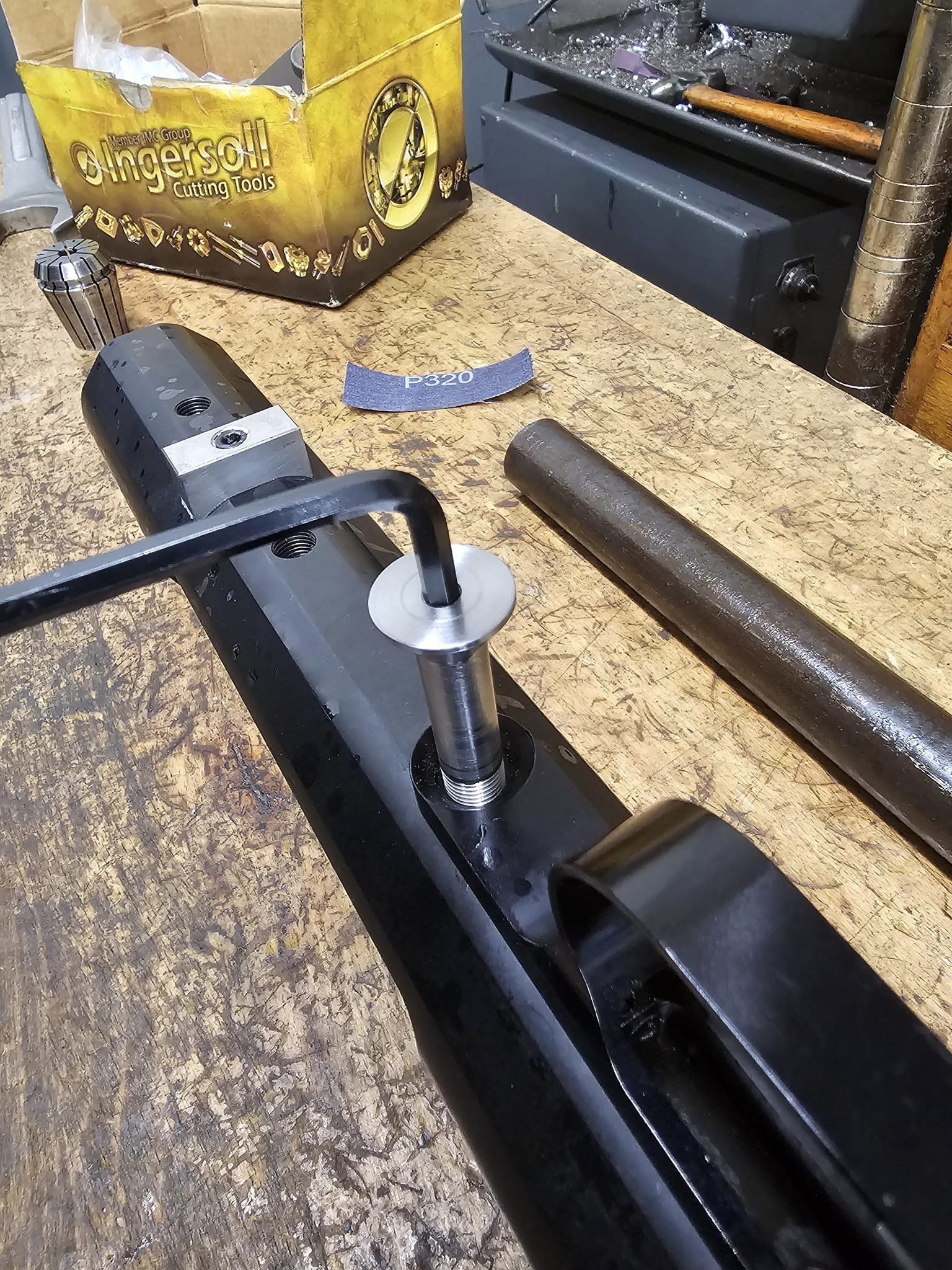

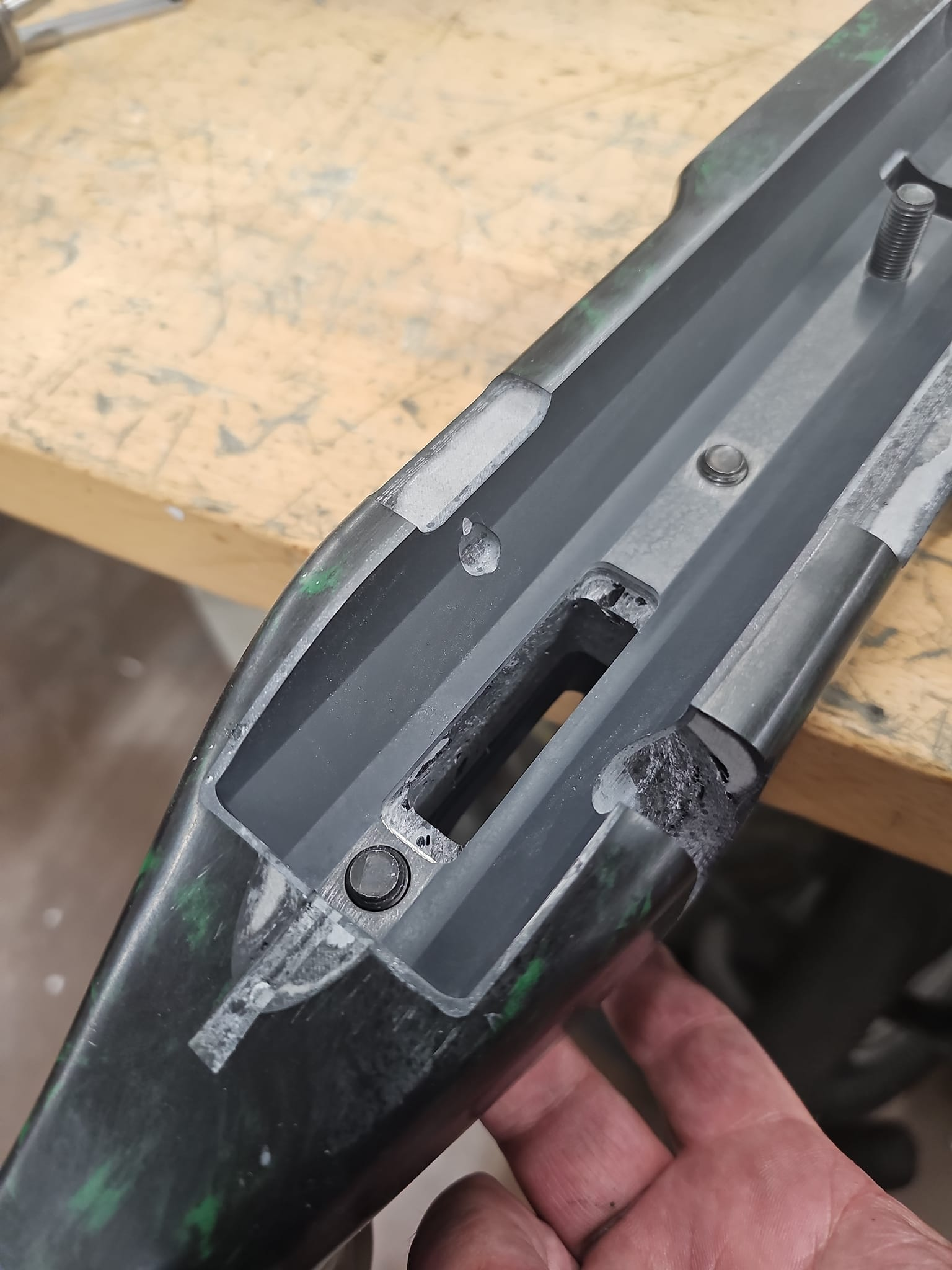

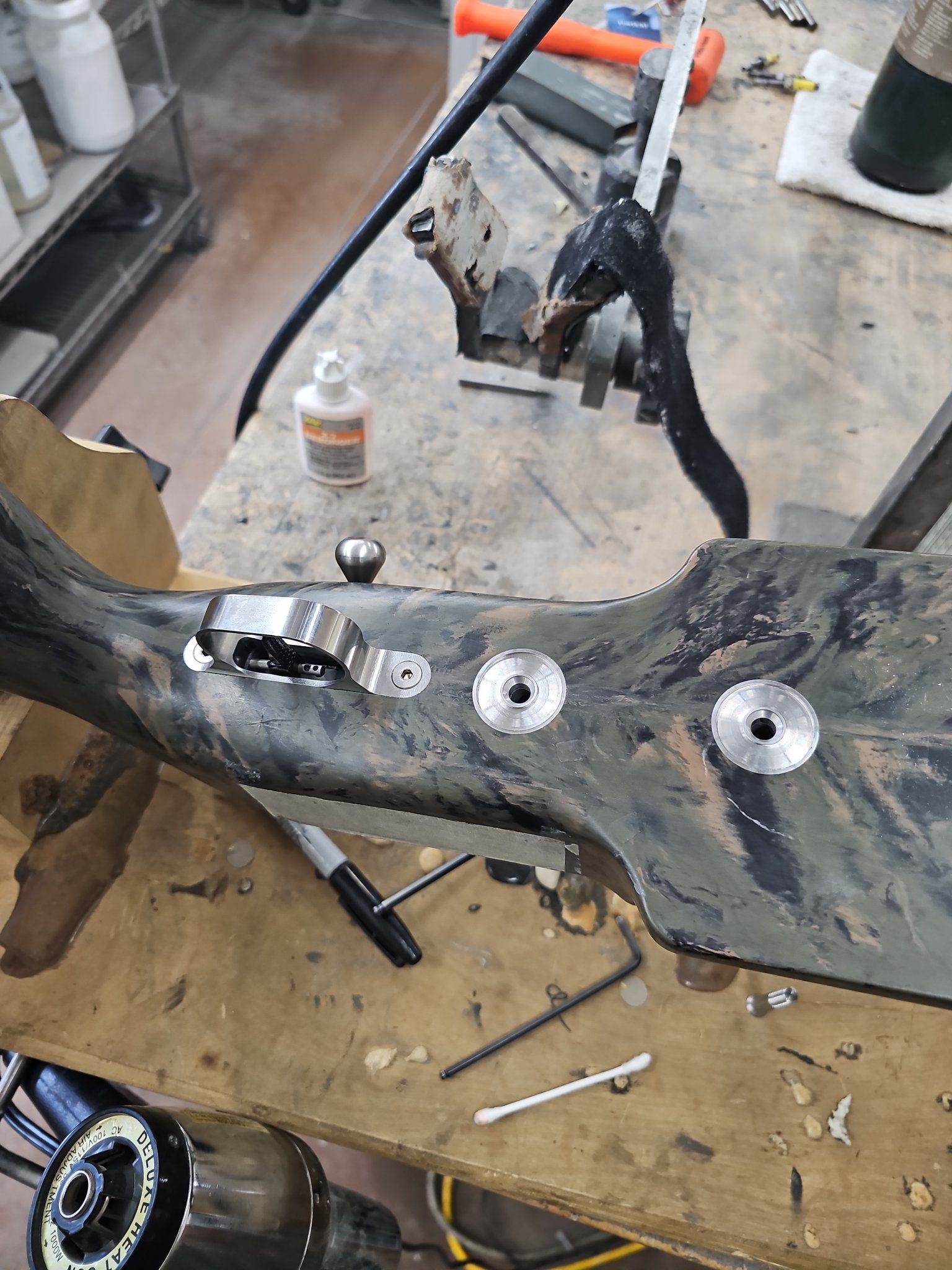

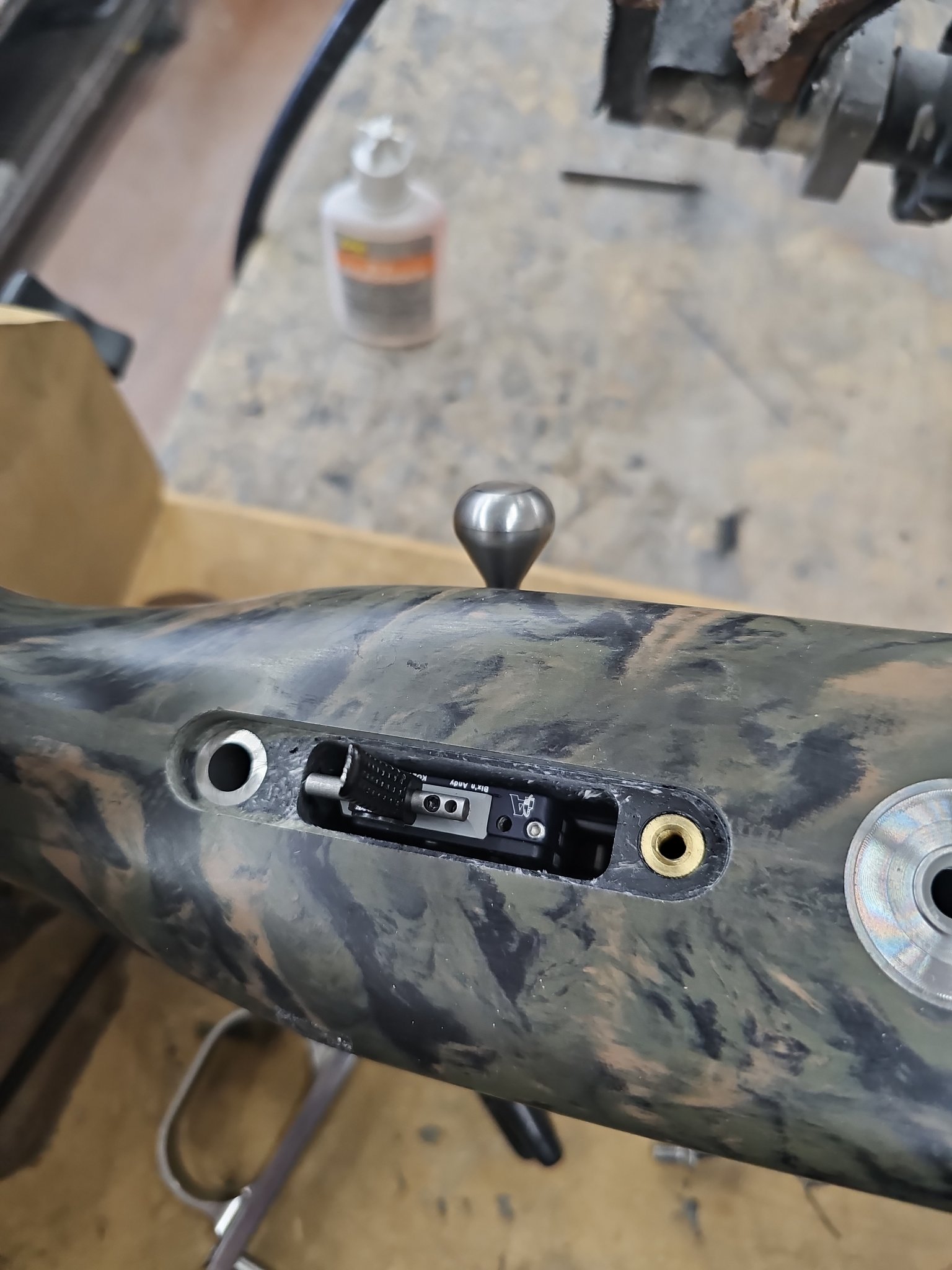

Post bedding inlet work. Dern trigger guard screws are too short.

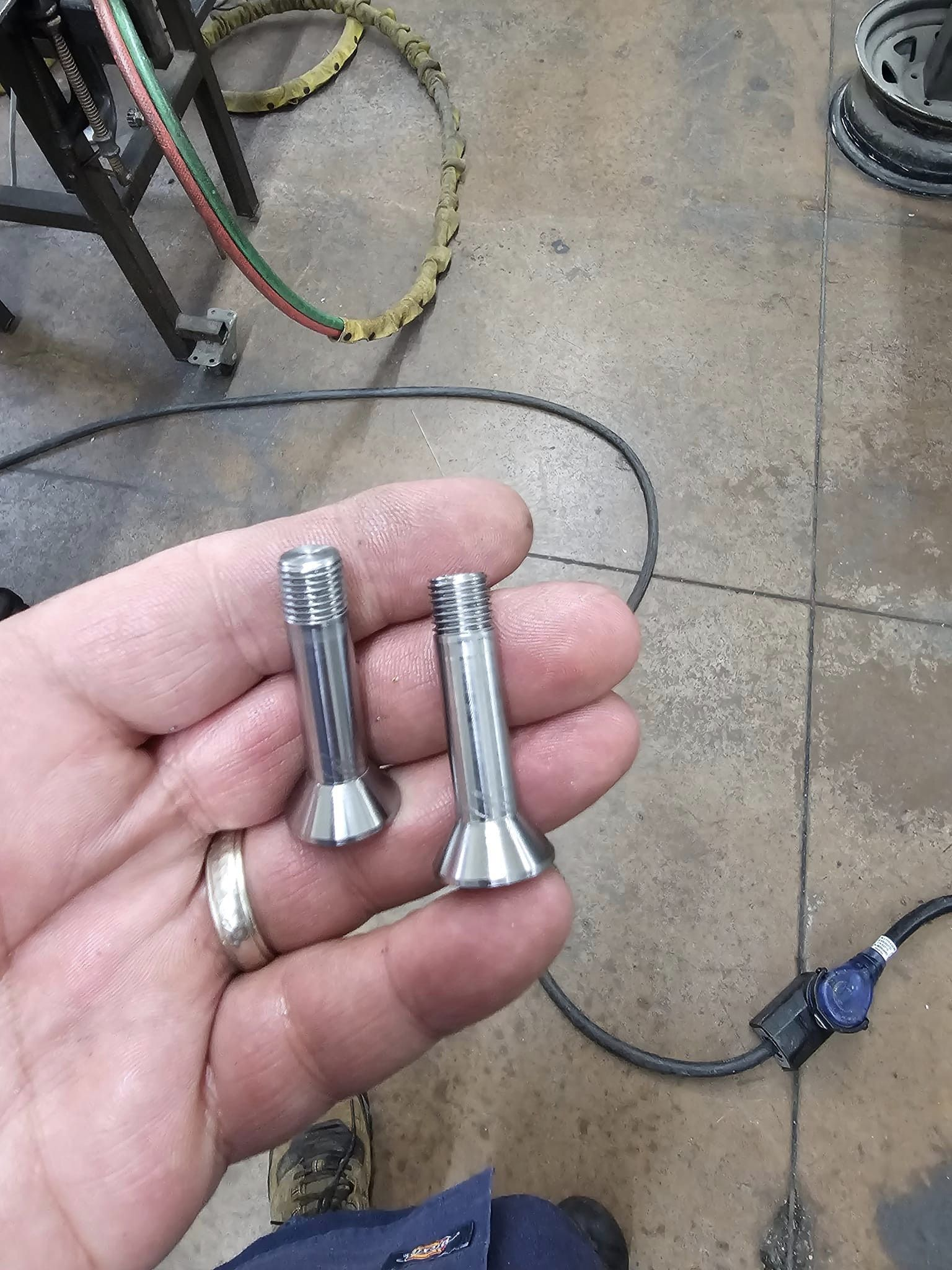

Nobody in town has anything even close so....fire up a spindle and make some.

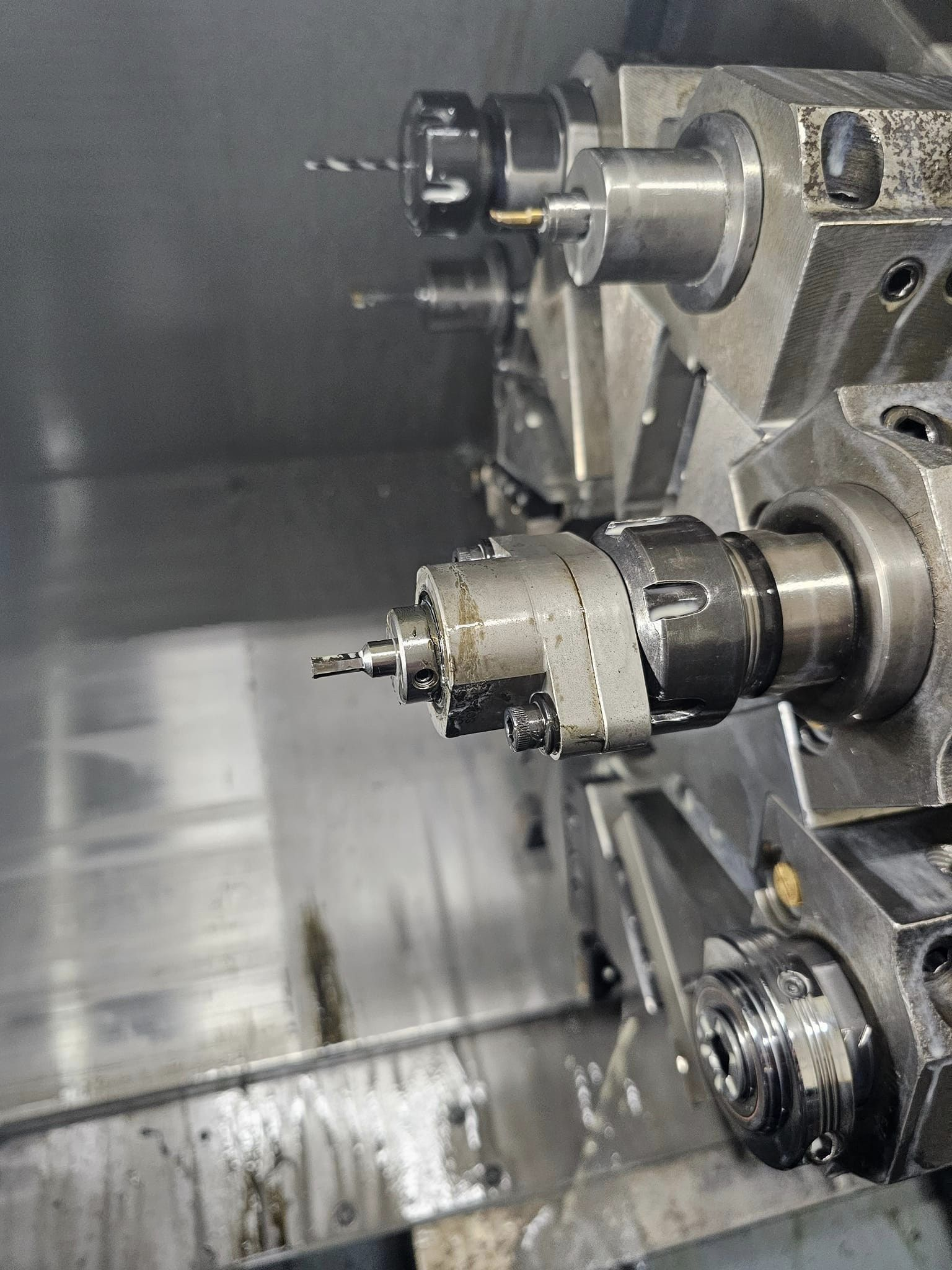

Rotary broach for the allen key socket:

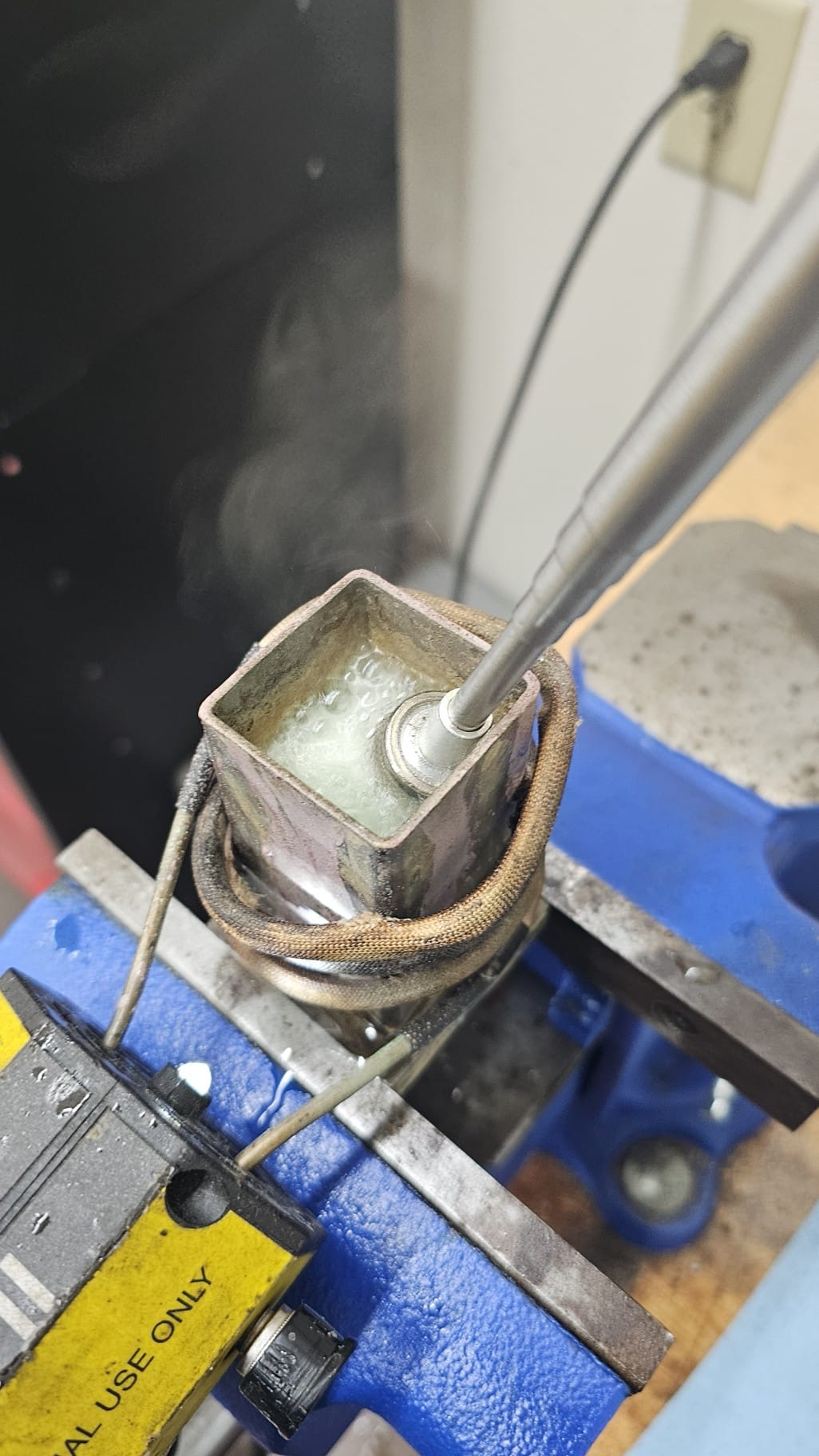

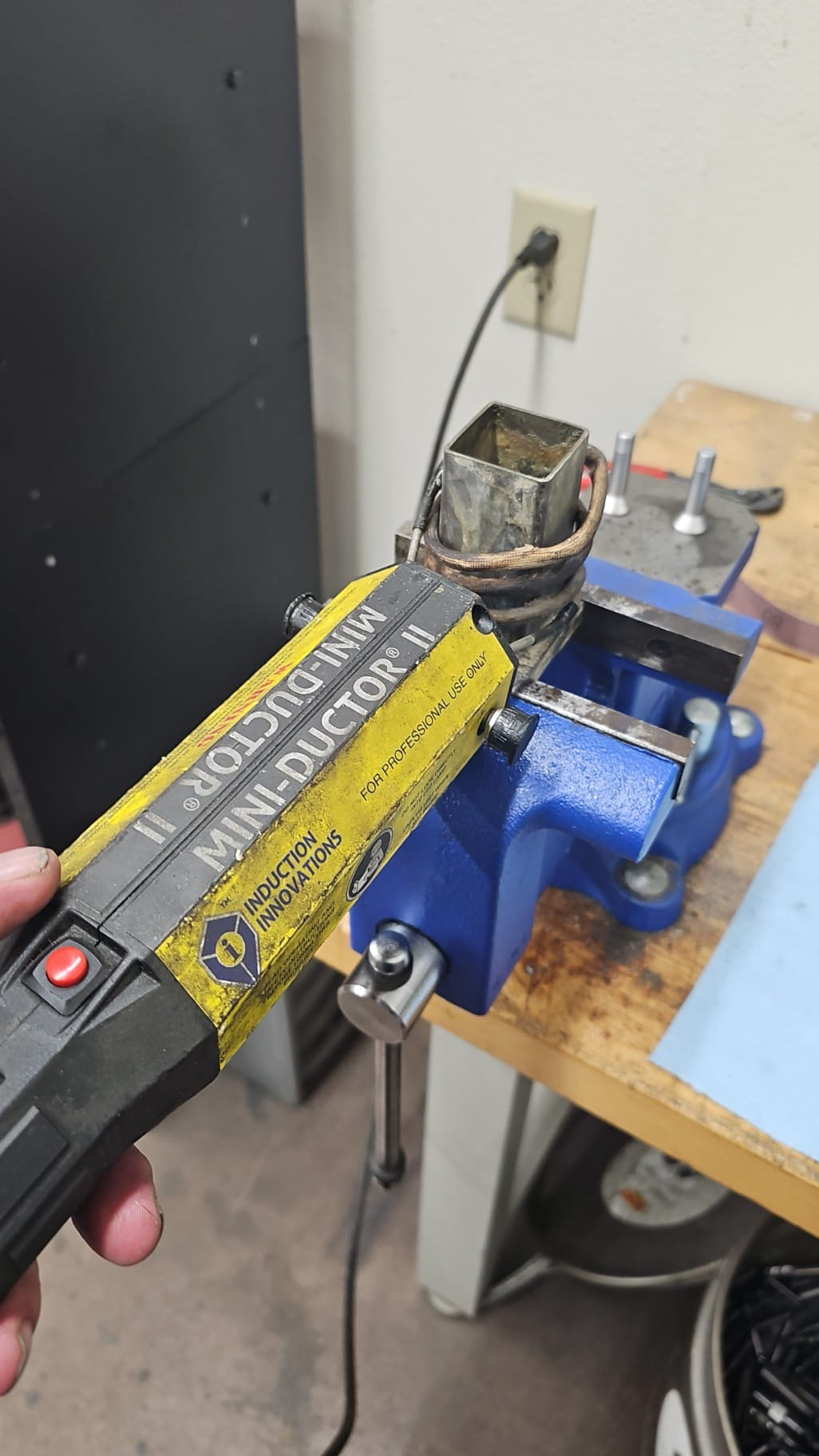

Warming up some park solution with an induction coil makes quick work of turning a screw black.
Right after bedding:
Post bedding inlet work. Dern trigger guard screws are too short.
Nobody in town has anything even close so....fire up a spindle and make some.
Rotary broach for the allen key socket:
Warming up some park solution with an induction coil makes quick work of turning a screw black.
