60gr Tmk 223 won't group. Help

1shot2kill

Gunny Sergeant
Full Member
Minuteman
Dec 9, 2008
1,314
9
37
north dakota
I've tried 3 different powders over 300 rounds and the best I can get is 2" @ 100 yards
I really want these to work considering I have 1200 of them
Gun: Aero M4 enhanced builder set
WOA 18" SPR Rifle length 1/7"
Timney trigger
JP BCG
JP Rifle length captured buffer assy
Powders tried:
Ramshot Tac
CFE223
AA2520
All cases are LC17
CCI 400 primers
seating depths used 2.250-2.285"

Ramshot tac produces single digit SD 26.0-26.3

any help would be appreciated


MarshallDodge

At the Reloading Bench
Full Member
Minuteman
Jul 19, 2007
430
401
Utah
Have you tried other bullets in that rifle, like a 69 grain or 77 grain BTHP?

I like TAC but I would try a little faster powder. Can you get you hands on some H322 or H335?


st1650

Private
Full Member
Minuteman
Aug 13, 2009
546
331
35
Not that it would really matter for accuracy but I'd go with thicker primers like CCI BR4s, 450s, or Fed 205M-AR on a gasser (or Rem 7 1/2 if you can find them - loved them in my gasser)

For powder, why not try varget and/or XBR ? Sierra says Varget 20.2 – 23.6 grains (but you can probably go all the way to 25). For XBR probably 21.0-24. You gotta watch out with XBR thought ... you get no pressure sight then up the charge and get pressure signs pretty quick.


Why not also try maybe a fairly early to tune load like the 77 SMK or Lapua Scenar 77 over varget to establish a baseline - maybe there's something wrong with your barrel or something ? Cause if you can't get a classic 77 smk or scenar 77 to shoot less than 1 moa, then there's definitely something wrong with your scope, mount or barrel.


1shot2kill

Gunny Sergeant
Full Member
Minuteman
Dec 9, 2008
1,314
9
37
north dakota
77 smk & 75 hpbt under 25.2gr of AA2520 is my pet load and my rifle loves it.
The reason for the 60tmk was they were .12 a piece on sale when I bought them 2years ago or so


rweaver00geo

Sergeant
Full Member
Minuteman
Jul 6, 2010
330
29
48
benton il
Is the tac charge high to anyone else? I only have the hornady data in front of me and it max's out at 24.7 with the 60/62 class weight bullets. (tmk not included).
All the powders you mentioned are spherical and may work better with a magnum, or rem 7 1/2. But you obviously got the 2520 to work with the 77gr with out a magnum primer. Primer change and possibly try one stick powder?


rweaver00geo

Sergeant
Full Member
Minuteman
Jul 6, 2010
330
29
48
benton il
One more thought, have you checked the seating depth in respect to the lands? If not with one of those fancy tools that I dont own, the split case method perhaps?


1shot2kill

Gunny Sergeant
Full Member
Minuteman
Dec 9, 2008
1,314
9
37
north dakota
One more thought, have you checked the seating depth in respect to the lands? If not with one of those fancy tools that I dont own, the split case method perhaps?
I have checked seating depth but I want to run these out of a magazine as it is a ar15.
Ramshot lists max load for the 5.56 62gr @ 26.2 I was keeping a close eye on cases, primers & ejection patterns while working up.


Mr Tibbs

Sergeant of the Hide
Full Member
Minuteman
Aug 17, 2020
214
56
Va Beach , Va
I've tried 3 different powders over 300 rounds and the best I can get is 2" @ 100 yards
I really want these to work considering I have 1200 of them
Gun: Aero M4 enhanced builder set
WOA 18" SPR Rifle length 1/7"
Timney trigger
JP BCG
JP Rifle length captured buffer assy
Powders tried:
Ramshot Tac
CFE223
AA2520
All cases are LC17
CCI 400 primers
seating depths used 2.250-2.285"

Ramshot tac produces single digit SD 26.0-26.3

any help would be appreciated
Have tried the CBTO method instead of OAL ?


ICU22250

Perfectionist
Supporter
Full Member
Minuteman
  • Feb 13, 2017
    1,322
    318
    WV
    Are you loading everything at the top end of the charge weight? Maybe back off a bit and see what you get.. It almost sounds like a build issue on the rifle, maybe the barrel nut or something not torqued to spec or something of that nature.. Try some factory match grade ammo like some prime or hornady stuff just to see if the rifle wants to shoot to begin with. 2 inch groups is the best you get out of 300 rounds, that just isn't right, something is wrong and im not sold that its your loads is all.. JMO...


    1shot2kill

    Gunny Sergeant
    Full Member
    Minuteman
    Dec 9, 2008
    1,314
    9
    37
    north dakota
    Are you loading everything at the top end of the charge weight? Maybe back off a bit and see what you get.. It almost sounds like a build issue on the rifle, maybe the barrel nut or something not torqued to spec or something of that nature.. Try some factory match grade ammo like some prime or hornady stuff just to see if the rifle wants to shoot to begin with. 2 inch groups is the best you get out of 300 rounds, that just isn't right, something is wrong and im not sold that its your loads is all.. JMO...
    All factory ammo shoots great it's literally just this bullet & that's what has been driving me nuts.
    Also I worked up loads with all 3 powders listed.


    st1650

    Private
    Full Member
    Minuteman
    Aug 13, 2009
    546
    331
    35
    I don’t know ... you wouldn’t have that much of a problem selling those 60gr TMKs and just buying 77 smks.

    • Like
    Reactions: 308pirate

    st1650

    Private
    Full Member
    Minuteman
    Aug 13, 2009
    546
    331
    35
    Seirra doesn't list that bullet for .223 AR15.
    I don't know about the 60gr TMKs, but the 80 gr ELD-M for me, wouldn't shoot unless it was loaded .010" off the lands. It was very depth sensitive and I had to load them extremely long at 2.525". Even at 2.515" they wouldn't group any better than 1 moa.
    Obviously it was a bolt gun load.


    ICU22250

    Perfectionist
    Supporter
    Full Member
    Minuteman
  • Feb 13, 2017
    1,322
    318
    WV
    Another thought is, would the 60's perform well in that fast twist 1:7? What grain factory fodder that shoots great did you shoot? I know, I'm probably reaching here...


    1shot2kill

    Gunny Sergeant
    Full Member
    Minuteman
    Dec 9, 2008
    1,314
    9
    37
    north dakota
    40 grain up to 77 shoots great.

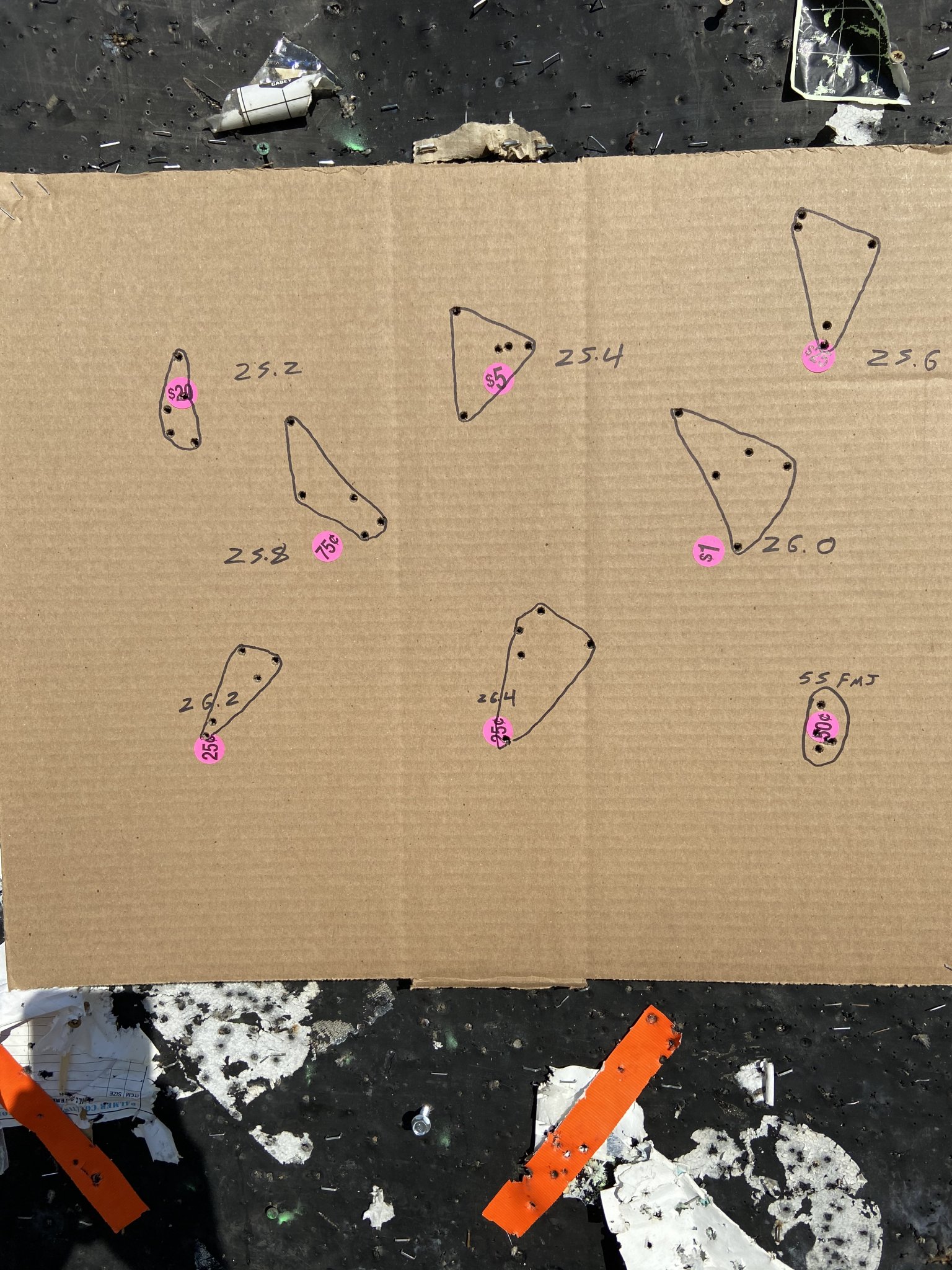

    I’m trying to attach a picture from my phone of the last time I went out.
    Bottom right is 55gr American eagle
    These were all shot round robin.


    Attachments

    • 83E0E8C7-CAD6-4C73-90F4-F8E8D672066E.jpeg
      661 KB · Views: 32

    n0glock

    Sergeant of the Hide
    Full Member
    Minuteman
    Jun 18, 2020
    101
    67
    I would call Sierra they may have an idea what is going on. Had an issue with Speer TNT's years ago and a quick call and the issue was solved.


    1shot2kill

    Gunny Sergeant
    Full Member
    Minuteman
    Dec 9, 2008
    1,314
    9
    37
    north dakota
    I would call Sierra they may have an idea what is going on. Had an issue with Speer TNT's years ago and a quick call and the issue was solved.
    I contacted them Friday and the guy I spoke with wasn't sure either.
    The only thing he could say was 25.8 was max 223


    ICU22250

    Perfectionist
    Supporter
    Full Member
    Minuteman
  • Feb 13, 2017
    1,322
    318
    WV
    What kind of brass are you loading with? Mix brass, premium brass? Also what are you charging your loads with?


    FCS

    Gunny Sergeant
    Commercial Supporter
    Full Member
    Minuteman
    Jun 3, 2005
    2,196
    508
    ABQ, NM
    60 TMK, I’d suggest H322, VV N-133 or N-135, AA2015, Benchmark or similar powders that are a little faster than what you’ve tried.
    I know, easy for me to say and not so easy to find any of the suggested powders.


    ICU22250

    Perfectionist
    Supporter
    Full Member
    Minuteman
  • Feb 13, 2017
    1,322
    318
    WV
    60 TMK, I’d suggest H322, VV N-133 or N-135, AA2015, Benchmark or similar powders that are a little faster than what you’ve tried.
    I know, easy for me to say and not so easy to find any of the suggested powders.
    I run N133 with Nosler 40 grain ballistic tips myself...


    1shot2kill

    Gunny Sergeant
    Full Member
    Minuteman
    Dec 9, 2008
    1,314
    9
    37
    north dakota
    60 TMK, I’d suggest H322, VV N-133 or N-135, AA2015, Benchmark or similar powders that are a little faster than what you’ve tried.
    I know, easy for me to say and not so easy to find any of the suggested powders.
    I agree I'd love to try some of those but at this point if I cant get them to shoot with the 3 great powders I have I don't think they'll shoot.
    Also Sierra recommended a overall length of 2.250" Which put the ogive inside of the end of the case


    Chickentoast

    Gunny Sergeant
    Full Member
    Minuteman
    Oct 17, 2019
    608
    316
    I found the TMK's much more finicky than SMK's, but was able to get the 69's and 77's to shoot, albeit in a 9 twist. I have a feeling your twist might just be too fast. Save 'em for your next barrel?


    Snuby642

    Two Star General
    Full Member
    Minuteman
  • Feb 11, 2017
    6,690
    8,072
    Ogive in the case mouth on a 60g bullet at 2.25?

    Do you have pictures of any of them?
    Maybe next to a 55g fmj for a comparison.


    EM_556

    Sergeant of the Hide
    Full Member
    Minuteman
    Jun 12, 2019
    139
    72
    Kansas City, MO
    Just for curiosity sake, what twist barrel is this being used in? And how is accuracy?
    16" DD CHF barrel. 1:7 twist. Accuracy 3/4-1" at 100yards with a 1-6 scope. I think I could shoot it better with a larger scope but not needed for the application. I think I was getting around 2850-2900fps.


    ICU22250

    Perfectionist
    Supporter
    Full Member
    Minuteman
  • Feb 13, 2017
    1,322
    318
    WV
    16" DD CHF barrel. 1:7 twist. Accuracy 3/4-1" at 100yards with a 1-6 scope. I think I could shoot it better with a larger scope but not needed for the application. I think I was getting around 2850-2900fps.
    That's great, well, that answers my question whether or not the 1:7 is too fast for the 60's or not... Sorry OP, I hope ya get it figured out...
