8lbs powder jug dimensions?

[Antero Vipunen]

I'm building wooden boxes for powder storage. Something similar to boxes on this page but taller:

wooden ammo boxes Archives - North Rustic Design

www.northrusticdesign.com

I'm looking to accommodate also 8lbs jugs but I don't have any 8lbs jugs that I could measure. Also LGS has only 1lb cans in shelf.

If anyone has 8lbs jugs of Reloder (any number) and/or Retumbo, could you please measure and share height, width and depth dimensions?

Thanks!



[spife7980]

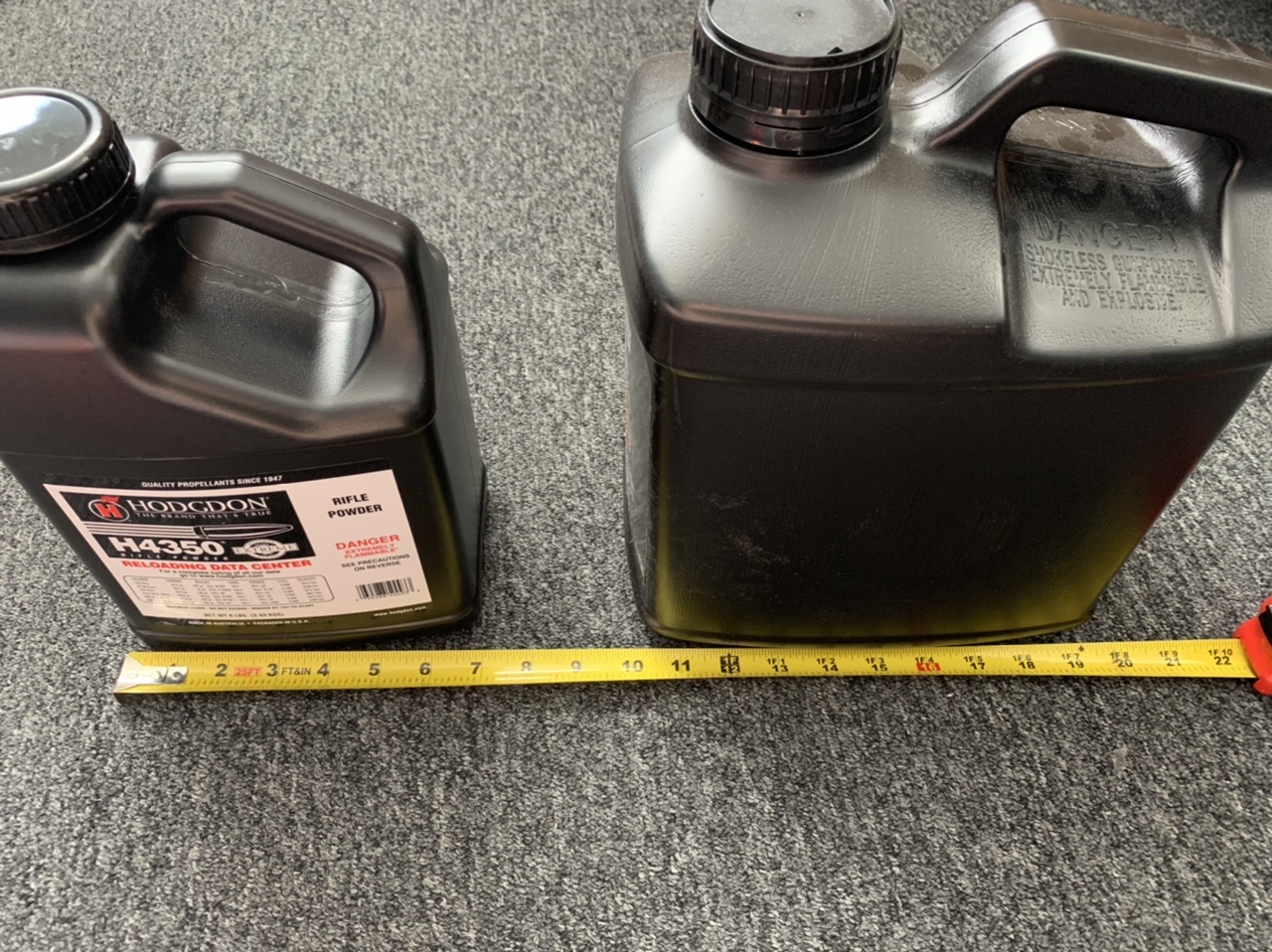

hodgdon is 7x4.5x10.5

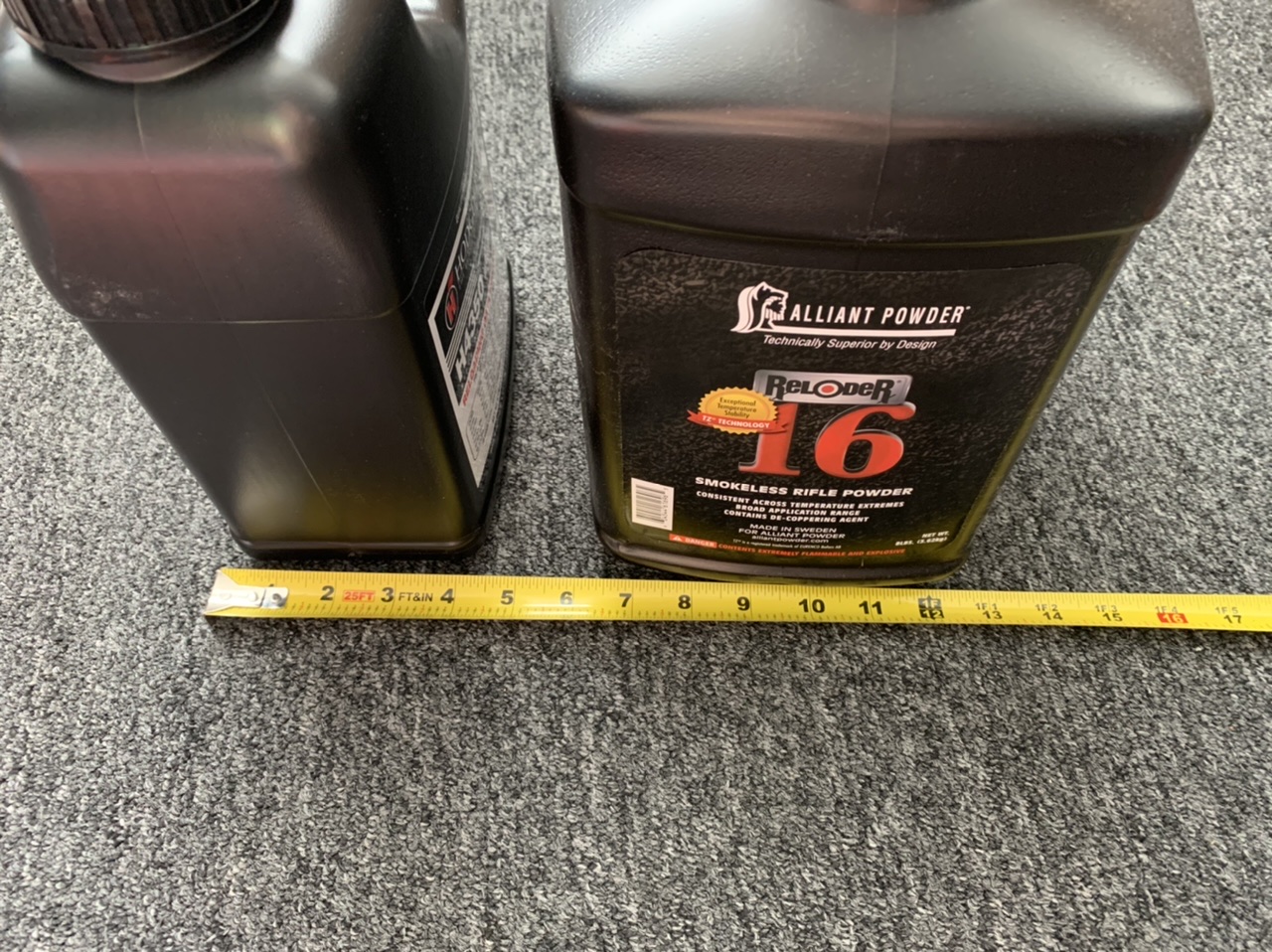

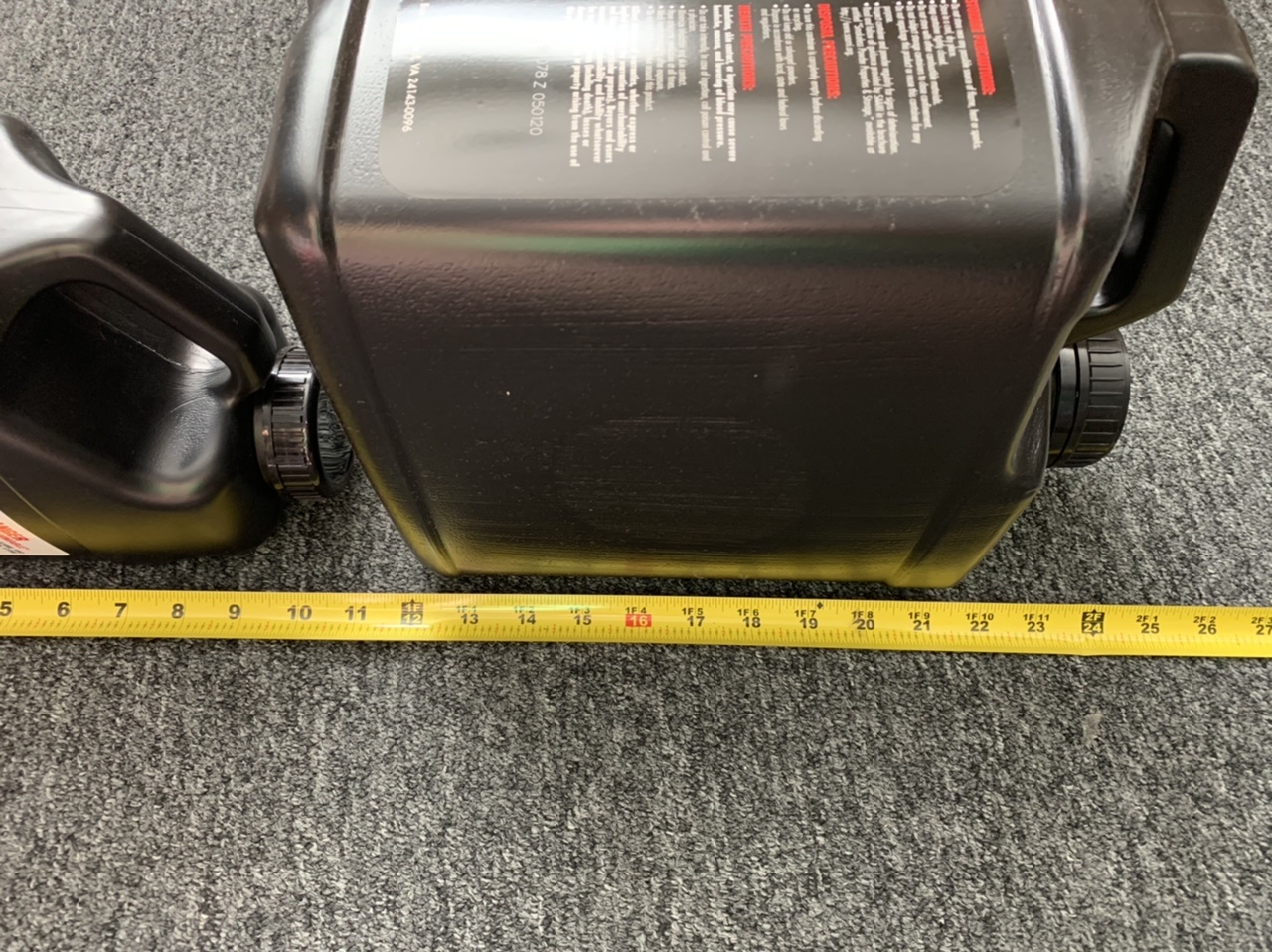

Alliant is 10x7x12



[Antero Vipunen]

hodgdon is 7x4.5x10.5
Alliant is 10x7x12

Thank you, this is most helpful. Seems like 16" for bottom and lid and 14" board for sides would result in size that fits all jugs and makes best use of the interior space.

Thank you!
