So several times I believe I’ve read in AB books that their AB engine accounts for increased SG which increases BC/Reduced Drag.

So I decided to try an experiment on three of my AB products: AB analytics, AB Elite, and AB Mobile.

I created a duplicate profiles where one gun was at an 8 twist with a SG >3 and one profile where the SG was <1 and everything else being the same.

The elevation out to 4K yards remained the same with a 0 wind value inputted.

I also checked to see aerodynamic jump with AB Mobile to see if SG would change elevation as AB books state increase in SG and a crosswind will cause elevation deflection. It did nothing out to 4K yards.

Anyone with AB software, would you kindly check your software and make adjustments for increased SG with zero wind and then check to see if aerodynamic jump is added when a full value cross wind is applied?

Last edited:

rangerlong

Online Training Member
Online Training Access
Belligerents
Minuteman
Nov 21, 2018
212
179
49

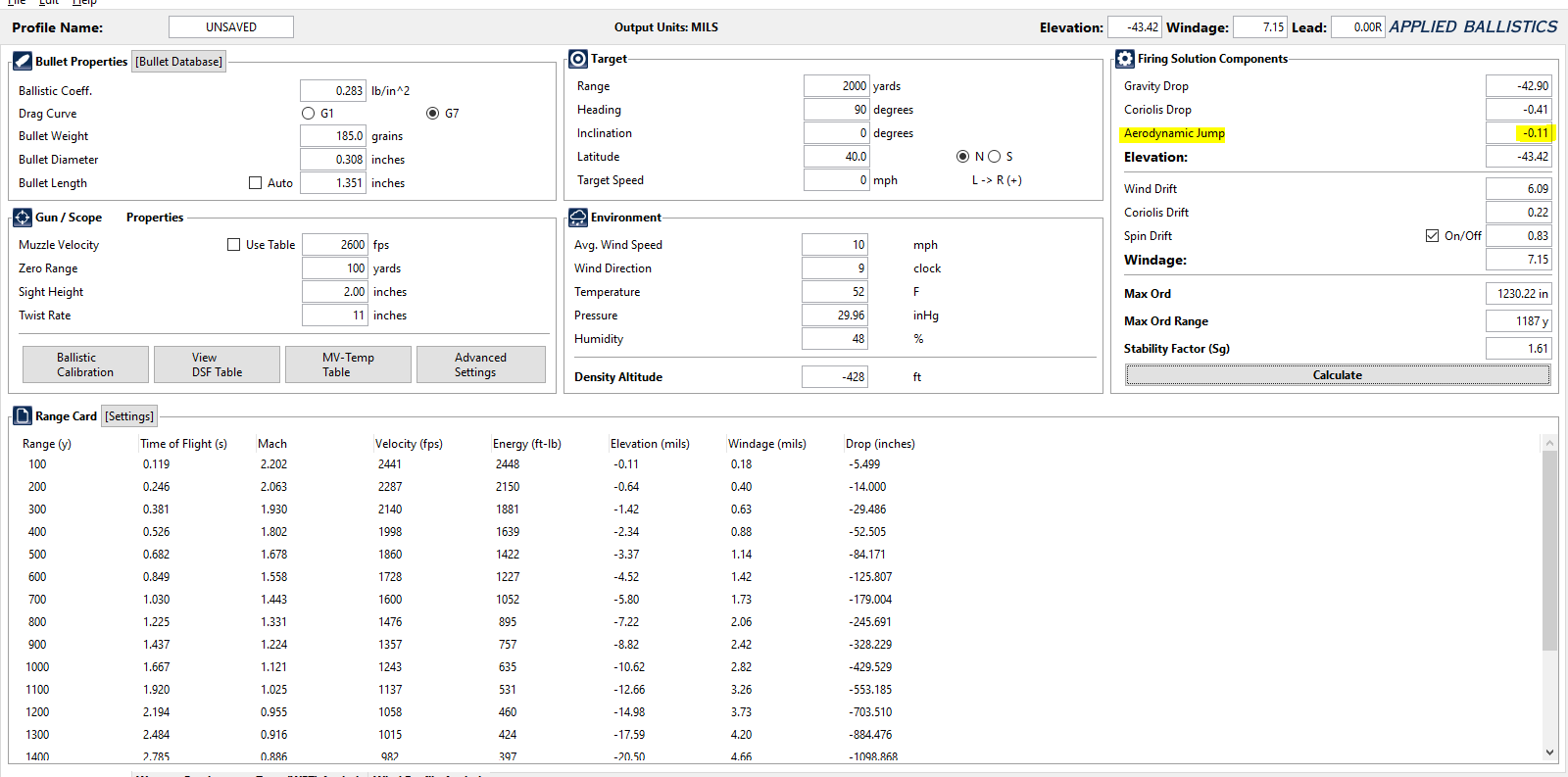

Using AB Analytics predicting the trajectory of an 185gr juggernaut
1:11 twist 10mph wind adds .11 mils of aerodynamic jump vs 0mph wind
1:8 twist 10mph wind adds .15 mils of aerodynamic jump vs 0mph

Not really sure if that's what you're asking. What does your AB Analytics show in that block when you add wind?



JB.IC

Jackass of the Hide
Belligerents
Minuteman
Jan 25, 2019
405
189
49
“I also checked to see aerodynamic jump with AB Mobile to see if SG would change elevation as AB books state increase in SG and a crosswind will cause elevation deflection. It did nothing out to 4K yards.”

I’m only referring to aerodynamic jump not being computed for AB Mobile


JB.IC

Jackass of the Hide
Belligerents
Minuteman
Jan 25, 2019
405
189
49
To further clarify, the AB books have claimed their engine is one of the only engines to factor in SG at different stability levels and when you go from a super low SG to a super high SG, the program doesn’t display any difference.


rangerlong

Online Training Member
Online Training Access
Belligerents
Minuteman
Nov 21, 2018
212
179
49
It does work in AB Analytics so the engine itself does what the books say it does. It's possible they didn't implement that in AB mobile by design or by mistake. I don't have it to test.

Sounds like a question for @DocUSMCRetired


JB.IC

Jackass of the Hide
Belligerents
Minuteman
Jan 25, 2019
405
189
49
Resting the AB Mobile fixed the Aerodynamic jump issue. AB Mobile is now computing different ADJ levels for different SGs when a full value crosswind is applied.

How ever none of the programs are factoring in different SG levels and its effect on BC. Going from a 30 twist with a SG of 0.16 to a 3 twist with a SG of 16.45 did nothing to the elevation at 4K yards.

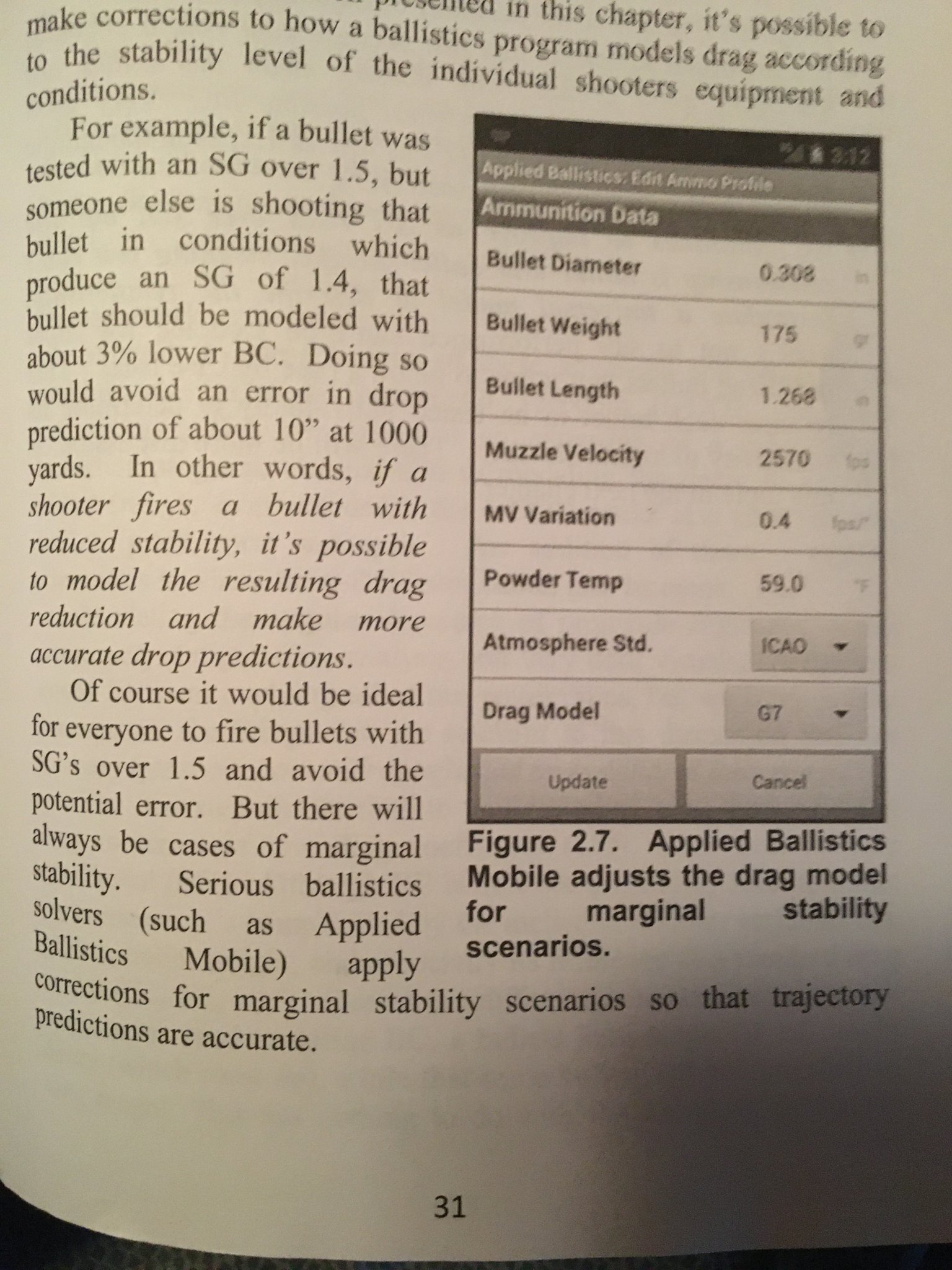

I quickly scanned AB Modern Advancements in LR shooting; below is a picture of AB claiming it would take into account marginal stability.


Last edited:

rangerlong

Online Training Member
Online Training Access
Belligerents
Minuteman
Nov 21, 2018
212
179
49
Ok, for this issue I can confirm that with changes in twist rate/stability elevation doesn't change whether I use the G7 BC or custom drag model.


JB.IC

Jackass of the Hide
Belligerents
Minuteman
Jan 25, 2019
405
189
49
Ok, for this issue I can confirm that with changes in twist rate/stability elevation doesn't change whether I use the G7 BC or custom drag model.
Same here.

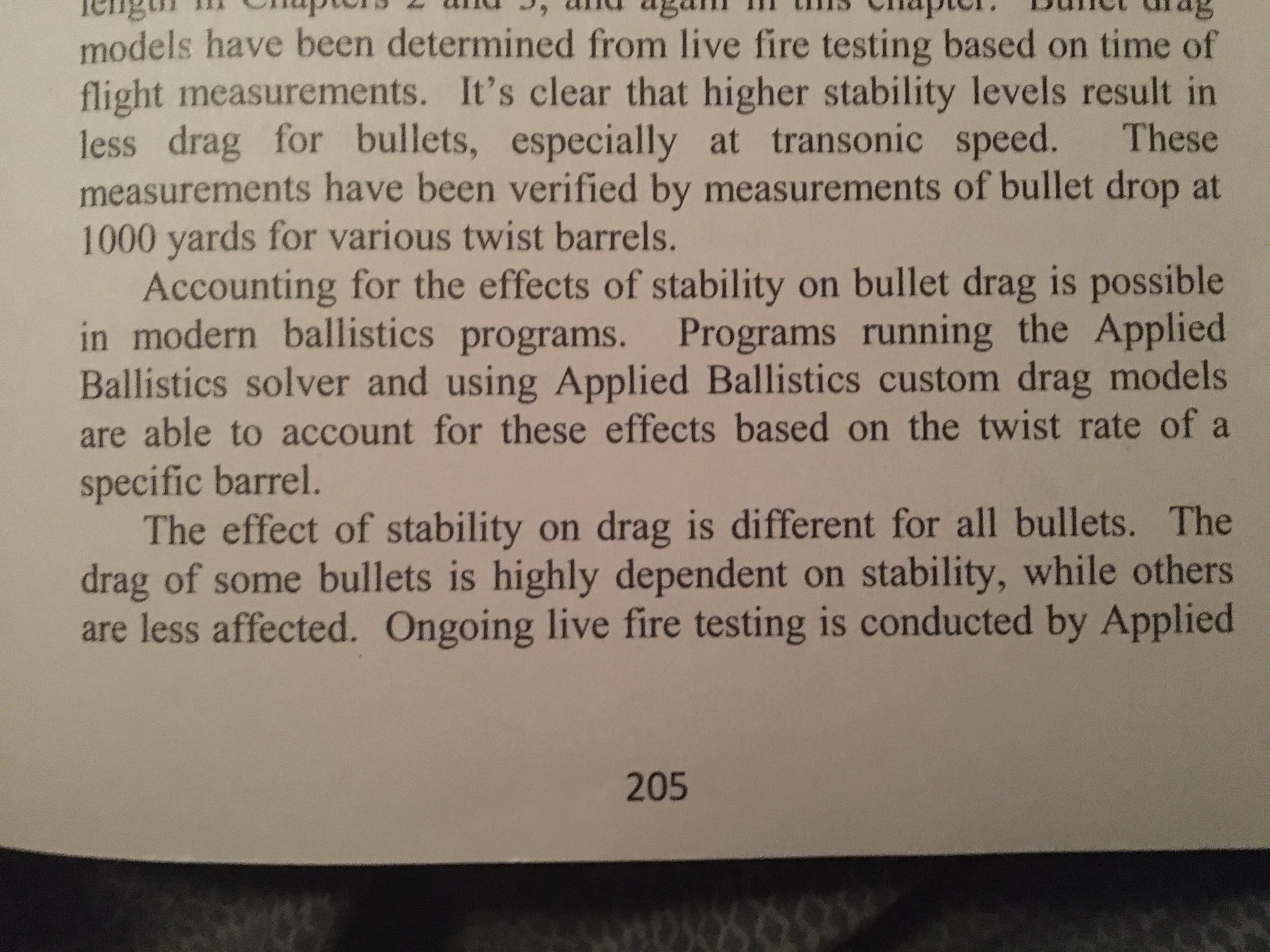

Here’s another mentioning I found



JB.IC

Jackass of the Hide
Belligerents
Minuteman
Jan 25, 2019
405
189
49
It should change with twist rate, and bullet length. Not with BC. I am looking into this now as I tested it on AB Analytics and it worked properly. I will look into the apps next.
Doesn’t work for me and with the twist rates extremes I used, it should have worked beyond a reasonable doubt.

“ How ever none of the programs are factoring in different SG levels and its effect on BC. Going from a 30 twist with a SG of 0.16 to a 3 twist with a SG of 16.45 did nothing to the elevation at 4K yards.”

Programs produce zero elevation difference with the above difference in SG.


DocUSMCRetired

Applied Ballistics
Belligerents
Apr 16, 2014
1,174
354
189
Texas
www.appliedballisticsllc.com
Doesn’t work for me and with the twist rates extremes I used, it should have worked beyond a reasonable doubt.

“ How ever none of the programs are factoring in different SG levels and its effect on BC. Going from a 30 twist with a SG of 0.16 to a 3 twist with a SG of 16.45 did nothing to the elevation at 4K yards.”

Programs produce zero elevation difference with the above difference in SG.
We don't change the BC based on the SG. SG calculations are only accurate to +/- 0.1 and do have other nuisances. We are working on a more accurate way to account for this, and have already implemented it in some circles. Some of the applications and software do make changes.


JB.IC

Jackass of the Hide
Belligerents
Minuteman
Jan 25, 2019
405
189
49
Programs produce zero elevation difference with the above difference in SG.
We don't change the BC based on the SG. SG calculations are only accurate to +/- 0.1 and do have other nuisances. We are working on a more accurate way to account for this, and have already implemented it in some circles. Some of the applications and software do make changes.
See above


Near miss

Gunny Sergeant
Belligerents
Minuteman
Apr 8, 2019
502
192
49
Finland
Just tested, at least on Kestrel 5700 Aero jump finds its value from twist rate, as claimed in the book.

What I find interesting is how can one who uses cdm to lower the ballistic value because he is using a too slow twist? There is not much to play with.


DocUSMCRetired

Applied Ballistics
Belligerents
Apr 16, 2014
1,174
354
189
Texas
www.appliedballisticsllc.com
Just tested, at least on Kestrel 5700 Aero jump finds its value from twist rate, as claimed in the book.

What I find interesting is how can one who uses cdm to lower the ballistic value because he is using a too slow twist? There is not much to play with.

If you need to adjust the ballistics that is what DSF is for. DSF only calibrates a specific portion of the flight model, so as not to skew the entire model unnecessarily causing other issues.

The apps should be adjusting AJ for twist rate, and we are testing a new release of the iPhone app this week.


TriggerJerk!

Sergeant of the Hide
Belligerents
Minuteman
Oct 27, 2019
125
122
49
If you need to adjust the ballistics that is what DSF is for. DSF only calibrates a specific portion of the flight model, so as not to skew the entire model unnecessarily causing other issues.

The apps should be adjusting AJ for twist rate, and we are testing a new release of the iPhone app this week.
What is the ETA on the iPhone update Doc? And thank you for the info.
