Looking to pickup a lefty ARC nucleus or archimedes for a 6mm prs rig. Any opinions out there? They have great rings but haven’t seen their action in person. Thx


clefairy

Private
Minuteman
Jan 20, 2022
82
66
Colorado
Some people love them. They aren’t tight and smooth as a impact or lone peak. Their meant to be ran fast. My buddies nucleus would keep a 223 round in the chamber if he didn’t run it at a reasonable speed. I’m not sure about their quick barrel change but it seemed like a pain. There’s a screw that has to be changed overtime or it will get stripped.


2aBaC̶a̶

Humans are amusing
Full Member
Minuteman
Jan 27, 2019
6,040
7,372
I Da ho
Dont necessarily agree with the above. both my arch and nuke are tight and smooth AF and almost close themselves. the mech ejector allows you to control where the round goes whether you want it to stay in the action, dribble out onto a table or send it to the next zip code. savage small shank and a barrel nut or shouldered prefits are redily available.

I will add they are over engineered to a fault. dissasembling isnt as straightforward as a true 700 clone. i just dont.


Long Range 338

Professional Ammo Waster
Supporter
Full Member
Minuteman
Supporter+
  • Jul 10, 2012
    2,318
    2,186
    Out West
    Most innovative actions on the market. If you like controlled round feed they are the best thing going. The Barloc is not worth using as it was a solution to a non existent problem - per Ted he made it to appease those asking for the feature.
    Others may prefer different features from other manufacturers. So many good choices you can really get exactly what you want these days. The ARC stuff is top shelf for my feature set.


    BB KoncepZ

    Private
    Supporter
    Full Member
    Minuteman
    Supporter+
    Dec 6, 2011
    386
    69
    37
    Alabama
    Has anybody bought a full archimedes rifle? Seem like a good price. Not sure what barrel they run tho


    Simonsza1

    Private
    Full Member
    Minuteman
    Feb 27, 2014
    1,556
    1,178
    Has anybody bought a full archimedes rifle? Seem like a good price. Not sure what barrel they run tho
    I’ve owned one for over a year now. Load the 130eldm at 2,900 and it’s a lazer. I absolutely love my Archimedes so I bought another last bf and built a hunting rifle. Today bought a nucleus for a wife build. My buddies that have them also love them. My complete rifle barrel is a criterion. And I think the xylo is top notch also.


    BB KoncepZ

    Private
    Supporter
    Full Member
    Minuteman
    Supporter+
    Dec 6, 2011
    386
    69
    37
    Alabama
    I’ve owned one for over a year now. Load the 130eldm at 2,900 and it’s a lazer. I absolutely love my Archimedes so I bought another last bf and built a hunting rifle. Today bought a nucleus for a wife build. My buddies that have them also love them. My complete rifle barrel is a criterion. And I think the xylo is top notch also.
    Got pics in the chassis?


    TheOE800

    Supporter
    Supporter
    Full Member
    Minuteman
  • Feb 14, 2017
    2,846
    1,780
    USA
    Nuke has had 2 upgrades but the Archimedes has 0.
    Even the OG nukes had nothing wrong with them. Just making gradual improvements.
    Nucleus is barely the same action as when it launched. Bolt lift and timing is different, integral lug now, bayonet style bolt shroud, bolt stop mechanism completely different…

    No one is saying Ted isn’t smart or doesn’t make a good product, but look at the Mausingfield as an example of what happens to ARC actions.

    • Like
    Reactions: Huskydriver

    Baron85

    Sergeant
    Supporter
    Full Member
    Minuteman
    Supporter+
    Mar 18, 2012
    1,303
    787
    I bought an archimedes earlier this year and really enjoyed it. It wasn’t super slick new but after cycling it a while it turned very slick. The mechanical ejection was awesome. The smooth light bolt lift and shorter throw was also very nice.

    I ended up selling it and buying a Falkor so I can run the proof prefits. I also didn’t like the “play” in the back of the bolt throw, it’s loose but not in a bad way, I just like the tighter feel of the Falkor.

    The archimedes felt like I could cycle it faster, the ejection was certainly better being able to control the force/distance of ejection. I liked the shorter throw and the bolt knob better on the arch. If proof had prefits for the archimedes I probably would have preferred it over the Falkor……..maybe.

    At some point I will probably buy another one.


    srt-4_uk

    Private
    Supporter
    Full Member
    Minuteman
    Aug 6, 2011
    2,756
    2,308
    Nebraska
    Nucleus is barely the same action as when it launched. Bolt lift and timing is different, integral lug now, bayonet style bolt shroud, bolt stop mechanism completely different…

    No one is saying Ted isn’t smart or doesn’t make a good product, but look at the Mausingfield as an example of what happens to ARC actions.
    2 upgrades meaning OG Nuke, 1.1, 2.0


    4O6shootist

    F. J. B.
    Supporter
    Full Member
    Minuteman
    Supporter+
    Sep 5, 2021
    1,394
    802
    Montana
    I have a Nuke 2.0 and an Archimedes. Like the arch a bit more. I feel I can run these actions faster than my LPA Fuzion, or my old impact. I am a CRF with mechanical ejector junkie, bighorn and arc actions are my favorite. Ibdo enjoy the fuzion as well.


    jzerfoss

    Gunny Sergeant
    Full Member
    Minuteman
    Jul 29, 2019
    635
    397
    WV and VA
    I have a Nuke 2.0 and an Archimedes. Like the arch a bit more. I feel I can run these actions faster than my LPA Fuzion, or my old impact. I am a CRF with mechanical ejector junkie, bighorn and arc actions are my favorite. Ibdo enjoy the fuzion as well.
    Why do you like the archimedes better?


    4O6shootist

    F. J. B.
    Supporter
    Full Member
    Minuteman
    Supporter+
    Sep 5, 2021
    1,394
    802
    Montana
    Why do you like the archimedes better?
    Lighter bolt lift than my Nuke with the 16# spring, other than that, they're very similar. The Nuke has much easier bolt disassembly. The ARC work well with TT triggers, need a low sear in a BnA to get them to work properly. You'll be happy with either one.


    357Max

    Supporter
    Supporter
    Full Member
    Minuteman
  • Sep 11, 2019
    1,777
    2,206
    Marylandistan
    2 upgrades meaning OG Nuke, 1.1, 2.0
    OG nuke, 1.1, 1.2, & 2.0. I have the ladder 3 and all those have the bayonet fire control. Bolts are not interchangeable from OG to the 1.1,1.2, & 2 because the throw is different. All version of Nukes and Archimedes have interchangeable bolt heads.

    Some of the changes have been refinements such as bayonet FC, Throw, and bolt release. Some of the changes have been to allow for parts interchange & less skews for ARC. Ted has past the savings along to us.

    3 lug bolt fits all 3 lug actions
    2 lug fits all Mausingfield's
    Same barrel tenon for all actions.
    All now have integral recoil lug

    I like where it's settled.

    I just picked up another G2, Love them. Archimedes is the fastest to run & it's on a 6GT. Nuke isn't far behind and just as smooth IMO.

    Took a class with Frank & Mark and one of the guys there had an OG Nuke. It was night and day different than my 1.2. Newer Nukes are a lot smoother. He loved his OG and had a ton of rounds through it. After feeling the 1.2 he was going to get the newer version.


    KnowNothing256

    Supporter
    Supporter
    Full Member
    Minuteman
    Supporter+
  • Jan 9, 2020
    1,933
    1,220
    I’ll echo some things above and disagree with others. I have an Arch, and it definitely feels loose to the point of sloppiness…until you run it fast. Abruptly you realize that slop allows you to run the bolt imperfectly and still get perfect function, and an added benefit for me at least is the feedback I get from the action. Because the clearances on the bolt body are so roomy, I can feel dang near EVERYTHING going on in there. Not only can I tell when I ran the bolt on an empty mag, I can actually feel the last round in the mag get picked up, somehow it’s different than all the other rounds.

    The bolt feel takes some getting used to, and agreed that bolt tear-down is more complex for the Arch. Takes a couple minutes and three tools for someone who’s practiced it a few times, and honestly I’ve only ever done it to swap the bolt face. The bigger pain for me is changing the barrel, gotta pull the extractor for that. I think that’s something Ted should address in the wrench design, I might even just take it to a machine shop and have a groove cut for it if it’s possible. Might not be, I should look at that…anyway.

    The Arch is easy to find “odd” things about. It’s a truly innovative design, and while I don’t find the extra extraction leverage particularly compelling, the reality is that mine runs like a dang dream and I’m 0% interested in buying something different until an improvement on it is available.

    I’d LOVE to see Proof start making prefits for it though. Seems to me it wouldn’t
    be that hard, but it’s their business to run.


    Hennig

    Sergeant
    Full Member
    Minuteman
    Sep 28, 2011
    798
    1,474
    35
    QLD, Australia
    www.instagram.com
    I have a Nuke 2.0, Archimedes, and a M5 Mausingfield.

    As a whole, theyre the best actions Ive run. I've gone through a fair few over the years, but these three wont ever leave the safe.

    Oh, I dont like the rotating Archimedes bolt stop though.


    Simonsza1

    Private
    Full Member
    Minuteman
    Feb 27, 2014
    1,556
    1,178
    I haven’t met a person yet with an Archimedes or a xylo that doesn’t love it. I know there out there but I’ve never crossed there path.


    KnowNothing256

    Supporter
    Supporter
    Full Member
    Minuteman
    Supporter+
  • Jan 9, 2020
    1,933
    1,220
    I have a Nuke 2.0, Archimedes, and a M5 Mausingfield.

    As a whole, theyre the best actions Ive run. I've gone through a fair few over the years, but these three wont ever leave the safe.

    Oh, I dont like the rotating Archimedes bolt stop though.
    Yeah the bolt stop sucks. A very nice lady at ARC told me they won’t be using it in any future designs, hope she’s right.


    Hawk in WY

    Private
    Full Member
    Minuteman
    Sep 20, 2013
    705
    362
    Jackson Hole, WY
    I agree with the Archimedes bolt stop comments but there is a technique involved that makes things better which of course I’ve forgotten. It was something like the bolt stop won’t rotate with the bold all the way to the rear. any one remember?


    Hennig

    Sergeant
    Full Member
    Minuteman
    Sep 28, 2011
    798
    1,474
    35
    QLD, Australia
    www.instagram.com
    I agree with the Archimedes bolt stop comments but there is a technique involved that makes things better which of course I’ve forgotten. It was something like the bolt stop won’t rotate with the bold all the way to the rear. any one remember?

    Yep, just forward of the rearmost travel is the key. Still a finicky little thing, especially with a big scope mounted above it.


    Baron85

    Sergeant
    Supporter
    Full Member
    Minuteman
    Supporter+
    Mar 18, 2012
    1,303
    787
    I had no issues with the bolt stop on my Arch. Once you find the right spot for the bolt (just forward of all the way back). I think I did clip a coil off the spring for the bolt stop detent to reduce the tension and make it easier to turn but don’t remember for sure.


    jbuck88

    Full Member
    Supporter
    Full Member
    Minuteman
    Oct 25, 2010
    2,029
    1,955
    40
    Port Angeles, WA
    I have a full Archimedes rifle and really like it. When my mcmillan stock failed on my hunting rifle I threw it in a XLR element MG, ordered a 300wsm barrel from LRI and swapped bolt heads.

    I used it to take a elk this year. It's by far my favorite rem clone action. Love the mechanical ejector and crf.


    Boatninja

    Supporter
    Supporter
    Full Member
    Minuteman
    Supporter+
    Sep 3, 2018
    743
    499
    Texas Coast
    FWIW, I bought a prefit Proof barrel for my Nucleus action from Altus, not sure if they threaded it or not, but headspace perfect.


    DJL2

    Tiger 33A
    Full Member
    Minuteman
    Oct 16, 2013
    988
    632
    OCONUS - Land of Kimchi
    Are we calling the old G2 the 1.2 now because it doesn't have the integral lug? I don't know that warrants a change, but I do like integral lugs... and flat bottoms, alas. I like the barbell bolt knob a lot. Generally, pretty feature rich... even if they're not glass smooth.


    kindabitey

    See, nobody cares
    Supporter
    Full Member
    Minuteman
  • Feb 13, 2017
    1,208
    1,370

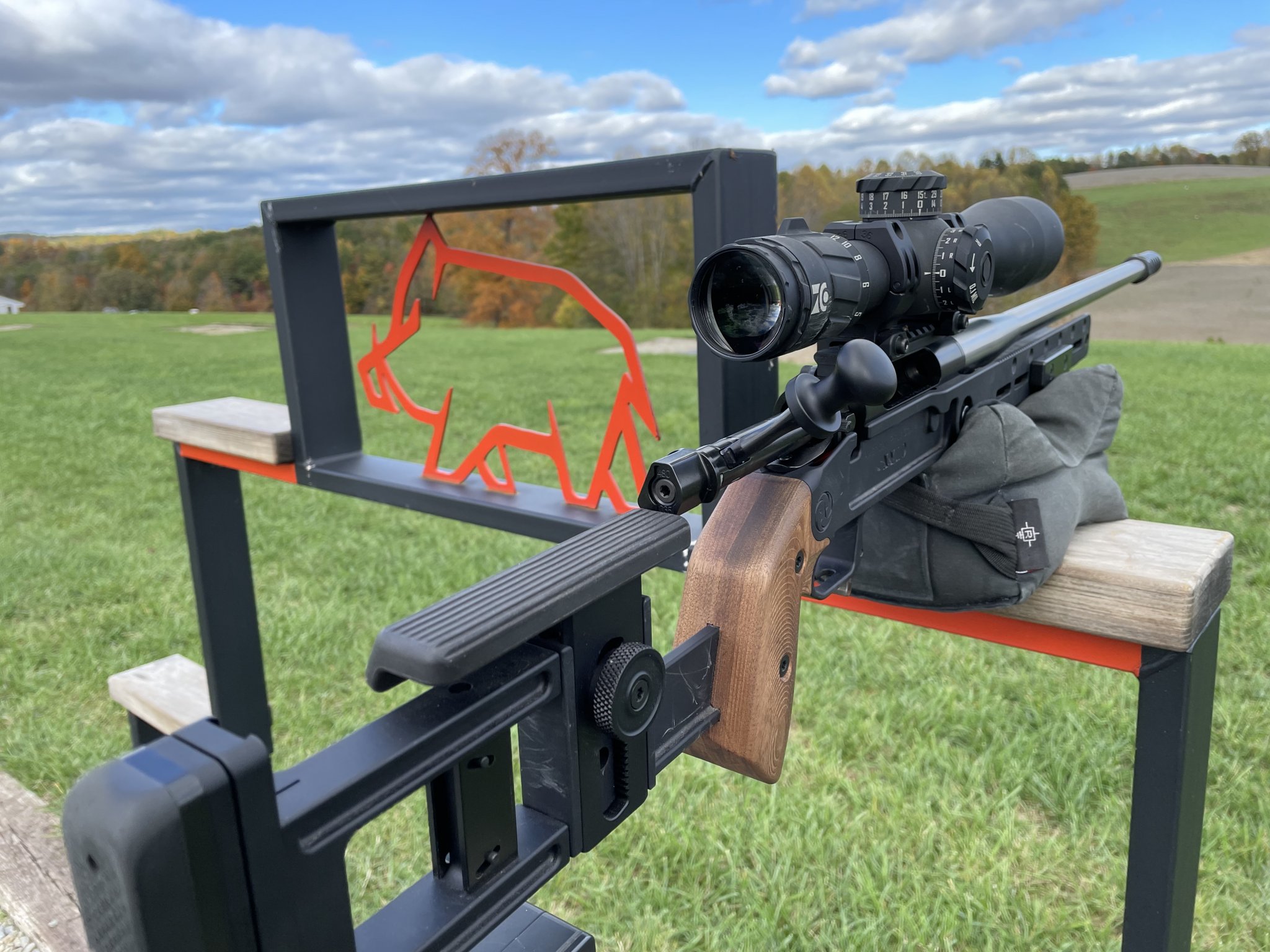

    For whoever was wanting to see an Arch in a Xylo


    cjs88

    Supporter
    Supporter
    Full Member
    Minuteman
    Supporter+
  • Jan 7, 2020
    1,457
    603
    TEXAS
    Was thinking about getting an Arc but reviews in this thread seem mixed. What would be a better option? Looking to do a long range target build.


    Stevo86

    No one
    Supporter
    Full Member
    Minuteman
    Supporter+
    May 26, 2014
    1,482
    2,968
    Was thinking about getting an Arc but reviews in this thread seem mixed. What would be a better option? Looking to do a long range target build.
    I had one of the first 20 nuke actions… never had a single issue with it. Got in on the archemedies pre order when they came out…. Same thing… worked like a charm. I plan on buying 2 mausingfields in the next year for a pair of hunting rifles.


    srt-4_uk

    Private
    Supporter
    Full Member
    Minuteman
    Aug 6, 2011
    2,756
    2,308
    Nebraska
    Are we calling the old G2 the 1.2 now because it doesn't have the integral lug? I don't know that warrants a change, but I do like integral lugs... and flat bottoms, alas. I like the barbell bolt knob a lot. Generally, pretty feature rich... even if they're not glass smooth.
    1.2 had a release of like 50 total units during 4th of July a few years back. It was a 1.1 with bits of 2.0


    c_bass16

    I don't have one
    Full Member
    Minuteman
  • Mar 15, 2009
    1,828
    226
    SD
    I have an interesting perspective that I noticed.
    I'll preface by saying that I have 4 Zermatt TL3's, two set up for match rifles, and two set up for hunting rifles, but they have all been moved around so many times, it's hard to say what has been what in the past.
    I do know that ONE of my TL3s is significantly smoother than the other 3. Not sure why, but the DLC coating is just different than the others.
    After running those 4 actions for probably around 5 years now, I've gotten really comfortable with their operation.
    Last winter, I bought a preowned Mausingfield M7 on the Hide and built it into a 25 Creed match rifle. I love everything about it, except the FEEL of Ted's unique bolt handles. When all 4 of your systems utilize one bolt handle...the odd man out just feels like pissing with someone elses dick.
    The wild thing...is that, (near as I can tell) the bolt travel from front to back on the M7 is about 1/4" longer than the TL3...and I CAN FEEL IT.
    Is there anything worse or wrong with the M7? Absolutely not, but if I was in a pinch and had to sell one...It would be the M7 just to keep my systems consistent.


    srt-4_uk

    Private
    Supporter
    Full Member
    Minuteman
    Aug 6, 2011
    2,756
    2,308
    Nebraska
    Was thinking about getting an Arc but reviews in this thread seem mixed. What would be a better option? Looking to do a long range target build.
    Reviews aren't mixed.
    People who use them, love them. Bolt stop on Archimedes is annoying but doesn't break. Ever. Proof doesn't make shouldered prefits but lots of other places do. Mechanical ejection works exactly how it's supposed to. Run it slow and it stay in the gun.


    whatsupdoc

    Major Hide Member
    Full Member
    Minuteman
  • Dec 12, 2017
    2,447
    3,280
    I have a first gen Nuke and if you slowly manipulate the bolt it feels loose and sloppy
    but when you put the gas pedal to the floor that action runs fast and smooth.

    And it definitely dont shoot sloppy.

    • Like
    Reactions: Simonsza1

    KnowNothing256

    Supporter
    Supporter
    Full Member
    Minuteman
    Supporter+
  • Jan 9, 2020
    1,933
    1,220
    Reviews aren't mixed.
    This is kinda what I was thinking also. People who dislike them either haven’t run them or have specific complaints about the features. A small number of those complaints are fair (bolt stop is one); some are just preference (bolt feel and knob); some are essentially irrelevant (bolt tear-down complexity, “ARC keeps improving their designs, ugh”).

    You’ll see the same discussions comparing any two actions that have different designs. But i just went back and reread this whole thread, and it’s heavily in favor of the Arch. There are a few in the “nay” column, but yeah. I wouldn’t really call even this thread a mixed review.

    • Haha
    Reactions: TheOE800

    spife7980

    Luchador
    Full Member
    Minuteman
    Feb 10, 2017
    11,874
    12,589
    Central TX
    Was thinking about getting an Arc but reviews in this thread seem mixed. What would be a better option? Looking to do a long range target build.
    Mixed? People don’t like that the bolt release is tough and maybe bolt tear down but anyone who has actually used one vs seeing pics on the internet likes em.
    The Archimedes is just plain snazzy.

    I don’t think I’ve ever lubed mine and it’s still slicker than goose shit after 1k rounds so far.


    Boatninja

    Supporter
    Supporter
    Full Member
    Minuteman
    Supporter+
    Sep 3, 2018
    743
    499
    Texas Coast
    I had no issues with the bolt stop on my Arch. Once you find the right spot for the bolt (just forward of all the way back). I think I did clip a coil off the spring for the bolt stop detent to reduce the tension and make it easier to turn but don’t remember for sure.
    I dropped and lost the little steel ball in the detent in my Nucleus and ran without it for around 200 rounds and never missed it, probably removed the bolt 20 times in this period. Ordered another from ARC and put it back in and now think I liked it better without it, was easier to turn the knob and never had it back off.
    I may clip the spring as you said and try that.

    • Like
    Reactions: Baron85

    Simonsza1

    Private
    Full Member
    Minuteman
    Feb 27, 2014
    1,556
    1,178
    On both my Archimedes I couldn’t find the bolt stop any easier to use. They both rotate freely with positive detent once you figure out where the bolt needs to be. Maybe I’m the oddball but I find it super easy.


    celltech

    Gunny Sergeant
    Full Member
    Minuteman
    Jan 9, 2019
    577
    590
    I have a Nuke 1.2 and an Arch with the twist bolt stop. The Nuke has always been easier to turn and the Arch was very hard. Based on this thread I pulled them apart and clipped the springs down (~1.5 coils) until they are just finger tight...much better! I did notice that the Arch spring was shorter but with with less coils and a thicker metal...guess that sucker is just stiff.

    • Like
    Reactions: Baron85

    Hkmiller

    Sergeant of the Hide
    Full Member
    Minuteman
    Jan 16, 2021
    168
    90
    North Florida
    Mixed? People don’t like that the bolt release is tough and maybe bolt tear down but anyone who has actually used one vs seeing pics on the internet likes em.
    The Archimedes is just plain snazzy.

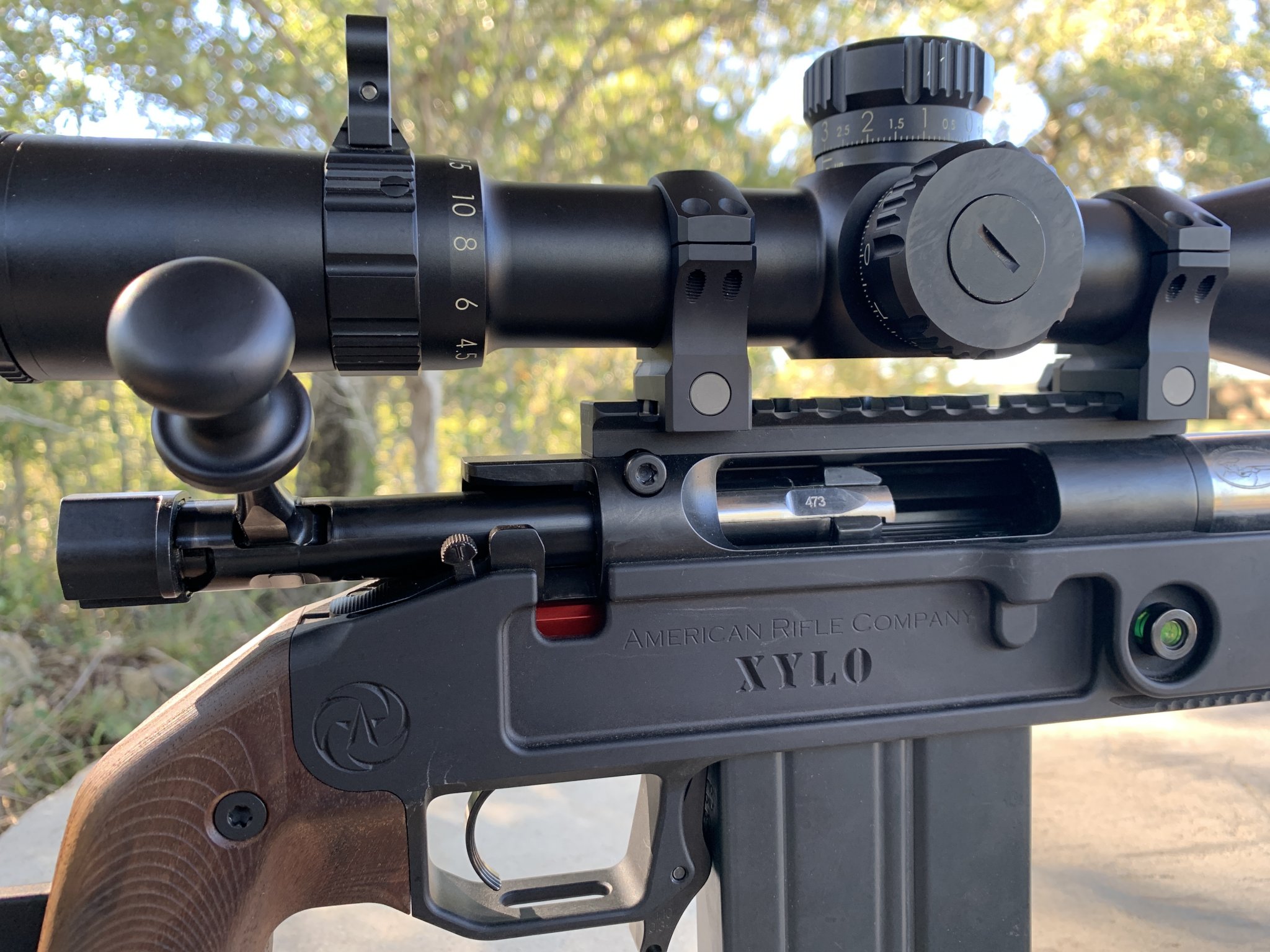

    View attachment 8007581
    I don’t think I’ve ever lubed mine and it’s still slicker than goose shit after 1k rounds so far.
    What PVA barrel do you have on this gun?


    Rockdoc173

    Private
    Supporter
    Full Member
    Minuteman
    Supporter+
  • Aug 26, 2014
    510
    147
    Florida
    I have two, a Nucleus I used in a 6CM and a Archimedes I just finished in a necked up 6.5 PRC, both lefty and both are outstanding. They've been entirely reliable and I don't regret buying them at all. I might add that what someone else said about the "smoothness" of the actions is correct. For reliability, they purposefully have some play in the bolts but this means you don't get the same glass-on-grease sensation as you do from some other actions. I've played with both and I don't think you go wrong with either, however I like the thoughtfulness that Ted puts into his actions.

    Last edited:

    Estes640

    Sergeant of the Hide
    Supporter
    Full Member
    Minuteman
    Supporter+
    Feb 13, 2017
    1,492
    456
    Bellevue, KY
    The actions in the current run of BAs for Black Friday are Nuke 2.0s with the integral lugs correct?
