Arc Nuclues action owners

Schw15

Longrange
Full Member
Minuteman
Supporter+
  • Jul 21, 2019
    3,648
    817
    Colorado
    Posted a video of my action. Easy bolt lift then at the top it snaps open pretty hard. I talk to ARC said that was normal not saying I don't believe them or question them at all just seeing if anyone else has that samething with these actions? I'm more or less just curious.

    Arc Nucleus Gen 2 long action mag bolt face. 30 nosler but get samething on other calibers.

    My loads show no sign of pressure with primers ect. My speeds are pretty dang slow in a 30 inch barrel for that not to happen just figured I'd throw that out there since it was going to be brought up.

    Once again just more or less curious if others see this with those actions across the board.


    spife7980

    Luchador
    Full Member
    Minuteman
    Feb 10, 2017
    11,633
    12,122
    Central TX
    It sounds like the brass dragging in the chamber and it then engaging the primary extraction ramp and not the action itself to me.


    Ledzep

    Chancellor
    Full Member
    Minuteman
  • Jun 9, 2009
    3,873
    4,027
    NE
    Cases are sticking in the chamber and you're having to engage the primary extraction cam. It's a case/pressure/chamber thing not the action.

    • Like
    Reactions: Schw15

    Schw15

    Longrange
    Full Member
    Minuteman
    Supporter+
  • Jul 21, 2019
    3,648
    817
    Colorado
    I was thinking maybe the dies wasn't resizing the case enough at case head with .002 shoulder bum. Pressure not much there no signs in primer or no heavy bolt lift. I can open bolt easy to the top. My speeds are in the 2860 to 2900 for 230 a-tips 30 nosler and 30 inch barrel.

    But send videos to ARC they said it was nor.al but just wanted to see others experiences


    Schw15

    Longrange
    Full Member
    Minuteman
    Supporter+
  • Jul 21, 2019
    3,648
    817
    Colorado
    Hi Scott,

    The hang-up at the top does seem to be a normal function of the action when brass is stuck in the chamber. The Nucleus uses bolt-cam extraction, so what is happening is that when you are getting near the top of the bolt lift, the handle of the bolt is hitting the angled surface at the back of the receiver to simultaneously pull the bolt open and back to get the case out. Please let me know if you have any other questions.

    Thank you,

    From ARC


    Schw15

    Longrange
    Full Member
    Minuteman
    Supporter+
  • Jul 21, 2019
    3,648
    817
    Colorado
    Clickers either need new dies custom dies or polish out chamber maybe I guess. Ran into this twice the past few years before that the last 15 years nothing like this

    • Like
    Reactions: nikonNUT

    AllenOne1

    Major Hide Member
    Full Member
    Minuteman
    Mar 8, 2020
    1,069
    1,643
    Middle Tennessee
    Consider ordering a die from Whidden or better yet if you have time send them fired brass and have them make you a custom sizing die. Their standard die will most likely fix your issue.


    RFutch

    Yoohoo. I'll make you famous.
    Supporter
    Full Member
    Minuteman
  • Sep 28, 2010
    1,523
    1,117
    41
    Georgia
    Mine does it sometimes but has gotten better. Seemed to to it worse on new brass than fired a couple times.

    I thought initially is was pressure but my loads in that rifle are not near the top end so I kinda forgot about it.


    Schw15

    Longrange
    Full Member
    Minuteman
    Supporter+
  • Jul 21, 2019
    3,648
    817
    Colorado
    Consider ordering a die from Whidden or better yet if you have time send them fired brass and have them make you a custom sizing die. Their standard die will most likely fix your issue.
    They don't make a 30 nosler die have to be custom

    • Like
    Reactions: AllenOne1

    Schw15

    Longrange
    Full Member
    Minuteman
    Supporter+
  • Jul 21, 2019
    3,648
    817
    Colorado
    Mine does it sometimes but has gotten better. Seemed to to it worse on new brass than fired a couple times.

    I thought initially is was pressure but my loads in that rifle are not near the top end so I kinda forgot about it.
    So yours does that all the time as well?


    RFutch

    Yoohoo. I'll make you famous.
    Supporter
    Full Member
    Minuteman
  • Sep 28, 2010
    1,523
    1,117
    41
    Georgia
    So yours does that all the time as well?
    Not anymore. Prob have 500 rounds on the action now with 3 different barrels for it. It probably hasn't done it in the last 200-300 rounds.


    Schw15

    Longrange
    Full Member
    Minuteman
    Supporter+
  • Jul 21, 2019
    3,648
    817
    Colorado
    Not anymore. Prob have 500 rounds on the action now with 3 different barrels for it. It probably hasn't done it in the last 200-300 rounds.
    Strange. Mine has prolly 2k or more on it. Mine does it more when the brass gets older


    spife7980

    Luchador
    Full Member
    Minuteman
    Feb 10, 2017
    11,633
    12,122
    Central TX
    Strange. Mine has prolly 2k or more on it. Mine does it more when the brass gets older
    As expected. It’s a vivacious cycle.
    The older the brass gets the more it has been fired and sized.
    The more it gets fired and sized the harder it gets as a result of the work done to it.
    The harder it gets the more it wants to spring back opposite to sizing so it won’t get smaller and it will get larger while resisting the sizing die.
    So you need to find a die that sizes down more still to overcome the spring back or you need to open the chamber a smidge to allow your current die to be enough sizing that it springs back away from the chamber after firing towards its sized state.
    Sounds like right now it’s more tangential contact between the die and the brass coming out of it but some dimensional numbers for the brass sized-loaded-fired for each cycle of its life would be helpful in tracking this sort of issue.


    Schw15

    Longrange
    Full Member
    Minuteman
    Supporter+
  • Jul 21, 2019
    3,648
    817
    Colorado
    As expected. It’s a vivacious cycle.
    The older the brass gets the more it has been fired and sized. The more it gets fired and sized the harder it gets. The harder it gets the more it wants to spring back opposite to sizing so it won’t get smaller and it will get larger while resisting the sizing die.
    So you need to find a die that sizes down more or you need to open the chamber a smidge to allow your current die to be enough.
    I have found ADG brass to do this more than others. But yeah I'm afraid so. The die might be harder I think a good polishing be easier cheaper and faster


    Schw15

    Longrange
    Full Member
    Minuteman
    Supporter+
  • Jul 21, 2019
    3,648
    817
    Colorado

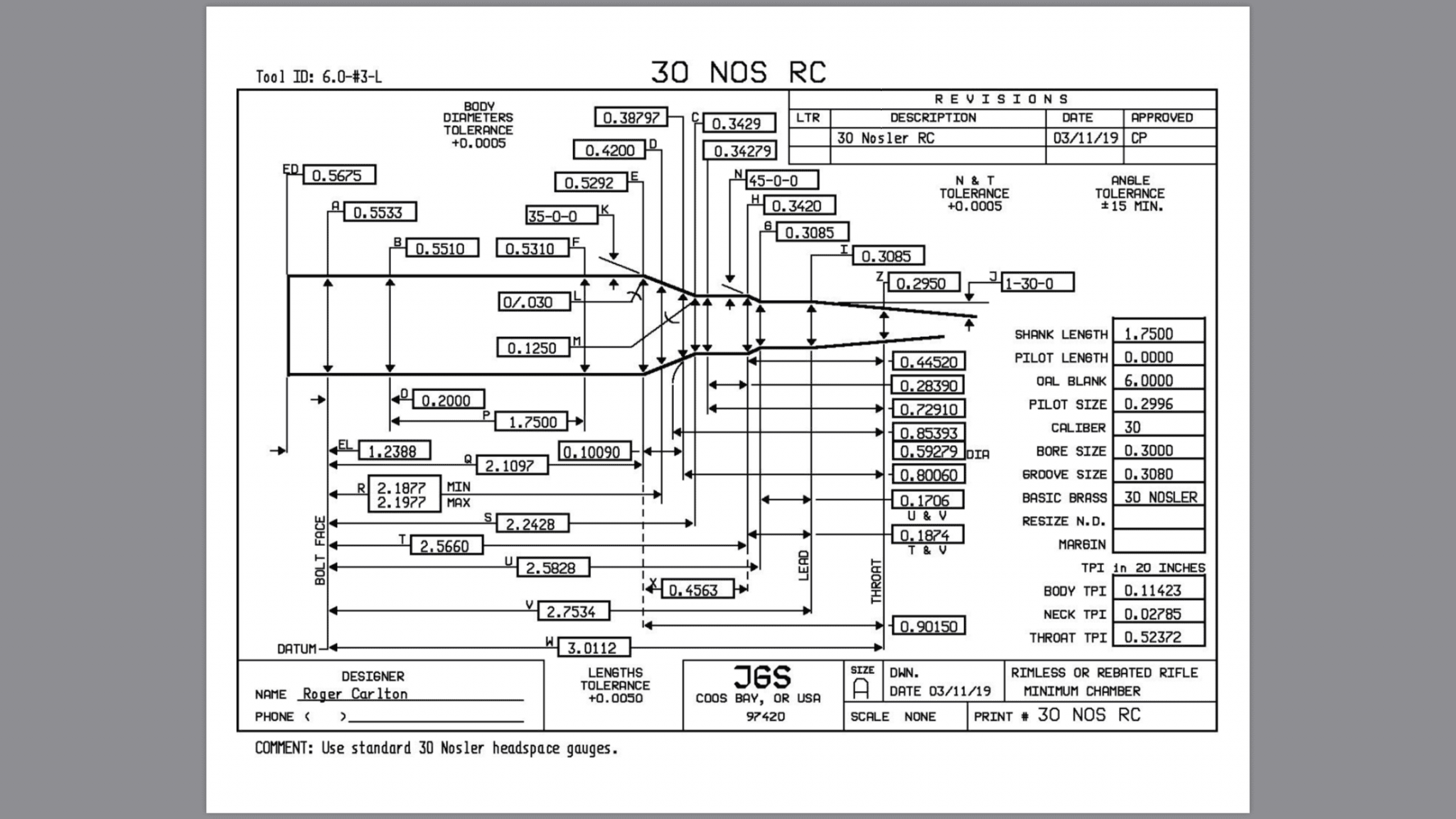

    So the reamer specs should be .5510 at .200 line 30 nosler my brass fired is .548 to .549 sized I belive .548 .5475
