Bergara B14R cheek riser rod diameter?

[nikonNUT]

Hey guys! I know this is a dumb question and I can get all my measurements when I get home but kind of want to hit Granger on the way home. Does anyone know what the cheek riser rod diameter is on a Bergara B14R? Want to make a zero stop so when I pull the cheek riser off I’m not messing with trying to set the height again when I put it back on. Thanks in advance and yes I know I’m a dumb ass for asking!



[Deodand]

.394" or 10mm



[nikonNUT]

Thank you, sir!



[Stev0]

If you're getting o-rings, #7 fit great. 1/2" OD x 3/8" ID x 1/16". Danco 96724



[KnowNothing256]

I use these, cut in half and filed down on the sides to fit in the hardware slot.

Amazon.com: uxcell 8mm to 10mm Bore Rigid Coupling Set Screw L25XD16 Aluminum Alloy,Shaft Coupler Connector,Motor Accessories,Blue,2pcs : Industrial & Scientific

Buy uxcell 8mm to 10mm Bore Rigid Coupling Set Screw L25XD16 Aluminum Alloy,Shaft Coupler Connector,Motor Accessories,Blue,2pcs: Set Screw - Amazon.com ✓ FREE DELIVERY possible on eligible purchases

www.amazon.com



[nikonNUT]

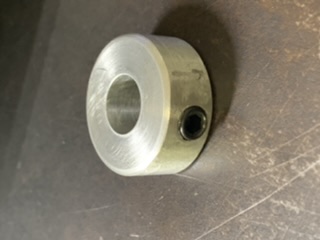

I made this because I was bored…

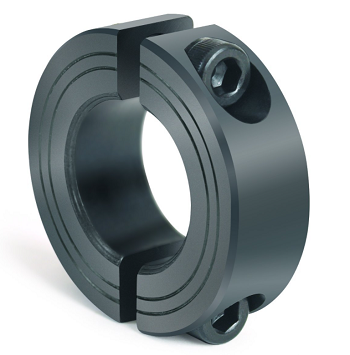

I also ordered a few 10MM split collar couplers for shits and giggles.



[KnowNothing256]

I made this because I was bored…
View attachment 7672158
I also ordered a few 10MM split collar couplers from shits and giggles.

Looks perfect, enjoy. It’s ridiculous how much nicer it is to have the zero stop on the riser, it’s one of the top mods I’d recommend to anyone running the HMR stock.



[AR15-SBR]

I used an E-clip on the front post in one of the notches and it works great.



[nikonNUT]

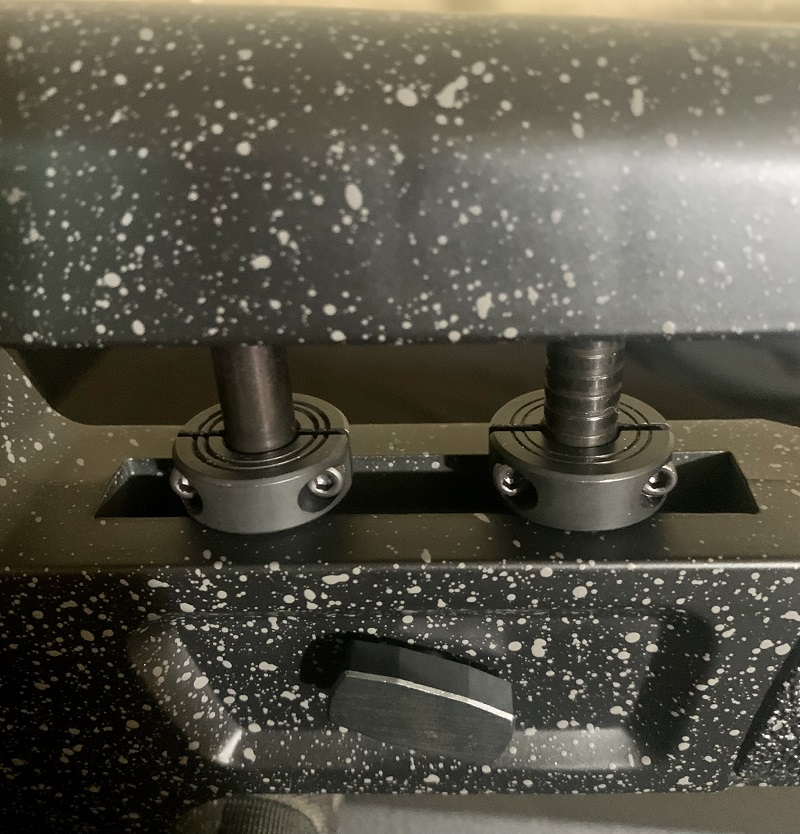

All done. I ended up using the Climax 10mm Split Collars smooth side down. Very pleased for $25.00...

As a side perk they help with side to side wobble with the cheek rest up high like I have it. I'll be doing this to my MDT ACC as well!



[wally247]

Why have I never thought of such a simple yet handy thing?!
