Best way to mount red dot to a scoped rifle ?

Arevalosocom

Wizard
Full Member
Minuteman
Aug 1, 2007
351
15
Hobart, IN
Fellas

Looking for advice on added a red dot to a scoped rifle. I know many of the newer fancy mounts have pic rails to add a red dot to a say 5-25 x 56 optic. But assuming you have rings instead a 1 piece mount anyone have suggestions for a good ring mount that can be added to place a dot say above / at 12 o'clock position?


Socso.eod

Supporter
Supporter
Full Member
Minuteman
Apr 10, 2022
115
164
Central NJ
Depends on the manufacturer of the rings, if they even support something like that. For instance, Badger has the Accessory Ring Cap (ARC) system that works with their normal 1" rings as well as the COMM one piece, but then you need to source plates and adapters for the different microdots. For instance, this is just one piece (the ARC) https://www.rooftopdefense.com/prod...arc-accessory-ring-cap-for-30mm-scope-mounts/

Again, depends on the manufacturer. If you're no using a gas gun or something else that has a large picatinny section at the 12 you're pretty much fucked. If you are on a bolt gun with a pic rail, you can look into a 45 degree offset from someone like Knights, Trijicon, GG&G, etc. that matches whatever dot you want. Not as nice as piggyback at 12 o'clock like you want but an option nonetheless.


kthomas

Sergeant
Supporter
Full Member
Minuteman
Supporter+
Jun 17, 2009
5,337
6,691
35
Tucson, AZ

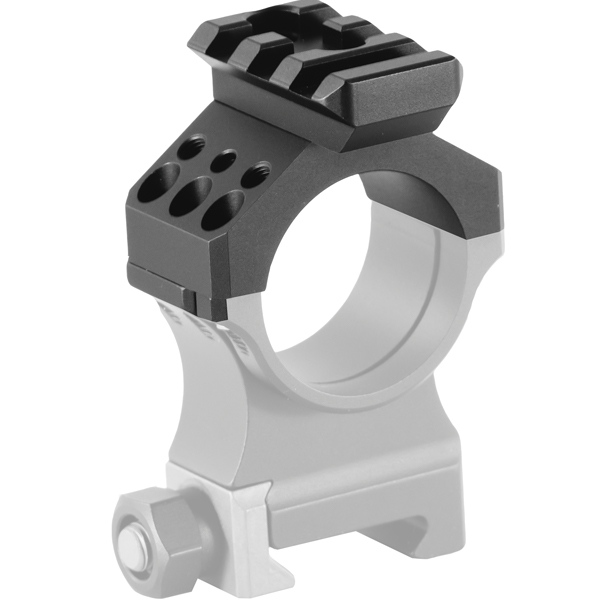

Something like this:


  • Like
Reactions: Arevalosocom

black5.3

Sergeant
Full Member
Minuteman
Jun 1, 2017
727
342
NC
I personally think the 35* and 45* offset mounts are nice for competition and gun games type stuff but I have grown to like the 12 o clock rds mount that sits up higher for passive aiming through nods and while keeping the rifle upright and not having to worry about cant and all that. Both options definitely have pros/cons.

With that being said, i will be following this because i have a 14.5” AR with a razor 1-6 in a Badger COMM and I am looking at the best option for mounting a rds at 12 o clock.


Butterburger

Supporter
Supporter
Full Member
Minuteman
  • Dec 25, 2020
    564
    1,918
    Maidenhead
    I have mine mounted to the slide on my FNP Tactical .45 The slide was milled out at the factory and the gun came with mounts for different sights. An idea whose time has come for shooters with less than optimal eyesight.

    • Like
    Reactions: Arevalosocom

    cas6969

    Sapling Sniper
    Full Member
    Minuteman
    Nov 16, 2021
    1,542
    10,551
    Eastest coast

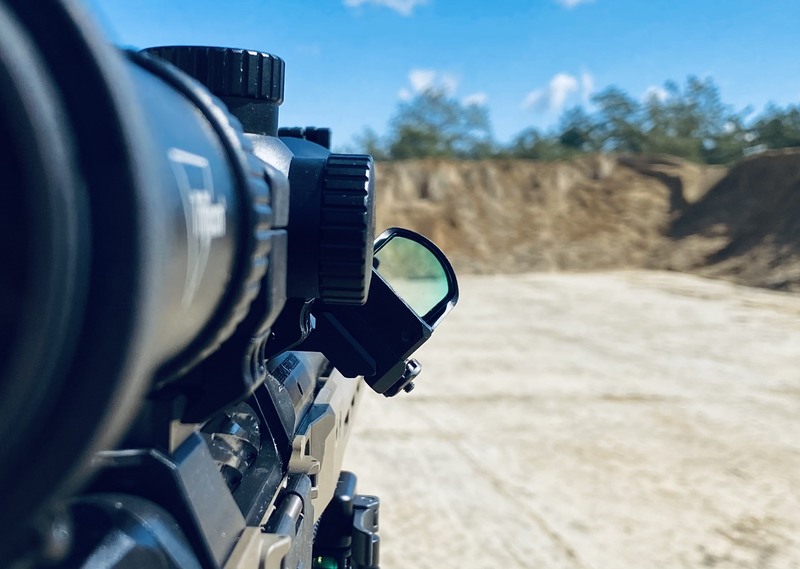

    I put an offset on a rifle this spring and for the life of me I can’t remember what I used, other than that my first 2-3 attempts barely worked or failed all together. I’d have to look through a bunch of online invoices to be sure. Spent way too much on an Arisaka offset that didn’t really give me enough room to use the buttons and wasn’t centered over the bore. It’s more of a light mount and I was working off M lock slots in the chassis. I finally moved the scope/rings around and freed up enough real estate to use a rail mounted one.

    Last edited:
    • Like
    Reactions: Arevalosocom

    nikerret

    Sergeant of the Hide
    Full Member
    Minuteman
    Jun 8, 2022
    115
    122
    Kansas

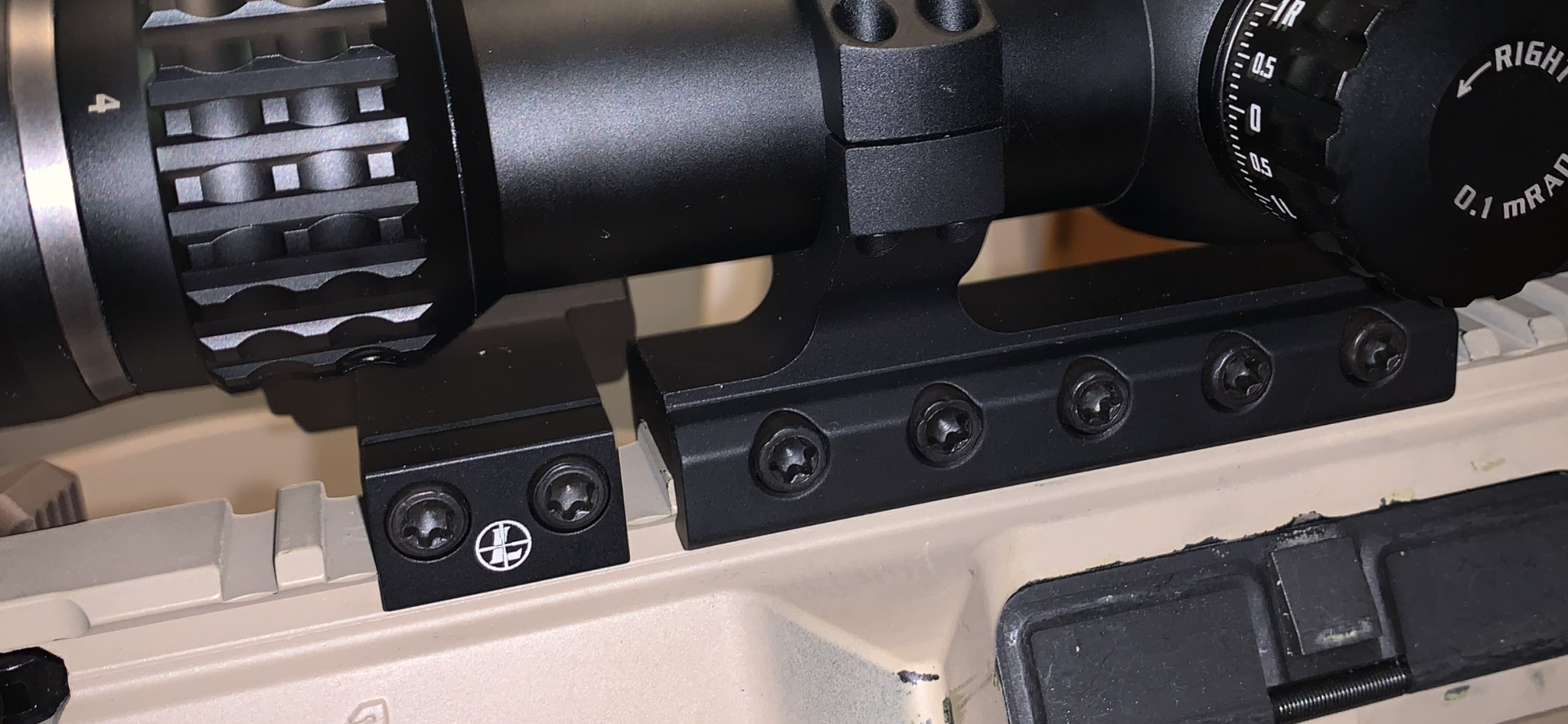

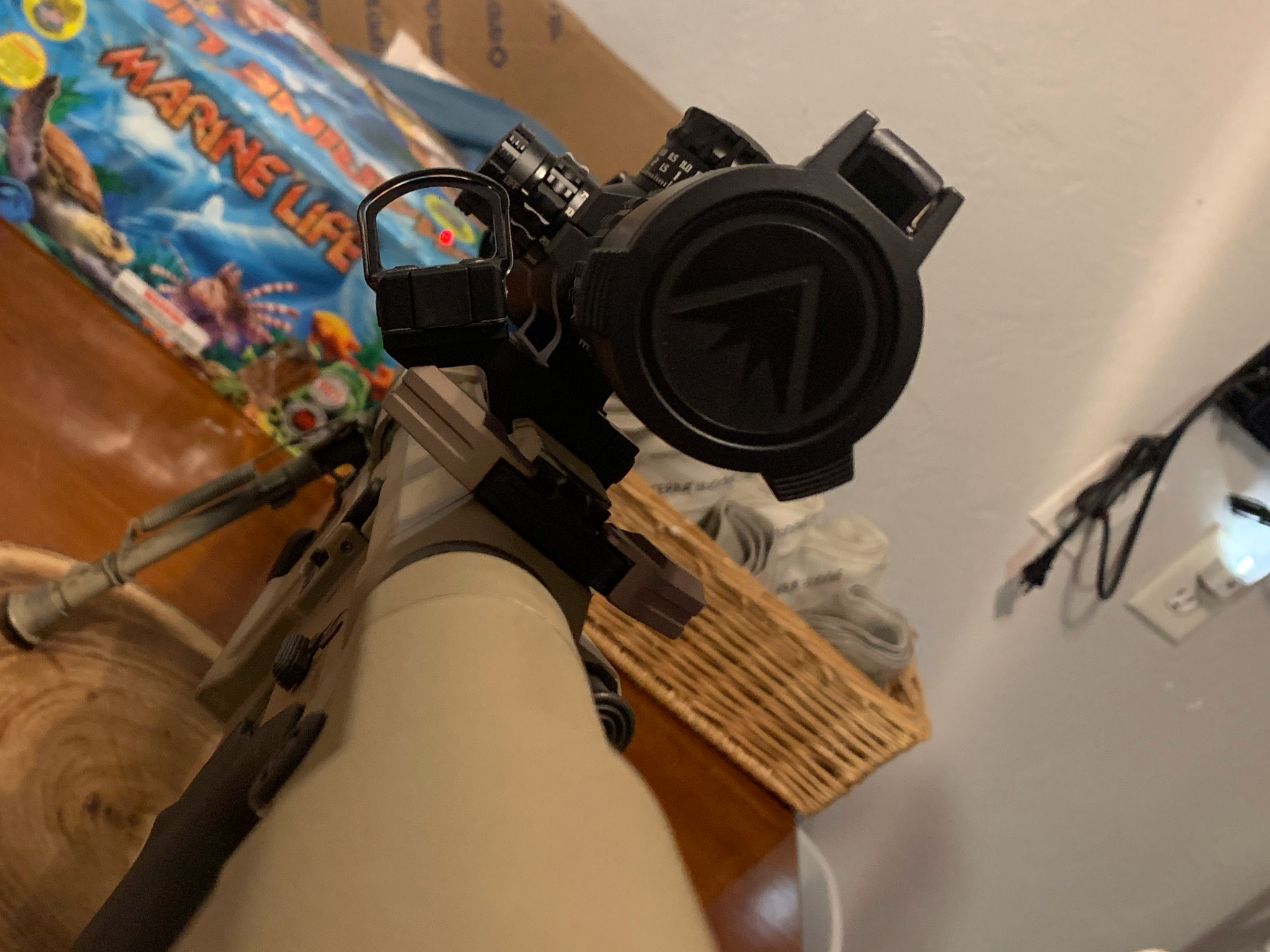

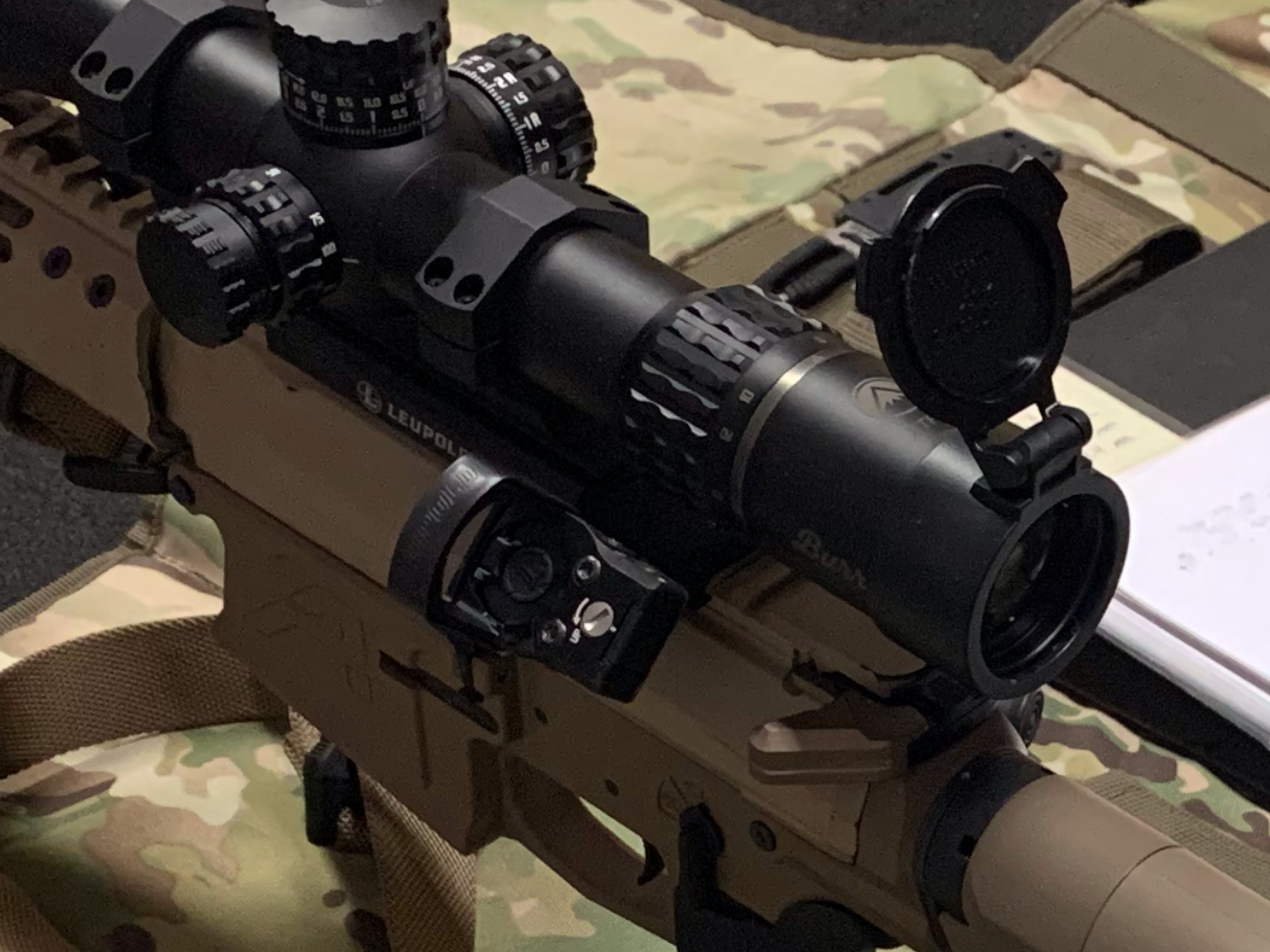

    Here is how I did mine. It’s an Aero M5/308 build with Leupold mounts, scope one piece and DPP 45*.

    I haven’t shot it enough to matter (got them both close at 25 yards), but it’s useable doing dry runs in my house.

    I’ll try the other pics, in the next post. They aren’t loading.

    • Like
    Reactions: Arevalosocom

    Makinchips208

    Gunny Sergeant
    Full Member
    Minuteman
    Sep 20, 2021
    606
    559
    Idaho
    Fellas

    Looking for advice on added a red dot to a scoped rifle. I know many of the newer fancy mounts have pic rails to add a red dot to a say 5-25 x 56 optic. But assuming you have rings instead a 1 piece mount anyone have suggestions for a good ring mount that can be added to place a dot say above / at 12 o'clock position?
    You want 12 o’clock?

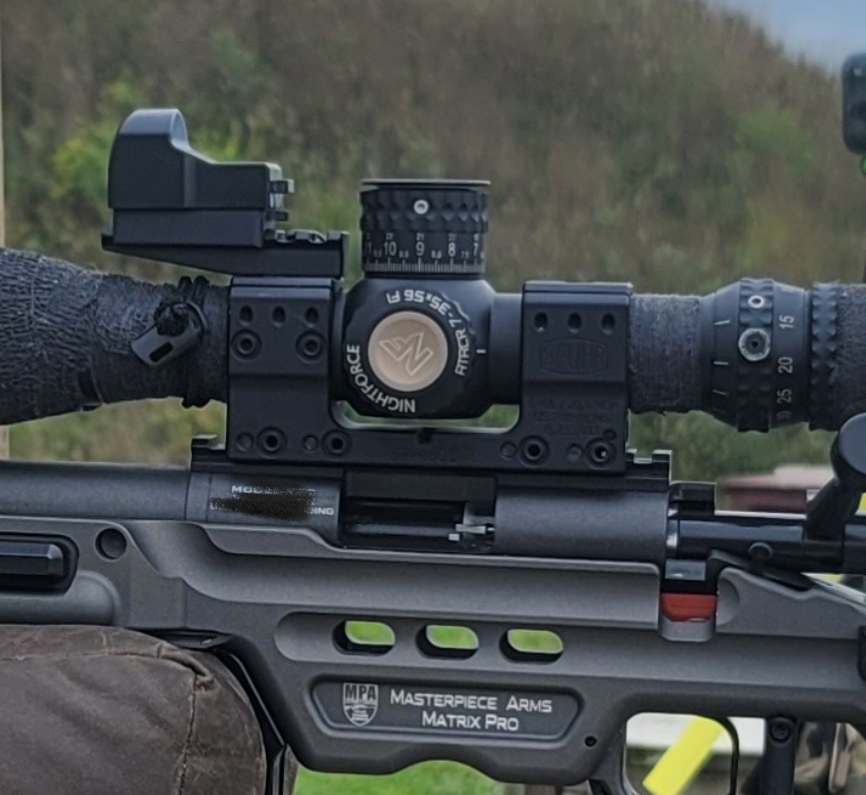

    Nightforce Multi mount. Can also do like 1 or 11 o’clock also.
