camo stencil source for diy camo paint job?

stello1001

Professional Newb
Belligerents
Feb 20, 2017
2,545
1,361
219
Corpus Christi TX
Digital camo?

Multi cam???

Tiger stripe camo?

Any in particular?


If you use was paper and tape you can make your own. I forgot the exact way but look on YouTube and you'll see what I'm talking about.


XLR308

Old Salt
Belligerents
Minuteman
Mar 22, 2018
2,911
2,729
119
Grand Junction, Colorado
Are you looking for the sticky kind or just cut outs ?
I have been contemplating doing a kryptek myself but there are loads of different patterns if you just Google it.


Winny94

Major Hide Member
Belligerents
Nov 19, 2013
1,515
547
219
Are you looking for the sticky kind or just cut outs ?
I have been contemplating doing a kryptek myself but there are loads of different patterns if you just Google it.
Sticky. I have a lot of contours to do, so they need to stick


Dougie308

Sergeant
Belligerents
Jul 28, 2011
926
886
99
St. Louis, MO
Pick out a pattern, put some of that green Frog tape on wax paper, draw the pattern on the tape.

Two tips. Prep is essential! Clean the surface four or five times. Twice with a degreaser and the rest with alcohol. Second, use a cloth to seal the edges to the surface and then paint the edges with flat clear to prevent paint creeping under the edges. To clarify. Use a small modeling brush on the edges and let that clear coat dry for 24 hours before applying base/primer coat.


kindabitey

Certified Canine Restroom Attendant
Hessian
Online Training Access
Belligerents
Feb 13, 2017
562
559
99
I've used Branson Cerakote, Weapon Stencils, and a couple of generic brand stencils. Most of the yellow vinyl type stencils are sticky enough.


hermosabeach

Betty Ford Center
Belligerents
Feb 13, 2012
12,971
70,844
219
Betty Ford Clinic
I have purchased a few sets from this company


Sticky can be good or a pain as you get to clean off adhesive residue
N52 is the stronger/ strongest magnet... If you are working on curved surfaces, they can help hold these in place.


You can also stack them for more pull. 3 stacked inside an AL handguard and 3 on top- magnets stick to each other through the handguard




It depends on what look you want... to break up the outline or to be funny. a guy who works at the local range did bunnyflage... bunnies as stencils

  • Like
Reactions: army11b1980

PainfromLongRange

Private
Minuteman
Mar 3, 2019
13
0
2
I got mine from Freedom Stencils. It worked fine, I did multiple colors/patterns. They turned out fine but after baking them a couple of times, they started to unstick. It looks great though with sharp edges.


elmuzzlebreak

Sergeant of the Hide
Belligerents
Minuteman
Oct 15, 2018
419
153
49

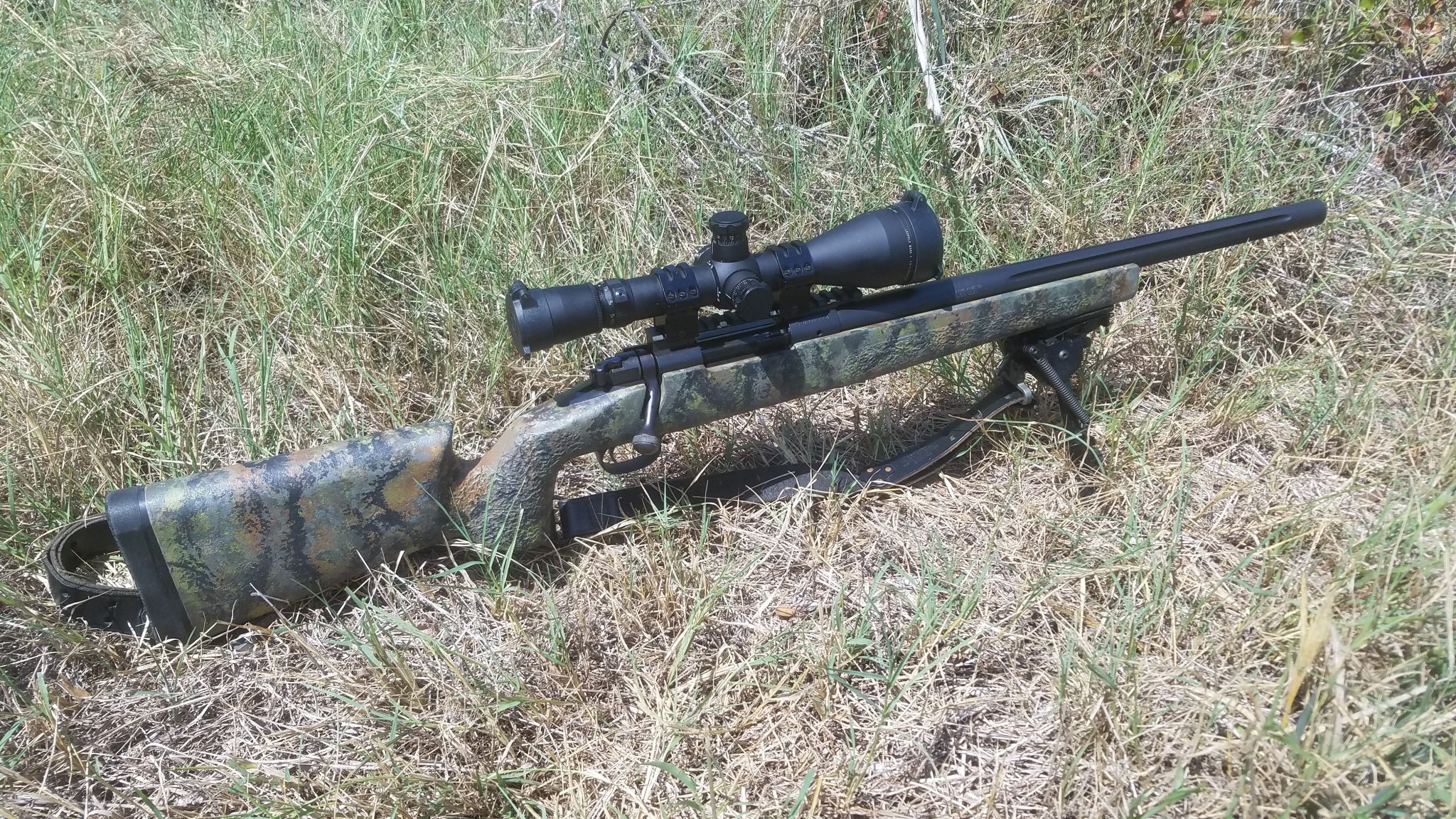

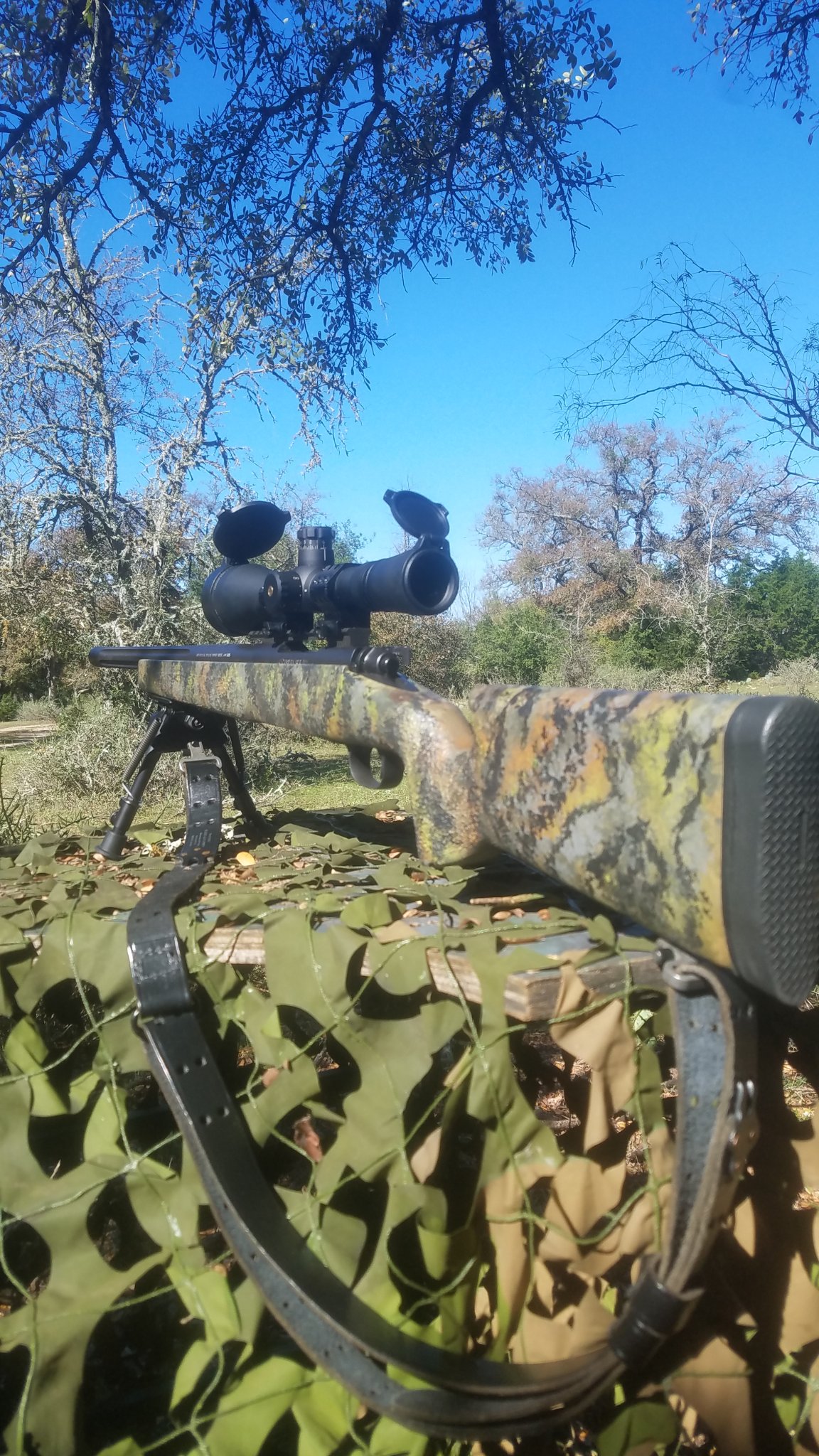

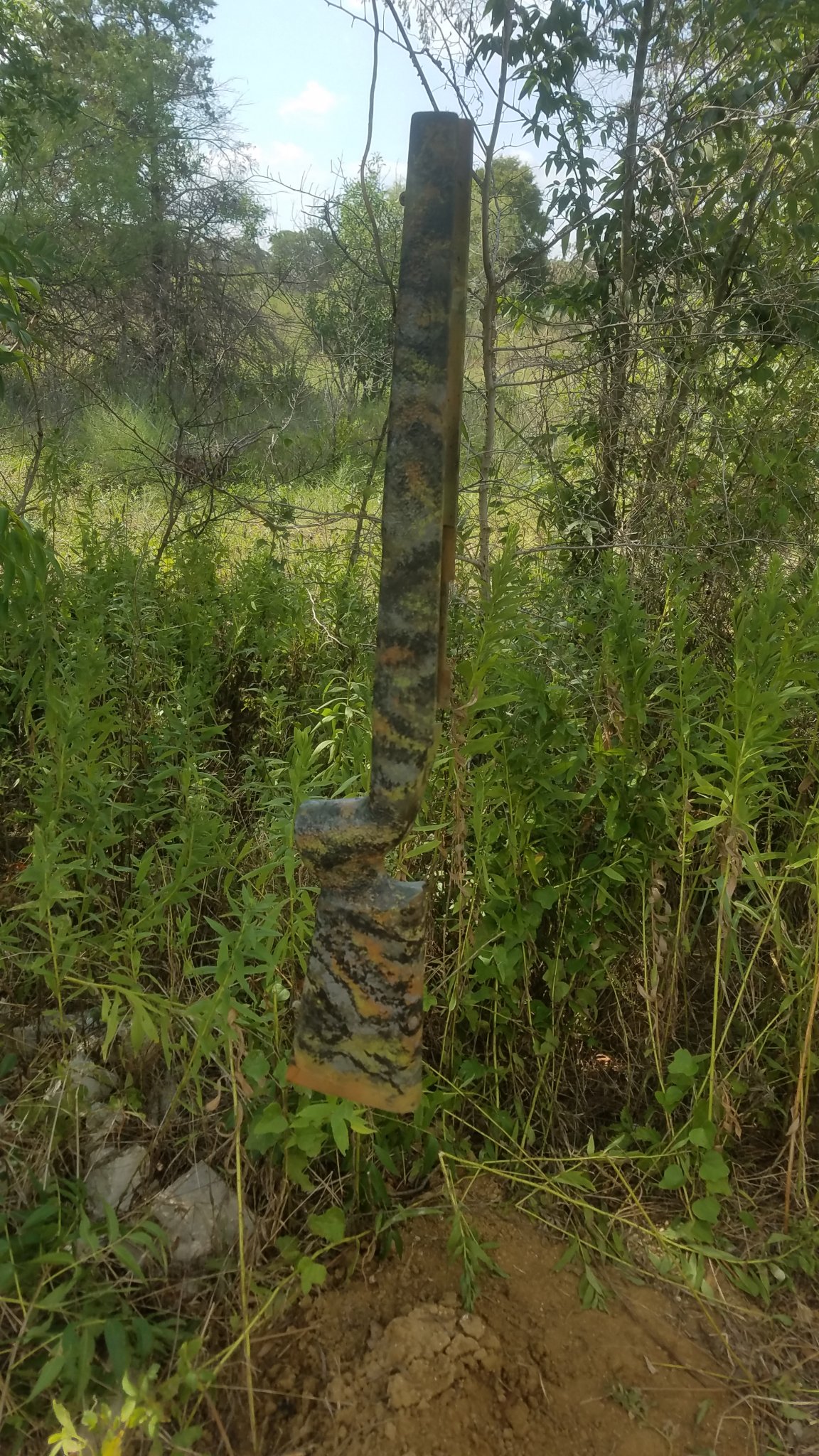

What I did to paint my guns is lay down a base coat, sprinkle broom straw, add contrast, and repeat. Then if you want to break it up even more dip a paint sponge in something and LIGHTLY dab it on there.


Strykervet

Resident Phoenix Eye and Dim Mak Instructor
Belligerents
Jun 5, 2011
4,908
3,480
219
44
Pierce County, WA
If you want stencils, here's how to do it:

Find the stencils you want online that you can copy.

Take wide blue painter tape and lay strips out just overlapping so you can make a 12x8 sheet.

Tape or glue (spray glue) the copy onto the back of the blue tape.

Cut out the stencils with an xacto knife.

I did this once. But I usually come out better just doing it all by hand and that's what I do.

  • Like
Reactions: atomic41

Rangerbob33

Private
Online Training Access
Belligerents
Feb 10, 2017
263
42
34
Nebraska


Kline

Sergeant of the Hide
Hessian
Belligerents
Dec 26, 2018
339
30
34
33
Northern Michigan

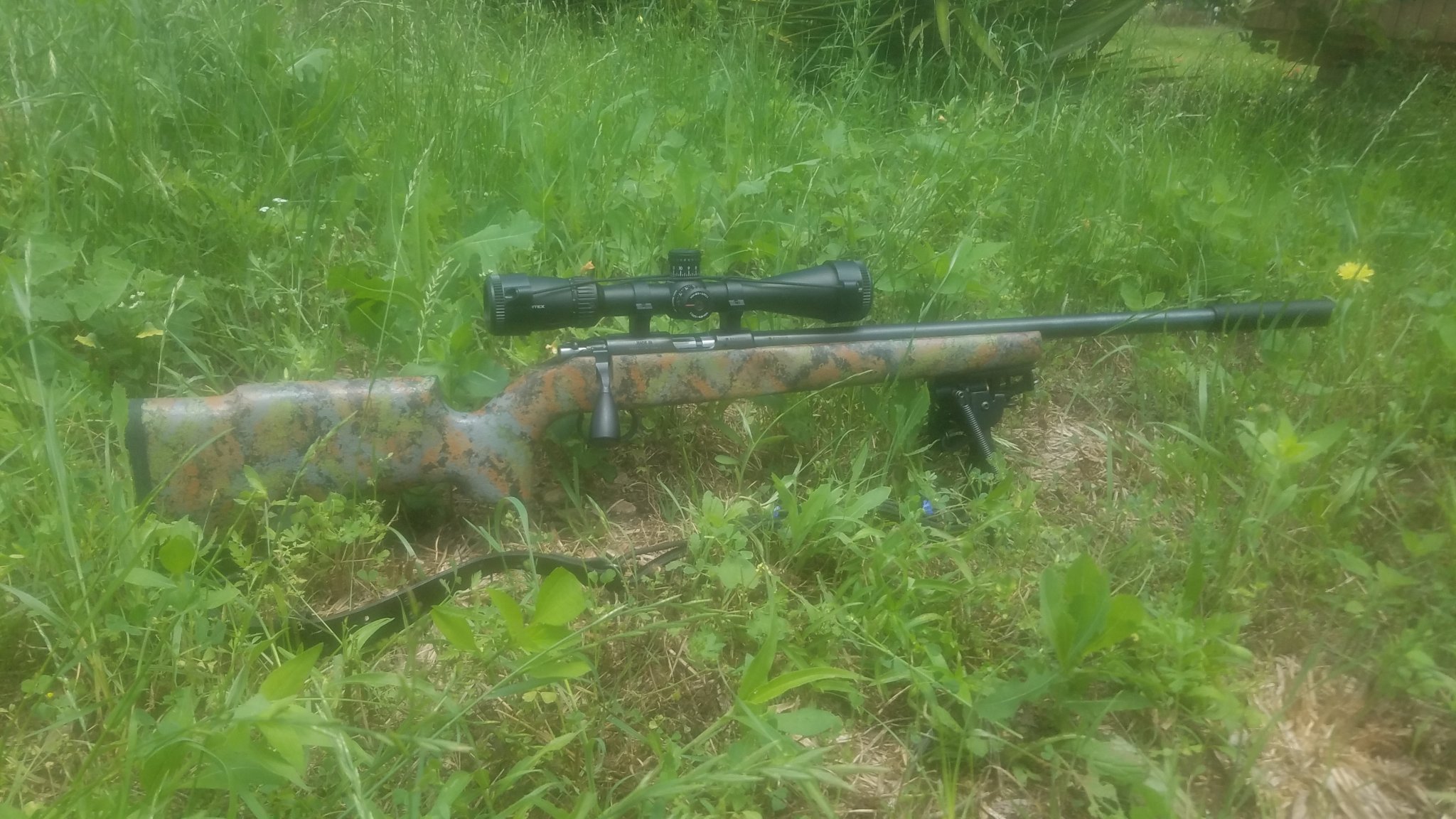

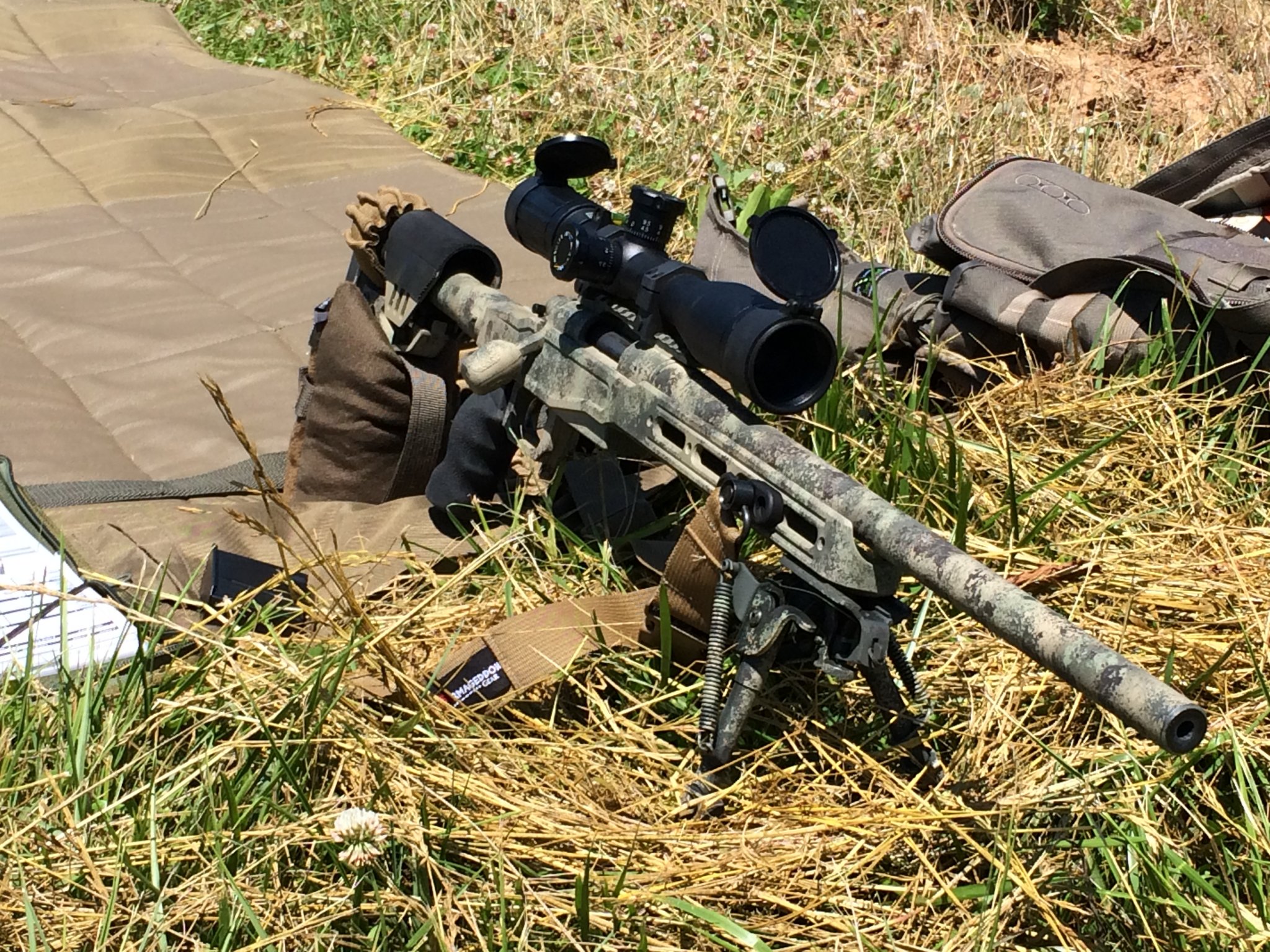

I like to do a light base color, and then do a combo of what some others have suggested. I use whatever leaves/grass/foliage i find in the nearby area, and then also use some extra netting and add in the darker colors (greens and browns). I like the way it turns out most of the time.


Attachments

aslrookie

Private
Belligerents
Mar 19, 2017
787
341
69

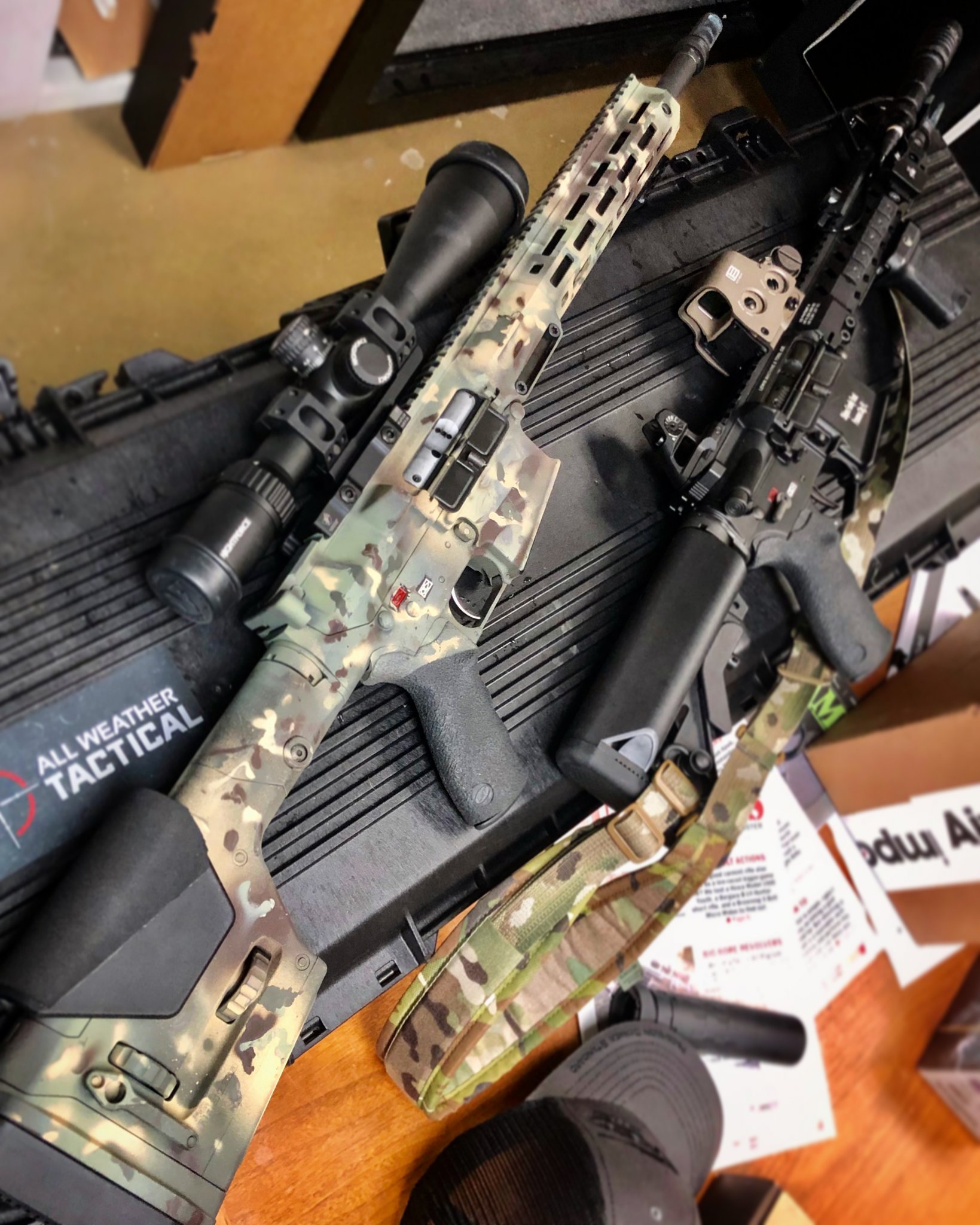

I just got done using the multicam pattern from freedom stencils. I thought it was a worthy purchase and it was a lot easier than drawing your own patterns and cutting them out. I have done that before, and it's more time consuming and not worth the cost savings vs just buying a set of stencils.


la angler

Sergeant of the Hide
Belligerents
Minuteman
Oct 26, 2018
113
12
22
I have tried a few sponge ones but not exactly the way I want it just yet.


waspocrew

Sergeant of the Hide
Belligerents
Minuteman
Feb 18, 2018
174
77
34
Cleveland, OH
Contemplating trying this method out sometime. I've done the sponge camo a few times and like the results, but always interested in trying something new.


Stavey

Private
Belligerents
Apr 23, 2017
241
74
34

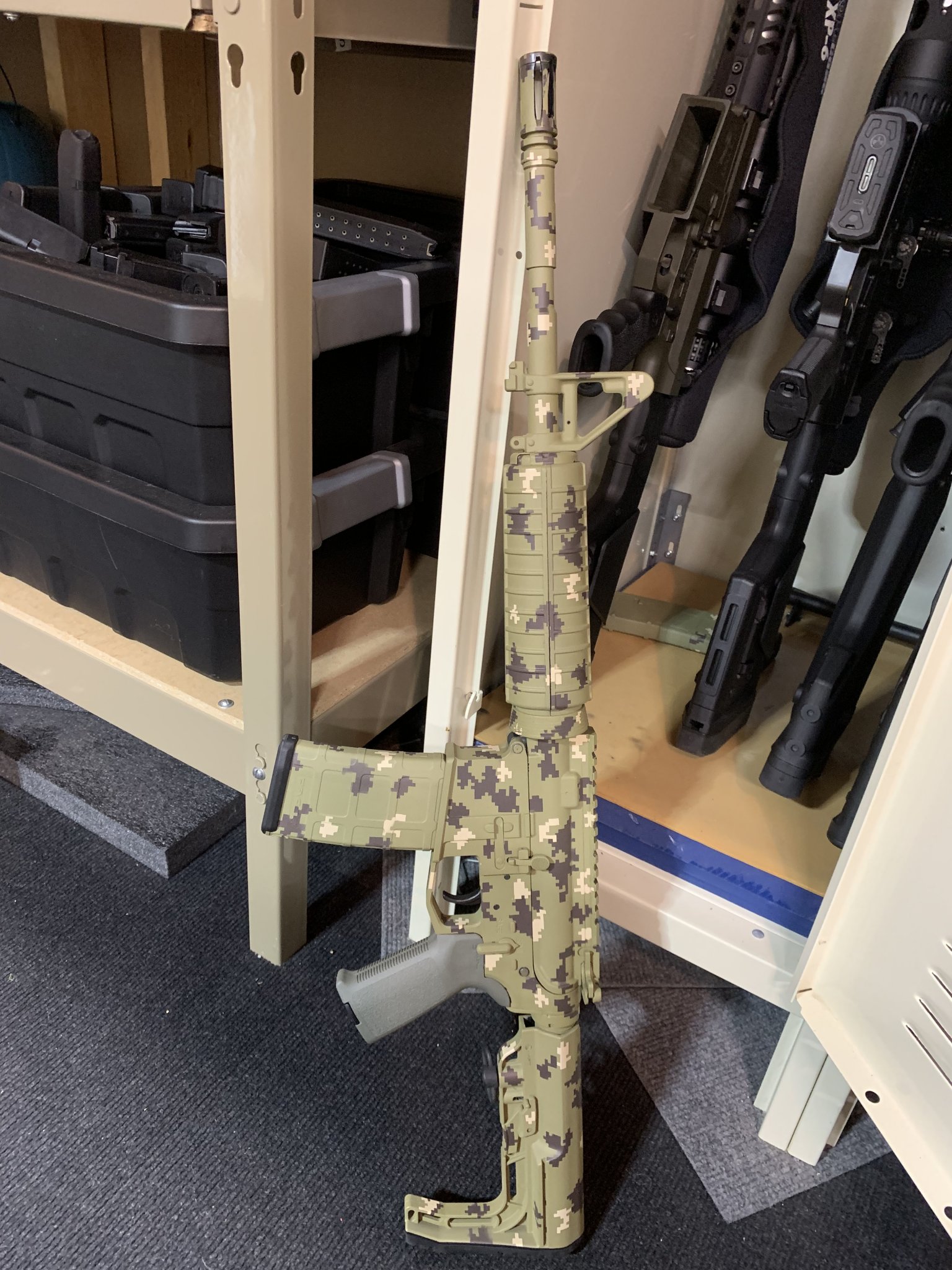

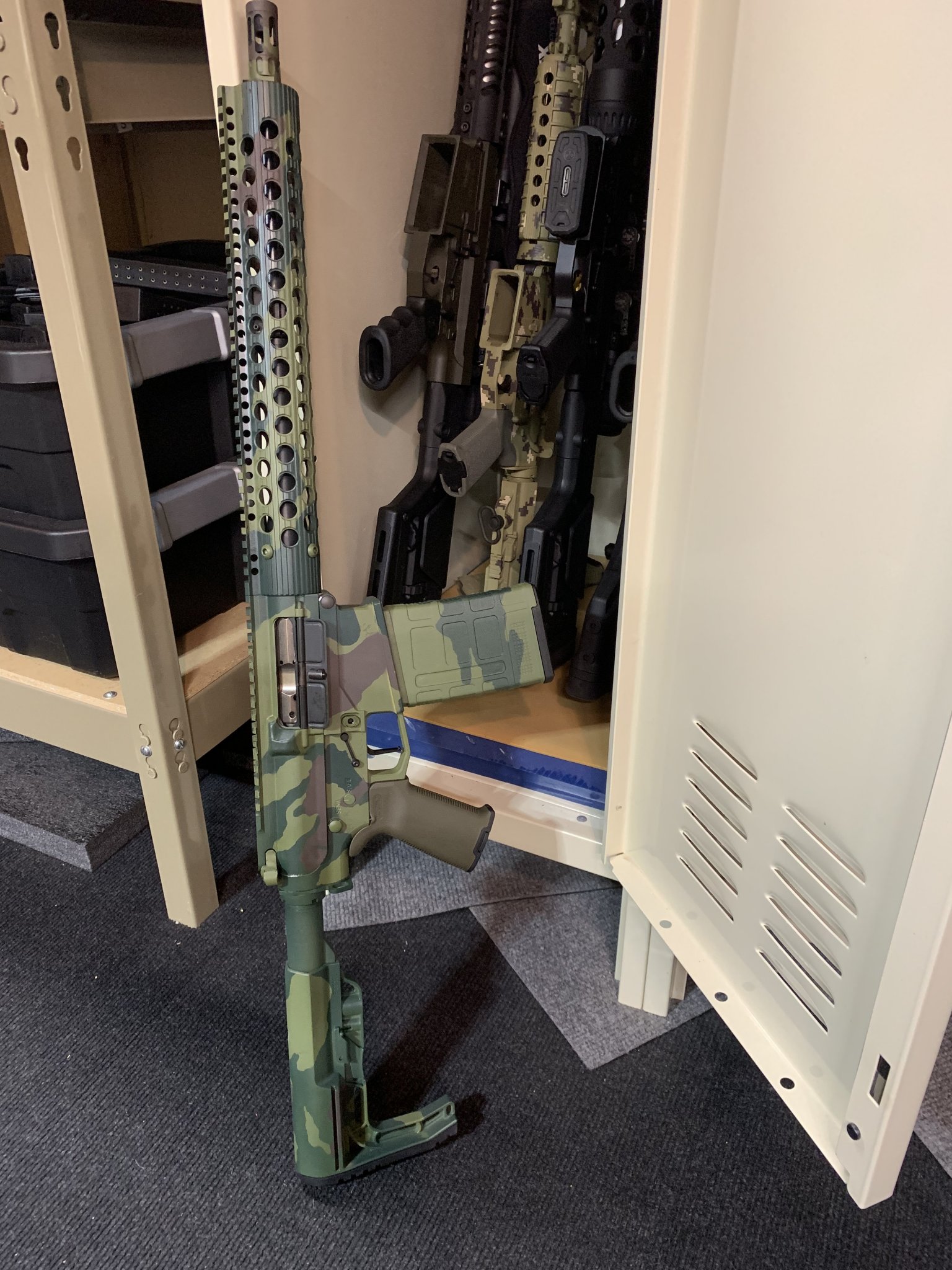

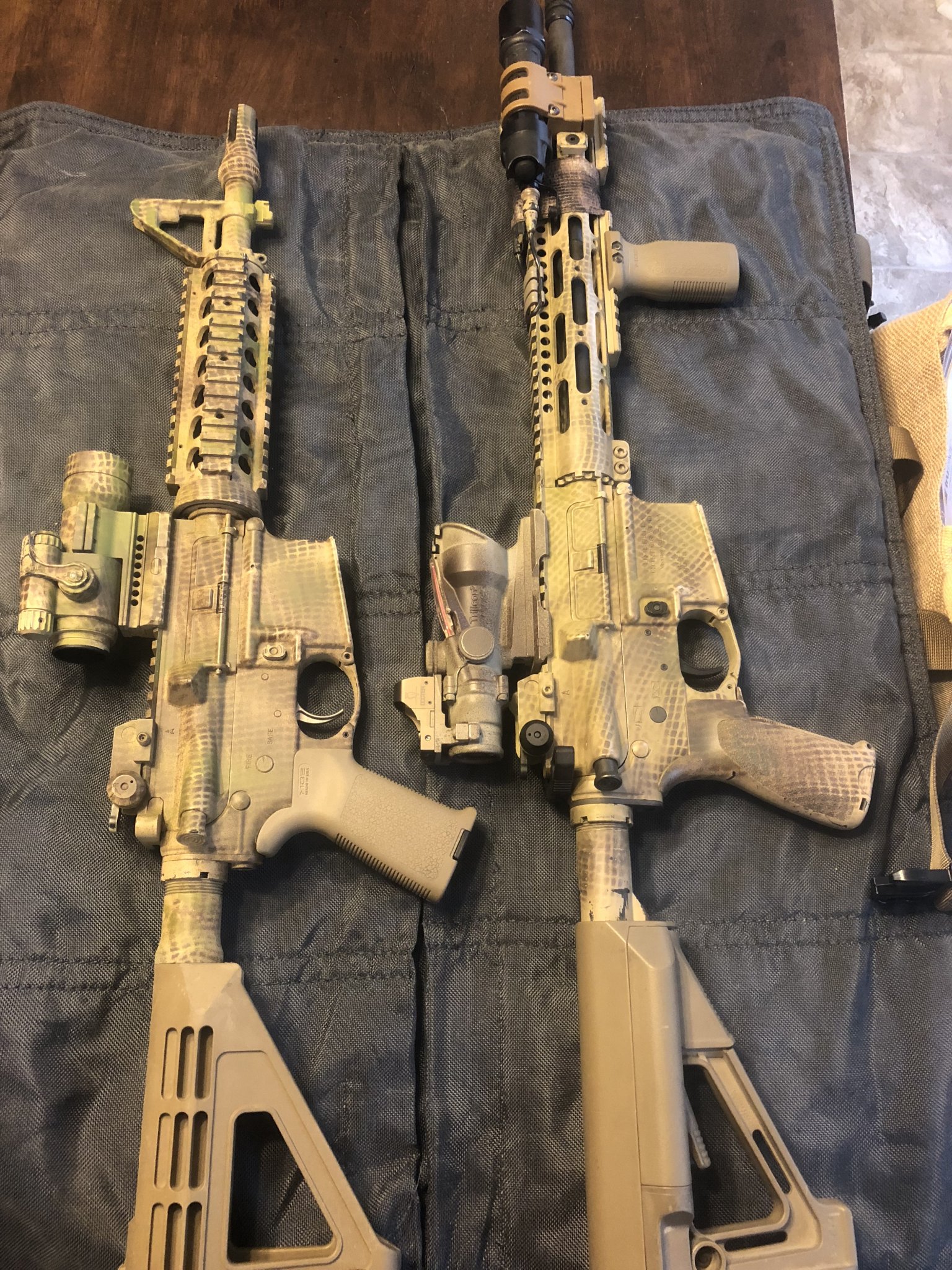

Duracoat Russian camo stencils on the AR10
Duracoat digital camo on the AR15
Duracoat is super easy to apply with a airbrush as well. If the sh!t hits the fan and I need to change colors I will break out the krylon. Until then I’ll stick with cerakote/duracoat .3F33F03A-9F22-4CEB-A4F5-632568A1A91F.jpegDFB0F023-D481-4C73-A737-8FDFC609C4ED.jpeg

Last edited:

brianf

Private
Belligerents
Apr 8, 2010
2,407
2,410
219
42
NY

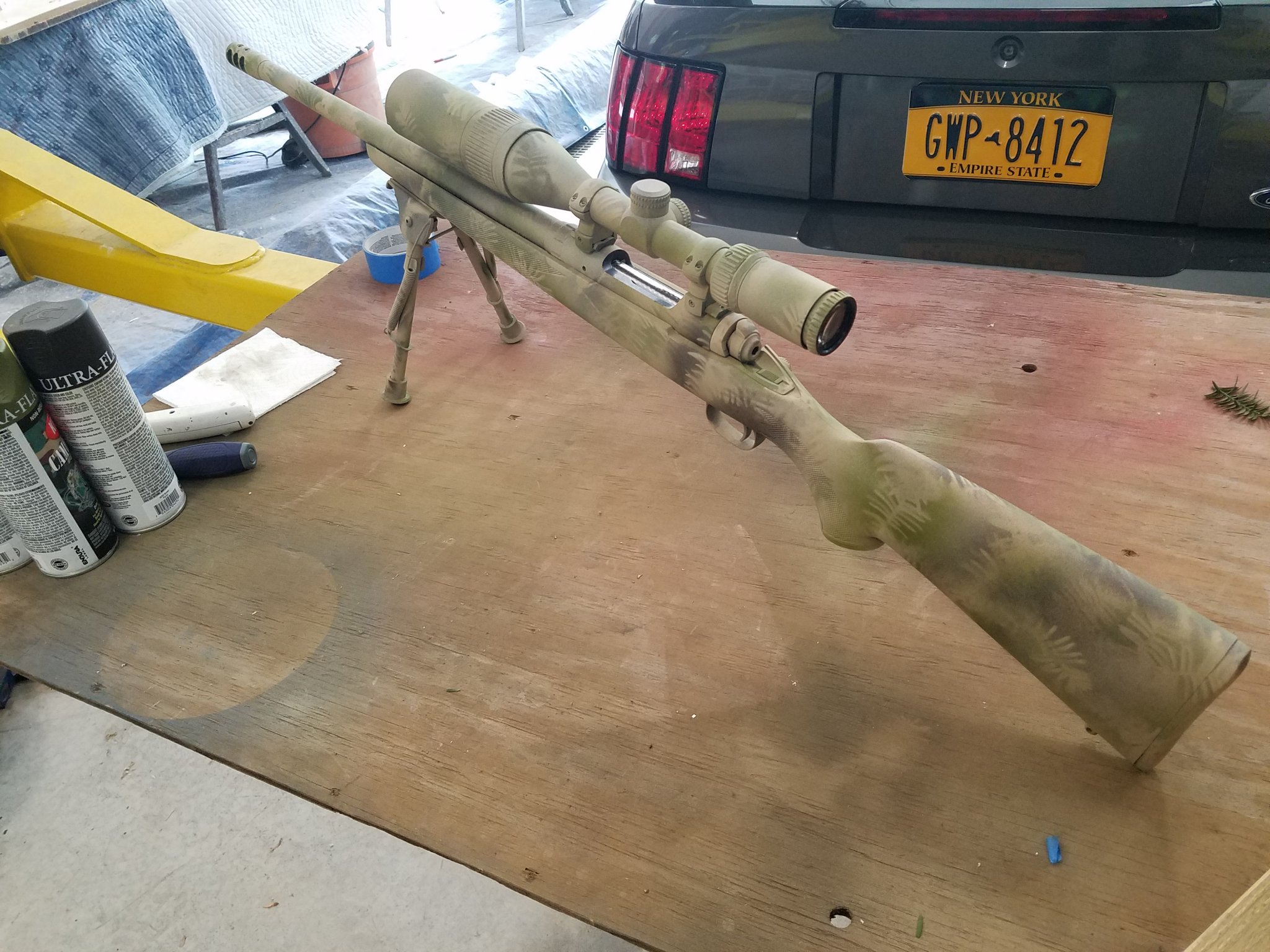

Went the nice/stencil route a few times...now it’s freehand. I’m not a artist at ALL.

Plus when you don’t take all day you don’t mind beating it up or wiping off and changing (or not removing at all, and just painting over)

10 minutes in the garage with some spray cans. Tape off glass, muzz, trigger, bubble level , rubber butt (some rubbers don’t like paint) and have at it.


  • Like
Reactions: RS14 and stello1001

TheTick

Private
Belligerents
Dec 17, 2010
41
31
24
Metro Philadelphia, PA

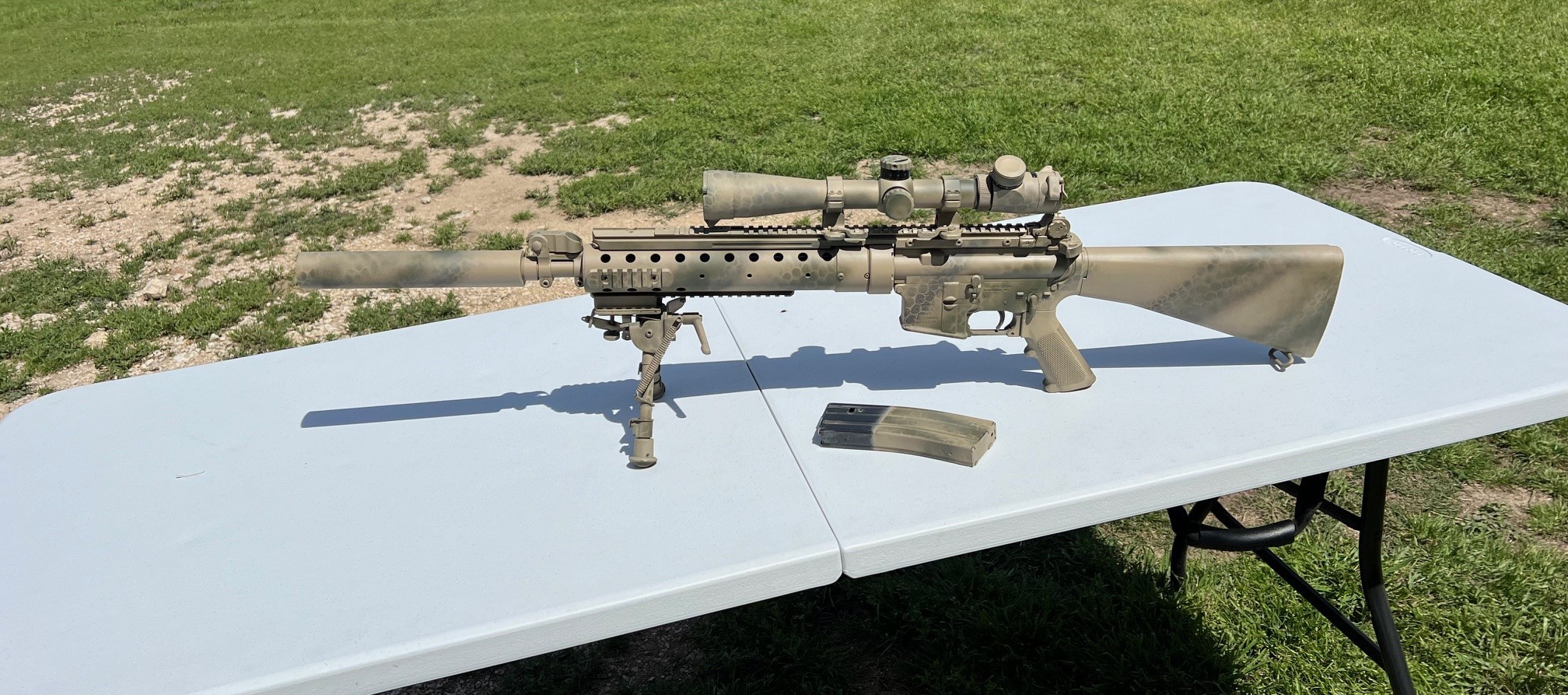

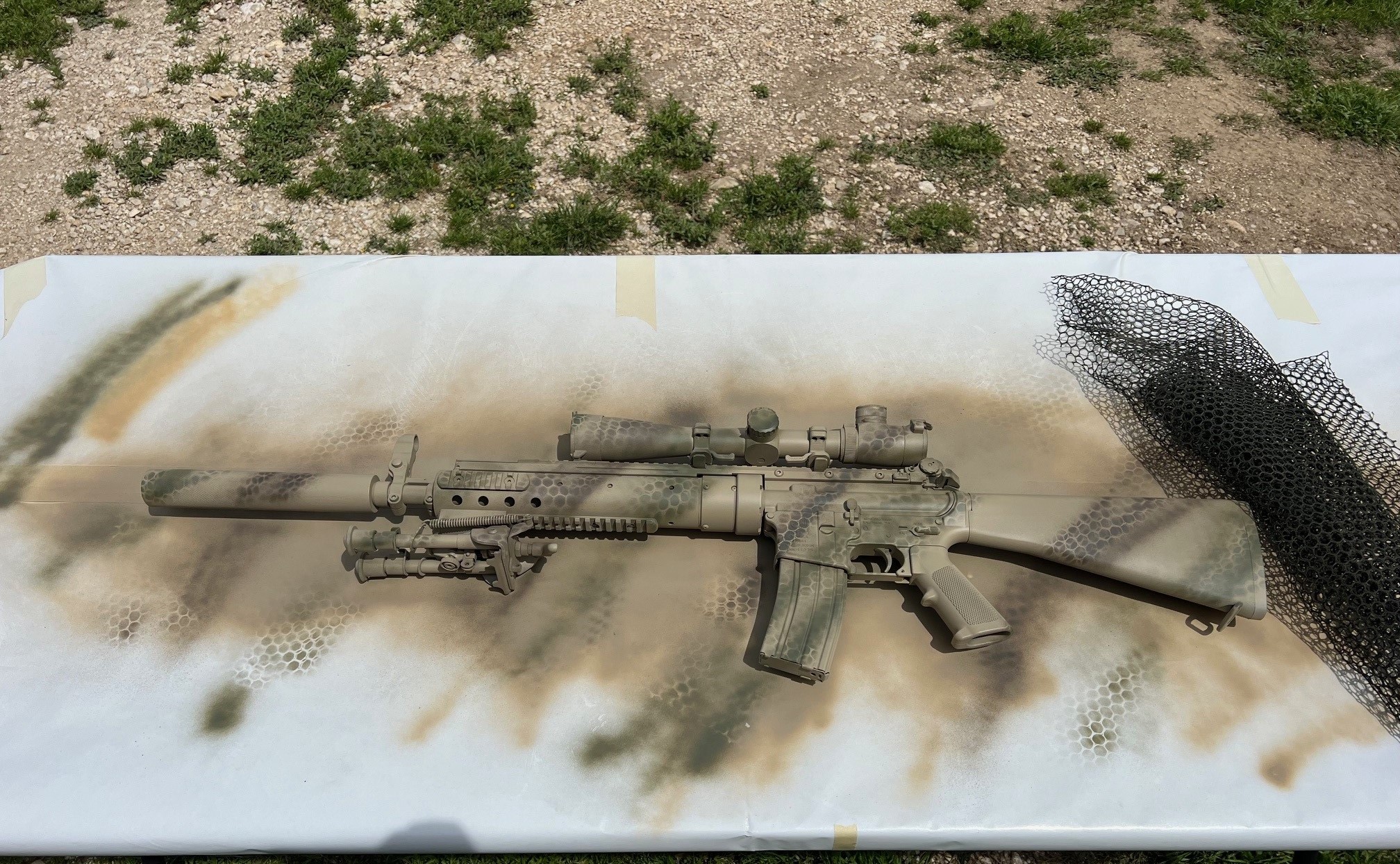

Camo net.

Spray base color, throw on camo net and spray next color, turn the net 90* and spray the next color, etc.

Wiping off external oil and taping stuff off beforehand should take more time than the actual paint job (in my opinion).

  • Like
Reactions: RS14

stello1001

Professional Newb
Belligerents
Feb 20, 2017
2,545
1,361
219
Corpus Christi TX
Camo net.

Spray base color, throw on camo net and spray next color, turn the net 90* and spray the next color, etc.

Wiping off external oil and taping stuff off beforehand should take more time than the actual paint job (in my opinion).
Post some pics up so we can see what you mean and how it turned out...

  • Like
Reactions: Stavey

Awag1000

AKA: Space Nuts Actual
Hessian
Belligerents
Minuteman
Jan 17, 2020
151
53
34
No Fun Zone (New Jersey)

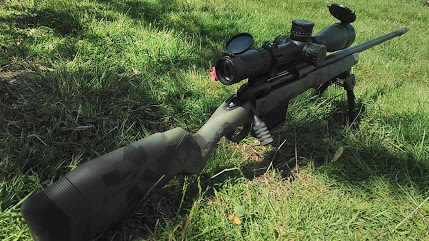

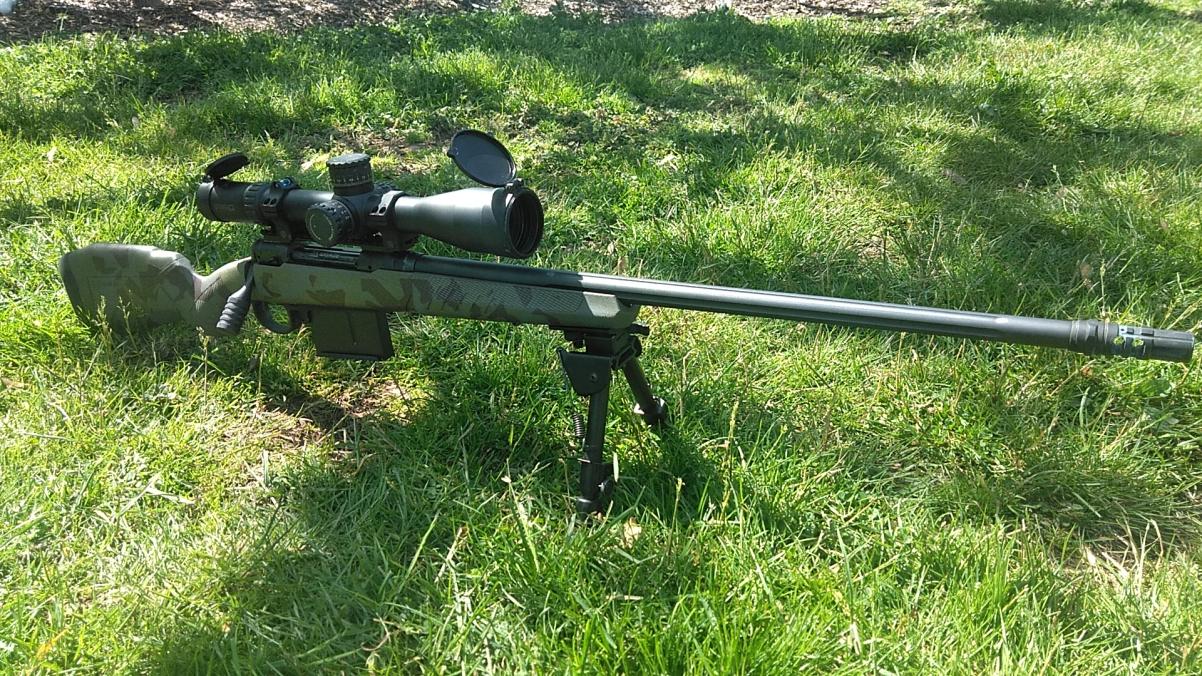

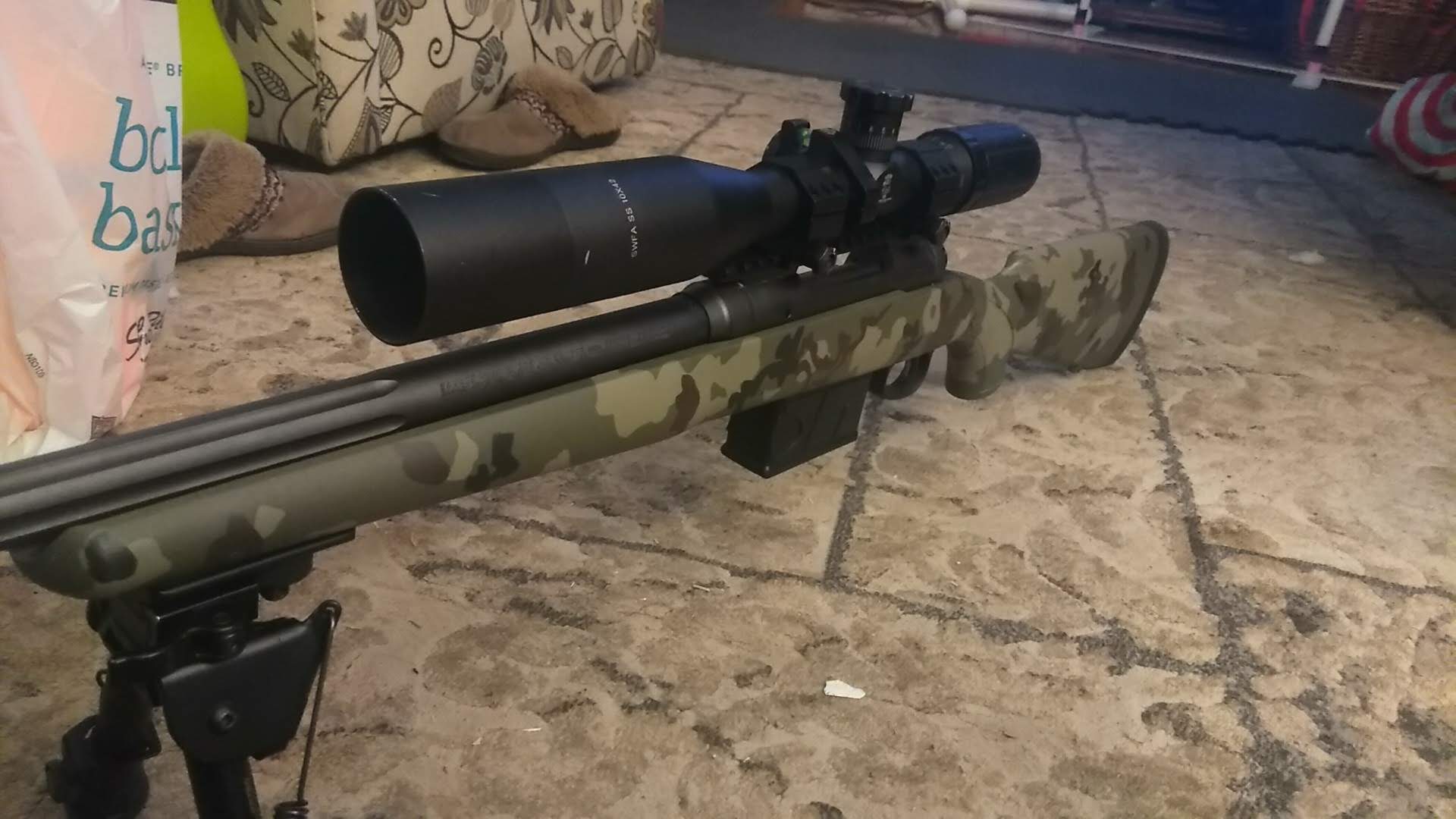

+1 on the Freedom Stencils. They work well with Brownells Alumahyde Paints. I had to rough up my stocks on both of my rifles with 150 grit sand paper before I clean/degrease though.IMG_20200505_104008.jpgIMG_20200505_104050.jpg


KSC86

Private
Belligerents
Mar 27, 2020
22
39
18
California
I've recently used wepon stencils and stencils from Etsy on yellow heat safe vinyl. Sharp edges, excellent adhesion but easy removal. Blue edgelock and green frog tape work well as well.
