Haven't been able to find a thing about this.
Were can I find some info, actual data on, which powders burn "cooler" than others?
Per grain of heat out put.
Have a 22 creed barrel coming in and I have a couple powders I'd like to try
and if it comes down to it, I'd like to run the one that will extend my barrel life if all else is equal.


spife7980

Luchador
Full Member
Minuteman
Feb 10, 2017
11,847
12,545
Central TX
That’s not at all what he’s talking about.







OP
7073476


Ranger188

Sergeant of the Hide
Full Member
Minuteman
Dec 13, 2018
427
216

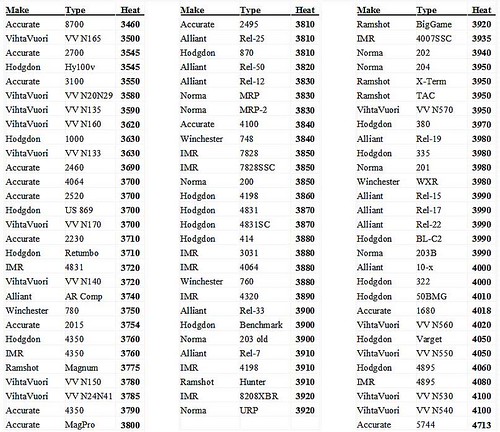

Thank you. Wish it had all and was more updated.
But their are some powders on there that I plan on testing.
Their is no rhyme or reason to it.
You would think the IMR4831 would be close to the H4831
The RL's are spread out and the VV double based all run hotter than the single based.


spife7980

Luchador
Full Member
Minuteman
Feb 10, 2017
11,847
12,545
Central TX
Maybe someone with quick load could find what table that is in the programs workings and make us an updated one


jd5521

Master Blaster
Supporter
Full Member
Minuteman
Supporter+
Feb 21, 2017
355
81
45
Texas
Again. Not what is being discussed.
Again - I am just trying to help. It is difficult to ascertain the exact kindling temperature smokeless powder. Probably why a chart doesn’t exist as I am sure this is not the first query of its kind. Instead of you pointing out deficiencies in what I am offering why don’t you come up with some suggestions?


spife7980

Luchador
Full Member
Minuteman
Feb 10, 2017
11,847
12,545
Central TX
Temperature ≠ Burn rate

That’s about as basic as it can get.

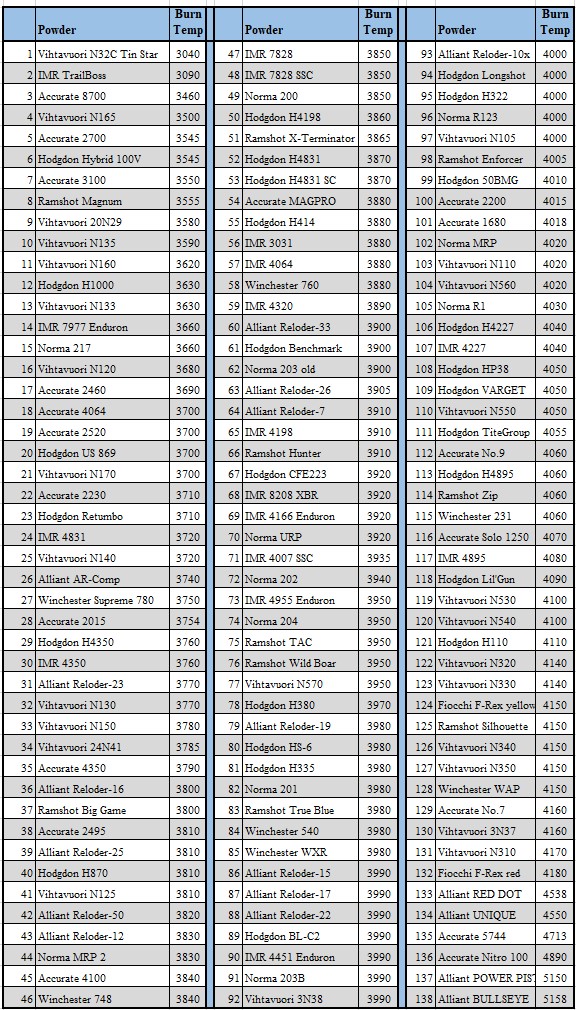

That chart was created from a table in quickload I believe.


DrewC

Private
Full Member
Minuteman
May 19, 2014
104
27
Washington
That’s kind of a cool chart. I’d like to see RL16’s temp. And I wouldn’t have guessed H4895 would be that high up on burn temp.


jd5521

Master Blaster
Supporter
Full Member
Minuteman
Supporter+
Feb 21, 2017
355
81
45
Texas
Temperature ≠ Burn rate

That’s about as basic as it can get.

That chart was created from a table in quickload I believe.
I did not see that till now. I wonder if that chart includes pressure across the board for all temps. Wish we could find the creator of it.


Dewey7271

Boring old bastard
Full Member
Minuteman
Supporter+
  • Feb 27, 2014
    1,647
    1,881
    Central Ohio
    I don’t think temperatures have a direct correlation to pressure.
    Burn rate would correlate to pressures but the temperature that burn rate occurs at is irrelevant to a point I believe. Burn creates the propellant, how hot that propellant is doesn’t factor into that equation.

    • Like
    Reactions: jd5521

    supratt96

    Sergeant
    Full Member
    Minuteman
    Dec 22, 2010
    734
    226
    61
    New Jersey, USA
    That’s kind of a cool chart. I’d like to see RL16’s temp. And I wouldn’t have guessed H4895 would be that high up on burn temp.
    I would guess that RL16 is near the top of the list in terms of heat. No other powder I've tried seems to heat up my barrel so fast.


    Ranger188

    Sergeant of the Hide
    Full Member
    Minuteman
    Dec 13, 2018
    427
    216
    I wish all companies would list their powders energy output like Vihtavuori
    Go on there website and they are all listed.
    Most companies don't I'm guessing cause it may sway your purchase to a "cooler"
    burning powder. What you don't know can't hurt you. Marketing


    LANCER

    Private
    Supporter
    Full Member
    Minuteman
    Supporter+
  • Jul 24, 2014
    349
    191
    Houston, TX
    I know that Power Pro 2000 runs pretty cool. Dont know it’ll it will work in 22cm
    I just recently discovered 2000MR and think it is a hidden gem. Using a ton of it with my .308 gas gun with good ES and great velocities. I can actually reuse my brass now with decent velocity and zero pressure signs whereas before I had to run with anemic 2450 fps velocities.


    FishDr

    Major Hide Member
    Full Member
    Minuteman
  • Apr 10, 2014
    1,221
    338
    West KY
    Above being true, and I have no reason to be otherwise, why does H4350 seem to wear barrel out quickly? Perhaps because of the small bore size (used in lots of 6mm), or because it so popular? Don’t know … heard 4831 would make them last longer, but that seems counter the chart. ????
