Night Vision COTI vs china skeet, with a little twist

  • Like
Reactions: deersniper
... What do I need to attach the UTM? Thanks ...
Click to expand...

Nothing ... the UTM shoe, slides in to the bridge dove tails ... just remove the 14 interface (which also slides into the bridge dove tails) on the side you choose ... and slide in the UTM till it clicks ... same as with the patrol or the skeet.

... You’ll need the KAC bridge ...
Click to expand...

Really ?? I'm surprised .. the skeets I have and have handled all work just fine with the mod armory bridge ...

One of us either got lucky (more than once) or unlucky at least once ??
:)

Unless the UTM shoe is different from the skeet shoe ... which I would find surprising .. they're all wilcox shoes actually on all the ones I've seen.

wigwamitus said:
Nothing ... the UTM shoe, slides in to the bridge dove tails ... just remove the 14 interface (which also slides into the bridge dove tails) on the side you choose ... and slide in the UTM till it clicks ... same as with the patrol or the skeet.
Click to expand...

The MA shoe isn’t identical. There’s a little difference that keeps the UTM shoe from locking-up.

wigwamitus said:
Really ?? I'm surprised .. the skeets I have and have handled all work just fine with the mod armory bridge ...

One of us either got lucky (more than once) or unlucky at least once ??
:)

Unless the UTM shoe is different from the skeet shoe ... which I would find surprising .. they're all wilcox shoes actually on all the ones I've seen.
Click to expand...

Well, my MA bridge is 5 years old, so maybe they fixed it? Certainly could be. I’m going on old experience.

  • Like
Reactions: deersniper
TheHorta said:
No. That won’t work (I’ve tried). The shoe isn’t Wilcox standard and doesn’t lock-up. You’ll need the KAC bridge.
Click to expand...
This?
tnvc.com

Knight Vision (KVC) Universal Bridge

***THIS ITEM WILL HAVE LONG BACKORDER STATUS DUE TO UNPREDICTABLE LEAD TIMES*** The K-Clip has replaced the M-Clip for all configurations using a MUM-style rail, including the FLIR PTQ136 Breach. **Knight Vision products are custom-built, hand-fit systems. The manufacturer produces a limited...
tnvc.com tnvc.com

Or this
www.ultimatenightvision.com

KVC Universal Dual Bridge

The KVCUniversal Bridge is a lightweight, highly adaptive interface component for use with a variety of image intensified, DVO, digital, or thermal systems. It is compatible/adaptive to a wide range of legacy electro-optics via common shoe-type or adapte
www.ultimatenightvision.com www.ultimatenightvision.com

Last edited:
  • Like
Reactions: TheHorta
I would think the Mod Armory QD bridge (not the light weight one above) would be the one you want...

  • Like
Reactions: deersniper
... Well, my MA bridge is 5 years old, so maybe they fixed it? Certainly could be. I’m going on old experience ...
Click to expand...

One MA bridge I have is six y/o the other is 3 y/o both work fine with skeets and patrols etc.

That said ... one buddy had one MA bridge that did not work with skeet ... he sent it back and they sent another one (another bridge) and it worked. So could be 1 off QA issue ??

  • Like
Reactions: TheHorta
wigwamitus said:
One MA bridge I have is six y/o the other is 3 y/o both work fine with skeets and patrols etc.

That said ... one buddy had one MA bridge that did not work with skeet ... he sent it back and they sent another one (another bridge) and it worked. So could be 1 off QA issue ??
Click to expand...

That could be. Oddly enough, I haven’t tried a Skeet. I just assumed since it wouldn’t lock-up way back when with the UTM that it wouldn’t work with the Skeet either.

The King said:
The Wilcox branded dovetail has a tiny bit of variation. This sometimes leads to no lockup.

I think the design is the main issue - tolerances have to be holy shit tight to work.
Click to expand...

I just figured it had something to do with patent infringement, so MA made a slight variation to avoid violation and legal exposure.

My vivid imagination. Lol.

... I'm a big coti fan. Just gotta know the limitations before hand. I'd say it fits in it's little space of utility very well. ...
Click to expand...

Agree 5000% ... its mostly about expectation management for those of us who might recommend them ... they are NOT for everyone. They are NOT mini-skeets !! :D

For me they are primarily an enhancement for shooting with lasers ... if you don't shoot with lasers a LOT don't even think about the coti ... tertiarily ... they can be used in a minimalist setup for detection and even PID ...



Nightcap with 14+coti + rhino1 + j-arm ... it doesn't get much more minimalist than that ... and this is good for detection out to 600yds on most nights ... PID .. well depends on how many seconds you have to observe the critter and the distance ... I can PID my cows at 300yds ... for sure ... but if I pretend I don't know where the rocks are ... PIDing at 600yds is very tough ... PIDing inside 150yds is much easier and that's where I would set expectations ... but with EXPERIENCE ... and enough seconds to observe movement .. then PID further out is possible.

I mostly use outline mode when out walking and stalkin ... but switch to patrol made to engage ... if I was expecting to meet hostile critters that shoot back I would be on patrol mode ... if going in a building or other close terrain I would go to "full" mode ... but for me that only works close up ... inside rock throwing distance. But for what I do out here ... edge mode (outline mode) works great ...

  • Like
Reactions: stefan73

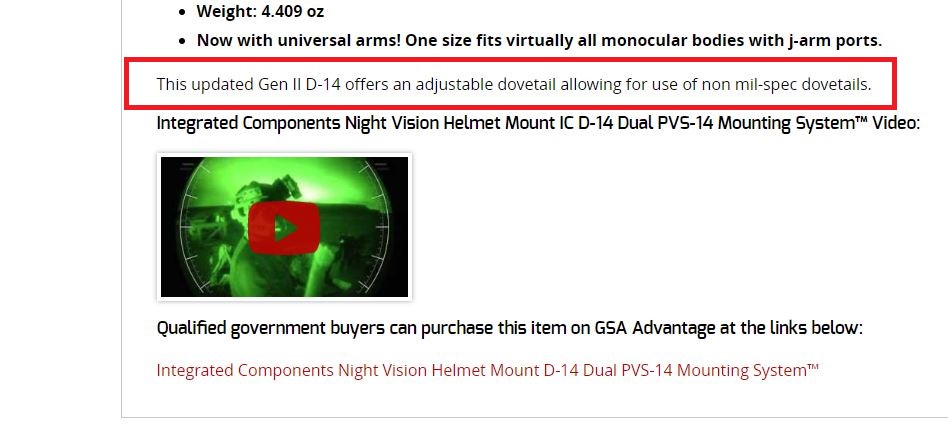

MA updated their QD bridge mount to allow adjusting (via a set screw) the amount of tension/variance in the wilcox shoe. They marketed it as an "improved" version that allowed for "wear adjustment". This (I would suspect) saved them from having to bad mouth Wilcox for a spec that had enough slop/tolerances to cause issues.

  • Like
Reactions: TheHorta
wigwamitus said:
Really ?? I'm surprised .. the skeets I have and have handled all work just fine with the mod armory bridge ...

One of us either got lucky (more than once) or unlucky at least once ??
:)

Unless the UTM shoe is different from the skeet shoe ... which I would find surprising .. they're all wilcox shoes actually on all the ones I've seen.
Click to expand...

The UTMx Shoe doesn't have the milled out section in the middle like the Skeet and RQE/KVC dovetails, and therefore isn't compatible with how the Mod Armory bridge locks up. Before switching to the Skeet, I ran a UTMx on one eye and a PVS-14 on the other eye using a G24, KVC bridge, and OSS shoe set.


  • Like
Reactions: deersniper, SkyScrapin and TheHorta
deersniper said:

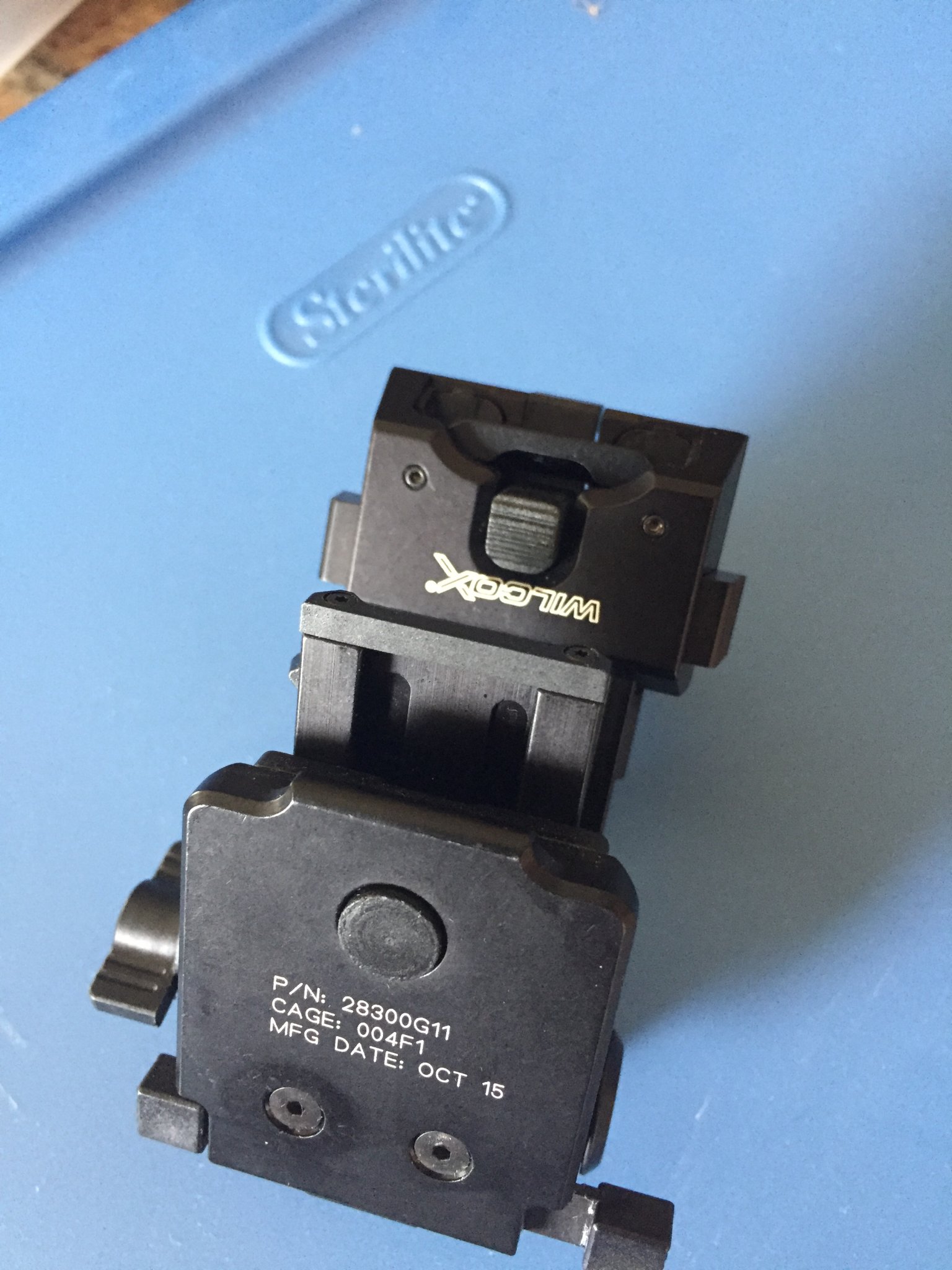

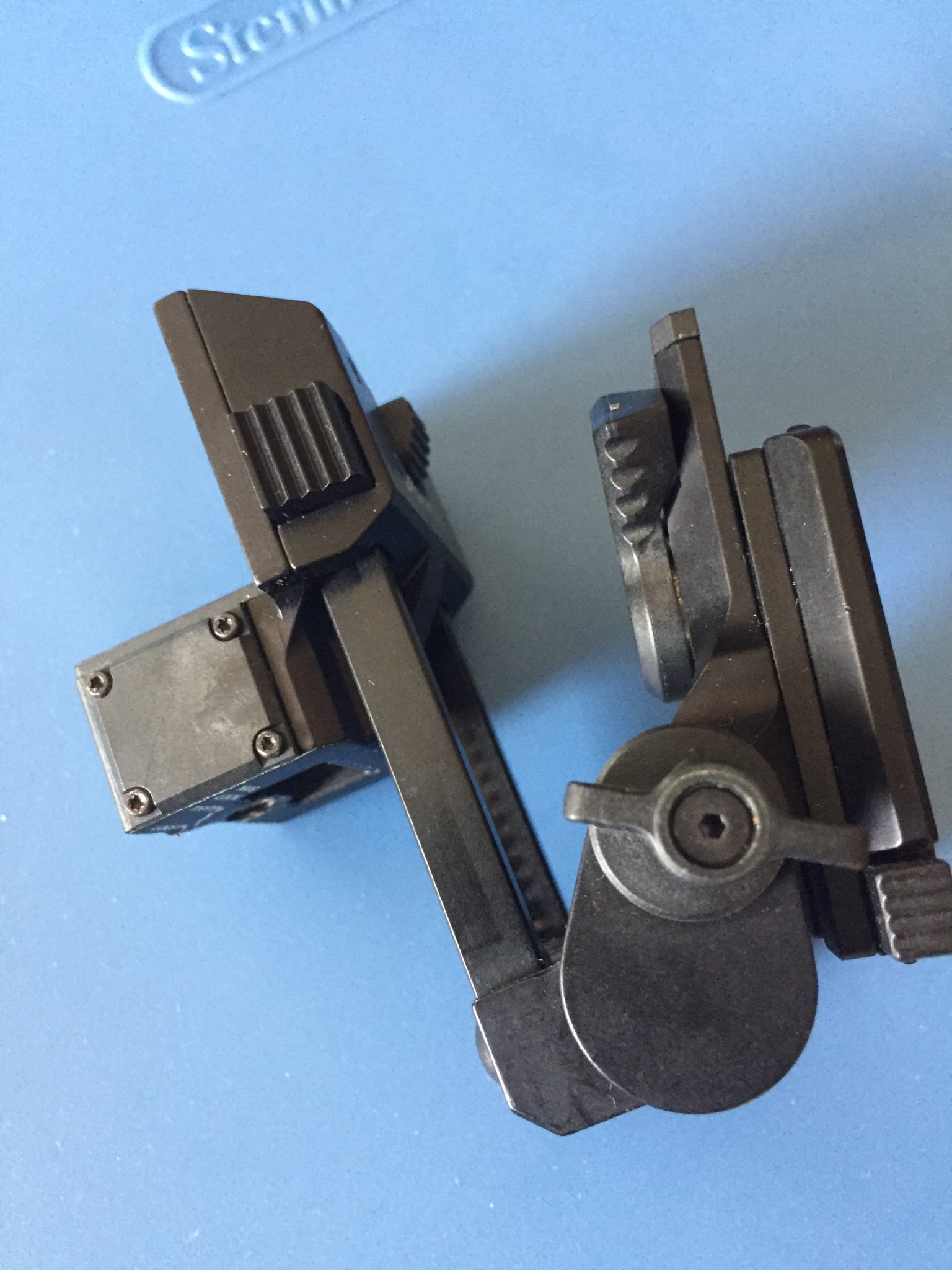

Ok I think this is the G24 Mount ? View attachment 7376569View attachment 7376570

So I just need the KVC Mount and OSS shoes?
Click to expand...

That's a G11, which uses the the horn interface. The G24, G22 use the dovetail interface which is what you'd need to connect to the KVC bridge. The Wilcox bridge has a horn interface option, but dovetail is a much better system in my opinion.

  • Like
  • Sad
Reactions: TheHorta, deersniper and MarinePMI

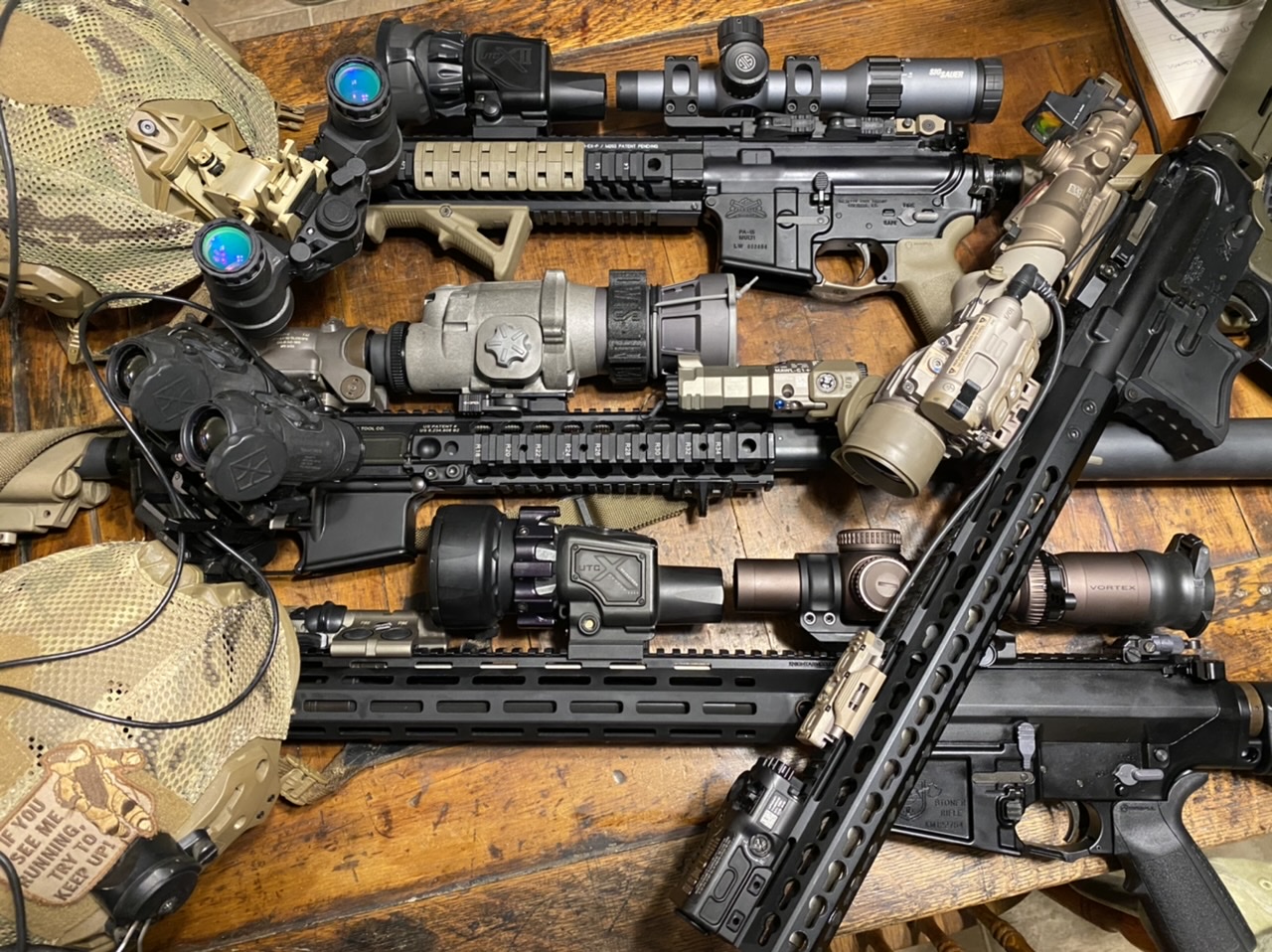

Welcome to my world. Behold, my $125K table (from last night’s family faux toe):



It’s both my therapy and retirement savings rolled into one.

  • Haha
  • Like
Reactions: deersniper and BamaSE
rich20730 said:
The UTMx Shoe doesn't have the milled out section in the middle like the Skeet and RQE/KVC dovetails, and therefore isn't compatible with how the Mod Armory bridge locks up. Before switching to the Skeet, I ran a UTMx on one eye and a PVS-14 on the other eye using a G24, KVC bridge, and OSS shoe set.

Click to expand...
Thanks for everyone’s help

Is this the correct show set?


deersniper said:
Thanks for everyone’s help

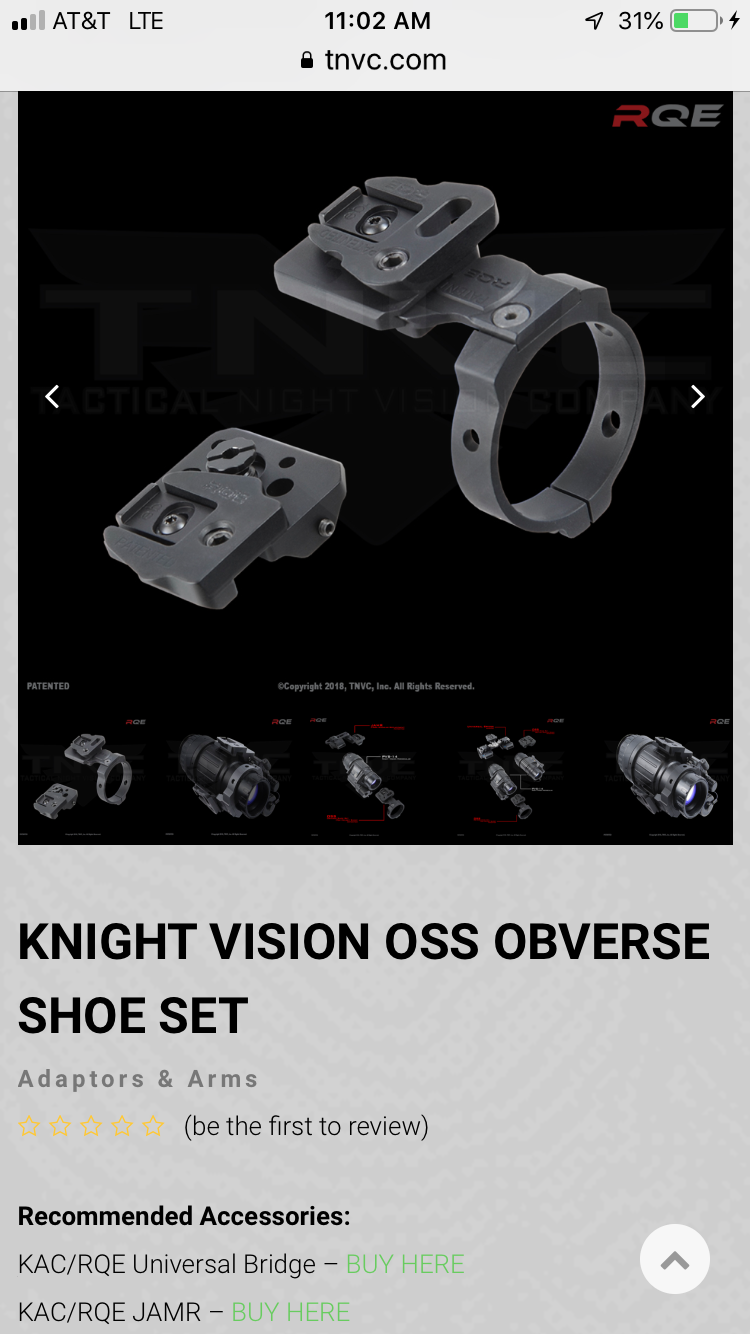

Is this the correct show set?

View attachment 7378123
Click to expand...

Yes for a -14. Shouldn’t need one for the UTM to my knowledge since the KAC bridge takes the Wilcox shoe. Someone fact check me on this...

I would probably replace the factory Wilcox shoe on the UTM with a more recent prod version if it in fact doesn’t have the recess like pointed out above. That would fix your bridge mount issue.

  • Like
Reactions: deersniper

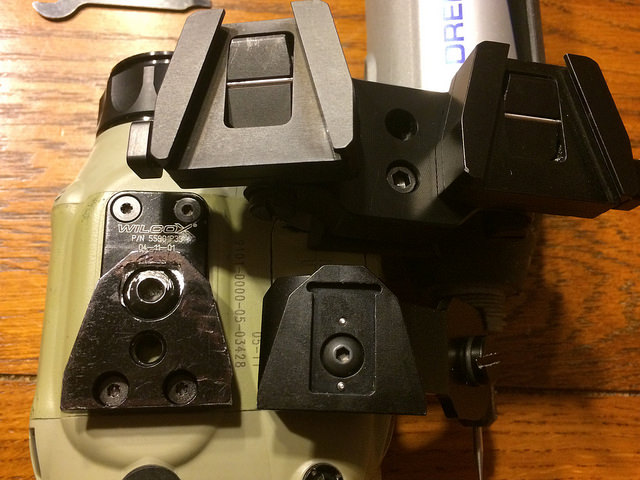

UTM modify mount for helmet (2).jpg


The image above was posted years ago and it shows why the UTM/UTMX Dovetail did not work with the Mod Armory mount . I shows how it was milled out to match the mount that is to the right of it so it could work. The UTM/UTMX was never meant to be helmet mounted. When mounted in the Wilcox flip mount it gets locked in via a rear spring loaded latch that comes up. The Mod Armory mount locks things in via different method.

Again, maybe the UTM's dovetail has changed over the years or perhaps Mod Armory did something else to allow the UTM/UTMX to work today but it did not back then without a modification.

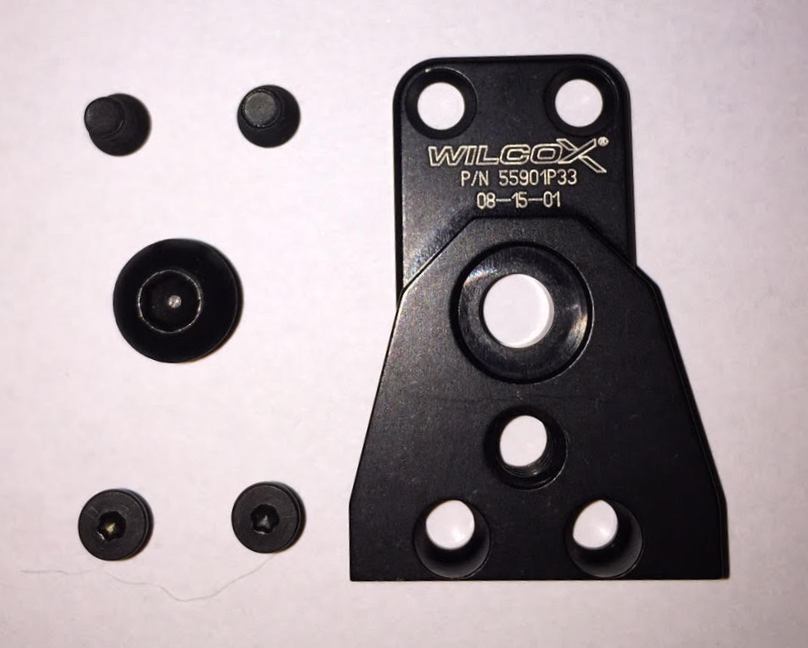

Original Wilcox UTM/UTMX Dovetail.

  • Like
Reactions: wigwamitus and TheHorta
