Expander/ mandrel

patrick021

Private
Full Member
Minuteman
Dec 6, 2011
78
4
56
i use a neck sizing bushing on my 308 and 338LM I go through my process with my brass but I don't do anything with the inside of my case necks . Is it necessary if so how will it help me with accuracy? Thanks

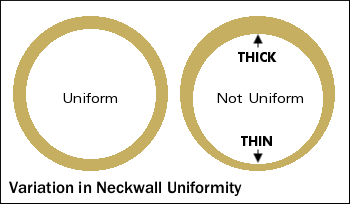

The bushing sizes it down, that means the outside is consistent and so any discrepancies in the neck thickness gets pushed to the inside.



A mandrel will size from the inside to make the inside concentric for the surface that touches the bullet and to push the inconsistencies to the outside where they are floating in space inside you chamber.

Now, if you have a 308 with brass which necks are .013" thick then you would have .308+(.013*2)=.334" for t a loaded neck diameter.

If you were to use just a bushing only for a general starting point you would choose one that is .002" less than the loaded round diameter so .334-.002=.332" for that bushing.

If you were to want to use a mandrel that .332 bushing would be just about what you want to end up as so it would only brush against the inside, not enough displacement to actually size anything. However if you chose a .331 or .330 bushing the mandrel would then have to open the brass up .001-.002" which should be enough to push the differences in thickness to the outside and return the final result of .332".

Different thickness of neck material means different diameter bushings.

Or so the theory goes...

Whether you gain anything from it is up to you and the target.

(Edit: I have them and I use them for the stuff that Ive spent a bunch of money on brass and barrels etc because I have the time to add an extra step so I figure I might as well. For hunting and ARs I dont bother. Ive tried to test and while it does seem to maybe help my regular dies with expander balls Im hard pressed to see a difference down range. But then again I never have the wonderful tests with low single digit SD for any meaningful sample size greater than 3 without deleting the outliers. So if you want to try them by all means go for it, if youre looking for a paradigm shift then this isnt it)

Last edited:
Ditto on what spife said. I’ve had a SD/ES reduction with using an expander mandrel which helps at distance, but don’t think it’s going to turn a 1/2 moa group into a 1/4 moa group at 100-200 yards.

I shoot a tight group at 100 yards less than 1/2 but when I checked my Sd it runs high and was wanting to lower it.

By the way, when you change a variable, shoot at 300. It’s so hard to tell at 100..
This.

Shoot groups at distance so you can see. A high SD/ES and tight group at 100 means nothing because you can’t tell. Push it to 300/500 and you’ll be able to see it.
