Forster 3 in 1 cutter head on Lyman Universal case trimmer

razzle

Private
Full Member
Minuteman
Dec 5, 2007
147
24
39
Norway

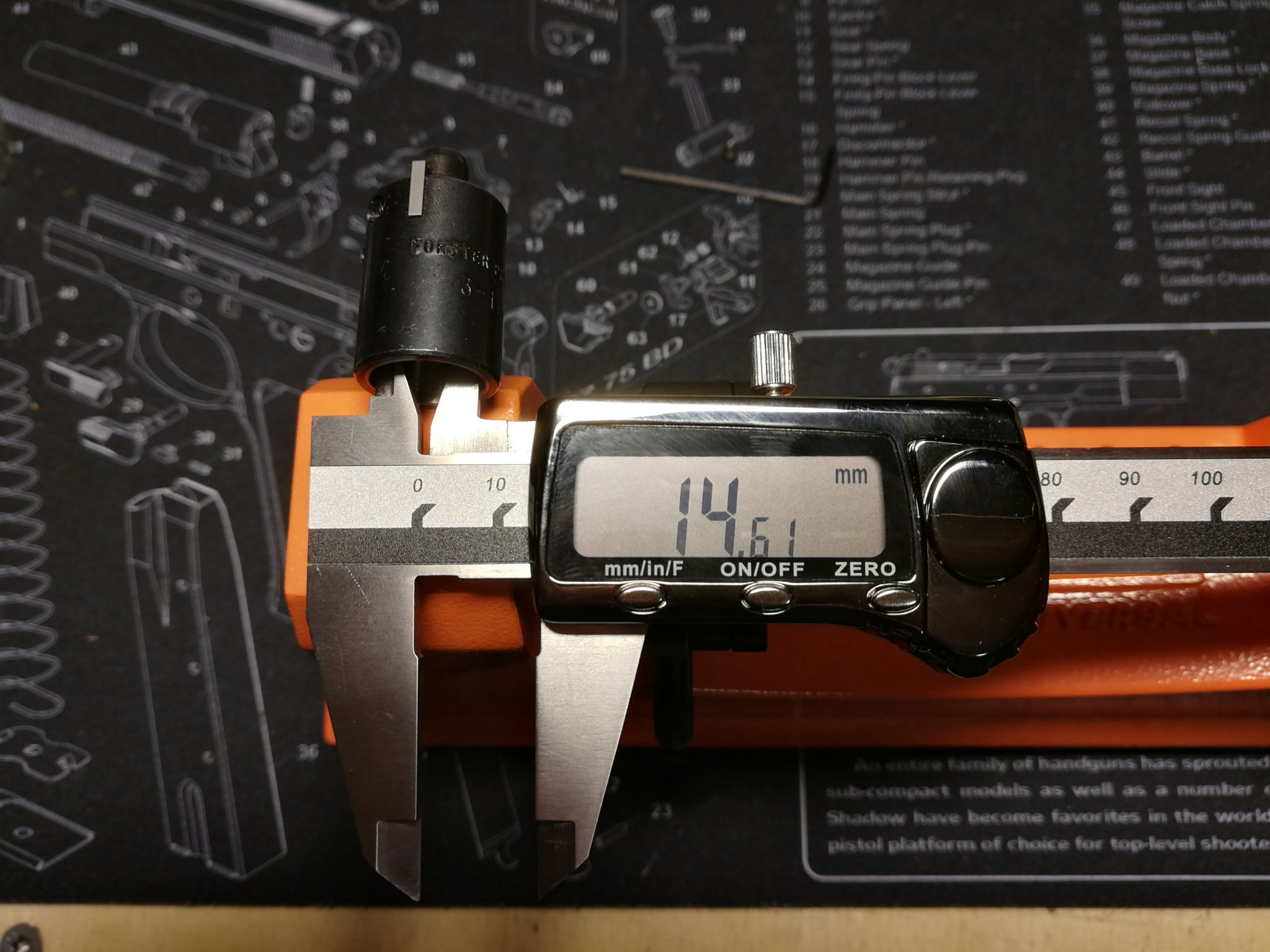

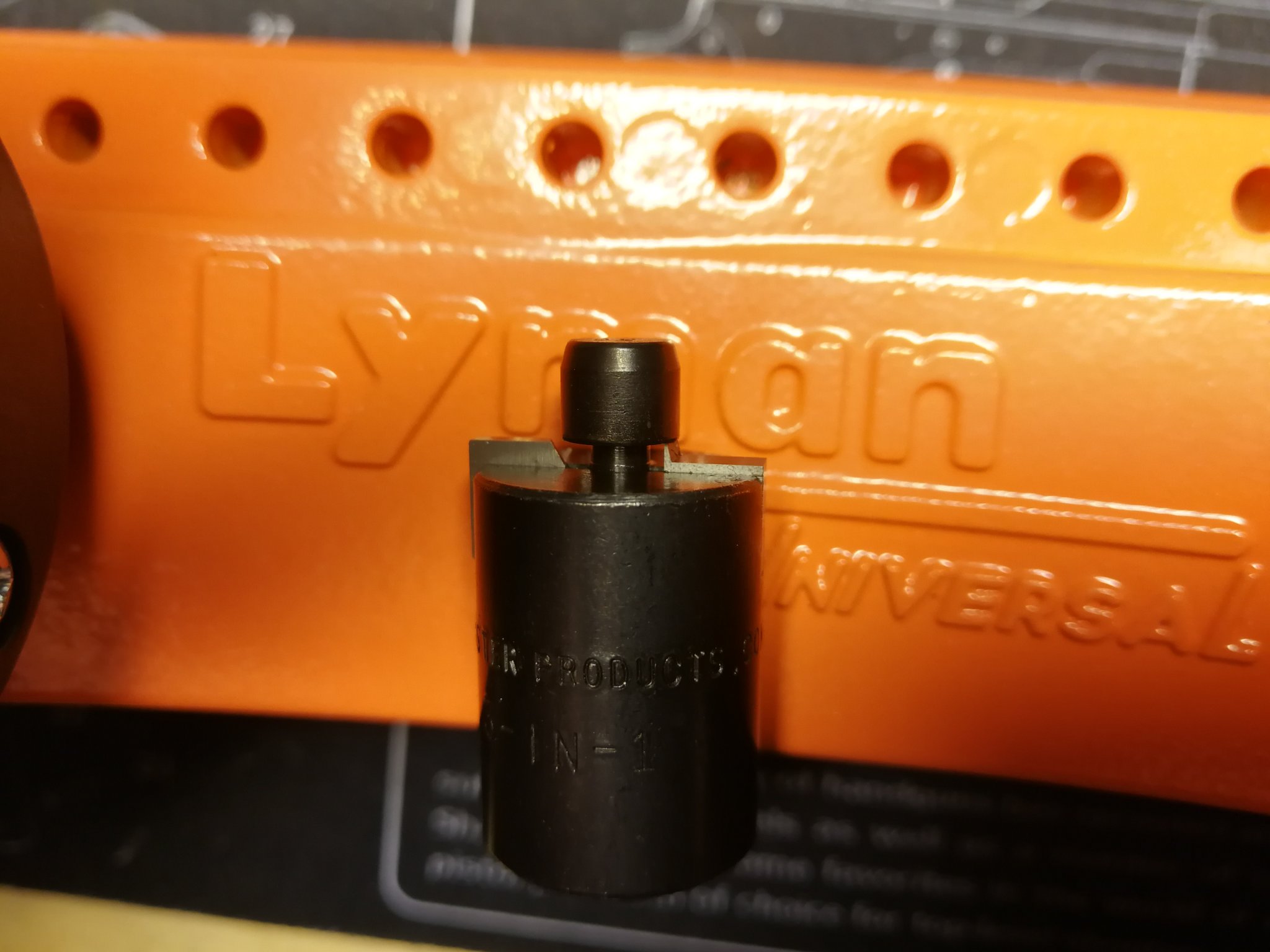

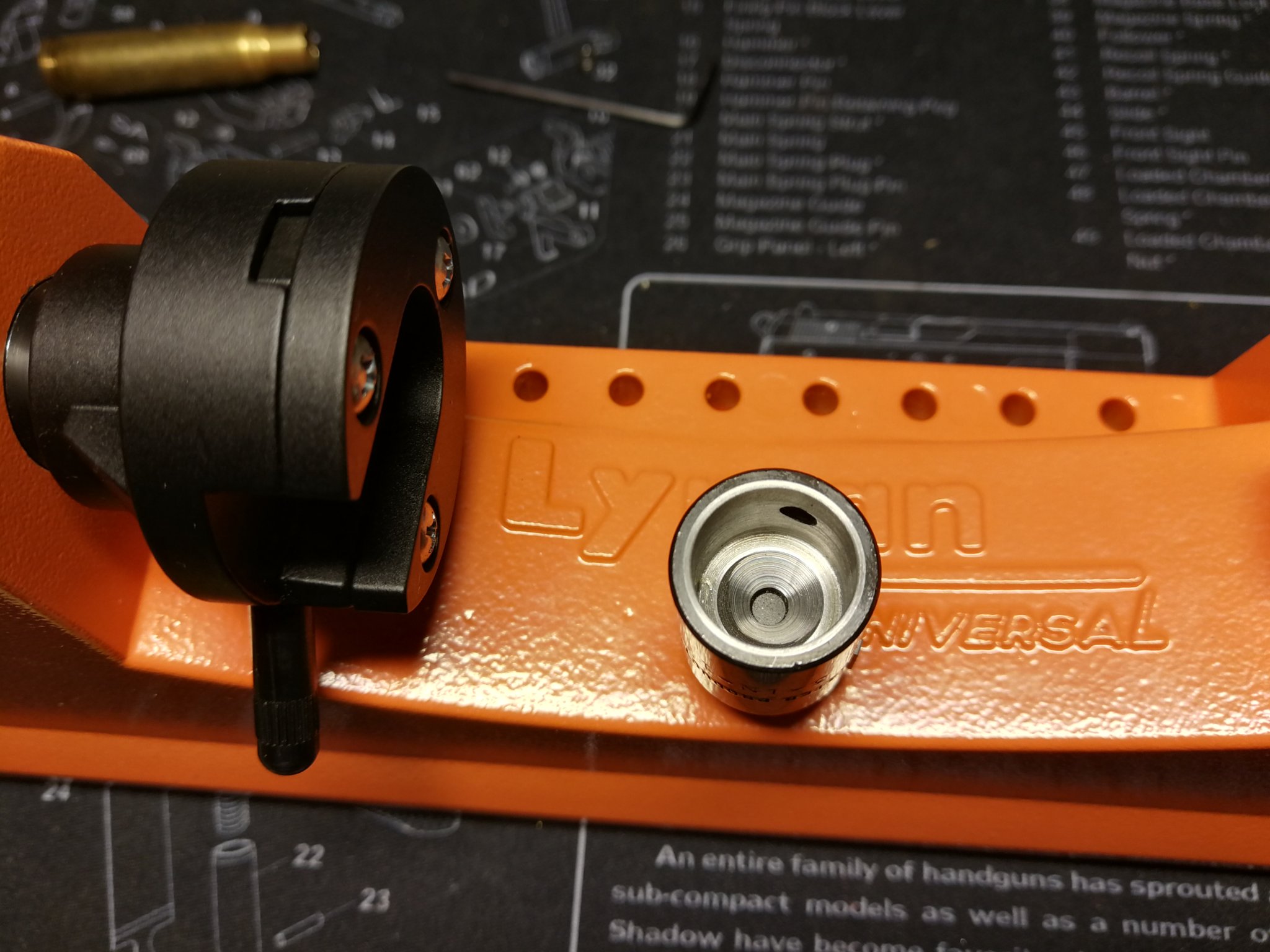

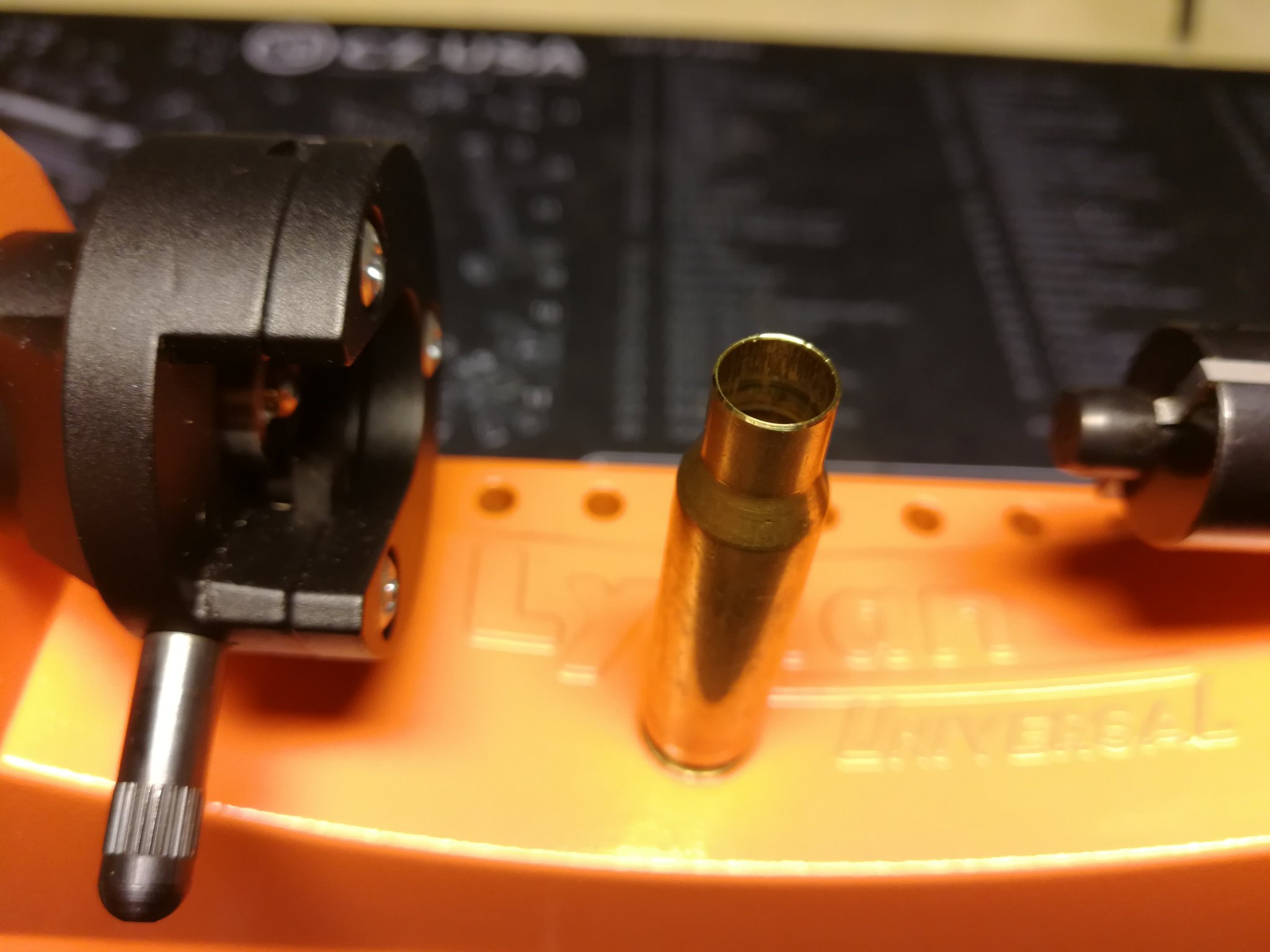

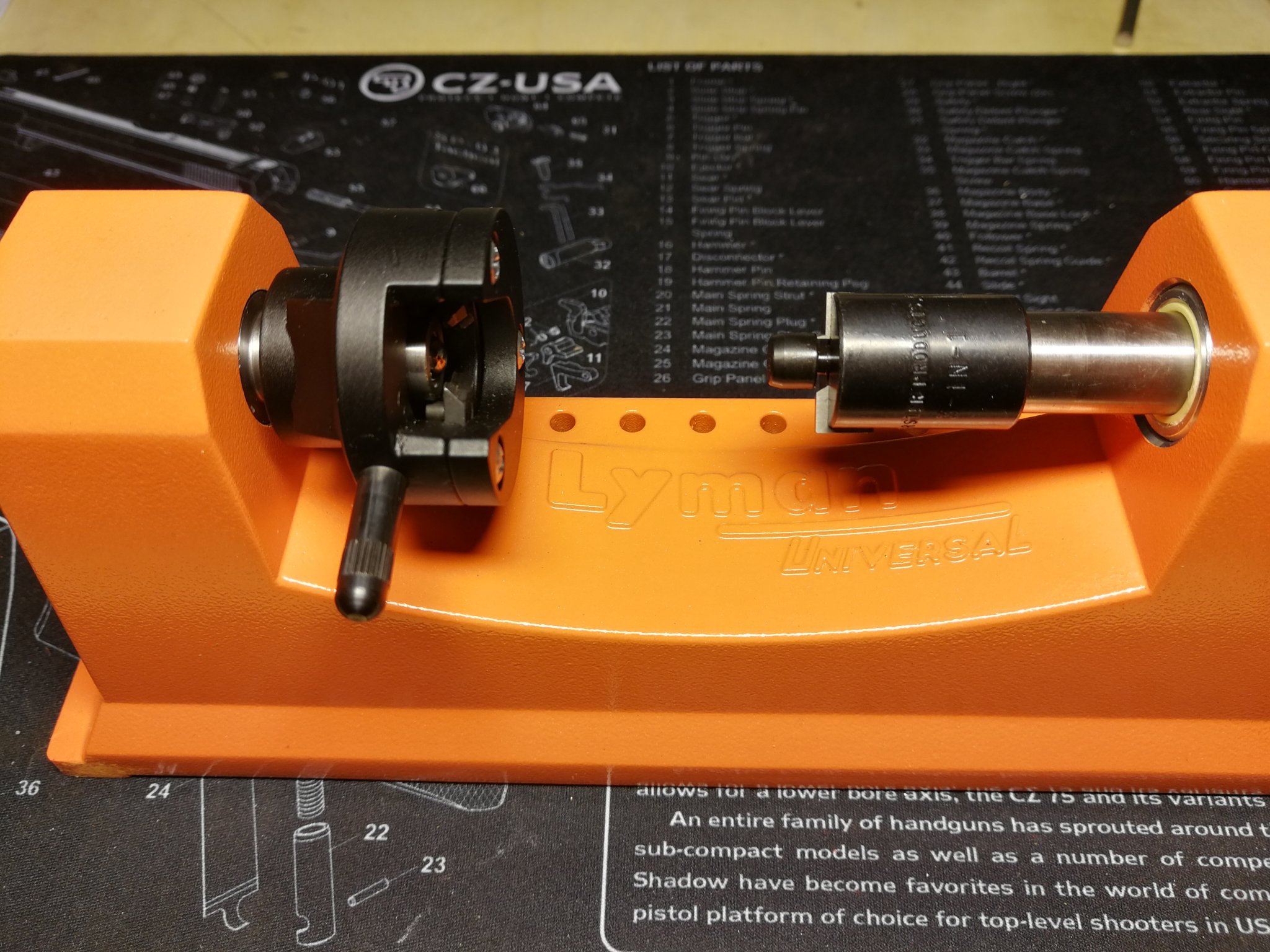

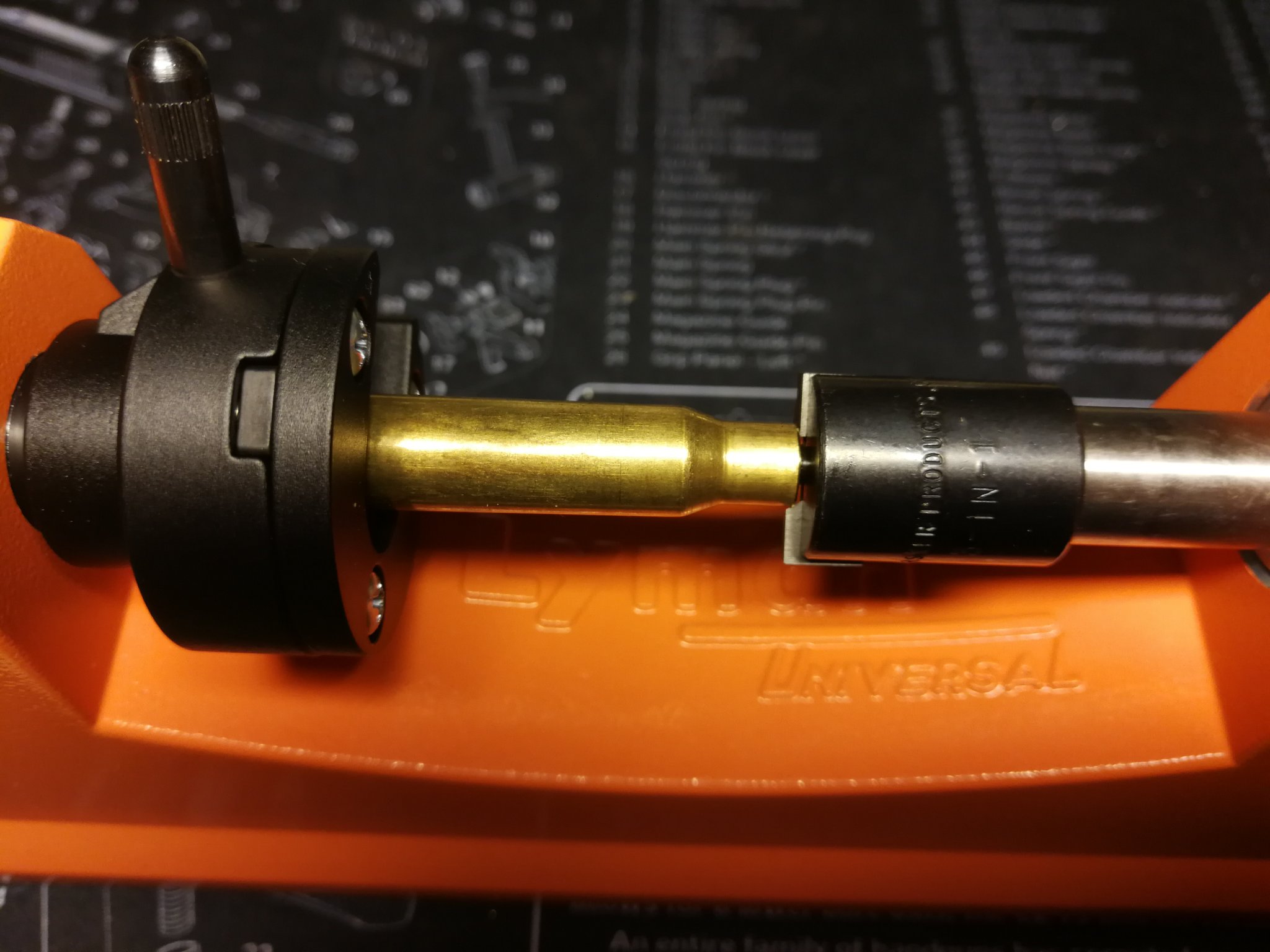

This is for those of you with Lyman Universal case trimmers that are sick of chamfering and deburring after trimming your cases. There is no cutter that does it all in one step for the Lyman, the RCBS 3-way which has different threads and the Forster 3 in 1 that fits thinner shafts than the Lyman are the only two (I think) that does this. So I bought the Forster 3 in 1 and had it milled out to roughly 14,5 mm internally to make it it fit the Lyman nicely. It only attaches with a set screw, so this works perfectly. A few pics:


Attachments

  • IMG_20190125_202958.jpg
    220.1 KB · Views: 291
  • IMG_20190125_202656.jpg
    318 KB · Views: 289
  • IMG_20190125_202815.jpg
    343.4 KB · Views: 285
  • IMG_20190125_202418.jpg
    449.9 KB · Views: 351
  • IMG_20190125_202453.jpg
    250 KB · Views: 340
  • IMG_20190125_202521.jpg
    219 KB · Views: 277
