I know this is an old thread, but does anyone know if the top ranging scale is for an IPSC or an E-Type? The manual says silhouette, which to me means E-Type, but the image is a silhouette. I just picked mine up and I can validate it but prefer the easy ask. Also, what are the chances that the MRAD version gives that range in meters or did they go the easy route and make the scale in yards for both reticles?
- Thread starter Boostedcoyote
- Start date

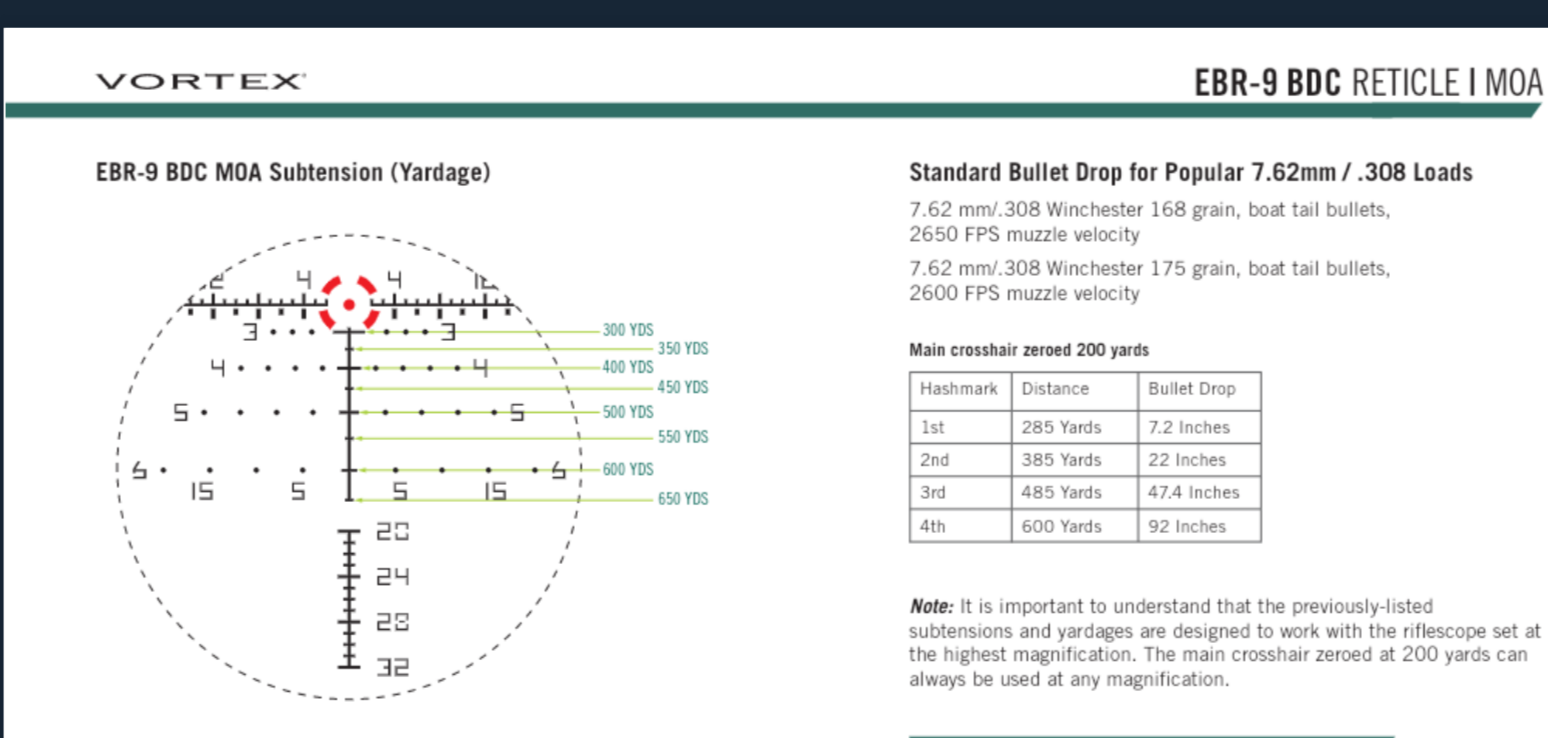

It's scaled for an IPSC target and per the manual it's in hundreds of yards.
The manual also says that the subtensions are only correct at max mag in the MoA portion. I also was told the original design was for a 40" target.

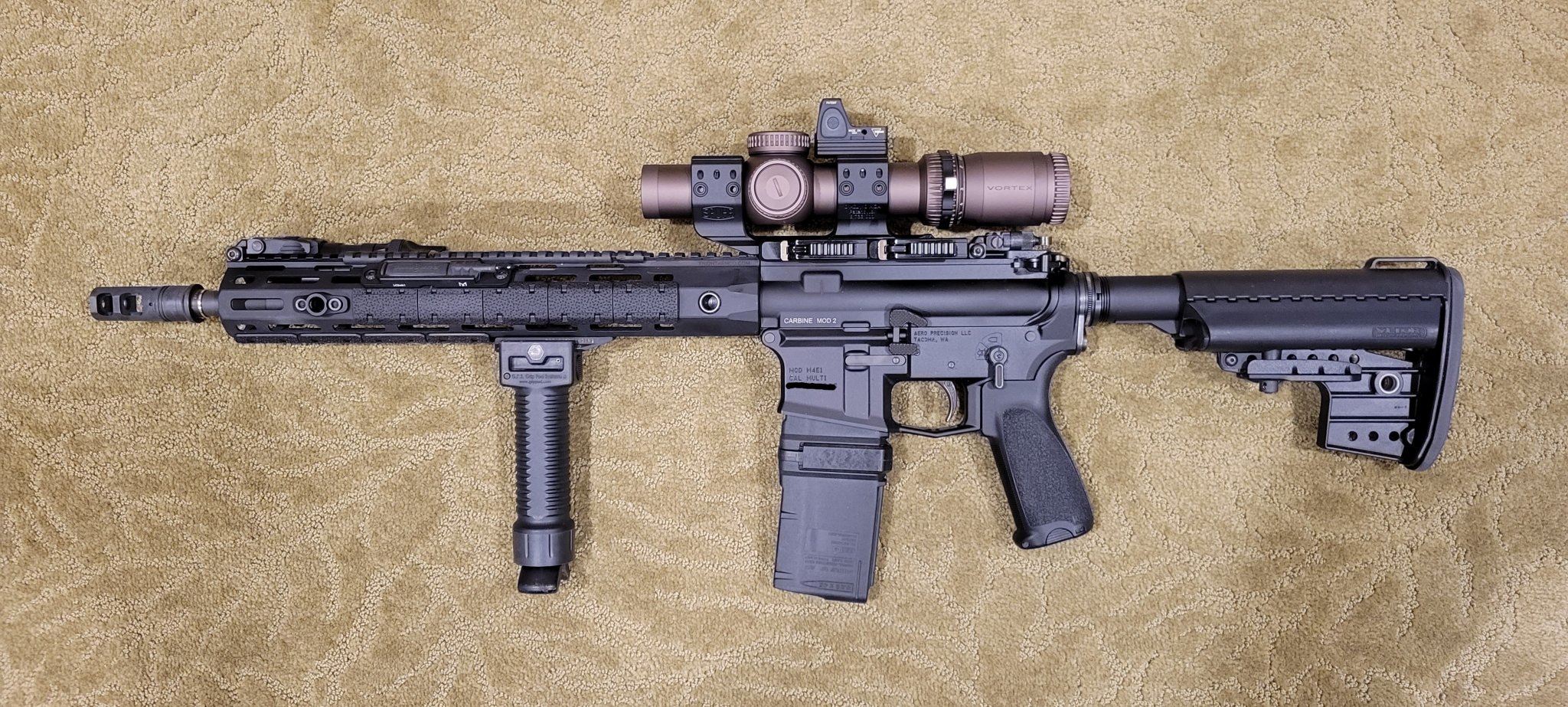

I recommend the MRAD. There's always going to come a time where you decide to play "musical rifles" . It just happens. My Gen3 started out on my KAC 5.56 upper then briefly visited my 6.8 SPC and an 18" T3X in 6.5 Creedmoor for Hog duty.
Having a non specific reticle with dope cards for each load/gun just gives that scope ultimate flexibility.
Having a non specific reticle with dope cards for each load/gun just gives that scope ultimate flexibility.
Attachments
Seems like a bit of an oversight to put that in the manual for a FFP scope.
Yeah, that's an oversight, the reticle is FFP so it's accurate at any magnification. Also, the ranging bars on the EBR-9 are set up for an 18X30 IPSC per Scott at Vortex.
IPSC in yards for both reticles?
Yeah, why not?
I'm assuming it was born of the SVPS program and the ATACR we got ranges (in meters) shoulder width so that's why I asked. It looks a while lot like the FC DMx but with retard proof rage scale like the T8.
