How do I figure out if I have too much cant on my mount/base combination?

TacosGigante

Sergeant
Supporter
Full Member
Minuteman
Supporter+
Oct 29, 2013
742
188
Falls Church, VA
I know there are a lot of threads asking if X scope will be able to zero at 100 yards with a 40 MOA base. I have a similar question and was wondering how one figures that out. I know I could ask the hide-mind and get the right answer, and I will below, but I would like to know how to do the math myself for next time.

Thanks

Ok - my specific set up would be a 20MOA rail married to a 20MOA mount on a TT 5-25 with 28 MRAD of working elevation. Calibers include 308, 6.5cm, maybe 6cm and something like 338 Lapua or 300PRC. I would like to be able to zero at 100 yards without issue.


UpSideDown

↑ → ↓
Supporter
Full Member
Minuteman
Sep 24, 2019
1,523
1,093
Your elevation travel is your total adjustability up and down. If you have 28 MRAD of elevation adjustment, that means you can go up 14 MRAD or down 14 MRAD from scope center. 40 MOA equals 11.6 MRAD, and you have 14 MRAD to play with according to the spec sheet.

A 100 yard zero will have your scope adjusting downward some from parallel to the bore. So if your scope actually has a true 28 MRAD of adjustability, and your rounds are hitting reasonable close to inline with the center of the barrel at rest, then you could use a 40 MOA base assembly with your 28 MRAD adjustable scope and zero at 100 yards.


TheOE800

Supporter
Supporter
Full Member
Minuteman
  • Feb 14, 2017
    2,109
    1,037
    USA
    On a lesser scope system you may have image degradation or windage limitations at the extremes of elevation erector travel/adjustment, but on top tier stuff like ZCO, S&B, and TT those issues shouldn’t occur.


    b6graham

    MMPRL
    Full Member
    Minuteman
    Supporter+
  • Jul 29, 2014
    6,865
    5,855
    Colorado
    a good general rule i've found is 33-40% is non issue

    so 9.3-11.2mil

    40moa total should be safe in most scenarios with a 28mil travel TT without having image issues

    • Like
    Reactions: TacosGigante

    Dogtown

    Ke = (mv^2)/2
    Supporter
    Full Member
    Minuteman
    Jun 21, 2007
    4,976
    1,784
    CONUS
    Threads like this give me brief flashbacks to my old USO SN-9 - 230MOA external adjustment, baby!


    TheOE800

    Supporter
    Supporter
    Full Member
    Minuteman
  • Feb 14, 2017
    2,109
    1,037
    USA
    Why you need 40 MOA out in Falls Church? Shooooot. 😂😂


    Dogtown

    Ke = (mv^2)/2
    Supporter
    Full Member
    Minuteman
    Jun 21, 2007
    4,976
    1,784
    CONUS

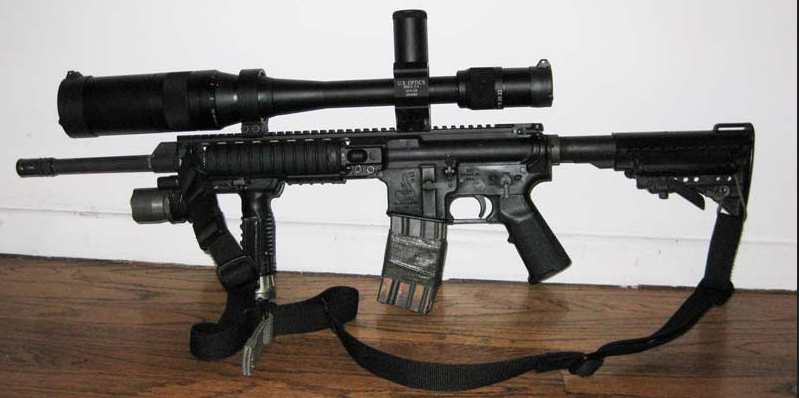

    It was for a .408CT Windrunner, but I put it on the AR as a joke. Back in the early 2000s a lot of scopes had issues as you approached the limit of the erector cell (some still do), especially at high magnification. The SN-9 was designed to mitigate that by having the elevation and windage be external, so you were always looking through the center of the lenses.

    • Like
    Reactions: Lonely Raven

    Lonely Raven

    Just an IT Guy
    Minuteman
    Sep 13, 2011
    77
    74
    50
    Denver Area
    The SN-9 was designed to mitigate that by having the elevation and windage be external, so you were always looking through the center of the lenses.
    That makes a lot of sense, assuming they can have it track accurately...you'd always been looking through the best part of the glass!

    I just sighted in my .375 CT this Saturday. 70 MOA on the Rail, and 30 MOA on the Spuhr mount(!)...even with the new Zeiss LRP, 100 yard zero has me with 25.5" of offset. I'm unsure what my "true zero" would be...probably something like 1300 yards.
