Introducing the NEW SR-RIGID™ Rails, M-LOK Compatible!

GRIFFIN_ARMAMENT

Official Sniper's Hide account of Griffin Armament
Commercial Supporter
Full Member
Minuteman
Aug 27, 2019
179
189
Watertown, WI
www.griffinarmament.com
CLICK HERE! To see the new SR-RIGID™ rails!






3 copy.jpg

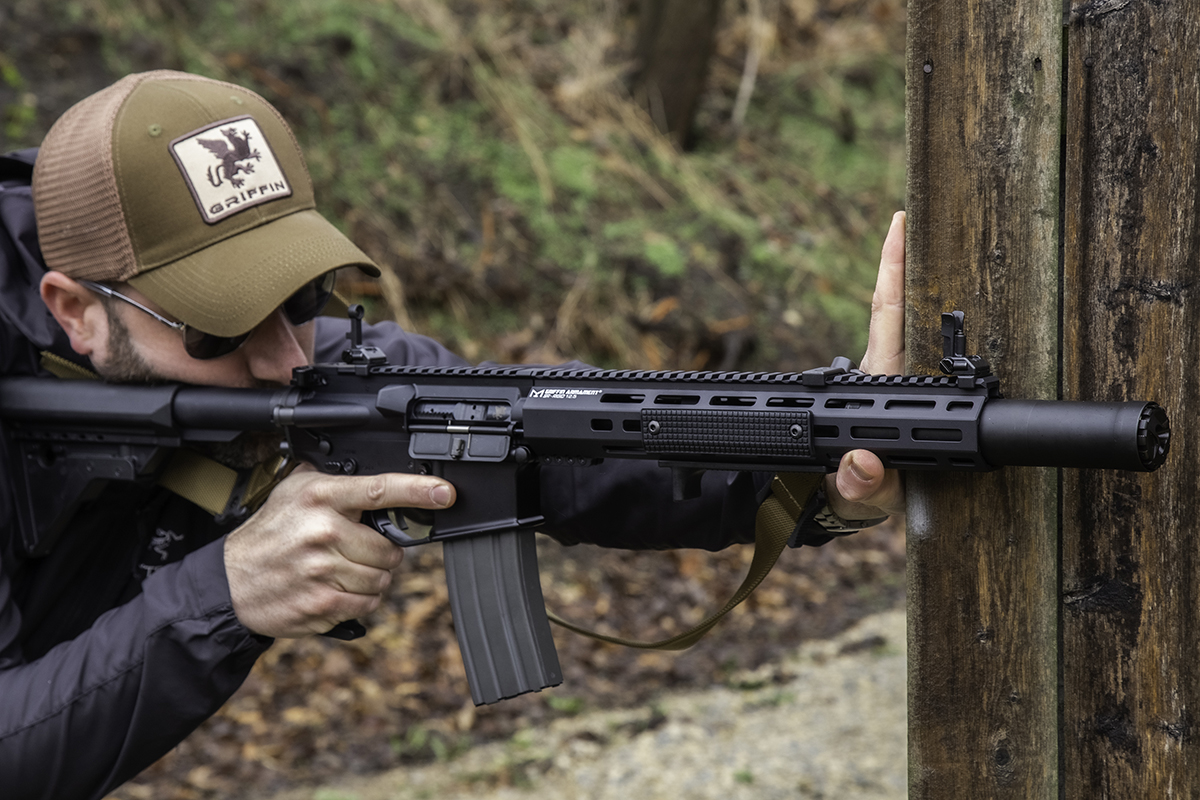

Griffin Armament® M-LOK compatible SR-RIGID™ rails (Suppressor Ready - Rigid) allow up to 1.5” outside diameter silencers to be mounted inside the octagonal M-LOK rail. This provides suppressor aficionados a sleek, and compact overall length to AR15 type firearms.

Design objectives of this rail were to provide a suppressor compatible rail, with increased rigidity and durability over similar weight and profile current market options. A custom extrusion provides significant internal reinforcements to reduce flex when loading the carbine on the rail.

Evan Green, Business Manager at Griffin Armament states,
“We understand the importance of low light targeting with IR lasers and other low light targeting systems. Reducing flex with our ID reinforcement spars reduces POI shift related to rail mounted lasers and night vision clip-ons. These rails offer more accuracy (less flex) than their competition which means more lethality under hours of darkness.”

These reinforcements provide rigid mounting for IR laser aimers ensuring minimal POI shift when torque is applied to fore-grip type accessories, or when loads are applied to the rail such as practical shooting off barricades or when loading bipods for rapid follow up shots. Internal practical testing showed substantial reductions in POI shift with laser aimers versus competing "slim rails" that lacked this notable product feature.

The new SR-RIGID™ rails features a close tolerance, heavy-duty, 7075 aluminum, T-6, type 3 hard coat anodized finish. The barrel nut can be easily installed to 35-85 ft/lbs using the included Griffin Armorers Wrench. The new slip fit clamp design is extremely user friendly and does not require any shims or special timing methods. The clamp geometry in the rear section of the rail is low profile and ergonomically pleasing even for long durations of extended carry at static security positions. Flat head T15 torx screws should be tightened to 25/in pounds. The included 45 degree picatinny QD sling swivel can be installed on the top picatinny rail to the desired position of the end user. M-LOK flats on each 45 degree surface allow for mounting of your favorite M-LOK accessories. A contiguous picatinny top rail ensures repeatable and accurate mounting for night vision and thermal systems.
If you are looking for a high quality, feature rich, American made rail system for your AR15 type firearm look no further than Griffin Armament® SR-RIGID™ rails.


To find out more on Griffin Armament’s entire product line, please visit their website at www.GriffinArmament.com.


Key points - price and inclusions:

• MSRP from $169.95

• Available Lengths 15”, 13.5”, 12.5”, 11.5”, 10.5”, 9.5”, 7.5”

• 7 sides of M-LOK interfaces

• Contiguous 1913 Picatinny top rail

• Low profile, user friendly, clamp installation design

• Multi-Function Griffin Armorers wrench included

• 6061-T6, Type 3 hardcoat anodized SR-Rigid™ Rail

• 7075, T-6, Type 3 hardcoat anodized, aluminum barrel nut

• 45 degree Picatinny QD swivel mount included

Last edited:
  • Like
Reactions: mtruong

bfoosh006

Sergeant
Full Member
Minuteman
  • Jun 13, 2007
    1,149
    428
    PNW
    Very nice.

    I am happy to see the wide assortment of OAL's... are the listed lengths "true" measurement's ?

    Another brand suppressor ready rails aren't the actual length advertized ... IE, their 9.5" listed measurement is actually 9.75" ish ( and that made easy removal / install of a QD muzzle device impractical or impossible . Including your GA QD Blast Shield ( Gen 2 )


    GRIFFIN_ARMAMENT

    Official Sniper's Hide account of Griffin Armament
    Commercial Supporter
    Full Member
    Minuteman
    Aug 27, 2019
    179
    189
    Watertown, WI
    www.griffinarmament.com
    Very nice.

    I am happy to see the wide assortment of OAL's... are the listed lengths "true" measurement's ?

    Another brand suppressor ready rails aren't the actual length advertized ... IE, their 9.5" listed measurement is actually 9.75" ish ( and that made easy removal / install of a QD muzzle device impractical or impossible . Including your GA QD Blast Shield ( Gen 2 )
    All of our rails except for the 15" are going to be within +0.05" of the advertised length (i.g. 12.55"). The 15" is the only exception being within +0.12".

    • Like
    Reactions: bfoosh006

    Naaman

    Sergeant of the Hide
    Full Member
    Minuteman
    May 13, 2020
    207
    70
    All of our rails except for the 15" are going to be within +0.05" of the advertised length (i.g. 12.55"). The 15" is the only exception being within +0.12".
    When you say "within +0.05" does that mean there are ~fifty thousandths of variation from one rail to another (seems like a huge specification margin/tolerance), or is the 12.5" rail always going to be 12.55" and the 15" rail always 15.12"?


    GRIFFIN_ARMAMENT

    Official Sniper's Hide account of Griffin Armament
    Commercial Supporter
    Full Member
    Minuteman
    Aug 27, 2019
    179
    189
    Watertown, WI
    www.griffinarmament.com
    When you say "within +0.05" does that mean there are ~fifty thousandths of variation from one rail to another (seems like a huge specification margin/tolerance), or is the 12.5" rail always going to be 12.55" and the 15" rail always 15.12"?
    The latter, "the 12.5" rail is always going to be 12.55" and the 15" rail always 15.12"


    lennyo3034

    Gunny Sergeant
    Full Member
    Minuteman
    Apr 18, 2010
    2,836
    735
    36
    Southern MD
    What is the handguard material?


    The description says 7075 T6 but the specs say only the barrel nut is 7075 and the rail is 6061.


    GRIFFIN_ARMAMENT

    Official Sniper's Hide account of Griffin Armament
    Commercial Supporter
    Full Member
    Minuteman
    Aug 27, 2019
    179
    189
    Watertown, WI
    www.griffinarmament.com
    What is the handguard material?


    The description says 7075 T6 but the specs say only the barrel nut is 7075 and the rail is 6061.
    The rail is 6061 aluminum, and the barrel nut is 7075 aluminum

    • Like
    Reactions: lennyo3034

    GRIFFIN_ARMAMENT

    Official Sniper's Hide account of Griffin Armament
    Commercial Supporter
    Full Member
    Minuteman
    Aug 27, 2019
    179
    189
    Watertown, WI
    www.griffinarmament.com
    Just added the SR-RIGID™ Installation Guide to the original post!

    If you'd like to hear Austin and Evan discuss the SR-RIGID™ rails further, check out the most recent "Dwell Time" podcast titled "SR-RIGID™ a Free Float, Suppressor Ready Rail System".

    Our podcast can be found on our website or any podcast streaming platform!

    • Like
    Reactions: bfoosh006

    TheOE800

    Private
    Full Member
    Minuteman
  • Feb 14, 2017
    1,267
    359
    DC Area, MD
    What is the handguard material?


    The description says 7075 T6 but the specs say only the barrel nut is 7075 and the rail is 6061.
    Tricky advertising, thought the rail was 7075 myself as well.
