Night Vision Iray Rico 1280

tangloppen

Private
Full Member
Minuteman
Apr 9, 2017
145
151
Denmark
Sounds like something that will set you back a liver and half a kidney - provided that these are in decent condition!


lclement

Bangflop
Supporter
Full Member
Minuteman
Nov 12, 2013
81
10
Throw the Night Vision label on here and you might get more people looking at it...

It's about dang time we have an option for HD core. Of course I wish it was from a country that doesn't hate us...
Are you certain tech is from china ?


rlsmith1

Legalize Freedom
Supporter
Full Member
Minuteman
May 1, 2019
1,560
1,268
Midwest
Hold on to your pants.. I was told $17,999
A little more than half what the 1280 camera was listed for back in 2020. Same resolution in a weapon sight seems reasonable. Now it probably costs them way less than $18k to make haha.

This unit will have an insane amount of pixels and if they built this right, the versatility will be off the charts. Think of it as a 640 core unit with (a) double the FOV or (b) twice the resolution under any magnification


shoots100

Sergeant
Supporter
Full Member
Minuteman
Supporter+
Jan 11, 2010
620
367
54
NYS Flatlands
I was trying to buy one from a company in china last year for $12K, but was given the run around then all communication ceased and the website disappeared.
It looked like a 70mm version of a Burris BTS scope.

  • Like
Reactions: rlsmith1

rlsmith1

Legalize Freedom
Supporter
Full Member
Minuteman
May 1, 2019
1,560
1,268
Midwest
Everyone sounds less than thrilled about the highest resolution core available to civilians (in a 12um sensor). Or maybe it’s just frustration it will be too expensive?

Either way, this is only good for us. A US version will eventually come out (they almost have to if they want to be a premium manufacturer. If you're unhappy with the introduction of 1280 cores and their expense, power consumption and size, then you're free o ditch your 640s for the same reason and buy 320 / 384 units:ROFLMAO:

Personally, this is exciting to me even though I probably won't own one right away. Technology advancements are exciting and while this may not be the final product, it will show what the next step will look like.

ETA: pixel size fixed

Last edited:

aslrookie

Private
Full Member
Minuteman
Mar 19, 2017
1,413
905
People talk about price, but there are still people buying GPNVG for $40k. Sure, they won’t sell bulk but still less than half the price of a set of quads.


TOOL1075

Jay
Minuteman
Aug 6, 2009
10
7
$17,999 is what I was told

Dang! If that is true, and it is a clip-on, it better come ready to play against the Voodoo-S... I feel like that is really high for a Chinese-made system.

If it is a dedicated weapon sight, it needs to also cook me breakfast. Would be cool to have breakfast tacos as the sun comes up!

In all seriousness though, I do like to see things advancing (whatever the actual "advancing" actually entails). Competition is good.

A really cool thing is that there are already great 320 cores that are affordable for people to get into the game. This will drive 640 prices down, and in 5 years, more people will be running thermal on helmets! It will be really neat. So many opportunities for hunters to get into the electro-optics game with actually decent gear.

Jay
PEW Science

Last edited:

rlsmith1

Legalize Freedom
Supporter
Full Member
Minuteman
May 1, 2019
1,560
1,268
Midwest
2560x2560 display is sweet. The size of the scope from pics I’ve seen makes me think a legit clip on wouldn’t be out of the question.

An 8-9 deg FOV unit would be insane with this core. Very good FOV and should support 18-20x mag.

Or a slightly scaled up RH25 that is 15-18 deg FOV and handle 12-15x.

Or NVision could beat them to it :)


tangloppen

Private
Full Member
Minuteman
Apr 9, 2017
145
151
Denmark
Gonna be interesting to see these tested by people not paid by Iray.

It seems that this will be a serious game changer, which is fantastic, since it will further push the evolution of thermals, and lower prices for existing solutions.


jwramp

Photo Guy
Full Member
Minuteman
Aug 19, 2012
439
820
Pittsburgh, PA
www.jwramp.com

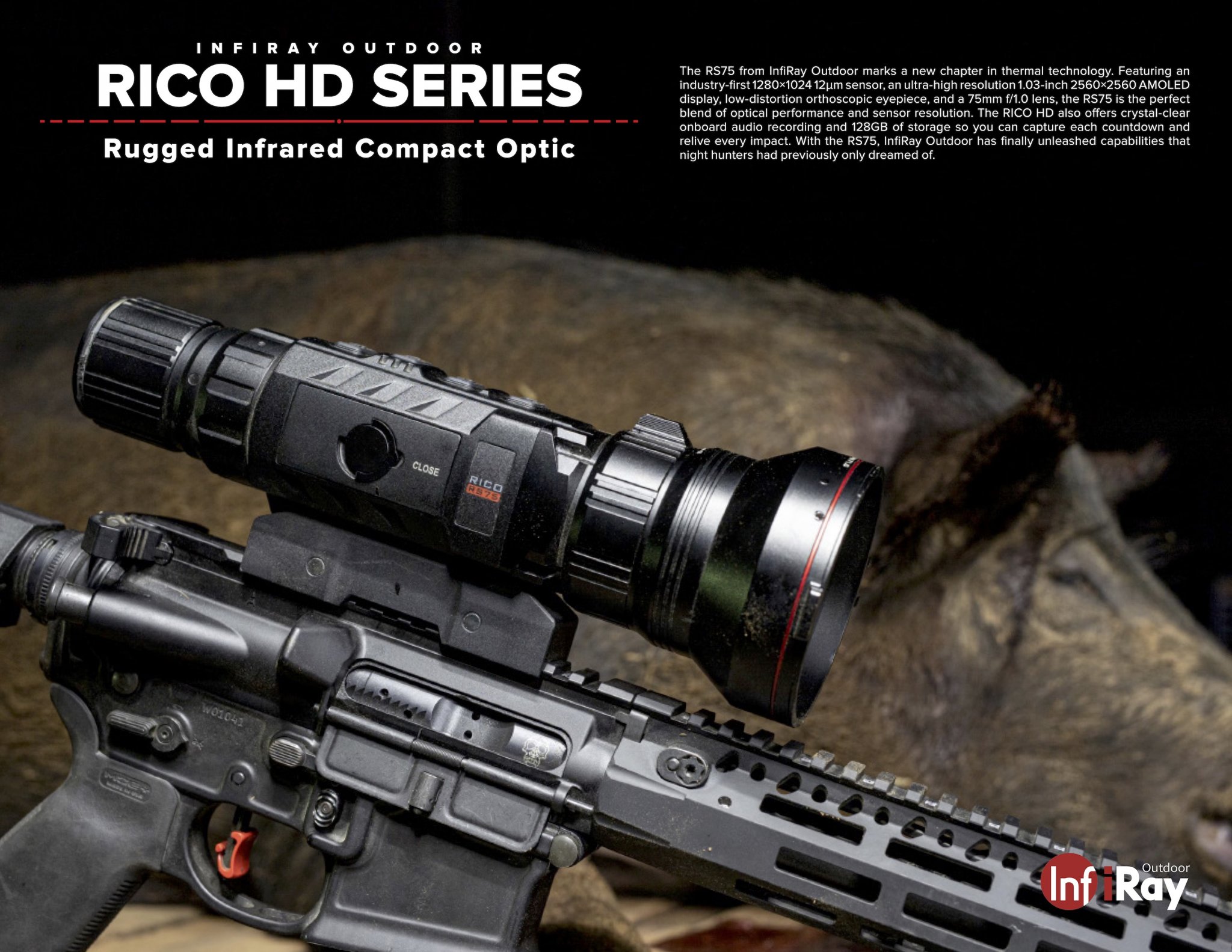

Looks like $18k MAP with the LRF - http://irayusa.com/rs75




TheHorta

Nest-stirring pot-poker.
Supporter
Full Member
Minuteman
  • Jan 17, 2014
    4,023
    9,481
    NO AL
    30Hz
    Super power hungry
    45-ounces
    $18K
    Chinesium
    Dedicated scope only. NO clipon capability.
    Will never be more expensive than it is today.

    Kinda crappy timing. Far fewer people willing to dump $18K on a Chinese thermal today than 1-2 years ago.

    Last edited:

    jwramp

    Photo Guy
    Full Member
    Minuteman
    Aug 19, 2012
    439
    820
    Pittsburgh, PA
    www.jwramp.com
    Yeah little confused on the power demands. From the picture it looks like only one of their IBP-1 batteries will slide in the side at a time, but it lists 2x of them for 4hr on the spec sheet. So not sure if that's 2x that come in the box and you only use one at a time, and then whether 4hr is for each battery or both back-to-back. Hungry girl either way - can't imagine what it would have been at 60hz


    rlsmith1

    Legalize Freedom
    Supporter
    Full Member
    Minuteman
    May 1, 2019
    1,560
    1,268
    Midwest
    30Hz
    Super power hungry
    45-ounces
    $18K
    Chinesium
    Dedicated scope only. NO clipon capability.
    Will never be more expensive than it is today.

    Kinda crappy timing. Far fewer people willing to dump $18K on a Chinese thermal today than 1-2 years ago.
    Yeah I’m fine with no clip on ability. Gotta leave the door open for them to release a clip on for $8k!

    @jwramp nice of them to include an LRF, will see how that works…

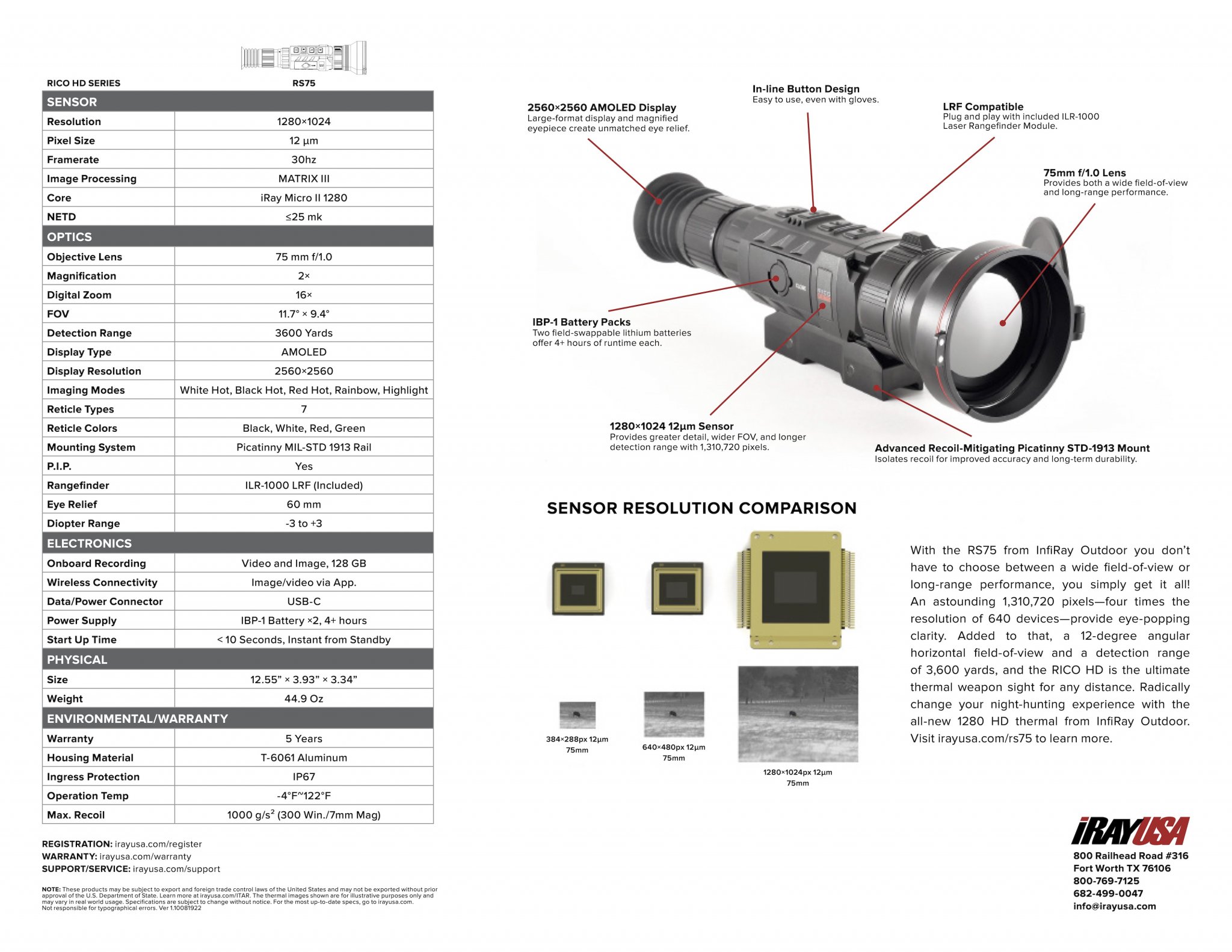

    ETA: NETD at <25mk is sweet. 11.7 deg FOV is about perfect and should have similar long range performance as 6 deg FOV 640 units. I’d love this FOV as a do all clip on. HD screen is a nice feature too. 12um pixel is good to ensure it’s executed as well as it can. Future 10um or even 8um sensor would be very helpful in the sizing of the unit.

    30hz is interesting but I’m sure future units will bump it up. Power usage could be a real issue in cold climates. It’s also a thicc unit

    Last edited:

    kel

    Private
    Minuteman
    Jul 15, 2005
    22
    19
    Eagle, ID
    www.gem-tech.com
    it looks like only one of their IBP-1 batteries will slide in the side at a time, but it lists 2x of them for 4hr on the spec sheet. So not sure if that's 2x that come in the box and you only use one at a time, and then whether 4hr is for each battery or both back-to-back.
    It's 4 hours optic runtime each/per battery.
    (That's a super-conservative number: runtime is around 5 to 6 hours per when the batts are new). Only one battery fits into the optic at a time. I suppose if you had the optic plugged into an external pack you could hot swap them. Not a big deal to take one out and put a fresh one in and quickly turn it on again. The batteries are around $169 separately: that optic comes with two of them.

    • Like
    Reactions: jwramp

    jstokes1

    Supporter
    Supporter
    Full Member
    Minuteman
    Dec 17, 2018
    421
    644
    Monroe, Louisiana
    As I said on another chat:
    With most of the chinese thermals Ive played with I've found that they: have laggy software, are cheaply made, break easy, not waterproof, etc.

    HOWEVER, the general price of these units justifies this piss poor quality control and "race down to the bottom" mentality the Chinese have when it comes to commercial thermal tech. They view it as consumable, and that's fine.

    But......when you start slapping on a 17k price tag, you're competing with the big boys (POT, BAE, DRS, FLIR/TELEDYNE, THEON, etc.) and entering in the TRUE high end thermal market that deals with units currently being fielded to engage targets that shoot back. Ones you can trust your life with.

    The positive about this unit though is that it pushes the American market to "keep up" and actually go back to the drawing board on their existing lines to bring something better to the consumer.


    Conqueror

    Sergeant
    Full Member
    Minuteman
    Feb 28, 2008
    1,200
    797
    Chapel Hill, NC
    We should all be excited about this. I’m not going to buy one, there are too many issues with it like weight and framerate, but it’s great to finally see someone bringing a larger microbolometer to the civilian market, it means that we are going to start seeing American manufacturers feel pressure to keep pace.


    shoots100

    Sergeant
    Supporter
    Full Member
    Minuteman
    Supporter+
    Jan 11, 2010
    620
    367
    54
    NYS Flatlands
    We should all be excited about this. I’m not going to buy one, there are too many issues with it like weight and framerate, but it’s great to finally see someone bringing a larger microbolometer to the civilian market, it means that we are going to start seeing American manufacturers feel pressure to keep pace.
    RICO- Rugged Infrared Compact Optic.
    They should've came out with another name for it, as there's nothing compact about it and the ruggedness is questionable.
    30HZ ? That's on the low side for moving game.
    I don't see any of the other manufacturers trying to keep up in the very limited $18,000 niche use market.
    If this unit was in the $10,000- $12,000 range it would be at least thinkable for someone that was looking at the buying an XRF to consider it, like I was earlier this year.
    The RS75 is at the beginning of the used cooled core battle tested thermal price range too.
    Very cool scope and I look forward to seeing more reviews of it in field use.


    Conqueror

    Sergeant
    Full Member
    Minuteman
    Feb 28, 2008
    1,200
    797
    Chapel Hill, NC
    For my use cases I think I’d rather have an HD uncooled system than a 10yo cooled 320 system. These will come down in price though. The sensor alone was $30k from iRay just two years ago.


    wigwamitus

    Strictly Offensive Kit
    Supporter
    Commercial Supporter
    Full Member
    Minuteman
    Supporter+
    Jan 5, 2014
    3,232
    2,546
    LBJ
    ... I don't see any of the other manufacturers trying to keep up in the very limited $18,000 niche use market ...

    Opens interesting topic for discussion ... how many "other" manufacturers are there really ? Especially for thermals we can buy ?

    I think of 3 bands ...

    1 - Low end - when I got my first thermal back in 2014, there was ATN (gen1 thermals, like ODIN and Thor) and Armasight, with Zeus and Apollo. There were mostly in the sub $6k market. Later the chinese came in with Pulsar and the others ... and even ATN switched to chinese.
    WIth FLIRs sale of "armasight" and getting out of this market, the Chinese have won the low end market period.
    My understanding is there are really only two factories in Chinese making the cores. Might be others making the housings and doing final assembly. And in a few cases, the parts are made in China and shipped to other ganglands, like Lithuania or even USA for final assembly.
    But China owns the low end market for us, that's for sure..

    2 - Middle end - this now includes Trijicon Electro Optics (TEO) formerly known as IRD and N-Vision. And lives in the $5k to $10k price bracket. The USA commercial tier. The Chinese are moving into this sector with entries like the new "choodoo".

    3 - High End - this is and has been the realm of the military units that we can buy. The OASYS thermals were intended for the military and Skeets and UTMs were definitely used. I think UTCs were at least tested. The Theon's were designed for military, but are being made available commercially at least in USA and AU.
    And now we see China "leaping" into the High End market with the RS75. With the 2x2 zillion pixels on the back end and the 1280 FPA on the front end and the $18k MSRP price tag. We knew something like this was coming, but I'm surprised at the speed. There are a few other players in this market, but not really very many (Trijicon OASYS, PoT, Insight, DRS(?) etc).


    ==
    So overall there are really just a handful of "manufacturers" in the USA commercial thermal market (including military units being sold commercially). Really only TEO and N-vision would be likely to "learn" from anything the Chinese are doing, so that's two manufacturers.
    Military units tend to be "made to spec" ... meaning the procurement people on the military side must say "we need 1280" ... and if they say that, they will get it. Commercial market doesn't directly drive military market, though overall in the history of USA, like in guns and ammo, there has been significant influence from commercial to military. But less so in thermal, so far.

    But it will be very interesting to see what happens in the next year, when we expect to see more new thermal clipons introduced into the commercial market, both military units and chinese units ... and who knows ... maybe even USA commercial manufactured units. But I would definitely expect to see a C75 from iray in the next 12 months ... though it will be a challenge to make a long distance thermal clipon with a 1280 ... and make it "man transportable" :D

    Oh, and by the way, I too thought the $10k+ thermal market was "limited" but I continue to be surprised at how quickly our Theon's and other high end units sell out. There are more "high end" market buyers out there than you might think !!!


    rlsmith1

    Legalize Freedom
    Supporter
    Full Member
    Minuteman
    May 1, 2019
    1,560
    1,268
    Midwest
    …And in a few cases, the parts are made in China and shipped to other ganglands, like Lithuania or even USA for final assembly...
    Lol

    Opens interesting topic for discussion ... how many "other" manufacturers are there really ? Especially for thermals we can buy ?

    I think of 3 bands ...

    1 - Low end - when I got my first thermal back in 2014, there was ATN (gen1 thermals, like ODIN and Thor) and Armasight, with Zeus and Apollo. There were mostly in the sub $6k market. Later the chinese came in with Pulsar and the others ... and even ATN switched to chinese.
    WIth FLIRs sale of "armasight" and getting out of this market, the Chinese have won the low end market period.
    My understanding is there are really only two factories in Chinese making the cores. Might be others making the housings and doing final assembly. And in a few cases, the parts are made in China and shipped to other ganglands, like Lithuania or even USA for final assembly.
    But China owns the low end market for us, that's for sure..

    2 - Middle end - this now includes Trijicon Electro Optics (TEO) formerly known as IRD and N-Vision. And lives in the $5k to $10k price bracket. The USA commercial tier. The Chinese are moving into this sector with entries like the new "choodoo".

    3 - High End - this is and has been the realm of the military units that we can buy. The OASYS thermals were intended for the military and Skeets and UTMs were definitely used. I think UTCs were at least tested. The Theon's were designed for military, but are being made available commercially at least in USA and AU.
    And now we see China "leaping" into the High End market with the RS75. With the 2x2 zillion pixels on the back end and the 1280 FPA on the front end and the $18k MSRP price tag. We knew something like this was coming, but I'm surprised at the speed. There are a few other players in this market, but not really very many (Trijicon OASYS, PoT, Insight, DRS(?) etc).


    ==
    So overall there are really just a handful of "manufacturers" in the USA commercial thermal market (including military units being sold commercially). Really only TEO and N-vision would be likely to "learn" from anything the Chinese are doing, so that's two manufacturers.
    Military units tend to be "made to spec" ... meaning the procurement people on the military side must say "we need 1280" ... and if they say that, they will get it. Commercial market doesn't directly drive military market, though overall in the history of USA, like in guns and ammo, there has been significant influence from commercial to military. But less so in thermal, so far.

    But it will be very interesting to see what happens in the next year, when we expect to see more new thermal clipons introduced into the commercial market, both military units and chinese units ... and who knows ... maybe even USA commercial manufactured units. But I would definitely expect to see a C75 from iray in the next 12 months ... though it will be a challenge to make a long distance thermal clipon with a 1280 ... and make it "man transportable" :D

    Oh, and by the way, I too thought the $10k+ thermal market was "limited" but I continue to be surprised at how quickly our Theon's and other high end units sell out. There are more "high end" market buyers out there than you might think !!!
    What excites me most about this is it gives the commercial guys in “Tier 2” a couple great things in their back pocket.

    First, they now have a legit reason to “need” a 1280 core for their units. Heaven forbid the peasants get the latest in sensor tech but now that we have it, let’s run with it (looking at you, most of “Tier 1” manufactures).

    Second, China will be the ones truly testing the market for what is feasible. I agree the $10k to $20k market is larger than most expect, but these guys also demand performance when it counts. maybe China sells a few at $20k but if they really want to distribute them the price will have to come down (and it will). Users benefit from this and as well as US manufacturers because they have one more data point to price off of.

    BTW, the same thing will probably happen with cooled units as well at some point…


    ETA: on the clip on side, it doesn’t seem like they’d have to change much to make a legit clip on. 11.7 deg FOV with the same long range performance as a 6 deg FOV 640 unit sounds just fine to me! Now squeezing that FOV down to 8 deg or less will be a challenge with 12um pixels.

    And as far as man portable, I man portable a PVS30 all the time so I’m up for the challenge :ROFLMAO:

    • Like
    Reactions: deersniper

    rlsmith1

    Legalize Freedom
    Supporter
    Full Member
    Minuteman
    May 1, 2019
    1,560
    1,268
    Midwest
    I was more saying we get a China version of cooled since IRAY has cooled sensors listed on their website… I don’t doubt they will be expensive if / when they put them in a weapon mounted optic tho

    • Like
    Reactions: deersniper

    TheHorta

    Nest-stirring pot-poker.
    Supporter
    Full Member
    Minuteman
  • Jan 17, 2014
    4,023
    9,481
    NO AL
    Thermal sensors aren’t really that high-tech — whether cooled or uncooled. They’re just not high demand items if you don’t have defense contracts to sell to. The lack of demand makes them expensive to develop and manufacture.

    Fabs ain’t cheap.


    TheHebrewHammer

    Call for a good time
    Supporter
    Commercial Supporter
    Full Member
    Minuteman
    May 1, 2021
    994
    935
    The South
    I am sure the technology is there, the question is will the CCP allow it to leave China. I am sure the Chinese military fields some pretty sweet thermals.

    • Like
    Reactions: TheHorta

    stefan73

    Sergeant
    Full Member
    Minuteman
  • Mar 6, 2006
    2,480
    2,109
    CENLA
    Thermal sensors aren’t really that high-tech — whether cooled or uncooled. They’re just not high demand items if you don’t have defense contracts to sell to. The lack of demand makes them expensive to develop and manufacture.

    Fabs ain’t cheap.
    Not expensive for china to develop, expensive for the companies that actually developed it before china stole it.
    From a Foreign Policy 2019 article, "Chinese IP theft has cost the United States $225 billion to $600 billion a year. "


    Conqueror

    Sergeant
    Full Member
    Minuteman
    Feb 28, 2008
    1,200
    797
    Chapel Hill, NC
    ETA: on the clip on side, it doesn’t seem like they’d have to change much to make a legit clip on. 11.7 deg FOV with the same long range performance as a 6 deg FOV 640 unit sounds just fine to me! Now squeezing that FOV down to 8 deg or less will be a challenge with 12um pixels.

    And as far as man portable, I man portable a PVS30 all the time so I’m up for the challenge :ROFLMAO:
    Will it be a challenge? I'm not an optical engineer but I would've thought FOV depends more on your lens/es than it does on your chip. Kinda like how the sensor on a dSLR can see wide, narrow, short, far, etc depending on what lens you put in front of it. If that's true you could make a super telephoto germanium lens and have a 2 deg FOV 1280 clip-on and see through the hogs.

    And people are buying up the Theons so clearly the high-end civilian market is OK with "high performance but at the cost of weight" units like this.

    • Haha
    Reactions: rlsmith1

    koshkin

    Dark Lord Of Optics
    Supporter
    Full Member
    Minuteman
    Supporter+
  • Feb 22, 2006
    4,336
    6,648
    New Mexico
    www.opticsthoughts.com
    Will it be a challenge? I'm not an optical engineer but I would've thought FOV depends more on your lens/es than it does on your chip. Kinda like how the sensor on a dSLR can see wide, narrow, short, far, etc depending on what lens you put in front of it. If that's true you could make a super telephoto germanium lens and have a 2 deg FOV 1280 clip-on and see through the hogs.

    And people are buying up the Theons so clearly the high-end civilian market is OK with "high performance but at the cost of weight" units like this.
    Correct. You'd just need a larger lens: longer focal length and larger diameter to maintain a good F/#.

    ILya

    • Like
    Reactions: Conqueror

    TheHorta

    Nest-stirring pot-poker.
    Supporter
    Full Member
    Minuteman
  • Jan 17, 2014
    4,023
    9,481
    NO AL
    Will it be a challenge? I'm not an optical engineer but I would've thought FOV depends more on your lens/es than it does on your chip. Kinda like how the sensor on a dSLR can see wide, narrow, short, far, etc depending on what lens you put in front of it. If that's true you could make a super telephoto germanium lens and have a 2 deg FOV 1280 clip-on and see through the hogs.

    And people are buying up the Theons so clearly the high-end civilian market is OK with "high performance but at the cost of weight" units like this.

    It’s both the “chip” and the lens. Smaller “chips” need smaller lenses with less glass to accomplish the same FOV as a larger chip with larger glass. This is why compact cameras can have bonkers zoom ranges with tiny lenses, because the sensor is so small. You trade-off a myriad of other benefits, but gain convenience and significant cost reductions. This is why a 600/f4 lens is $12,000 and looks like a Javelin missle where a subcompact camera with a tiny sensor can have a 600/f4 lense that fits in your hand. It only needs to project an image circle the size of a pea.

    So, a 12um sensor with 1280x1024 pixels is quadruple the size/area of a 12um sensor with 640x512 pixels. To have the same FOV while maintaining the same aperture requires a MUCH larger lens.

    This is a very non-technical, but generally accurate description of how sensor size and pixel pitch interact with optics.

    The deeper dive includes Circle of Confusion, DoF, MTF, etc.
