I just got my mk5 3.6-18x44 today and have an issue I'm uncertain of. The scope turret locks in at zero. I push the detent lock in to release it and start turning. At one revolution the detent becomes flush with the turret body but the top indicator button doesn't move from its original flush position. On the second revolution it doesn't make it all the way and stops at around the 17 mil mark. No third revolution. Is there something locked in at the factory or something? I am not going to force it beyond its stopping point at 17 mils.


Dthomas3523

Hall Monitor
Staff member
Moderator
Supporter
PX Member
Commercial Supporter
PX Member
Minuteman
  • Jan 31, 2018
    10,418
    14,592
    South Texas
    Have you checked to see if the turrets were set closer to mechanical center and not at the bottom?


    ScarlettRed

    Private
    PX Member
    Minuteman
    Aug 7, 2017
    169
    93
    Colorado
    I think the factory setting is what your saying. I took off the turret and played with the center column screw and now have a full three turns. The top indicator button only has two positions though. Flush first two turns and proud the third turn. Maybe its supposed to be that way. I'll check some videos and see if that the case.


    thestacche

    Banhammer
    Banned !
    Minuteman
    Jan 13, 2019
    85
    54
    That scope is only supposed to have 29.1 mils of evaluation so that seems pretty normal to me. Have you zeroed the scope yet?


    ScarlettRed

    Private
    PX Member
    Minuteman
    Aug 7, 2017
    169
    93
    Colorado
    Just got it temporarily mounted. It was pre-adjusted near the top of its range. Got it fixed now. I am very impressed with this scope. I love the zero stop built into the turret cap. Super easy. I got it for my hunting rifle. I think it will be pretty awesome in that role.


    One1Bravo

    Ops4
    PX Member
    Minuteman
  • Jul 13, 2012
    1,247
    519
    31
    Baton Rouge, LA
    The silver indicator button on top only protrudes on the third rev.

    When locked on zero does your elevation turret line up appropriately? Mine locks in between 0 and the 10.5 hash. I contacted Leupold about it but I don't think they understood what I was saying because they said it was due to military request in order to be able to make shots at closer ranges than zero.



    Kadams1563

    Giver of Bad Advice
    PX Member
    Minuteman
    Feb 13, 2017
    1,782
    1,369
    The silver indicator button on top only protrudes on the third rev.

    When locked on zero does your elevation turret line up appropriately? Mine locks in between 0 and the 10.5 hash. I contacted Leupold about it but I don't think they understood what I was saying because they said it was due to military request in order to be able to make shots at closer ranges than zero.

    View attachment 7005786
    I could see what they are saying as that’s one of my favorite things about the Gen II Razor. The .5 mils below your actual zero. .1 doesn’t seem like enough though if they were trying to achieve what they are saying.


    One1Bravo

    Ops4
    PX Member
    Minuteman
  • Jul 13, 2012
    1,247
    519
    31
    Baton Rouge, LA
    I could see what they are saying as that’s one of my favorite things about the Gen II Razor. The .5 mils below your actual zero. .1 doesn’t seem like enough though if they were trying to achieve what they are saying.

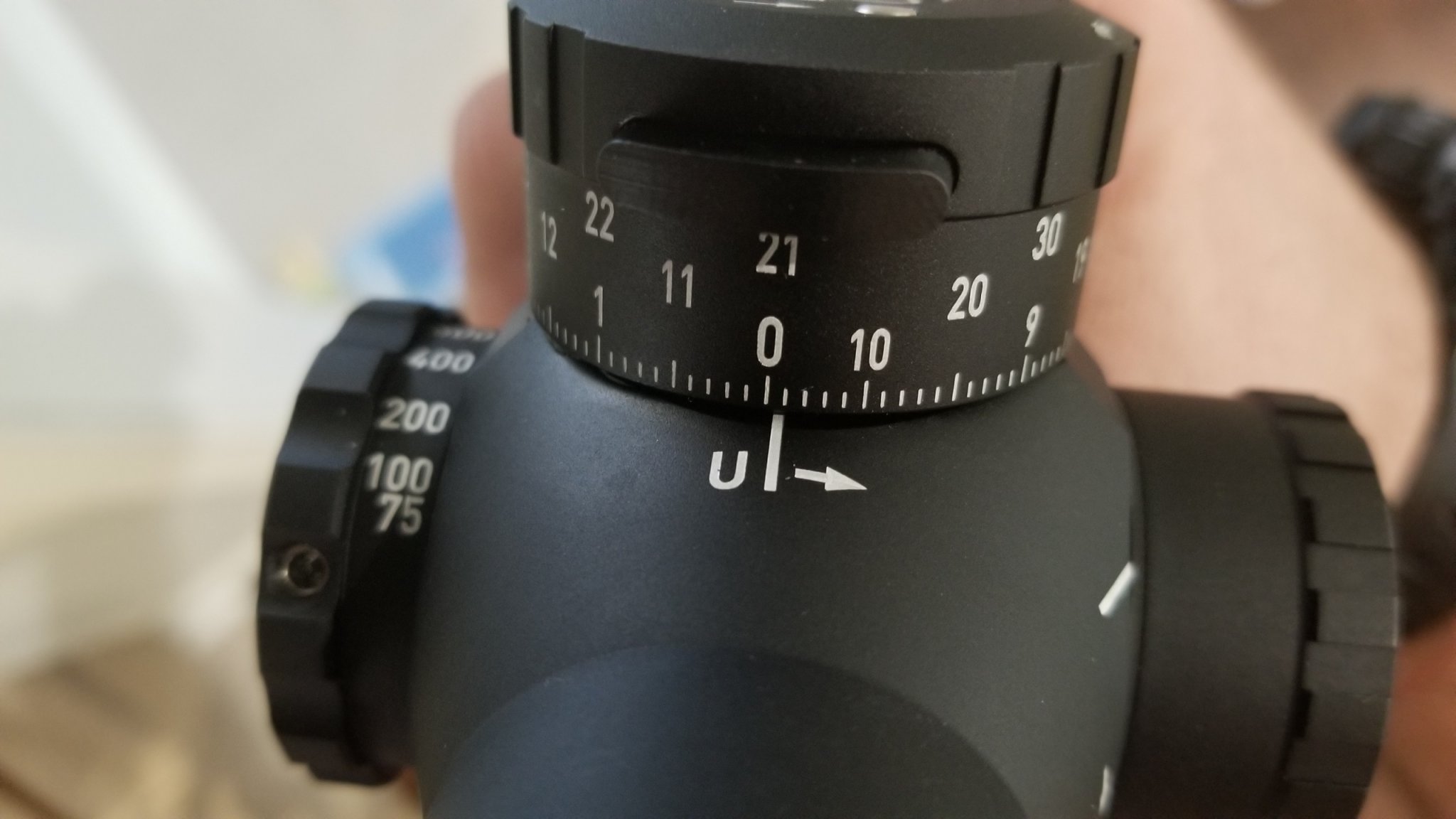

    I can turn the knob down .5 mil past zero. But this is where my zero knob locks.


    steve123

    Lt. Colonel
    PX Member
    Minuteman
    Mar 16, 2008
    9,021
    1,469
    none of your business
    That makes no sense because the closer the target is the higher you adjust the turrets, for example with a 100Y zero, if you wanted to shoot at 10Y you would need to bring your turret setting up to around 3.5-4 mils.

    Don't settle for that much misalignment on your turrets!


    THEIS

    Hi, Sincerely
    Commercial Supporter
    PX Member
    Minuteman
  • Nov 27, 2017
    6,426
    21,635
    Enon Louisiana
    hoplitearms.com
    Hi,

    You are able to turn past "0" by design. It is built so that if you travel to different elevations to shoot, you are able to turn down past your "0" to account for the slight environmental caused change in your zero.

    Sincerely,
    Theis


    One1Bravo

    Ops4
    PX Member
    Minuteman
  • Jul 13, 2012
    1,247
    519
    31
    Baton Rouge, LA
    Hi,

    You are able to turn past "0" by design. It is built so that if you travel to different elevations to shoot, you are able to turn down past your "0" to account for the slight environmental caused change in your zero.

    Sincerely,
    Theis

    Guys, I don't know how else to state that I understand you are able to turn down .5 mil from zero. What I'm saying is that is my turret locked in at what should be zero. Instead it locks in between the zero and 10.5 mil hash. My first click up goes to zero. No matter how I try to adjust the turret with the set screws this is where it locks in to 'zero'. Am I missing something really obvious here or what?


    THEIS

    Hi, Sincerely
    Commercial Supporter
    PX Member
    Minuteman
  • Nov 27, 2017
    6,426
    21,635
    Enon Louisiana
    hoplitearms.com
    Hi,

    No you are good :)
    I was merely referring for anyone questioning "why" you could go past "0"....in regards to your specific issue; It technically should line up perfectly at zero for "0".

    Sincerely,
    Theis


    MNTC

    Big Game Hunter
    PX Member
    Minuteman
  • Apr 29, 2017
    3,022
    2,083
    Colorado
    Guys, I don't know how else to state that I understand you are able to turn down .5 mil from zero. What I'm saying is that is my turret locked in at what should be zero. Instead it locks in between the zero and 10.5 mil hash. My first click up goes to zero. No matter how I try to adjust the turret with the set screws this is where it locks in to 'zero'. Am I missing something really obvious here or what?

    Leupold replaced two turrets for me because of the same issue. New turrets lined up perfect. What you are experiencing is not normal. Some of it has to do with one screw being tighter or more turned in when the other.


    One1Bravo

    Ops4
    PX Member
    Minuteman
  • Jul 13, 2012
    1,247
    519
    31
    Baton Rouge, LA
    Hi,

    No you are good :)
    I was merely referring for anyone questioning "why" you could go past "0"....in regards to your specific issue; It technically should line up perfectly at zero for "0".

    Sincerely,
    Theis

    LOL, thank you sir. I thought I was going crazy!


    One1Bravo

    Ops4
    PX Member
    Minuteman
  • Jul 13, 2012
    1,247
    519
    31
    Baton Rouge, LA
    Leupold replaced two turrets for me because of the same issue. New turrets lined up perfect. What you are experiencing is not normal. Some of it has to do with one screw being tighter or more turned in when the other.
    Thanks for the reassurance. I replied back to Leupold with a photo and an explanation that he wasn't understanding what I was saying and I haven't heard back. I'll probably have to call them.


    ScarlettRed

    Private
    PX Member
    Minuteman
    Aug 7, 2017
    169
    93
    Colorado
    Mine lines up fine. It allows .6 mil below zero. I really love its simplicity. I almost wish I ordered 2 on liberty's new years sale. Except I really wanted a 7-35 and I got a smokin deal on the ATACR. Now leupold just announced their own 7-35. I think the mark 5's would work great on multi cal rifles.


    BCP

    Lt. Colonel
    PX Member
    Minuteman
  • Dec 4, 2008
    5,417
    82
    119
    CA
    Guys, I don't know how else to state that I understand you are able to turn down .5 mil from zero. What I'm saying is that is my turret locked in at what should be zero. Instead it locks in between the zero and 10.5 mil hash. My first click up goes to zero. No matter how I try to adjust the turret with the set screws this is where it locks in to 'zero'. Am I missing something really obvious here or what?

    It looks to me like the turret markings or the zero mark on the scope body are off, you can send it back to see if they fix it or not.


    Wilfong9

    Private
    Minuteman
    Dec 31, 2018
    15
    2
    Wait!! When did Leupold announce a 7-35? That’s what I was hoping for but my mk5 5-25 will be delivered tomorrow..


    Wilfong9

    Private
    Minuteman
    Dec 31, 2018
    15
    2
    Well I have a brand new in box 5-25 with the new MOA reticle that will probably go up for sale today. It will be delivered at 5pm and I guess I won’t even open the box haha


    Wilfong9

    Private
    Minuteman
    Dec 31, 2018
    15
    2

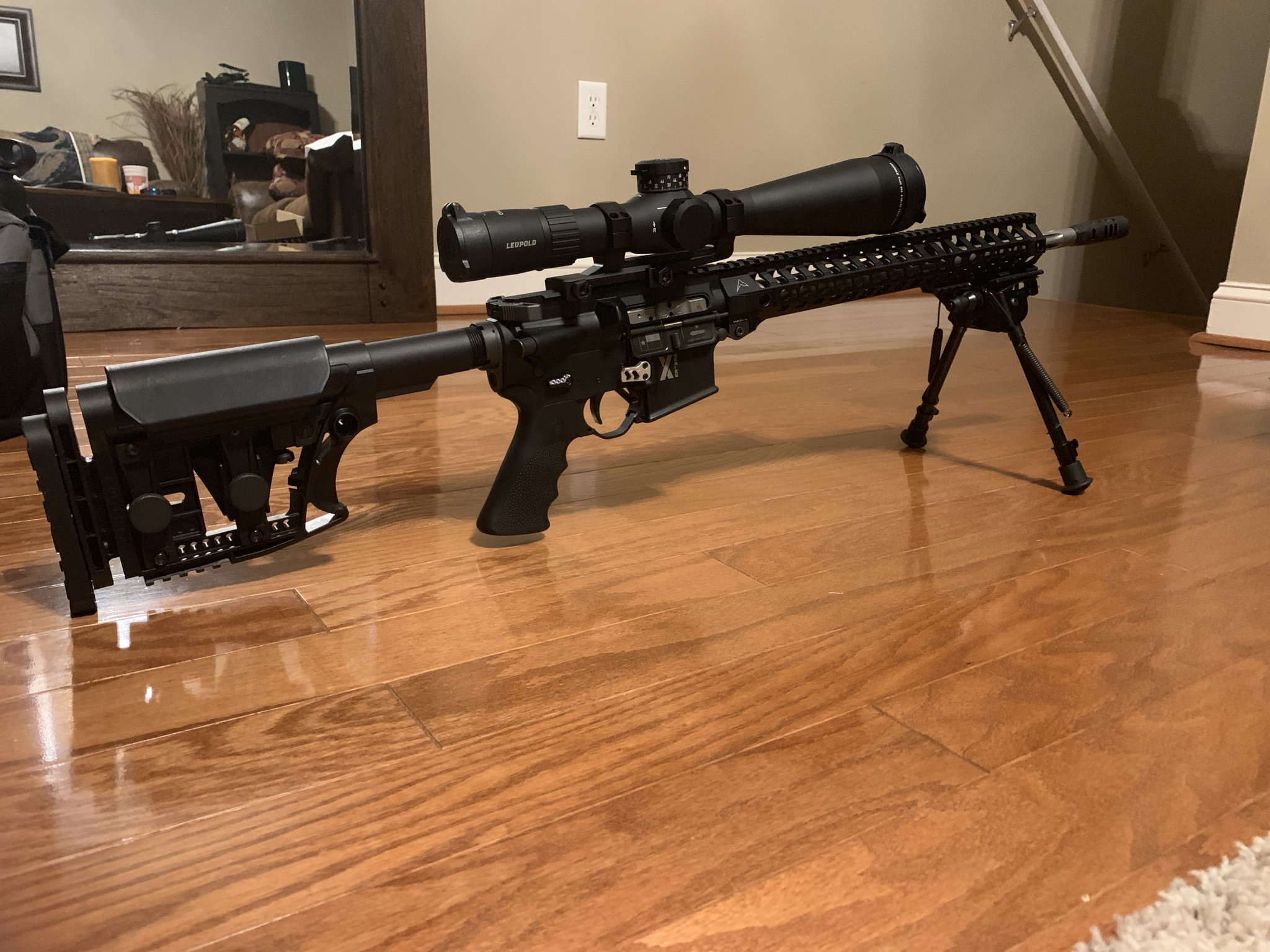

    Really nice scope! Mine doesn’t have the alignment issue with the elevation turret that a few have shown. Just wanted to see how it looked on a flat top.


    One1Bravo

    Ops4
    PX Member
    Minuteman
  • Jul 13, 2012
    1,247
    519
    31
    Baton Rouge, LA
    That doesn’t work that way with a 100 yard zero, closer shots are hold overs not unders..
    "The Mark 5HD is designed per military request that the dial does not stop on zero when rotating clockwise but in fact goes beyond by .5 mil. This is to insure accurate shots on targets using a high-mounted optic if ranges are inside the scope's zero.
    Best Regards,"

    Their words, not mine. He misunderstood what I was saying anyhow.


    Diver160651

    Who cares
    PX Member
    Minuteman
  • Feb 7, 2013
    3,386
    3,861
    La Honda
    "The Mark 5HD is designed per military request that the dial does not stop on zero when rotating clockwise but in fact goes beyond by .5 mil. This is to insure accurate shots on targets using a high-mounted optic if ranges are inside the scope's zero.
    Best Regards,"

    Their words, not mine. He misunderstood what I was saying anyhow.
    Ya, I got that, I was pointing out that even what they said made little sence


    wade2big

    Knowing just enough to be dangerous
    PX Member
    Minuteman
    Sep 16, 2017
    4,090
    4,199
    TEXAS
    Ya, I got that, I was pointing out that even what they said made little sence
    Im assuming military personnel don't zero their rifles at 100 yards. If that is the case then the .5 mil below zero could be helpful. They may zero at 300 yards. come down .5 mils and soldier would be good to point blank.
