Rifle Scopes Question regarding S&B 3-20 PM II US elevation turret

[callsignninja]

Anyone in here have experiences with this S&B elevation turret?

I have a quick question regarding it. It's a double turn turret with 35 mrad of travel. I zeroed it today and adjusted the turret back to "0". But now I can only max out at 19.2; it wont go any further up. Is this normal? Or did I break something? I read the manual but it didn't mention anything..

The scope base is 0MOA btw.

Appreciated all the answers/helps ?

This is my first S&B with this turret. All my other S&Bs will max out on the elevation after being zeroed except for this one..



[diverdon]

That spec is 35 Mill of total adjustment. If you need to have more of it usable then you need to get some incline in the base.



[boomslang]

How far are you intending to reach out with thing?



[AIAW]

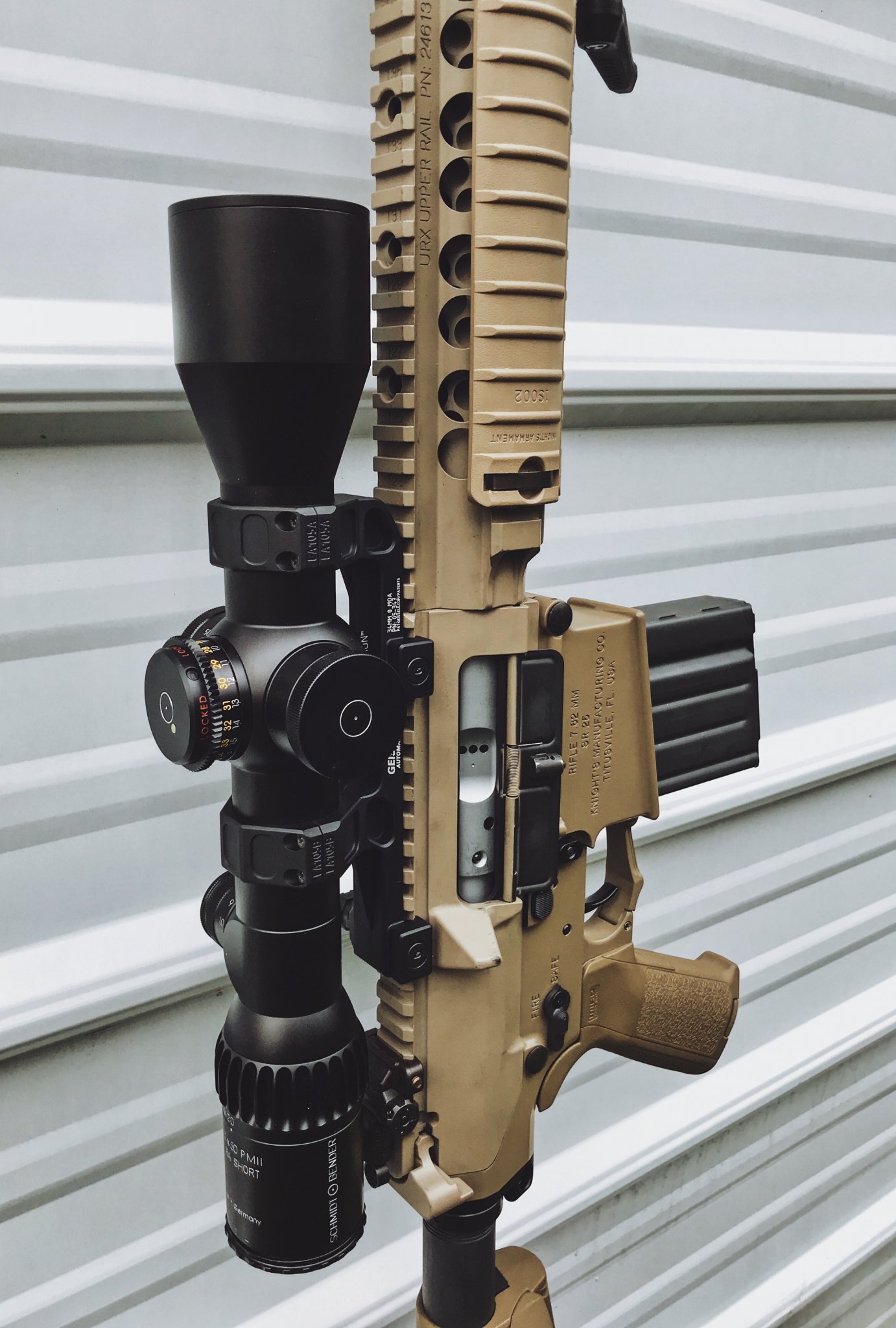

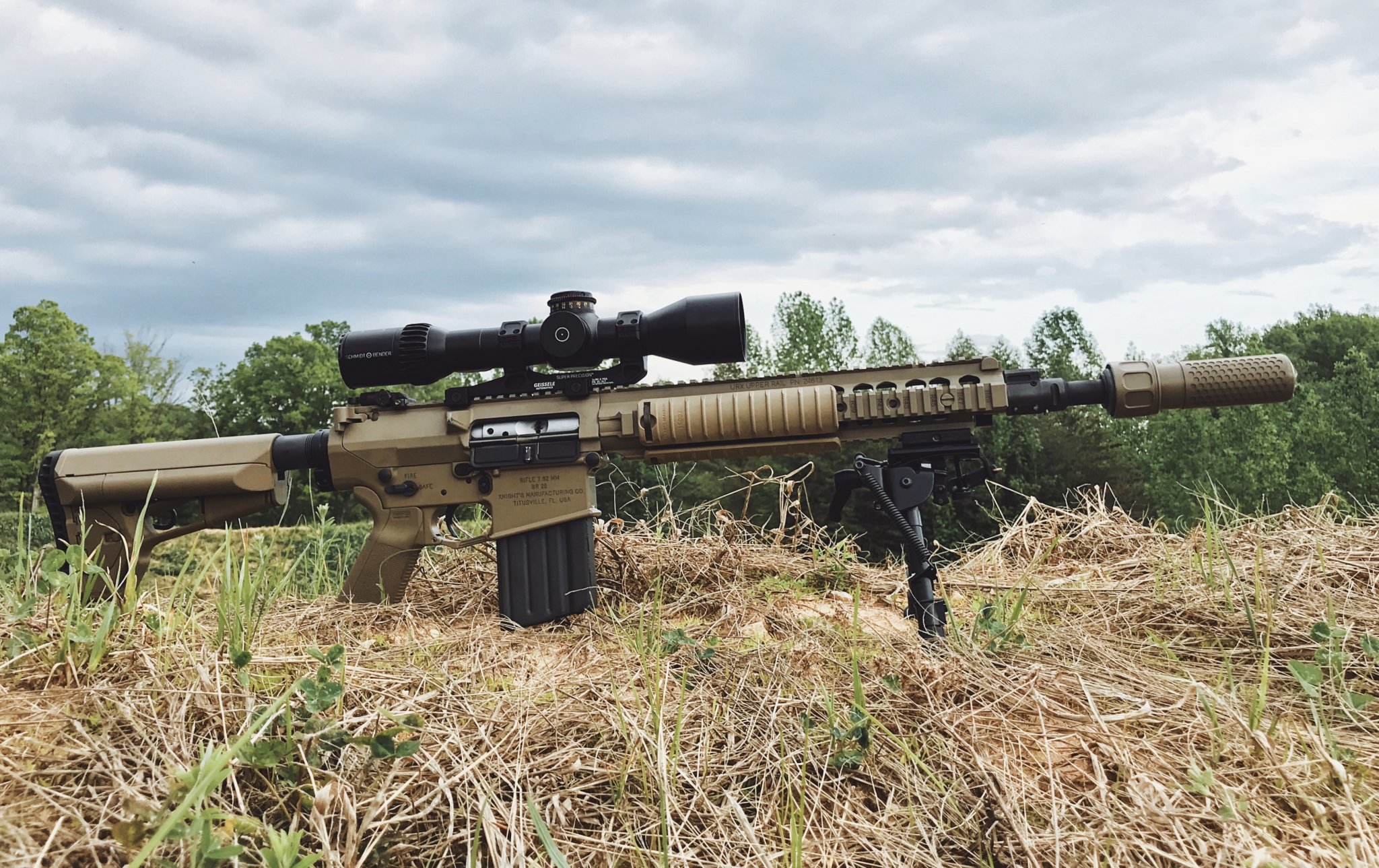

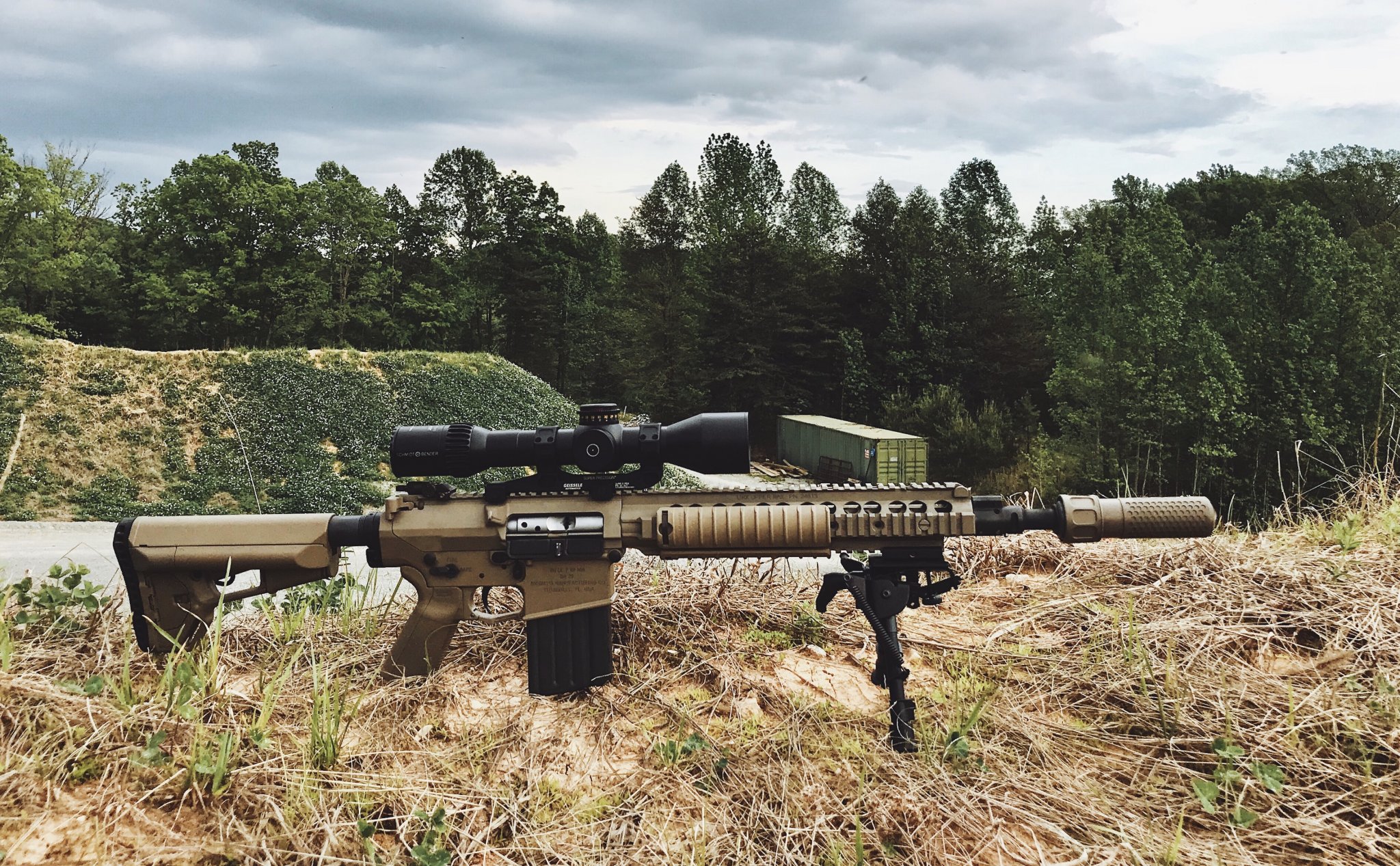

SR-25 with a S&B Ultra-Short. I like your style.

Quick and dirty: The optic is going to be (roughly) optically/mechanically centered with a 0 MOA base. That means you take that 35 MILs of travel and divide that by two. Essentially the "lower" portion of the travel is useless to you as-is.

So you have 17.5 MILs by default with a 0 MOA base, but remember that there is some leeway in the erector. Dial is marked for 35 MILs, but mechanically it will contain roughly +3 or so MILs.



[callsignninja]

Roger! Thanks for the help gents! Learned something new everyday haha.

this combo shot great btw. Was ringing the 10" plate at 600m repeatedly yesterday!
