Scope leveling

Nightlybane

Sergeant of the Hide
Full Member
Minuteman
Jul 22, 2018
102
36
Illinois
Hi, first time leveling a scope. What's the best scope levels? I'm wanting one that will last. I'm mounting a leupold vx-r 1.5-4 patrol that I've got with a Leupold mount. Any recommendations? It's an older scope that I bought a few years ago. Still works like a charm though.


db2000

Supporter
Supporter
Full Member
Minuteman
Supporter+
  • Mar 27, 2020
    2,811
    2,001
    Use the search bar on here. Quite a few topics with recommendations and folks techniques


    Forrest84

    Supporter
    Supporter
    Full Member
    Minuteman
    Supporter+
    Feb 14, 2017
    745
    339
    38
    Cutt n Shoot, TX
    I line up the virticle stadia with the centerline of the action looking at it from a foot or so away….


    danatkins

    Private
    Full Member
    Minuteman
    Mar 28, 2017
    406
    151
    Deck of cards, stack of feeler gauges, ariska leveling wedges if you're a gadget whore like me.

    • Like
    Reactions: Czechvar

    TheOE800

    Supporter
    Supporter
    Full Member
    Minuteman
  • Feb 14, 2017
    1,984
    948
    USA
    Deck of cards, stack of feeler gauges, ariska leveling wedges if you're a gadget whore like me.

    I have more mounts that won’t let me get away with using the small leveler than I have mounts where I’ve been able to actually use it.


    Nightlybane

    Sergeant of the Hide
    Full Member
    Minuteman
    Jul 22, 2018
    102
    36
    Illinois
    a deck of playing cards
    I'll have to research that
    The deck of playing cards is so simple and works so good.
    I'll have to figure it out. I've never done this but I think I got an armorer to do it for $35
    I line up the virticle stadia with the centerline of the action looking at it from a foot or so away….
    Copy that.
    Deck of cards, stack of feeler gauges, ariska leveling wedges if you're a gadget whore like me.
    I love gadgets. It's what I like lol
    I have more mounts that won’t let me get away with using the small leveler than I have mounts where I’ve been able to actually use it.
    I understand that. Something I'll have to note


    TacticalPlinker

    Private
    Full Member
    Minuteman
    Mar 24, 2012
    544
    472
    54

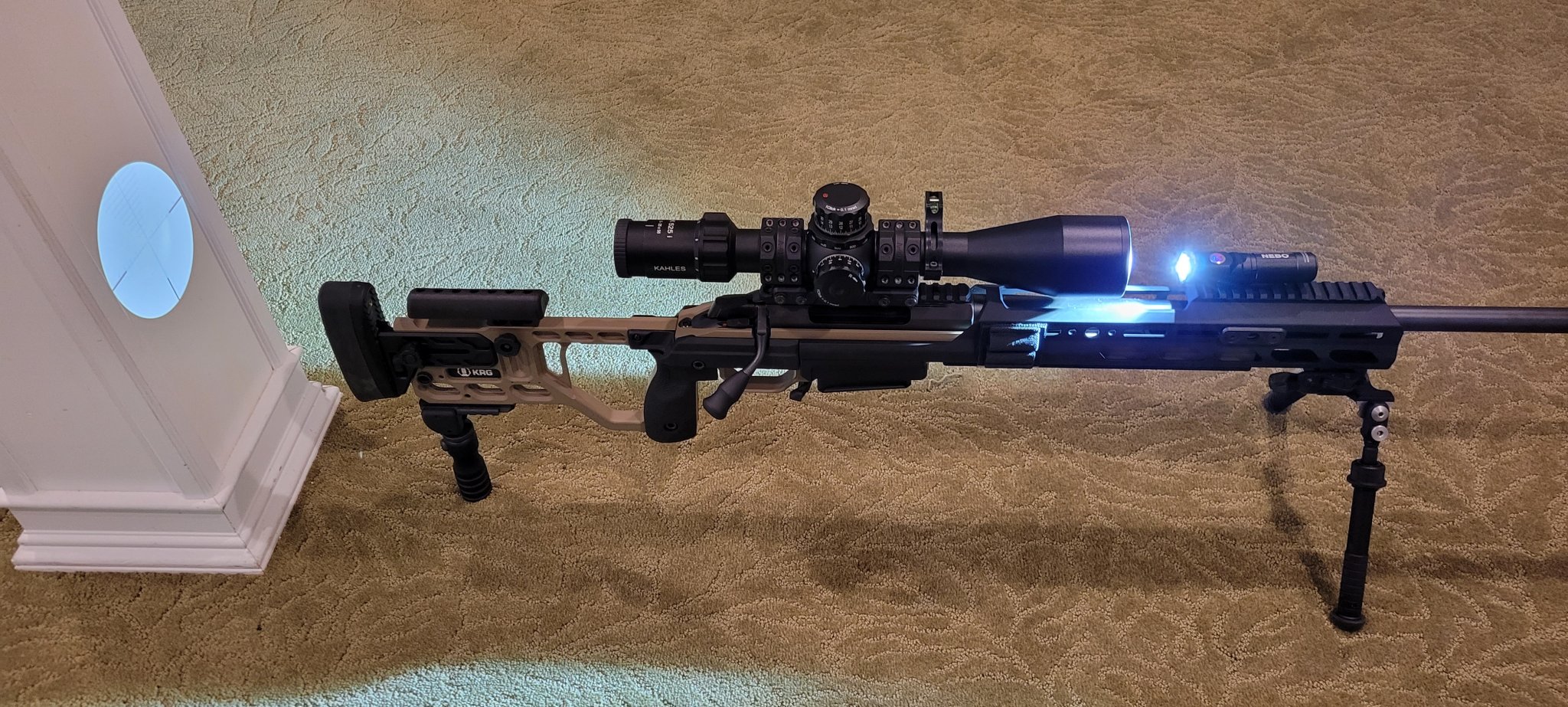

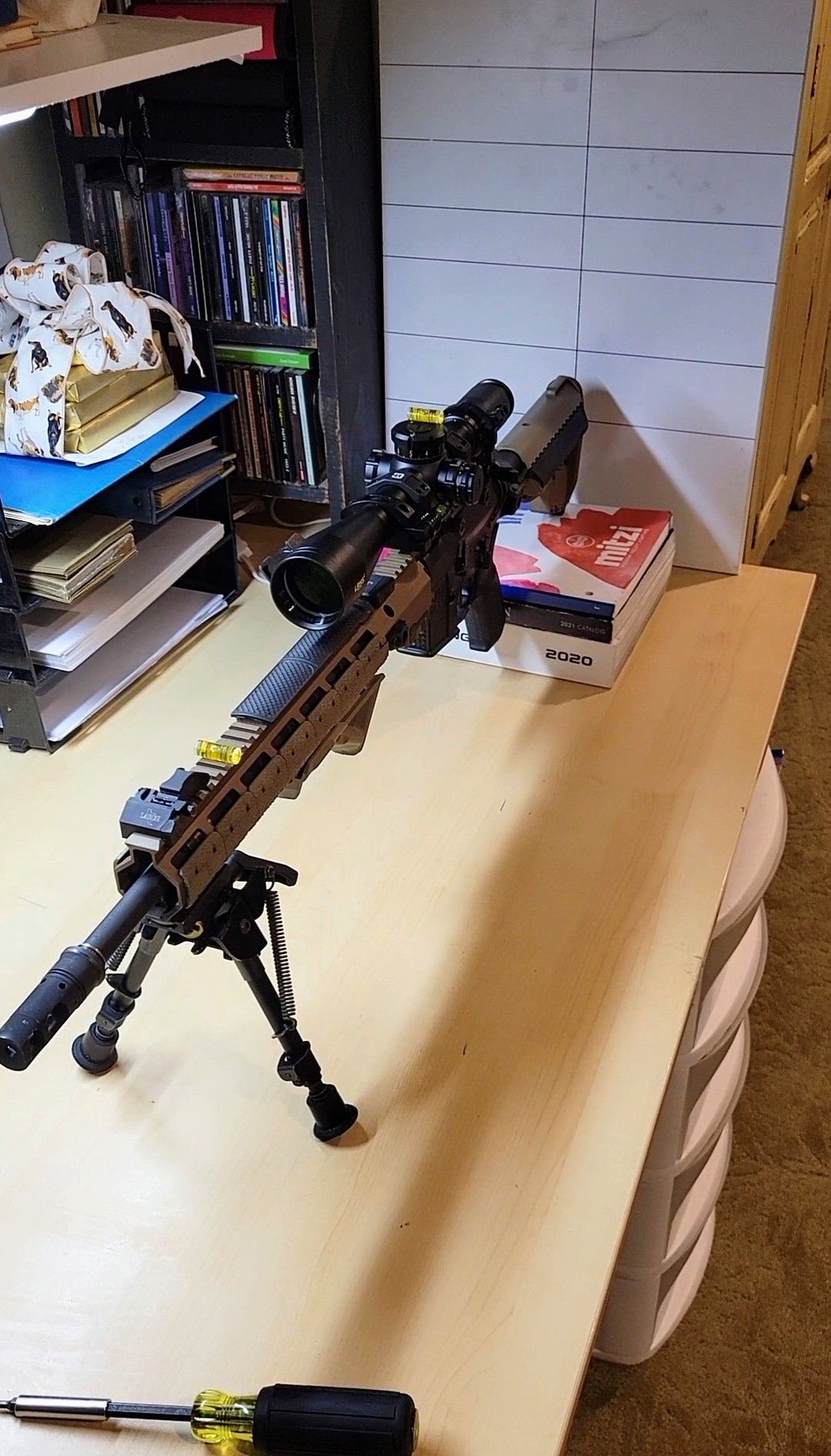

    My method: see pic
    - level table
    - level rifle
    - level scope (if possible)
    - level grid

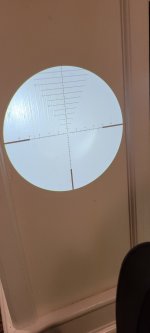

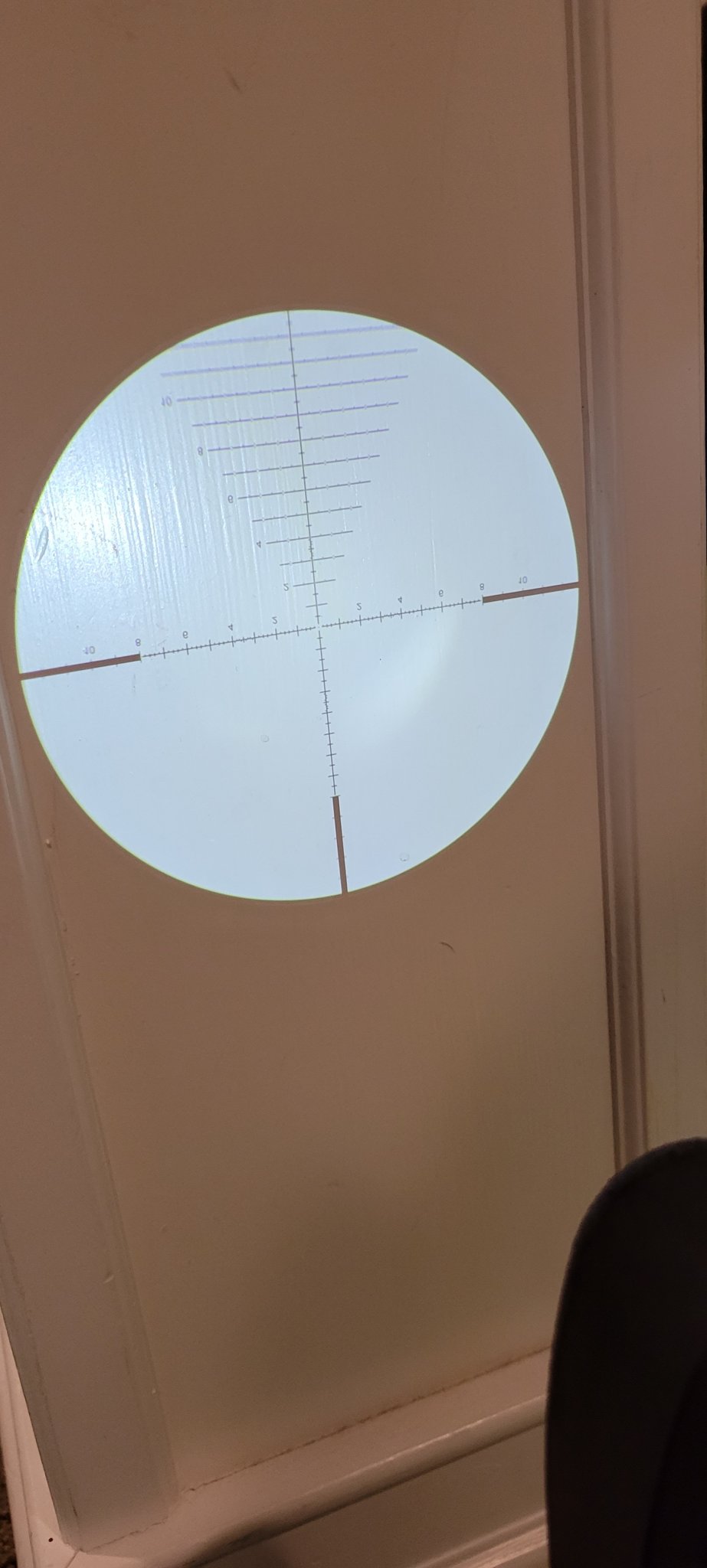

    - shine flashlight from objective thru scope to rear. Adjust Ocular focus to project sharp image on a gridded chart. Line up the vertical line of your reticle to the grid.
    - snug rings.
    - Go to range
    - Set plumb bob with thick string hanging from target backer.
    - set final alignment by aligning reticle alongside the string @ 50y for LPVO's (100y for larger scopes).
    - Lock down rings to recommend torque spec.
    - If a precision scope - then go to 100 and perform tall target test and return to zero. (See video on Hide)


    Attachments

    • 20220330_102545.jpg
      137.5 KB · Views: 32
    • 20220330_102608.jpg
      525.3 KB · Views: 32
    • Resized_Screenshot_20220323-095743_Photos~2_84688288203213~2.jpeg
      339.1 KB · Views: 31
    Last edited:
    • Like
    Reactions: JustPewIt

    Rhed

    Sergeant of the Hide
    Full Member
    Minuteman
    Apr 12, 2018
    330
    238

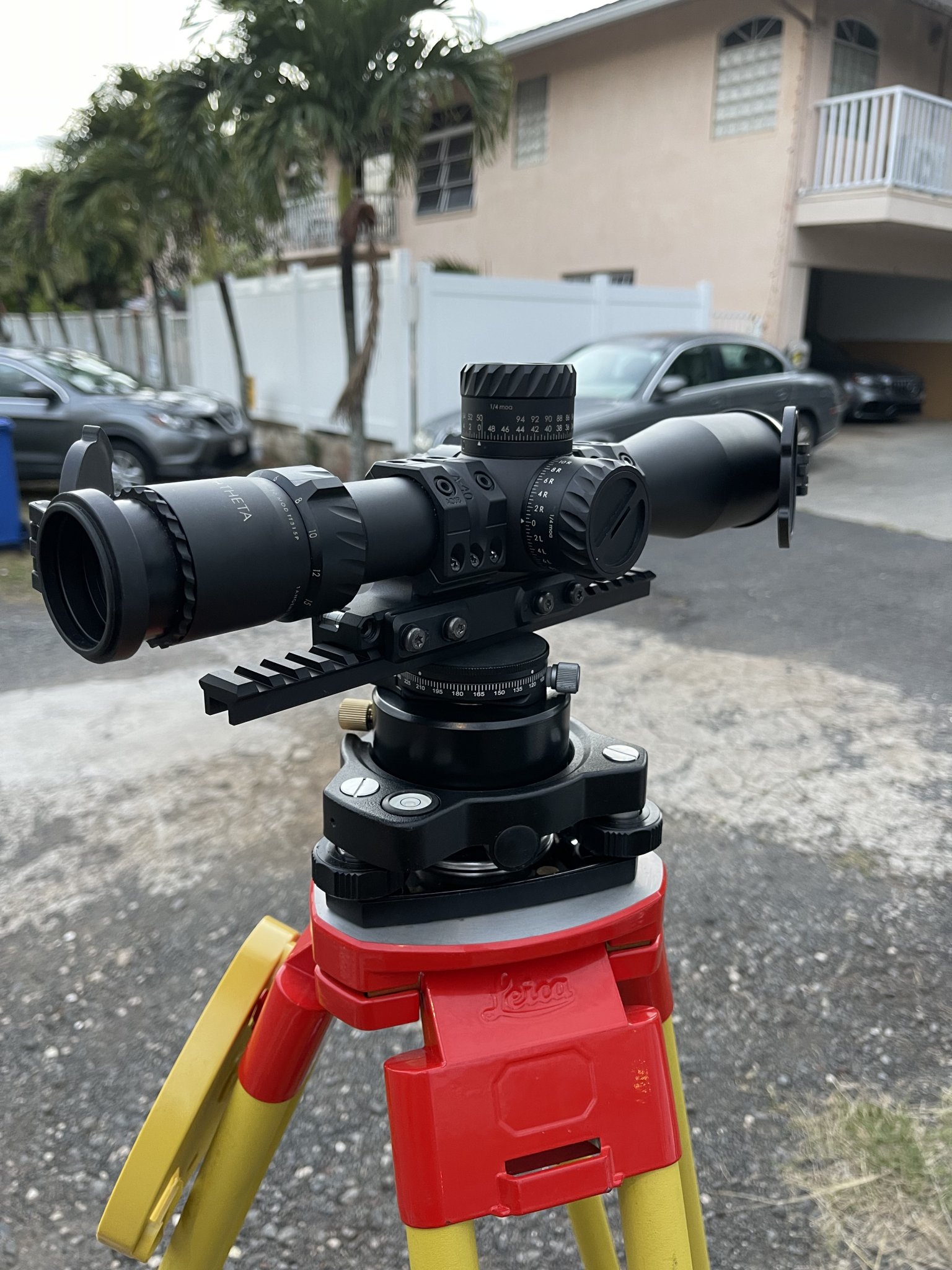

    This is my method before I mount on a rifle. I use to do surveying before. And surveying equipment is very precise which needs calibration every so often. So when I have a new scope to mount this is the method I came up with. Did this yesterday for a new scope. My property is long, so my front wall of my home is about 50 yards from the beginning of the driveway. I have a vertical laser which anyone can purchase from Home Depot or Lowes, beaming against the wall. BTW, I use Spuhr mounts on all my rifles. And that wedge they provide to level a scope has been dead on all the time. No BS.. Though I still setup to verify anyways.

    • Like
    Reactions: db2000
