Hello,

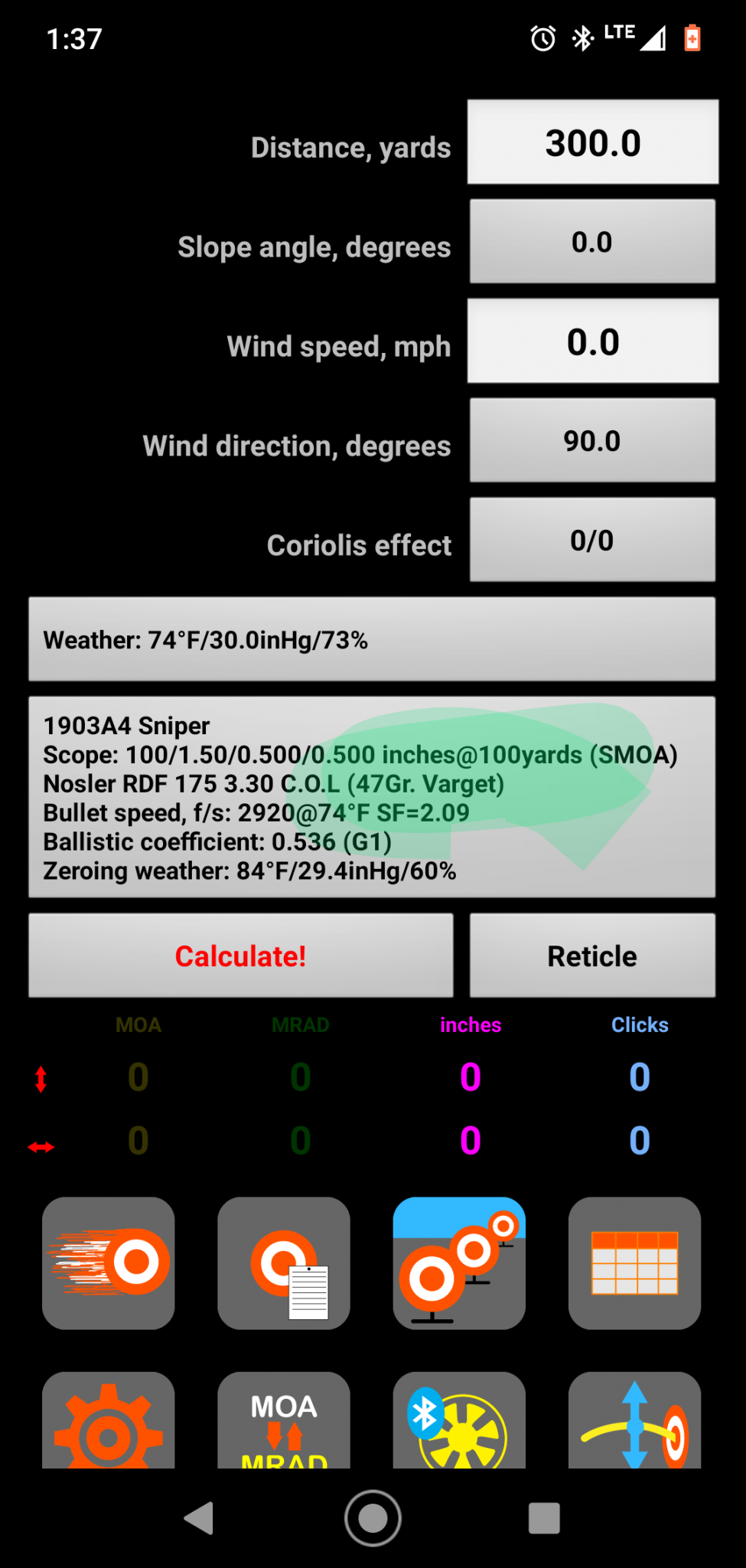

Using Strelok Pro, I zeroed my rifle in @100yds. Ballistics charts says absolute bullet drop is 2.6 inches @ 100yds. Shouldn't it be 0 inches at that distance? Any help would be appreciated.

  • Like
Reactions: Wolf47

Longrangeprecision762

Lord, make me fast and accurate.
Full Member
Minuteman
Supporter+
Jan 25, 2018
933
1,954
Michigan
Click on everything in green in that order to find the area to adjust 😉 Hope that helps


6.5SH

Old Salt
Full Member
Minuteman
Jul 24, 2020
3,855
5,852
"Absolute" drop is exactly that, the drop of the bullet at that distance given the other parameters you entered, it has nothing to do with where you are zeroed or holds.


In Strelok when in the chart section click the gear icon at the bottom and unselect that option if you don't want to see it.
Select "Show Elevation, MOA" or inches or clicks depending what you want to see.


Conaso

Private
Full Member
Minuteman
Jul 8, 2011
805
1,150
Virginia

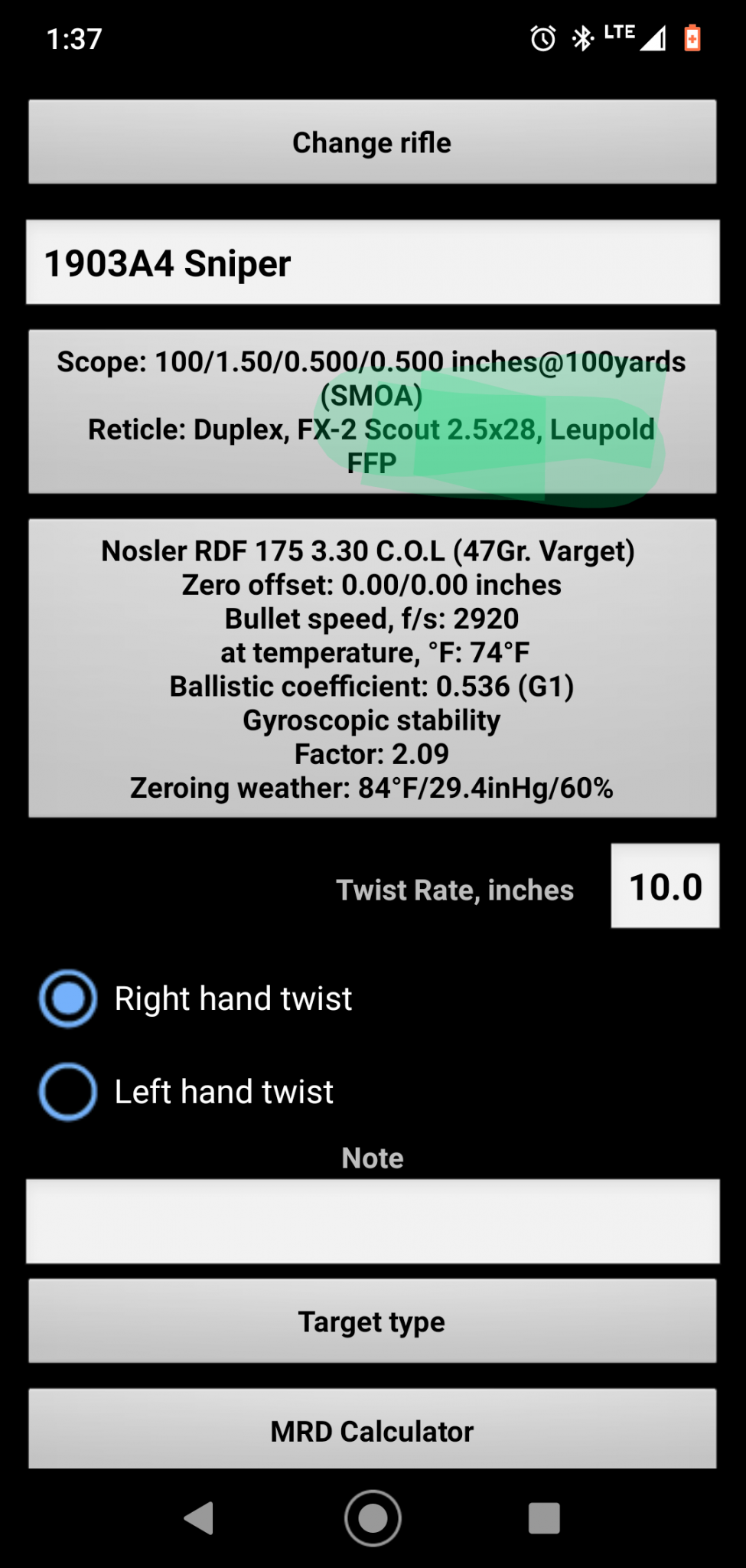

I believe you have several things incorrect in your scope set-up. The scope you selected is: Leupold FX-II 2.5 x 28mm Scout Rifle Scope: 1/4 MOA click windage and elevation dials.

1) You changed the Vert./Hor. click from 0.25" clicks to 0.5" (ERROR).
2) You also selected SCOPE CLICK UNITS of inches a 100yards (SMOA). The Scout uses MOA, not SMOA (ERROR). MOA is 1.0472" at 100yards, SMOA (SHOOTER'S Minutes Of Angle) is 1.0". Not a major difference but still will cause you problems.
3) Look at the ballistic table (TABLE icon, far right), then turn off SHOW ABSOLUTE DROP, INCHES. Absolute Drop – regardless of zero distance, drop measured from bore-line at distances as if the rifle was fired perfectly level at 0°. Useful, but typically only used in INCLINED FIRE calculations.
4) What you should select is SHOW ELEVATION, MOA and SHOW ELEVATION, MOA.
5) There are some other options you can choose such as SHOW ELEV./WINDAGE, INCHES and in the HOME menu option (GEAR icon) SHOW CLICKS in 1 3/4 layout but I would stick with correcting #1 through #4 first.

I didn't go any further in research since the screen shots were limited and these issues are enough to cause you problems.

  • Like
Reactions: iceng

TacticalDillhole

Shiner of shoes
Supporter
Full Member
Minuteman
Supporter+
  • Jun 26, 2012
    8,686
    10,921
    Orlando, FL
    "Absolute" drop is exactly that, the drop of the bullet at that distance given the other parameters you entered, it has nothing to do with where you are zeroed or holds.


    In Strelok when in the chart section click the gear icon at the bottom and unselect that option if you don't want to see it.
    Select "Show Elevation, MOA" or inches or clicks depending what you want to see.
    Yes. A zeroed rifle still has a drop. Gravity always exists.


    Longrangeprecision762

    Lord, make me fast and accurate.
    Full Member
    Minuteman
    Supporter+
    Jan 25, 2018
    933
    1,954
    Michigan
    I believe you have several things incorrect in your scope set-up. The scope you selected is: Leupold FX-II 2.5 x 28mm Scout Rifle Scope: 1/4 MOA click windage and elevation dials.

    1) You changed the Vert./Hor. click from 0.25" clicks to 0.5" (ERROR).
    2) You also selected SCOPE CLICK UNITS of inches a 100yards (SMOA). The Scout uses MOA, not SMOA (ERROR). MOA is 1.0472" at 100yards, SMOA (SHOOTER'S Minutes Of Angle) is 1.0". Not a major difference but still will cause you problems.
    3) Look at the ballistic table (TABLE icon, far right), then turn off SHOW ABSOLUTE DROP, INCHES. Absolute Drop – regardless of zero distance, drop measured from bore-line at distances as if the rifle was fired perfectly level at 0°. Useful, but typically only used in INCLINED FIRE calculations.
    4) What you should select is SHOW ELEVATION, MOA and SHOW ELEVATION, MOA.
    5) There are some other options you can choose such as SHOW ELEV./WINDAGE, INCHES and in the HOME menu option (GEAR icon) SHOW CLICKS in 1 3/4 layout but I would stick with correcting #1 through #4 first.

    I didn't go any further in research since the screen shots were limited and these issues are enough to cause you problems.
    That is my set up for a Camp Perry rifle with a totally different scope than the Leupold that I selected. I had to fudge the adjustments and options to make S.P. work for that rifle and scope combo.

    I am not the O.P. I was just offering advice for him to check the zero settings. I believe 6.5sh has given him the information that he needs to correct his issue.

    Kind Regards,

    Jon

    • Like
    Reactions: 6.5SH

    Conaso

    Private
    Full Member
    Minuteman
    Jul 8, 2011
    805
    1,150
    Virginia
    That is my set up for a Camp Perry rifle with a totally different scope than the Leupold that I selected. I had to fudge the adjustments and options to make S.P. work for that rifle and scope combo.

    I am not the O.P. I was just offering advice for him to check the zero settings. I believe 6.5sh has given him the information that he needs to correct his issue.

    Kind Regards,

    Jon

    Sorry, my bad. Senior moment.


    iceng

    Non-Privates
    Full Member
    Minuteman
    Sep 2, 2017
    1,275
    1,163
    South Aus
    www.iceng.com.au
    Yes. A zeroed rifle still has a drop. Gravity always exists.
    Dude. Rifle bullets dont work like that. You point at a target, yank the trigger and the bullet hits the target.

    The whole "bullet drop" myth and "time of flight" thing is a joke we play on newbies. Havnt you played call-o-doody ?

    I await my punishment.


    6.5SH

    Old Salt
    Full Member
    Minuteman
    Jul 24, 2020
    3,855
    5,852
    Dude. Rifle bullets dont work like that. You point at a target, yank the trigger and the bullet hits the target.

    The whole "bullet drop" myth and "time of flight" thing is a joke we play on newbies. Havnt you played call-o-doody ?

    I await my punishment.
    It's all in the wrist:


    • Haha
    • Like
    Reactions: Ensemble and iceng

    Barelstroker

    Gunny Sergeant
    Full Member
    Minuteman
  • Sep 11, 2019
    780
    374

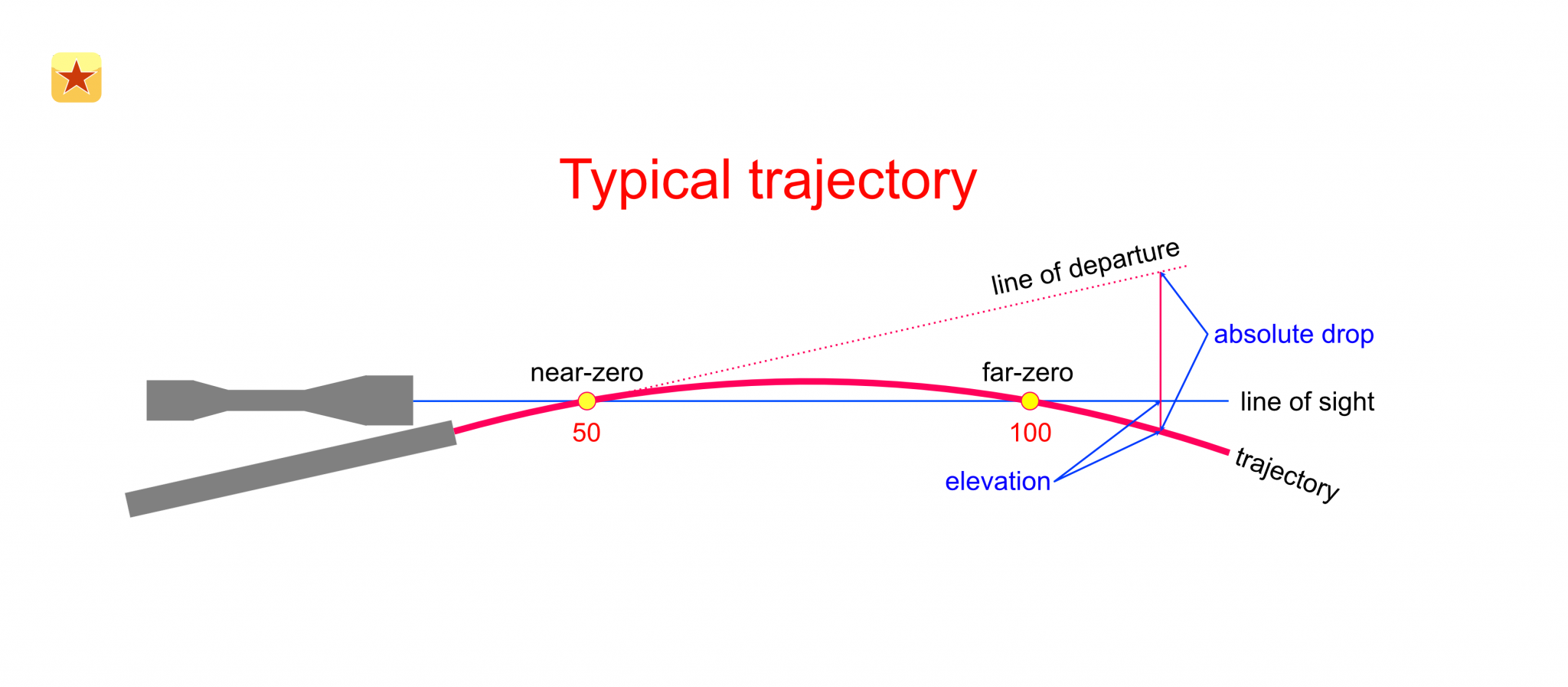

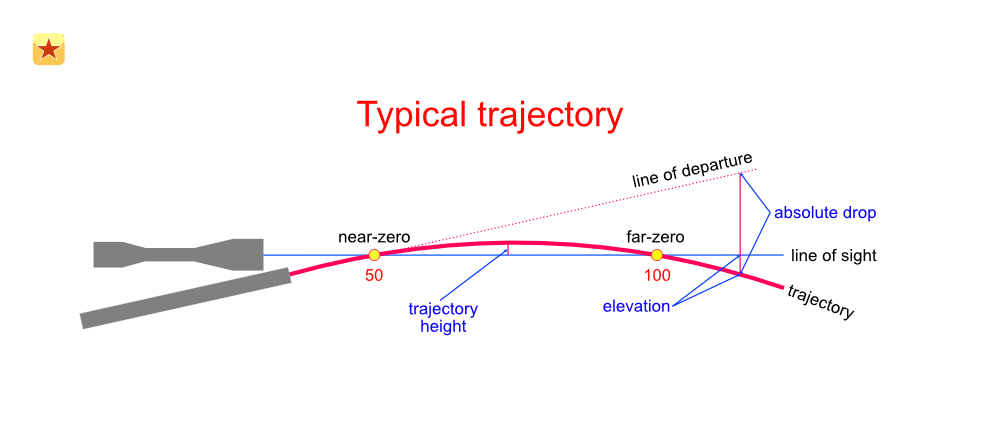

    You're confusing "absolute drop" with flight path above or below the line of sight. (Ordinate)
    The bullet starts dropping from the bore line the moment it leaves the barrel regardless of the angle of departure.
    The "ordinate" is the amount of vertical angle the bullet is set at via the angle of the barrel at bullet departure which is usually tracking on a relatively upward path for part of it's trajectory but, from the perspective of the angle of ordinate, the bullet drops down from the line of sight along the rifle bore, immediately it leaves the barrel.


    Barelstroker

    Gunny Sergeant
    Full Member
    Minuteman
  • Sep 11, 2019
    780
    374
    Thank you. Have you tested Speed Drop Factor feature, are you satisfied?
    Yes, thank you for a great product.
    I've been using Strelock pro for 18 months maybe 2 years & prefer it over the others I've used.
    It's so damn easy & fast when I want to adjust wind & such.
    Yes, I have been tinkering with the "SDF" charts & I like it a lot.


    st1650

    Private
    Full Member
    Minuteman
    Aug 13, 2009
    1,420
    1,406
    36
    Yes, thank you for a great product.
    I've been using Strelock pro for 18 months maybe 2 years & prefer it over the others I've used.
    It's so damn easy & fast when I want to adjust wind & such.
    Yes, I have been tinkering with the "SDF" charts & I like it a lot.
    Where is the SDF chart ?


    Barelstroker

    Gunny Sergeant
    Full Member
    Minuteman
  • Sep 11, 2019
    780
    374
    Where is the SDF chart ?

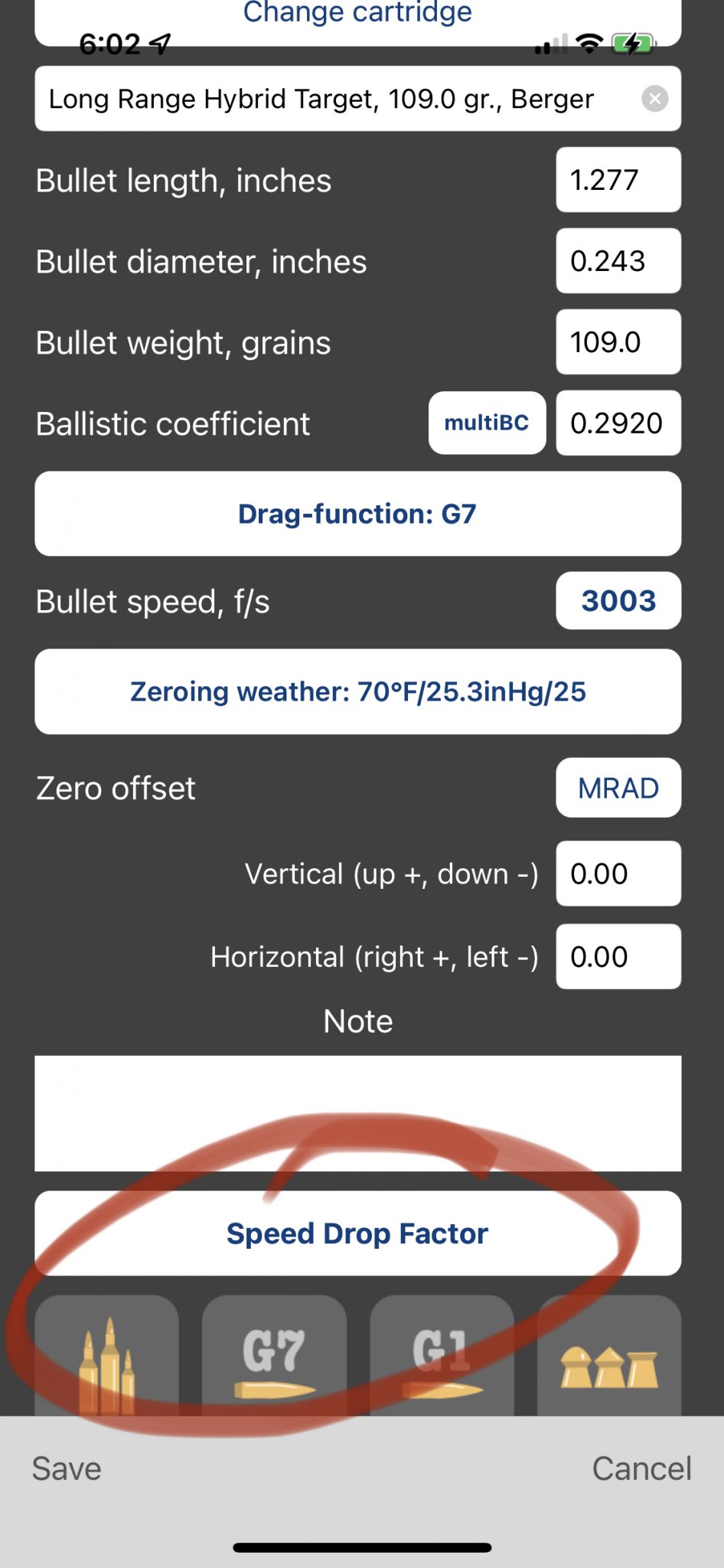

    It's 3/4 the way down the projectile data input screen.
    So from the main "shoot data" screen where you see the the "calculate button, just tap on the rifle type box directly above the "calculate button then, tap on the projectile data box which comes up in the new page. Scroll down to where you see the "G1, G7 etc buttons & it's right above those. Tap that "speed drop factor button" & you'll see the chart/table for your projectile & velocity.


    6.5SH

    Old Salt
    Full Member
    Minuteman
    Jul 24, 2020
    3,855
    5,852
    Where is the SDF chart ?
    Screenshots and discussion on it towards the bottom of this thread:



    Barelstroker

    Gunny Sergeant
    Full Member
    Minuteman
  • Sep 11, 2019
    780
    374
    It's 3/4 the way down the projectile data input screen.
    So from the main "shoot data" screen where you see the the "calculate button, just tap on the rifle type box directly above the "calculate button then, tap on the projectile data box which comes up in the new page. Scroll down to where you see the "G1, G7 etc buttons & it's right above those. Tap that "speed drop factor button" & you'll see the chart/table for your projectile & velocity.
    If you're not familiar with how DSF works with the scope, you have to (-)/ under your 100yrd/meter zero then use your reticle & match the distance with the reticle.
    Once you've set the scope zero to say -1.4 mil, the ret should align with the distance numbers within the window the data allows for. So you should get say 334 meters = 3.3 mil & so on but, only within the drop scale factor & only at the medium ranges.


    st1650

    Private
    Full Member
    Minuteman
    Aug 13, 2009
    1,420
    1,406
    36
    It's 3/4 the way down the projectile data input screen.
    So from the main "shoot data" screen where you see the the "calculate button, just tap on the rifle type box directly above the "calculate button then, tap on the projectile data box which comes up in the new page. Scroll down to where you see the "G1, G7 etc buttons & it's right above those. Tap that "speed drop factor button" & you'll see the chart/table for your projectile & velocity.

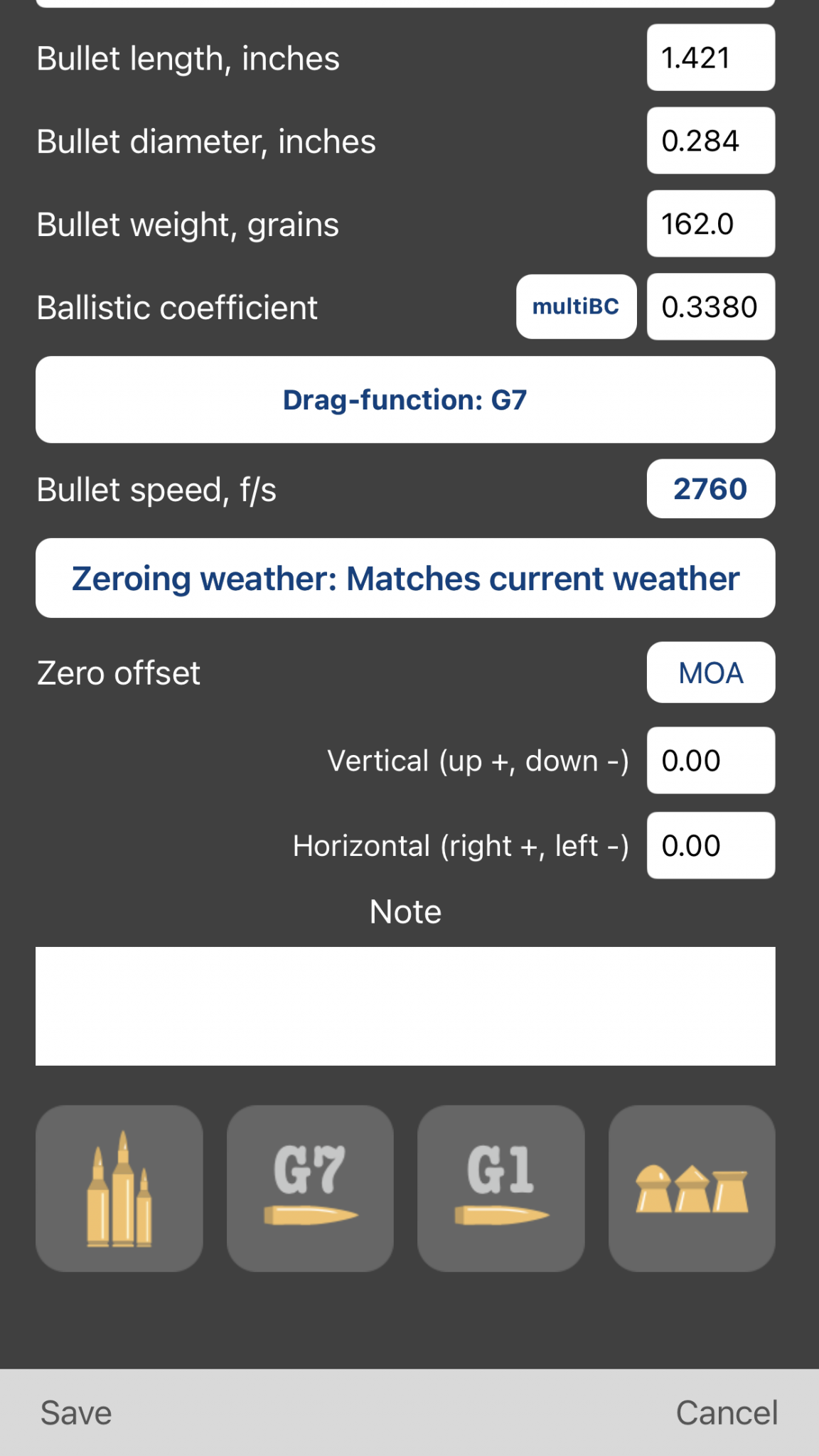

    Yeah it’s not there on IOS ... or maybe I’m utterly retarded


    Attachments

    • C959E47F-FDCB-4BB2-A227-9091BE851F27.png
      311.3 KB · Views: 17

    st1650

    Private
    Full Member
    Minuteman
    Aug 13, 2009
    1,420
    1,406
    36
    Well it’s obvious not on mine. That’s why I asked if is needs to be enabled somewhere or are there bullets profiles it’s not there.


    Edit. Actually I found it on other bullet profiles but not for my 7SAW 162. Probably wasn’t meeting some kind of conditions.


    6.5SH

    Old Salt
    Full Member
    Minuteman
    Jul 24, 2020
    3,855
    5,852
    Well it’s obvious not on mine. That’s why I asked if is needs to be enabled somewhere or are there bullets profiles it’s not there.


    Edit. Actually I found it on other bullet profiles but not for my 7SAW 162. Probably wasn’t meeting some kind of conditions.
    You probably have an MOA scope on that rifle profile.
